SUNROOF ASSEMBLY

TSB Revision

BODY

42-195

ON-VEHICLE SERVICE

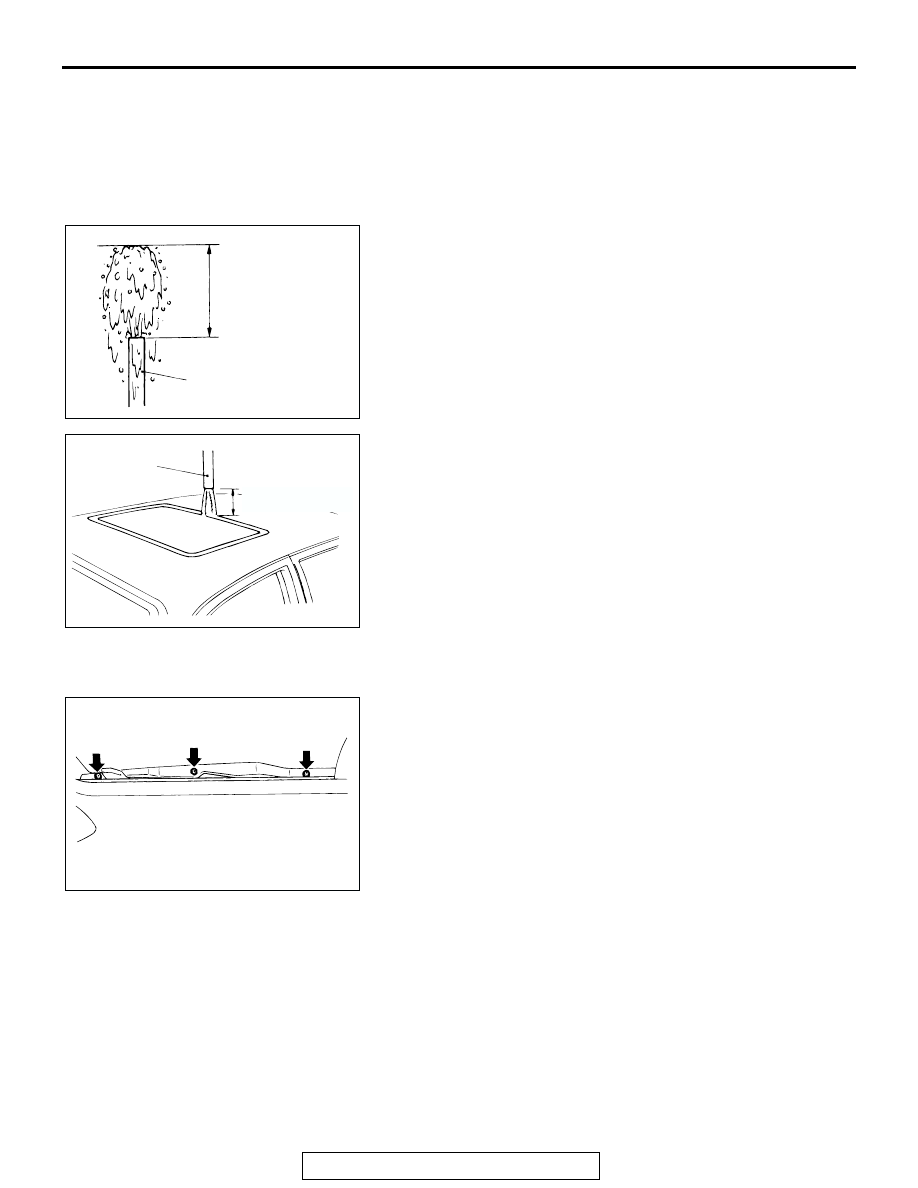

WATER TEST

M1426000900155

Check if there are any leaks in the sunroof by the following pro-
cedure.
1. Fully close the roof lid glass.
2. Adjust the water pressure so that water comes out of the

hose to a height of approximately 50 cm (19.7 inches) when
the hose is held vertically facing upwards.

3. Hold the end of the hose approximately 30 cm (11.8 inches)

above the roof and let the water run onto the weatherstrip for
5 minutes or more.

4. Check that there is no water leak while letting the water run

onto the roof. Some water will leak around the roof lid glass,
but do not judge this as a malfunction. If the water does not
leak through the sunroof housing drip channel, it is normal.

5. In the event of leakage, check the drain pipe, weatherstrip

contact and others.

SUNROOF FIT ADJUSTMENT

M1426001000155

With the sunroof in the closed position, adjust the sunroof glass
to 1 mm (0.04 inch) below roof surface at front of the glass and
1 mm (0.04 inch) above roof surface at rear of the glass and
tighten the sunroof glass attaching screws. Check that the
clearance between the roof lid glass and body edge is even
around the circumference.

AC004051

APPROXIMATELY
50 cm (19.7 in)

HOSE

AB

AC004052

HOSE

AB

APPROXIMATELY
30 cm (11.8 in)

AC004053

SUNROOF ASSEMBLY

TSB Revision

BODY

42-196

 OPERATION CHECK

M1426002600161

Check the following items. If defective, replace the sunroof control unit.

CAUTION

Check that the following items are normal before carrying out this operation check.

1. Installation condition of the sunroof assembly
2. Installation, condition and foreign material of the sunroof drive cable
3. Improper fit of sunroof glass
4. Sunroof switch and sunroof motor assembly

Basically operation

NO. SUNROOF INITIAL

POSITION

SWITCH OPERATION

JUDGMENT
(NORMAL)

01

Fully closed

1. Ignition switch: "ON"
2. Sunroof switch: OPEN
3. Sunroof switch: Release the OPEN button

(Before tilt-up finishes)

The sunroof tilts up by
switch operation 2, and
stops by switch
operation 3

02

Fully closed

1. Ignition switch: "ON"
2. Sunroof switch: OPEN (Keep pressing the

OPEN button)

The sunroof moves to
the tilt-up position and
stops.

03

Tilt up

1. Ignition switch: "ON"
2. Sunroof switch: OPEN

The sunroof slides back
from the tilt-up position
toward the fully-open
position, and then
stops.

04

Tilt up

1. Ignition switch: "ON"
2. Sunroof switch: CLOSE

The sunroof closes
from the tilt-up position.

05

Fully open

1. Ignition switch: "ON"
2. Sunroof switch: CLOSE
3. Sunroof switch: CLOSE (Release the

CLOSE button)

The sunroof moves
forward by switch
operation 2, and stops
by switch operation 3.

SUNROOF ASSEMBLY

TSB Revision

BODY

42-197

Jam preventing mechanism

NO. SUNROOF INITIAL

POSITION

SWITCH OPERATION

JUDGMENT
(NORMAL)

01

Fully closed

1. Ignition switch: "ON"
2. Sunroof switch: OPEN

Block the sunroof between fully closed
position and tilted position.

Sunroof moves until the
blocking force reaches
98N (22 lb). At this time
check the current to the
sunroof motor. If the
motor stops at more
than 15 A, the motor is
normal. [Approximately
15 A at 98 N (22 lb)]

02

Tilt

1. Ignition switch: "ON"
2. Sunroof switch: OPEN

Block the sunroof between fully tilted
position* and fully open position.

Sunroof moves until the
blocking force reaches
98 N (22 lb). Sunroof
stops when the force
has reached 98 N (22
lb).

03

Fully open

1. Ignition switch: "ON"
2. Sunroof switch: CLOSE

Block the sunroof at 200 mm (7.9 in) before
the sunroof is fully closed.

Sunroof moves until the
blocking force reaches
98 N (22 lb). Sunroof
stops in one seconds
after the blocking force
has reached 98 N (22
lb).

04

Fully open

1. Ignition switch: "ON"
2. Sunroof switch: CLOSE

Block the sunroof at 5 mm (0.2 in) before
the sunroof is fully closed.

Sunroof moves toward
closed until the
blocking force reaches
98 N (22 lb). Then the
sunroof moves back
toward open when the
blocking force reaches
98 N (22 lb) and stops
after second.

05

Fully open

1. Ignition switch: "ON"
2. Sunroof switch: CLOSE

Block the sunroof at 3 mm (0.1 in) before
the sunroof is fully closed.

Sunroof moves toward
closed until the
blocking force reaches
98 N (22 lb). Then the
sunroof stops when the
blocking force reaches
98 N (22 lb). (The
sunroof does not move
back toward open.)

06

Fully open

1. Ignition switch: "ON"
2. Sunroof switch: CLOSE

Block the sunroof at 18 mm (0.7 in) before
the sunroof is fully closed.

Sunroof moves toward
closed before the
blocking force reaches
98 N (22 lb). Then the
sunroof moves back
toward open when the
blocking force reaches
98 N (22 lb) and stops
after one second.

SUNROOF ASSEMBLY

TSB Revision

BODY

42-198

07

Fully open

1. Ignition switch: "ON"
2. Sunroof switch: CLOSE

Block the sunroof at 16 mm (0.6 in) before
the sunroof is fully closed.

Sunroof moves toward
closed until the
blocking force reaches
98 N (22 lb). Then the
sunroof stops when the
blocking force reaches
98 N (22 lb). (The
sunroof does not move
back toward open.)

08

Fully closed

1. Ignition switch: "ON"
2. Sunroof switch: OPEN
3. Sunroof switch: Release the OPEN button

1. Sunroof tilts up.
2. Sunroof stops

before tilt-up
finishes.

09

Tilt up

1. Ignition switch: "ON"
2. Sunroof switch: CLOSE
3. Ignition switch: OFF (Before the sunroof is

fully open)

1. Sunroof moves

toward open.

2. Sunroof stops.

10

Fully open

1. Ignition switch: "ON"
2. Sunroof switch: CLOSE
3. Ignition switch: OFF (Before tilt-up finishes)

1. Sunroof tilts up.
2. Sunroof stops

11

Tilt up

• Ignition switch: "ON"

• Sunroof switch: OPEN

Block the sunroof between fully tilted
position and fully open position.

Sunroof moves toward
closed until the
blocking force reaches
98 N (22 lb). Then the
sunroof stops when the
blocking force reaches
98 N (22 lb).

NO. SUNROOF INITIAL

POSITION

SWITCH OPERATION

JUDGMENT
(NORMAL)
