WINDOW GLASS

TSB Revision

BODY

42-19

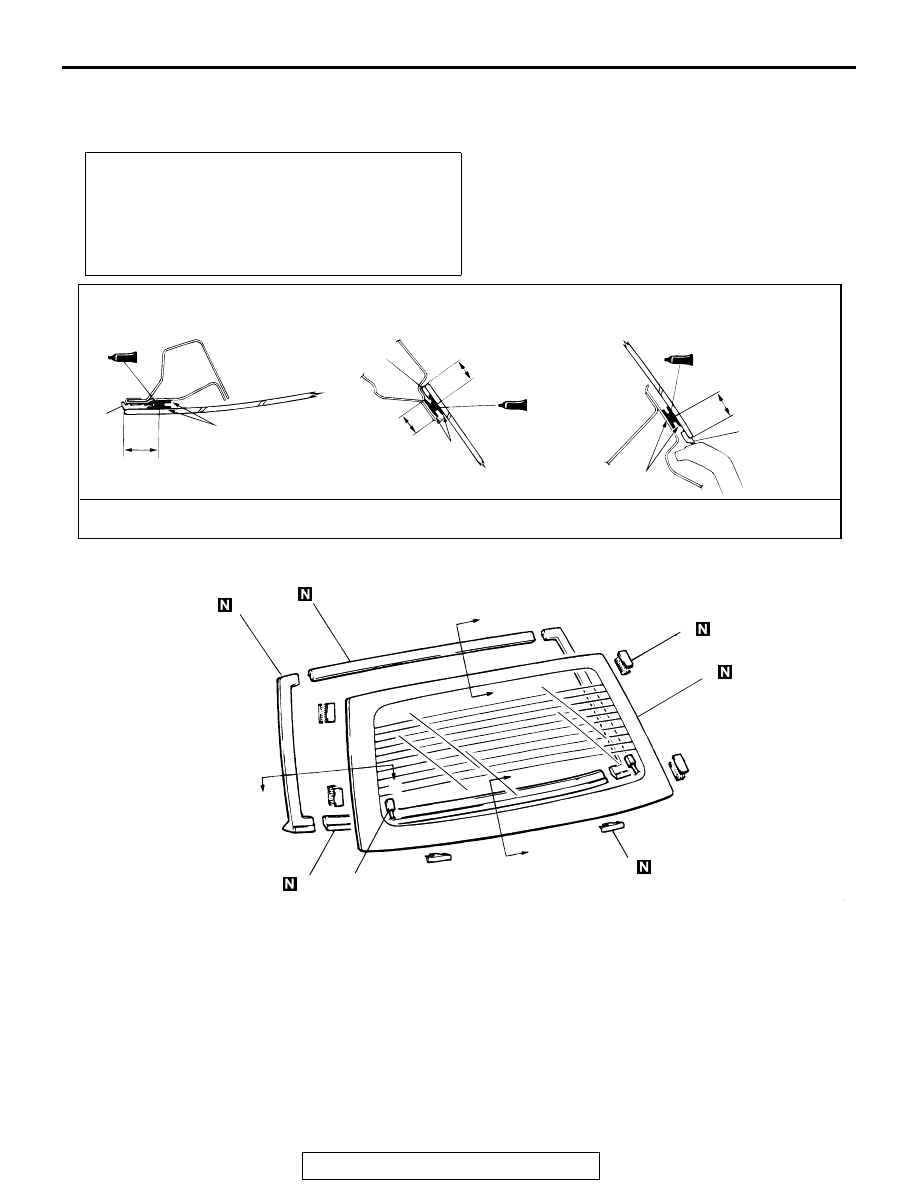

LIFTGATE WINDOW GLASS

REMOVAL AND INSTALLATION

M1422003700192

Pre-removal and Post-installation Operation
• Liftgate Garnish Removal and Installation (Refer to

GROUP 51, Grill, Molding and Garnish

P.51-6

.)

• High Mounted Stoplight Removal and Installation (Refer

to GROUP 54, High-mounted Stoplight

P.54-173

.)

• Liftgate Trim Removal and Installation (Refer to

P.52A-41

.)

AC003766

4

A

B

B

C

C

SECTION A – A

SECTION B – B

SECTION C – C

UNIT: mm(in)

ADHESIVE: 3M™ AAD PART NO. 8609 SUPER FAST URETHANE AND 3M™ AAD PART NO. 8608 SUPER FAST
URETHANE PRIMER OR EQUIVALENT

16(0.6)

25(1.0)

PRIMER

PRIMER

PRIMER

19.5(0.77)

3

5

4

2

16(0.6)

A

3

1

7

6

5

REMOVAL STEPS
1. HARNESS CONNECTOR

<<A>> >>A<<

2. LIFTGATE WINDOW GLASS

>>A<<

3. LIFTGATE WINDOW GLASS UPPER

DAM

>>A<<

4. LIFTGATE WINDOW GLASS SIDE

DAM

>>A<<

5. LIFTGATE WINDOW GLASS

LOWER DAM

>>A<<

6. DUAL LOCK FASTENER

>>A<<

7. CLIP

REMOVAL STEPS (Continued)

WINDOW GLASS

TSB Revision

BODY

42-20

REMOVAL SERVICE POINT

.

<<A>> LIFTGATE WINDOW GLASS REMOVAL
Remove the liftgate window glass using the same procedure as
for the windshield. (Refer to

P.42-14

.)

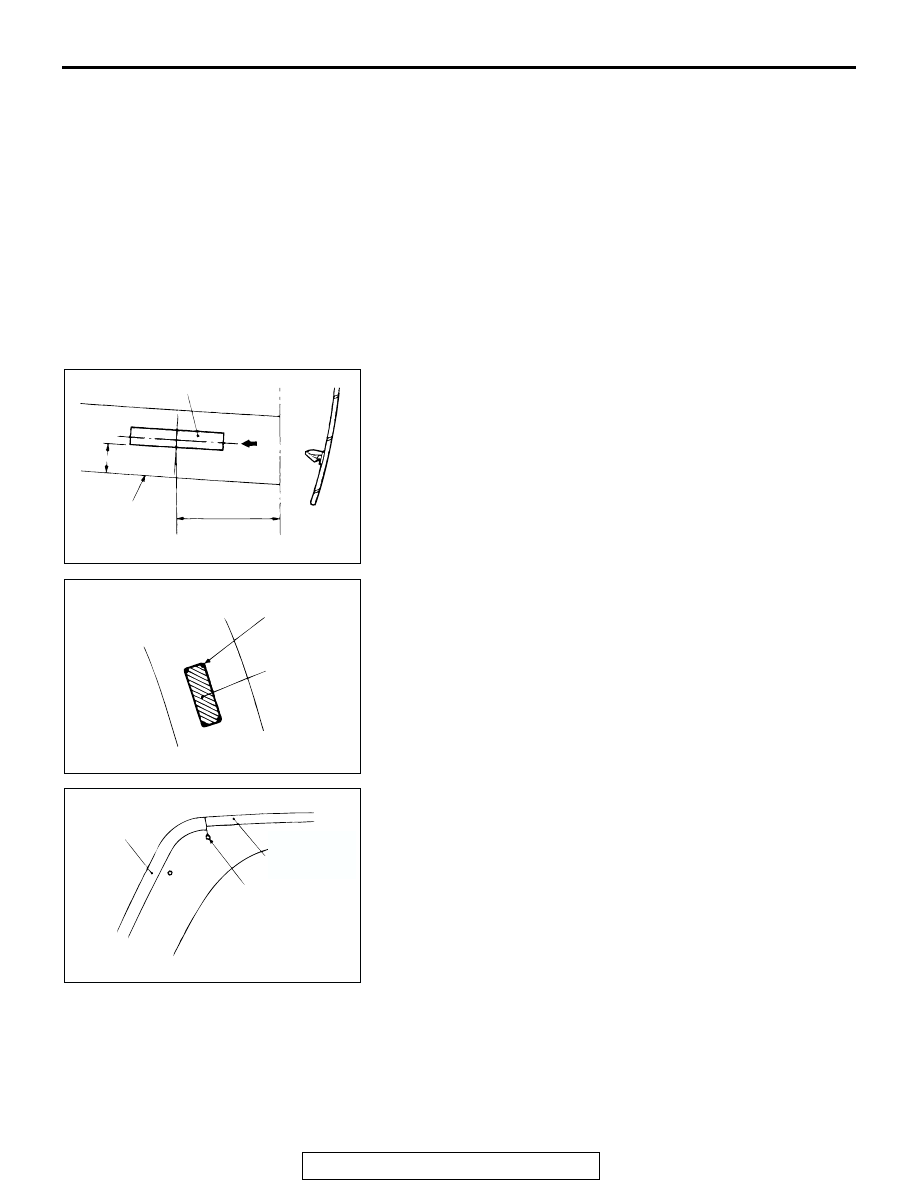

INSTALLATION SERVICE POINT

.

>>A<< CLIP/DUAL LOCK FASTENER/LIFTGATE WINDOW
GLASS LOWER DAM/LIFTGATE WINDOW GLASS SIDE
DAM/LIFTGATE WINDOW GLASS UPPER DAM/LIFTGATE
WINDOW GLASS
1. Use 3M

 AAD Part number 8906 or equivalent to degrease

the inside and outside edges of the liftgate window glass
and the surface of the body flange.

2. Face the clip's claws downward, and attach to the inner side

of the liftgate window glass as shown in the illustration.

3. Align the dual lock fastener to the markings on the glass,

and install. Then, install the liftgate outer panel so that it is
aligned.

4. Attach the liftgate glass dam from the dam attachment

reference mark to the edge of the glass.

5. Apply primer and adhesive. (Refer to .)
6. Install the glass in the same way as for the windshield.

(Refer to

P.42-14

.)

AC003767AB

VIEW A

A

350 mm(13.8 in)

GLASS EDGE

36 mm
(1.4 in)

CLIP

CENTER

AC003767

MARKING

AB

DUAL LOCK
FASTENER

AC003769

LIFTGATE
GLASS SIDE
DAM

AB

LIFTGATE
GLASS
UPPER DAM

DAM ATTACHMENT
REFERENCE MARK
(CERAMIC WHITE
OUT)

DOOR

TSB Revision

BODY

42-21

DOOR

GENERAL DESCRIPTION

M1423000100172

OPERATION

.

CENTRAL DOOR LOCKING SYSTEM
The central door locking system operates the door
lock actuator to lock or unlock the doors using the
operation of the door lock switch or key built into the
driver's side inside door lock knob and power window
(main or sub) switch. The system has the following
operations and features:

• All doors can be locked or unlocked using the

door (LH or RH) key cylinder key operation.

• All doors can be locked using the driver's inside

door lock knob.

• All doors can be locked using the door lock

switch built into the power window (main or sub)
switch.

• You cannot lock an open door if the key is in the

ignition switch. The key reminder function auto-
matically unlocks all doors when the door is
locked.

.

POWER WINDOWS
Power windows are used in all vehicles. When the
power window (main or sub) switch is operated, the
door windows will open or close. This system has the
following operations and features:

• When the power window (main or sub) switch is

depressed (UP or DOWN) with the ignition switch
in the "ON" position, current flows through fusible
link number 4 to the power window motor. This
energizes the power window motor, causing the
door window glass to open or close.

• When all doors are closed and the ignition is

turned off, the power windows can be operated
for 30 seconds from the time the ignition is turned
off.

• When the power window lock switch is placed in

the "LOCK" (OFF) position, no switch other than
the main switch at the driver's side window can
operate the power window motor.

• The power window motor has a circuit breaker

that protects the motor from damage caused by
excessive current.

DOOR

TSB Revision

BODY

42-22

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

INTRODUCTION TO CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

M1427002400052

The central door locking system is controlled by the
ETACS-ECU. By operating the door key, inside door
lock knob or door lock switch, the ETACS-ECU lock
or unlock the door lock actuator. If the following type
of symptom occurs, there may be a fault.

• None of the door lock functions operate.

• There is a door that does not lock or unlock when

the door key, inside door lock knob or door lock
switch is operated.

CENTRAL DOOR LOCKING SYSTEM TROUBLESHOOTING STRATEGY

M1427002100051

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
central door locking system fault.

• Gather information from the customer.

• Verify that the condition described by the cus-

tomer exists.

• Follow the Symptom Chart and find the fault.

TROUBLE SYMPTOM CHART

M1427001800057

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

Only the ETACS-ECU input signal cannot be checked using
the scan tool (MUT-III sub assembly).

1

P.42-23

None of the door lock functions operate.

2

P.42-25

The other door(s) do(es) not lock or unlock by the door lock
switch or the front passenger's side door lock key cylinder.
(However, they can be operated by the driver's inside door
lock knob.)

3

P.42-30

The other door(s) do(es) not lock or unlock by the driver's
inside door lock knob or driver's side door lock key cylinder.

4

P.42-45

Some doors do not lock or unlock.

5

P.42-56

Forgotten key prevention function does not operate (center
door locking system function works normally) <Vehicles with
keyless entry system>.

6

P.42-80
