DRIVE SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-25

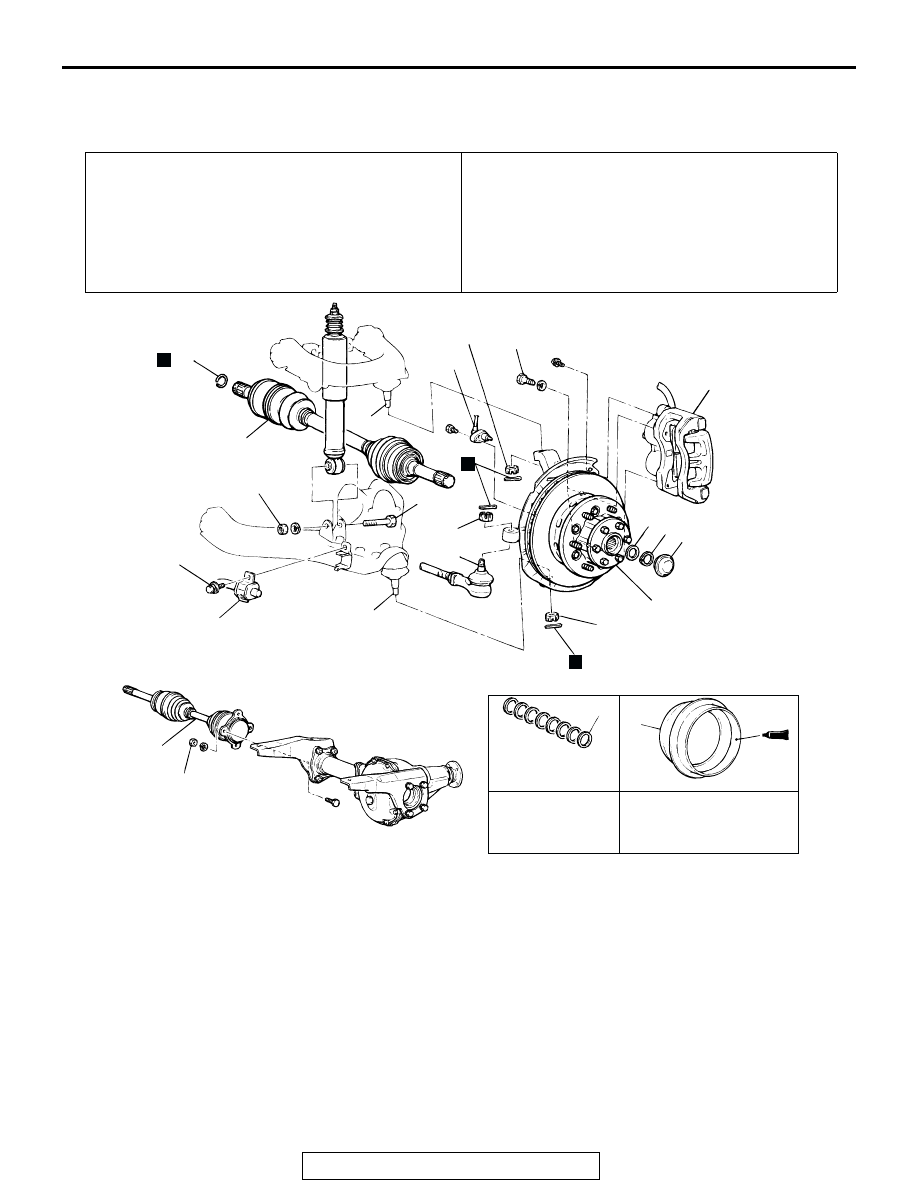

DRIVE SHAFT ASSEMBLY

REMOVAL AND INSTALLATION

M1261003500485

Required Special Tool:

• MB991897: Ball Joint Remover

Pre-removal Operation
• Under Cover Removal (Refer to GROUP 42, Under cover

P.42-207

.)

• Gear Oil Draining (Refer to

P.26-14

.)

 Post-installation Operation
• Press the dust cover with a finger to check whether the

dust cover is cracked or damaged.

• Gear Oil Supplying (Refer to

P.26-14

.)

• Under Cover Installation (Refer to GROUP 42, Under

cover

P.42-207

.)

• Wheel Alignment Check and Adjustment (Refer to

GROUP 33A, On-vehicle Service

P.33A-3

.)

AC004699 AB

FRONT HUB SHIM
SET

118 - 177 N·m
87 - 131 ft-lb

59 - 88 N·m
44 - 65 ft-lb

88 N·m
65 ft-lb

88 - 103 N·m
65 - 76 ft-lb

12 N·m
106 in-lb

44 N·m
32 ft-lb

49 - 59 N·m
36 - 43 ft-lb

RIGHT-SIDE DRIVESHAFT

LEFT-SIDE DRIVESHAFT

13

12

10

6

7

9

12

8

5

3

11

3

4

5

1

2

N

N

N

SEALANT: 3M™ AAD PART
NO.8672, 8679, 8678, 8661,
8663 OR EQUIVALENT





REMOVAL

STEPS

<<A>>

1. CALIPER

ASSEMBLY

2. FRONT

SPEED

SENSOR

<VEHICLES WITH ABS> (REFER TO
GROUP 35B, WHEEL SPEED
SENSOR

P.35C-77

.)

3. HUB CAP



>>C<<

•

DRIVESHAFT END PLAY
ADJUSTMENT





4. SNAP

RING





5. SHIM
6.  STABILIZER BAR CONNECTION





7.  SHOCK ABSORBER LOWER

MOUNTING BOLT

<<B>>

8. TIE ROD END CONNECTION

<<B>>

9. LOWER ARM BALL JOINT

CONNECTION

<<B>>

10. UPPER ARM BALL JOINT

CONNECTION

<<C>> >>B<<

11. KNUCKLE AND FRONT HUB

ASSEMBLY

<<D>> >>A<<

12. DRIVESHAFT ASSEMBLY
13. CIRCLIP





REMOVAL

STEPS

(Continued)

DRIVE SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-26

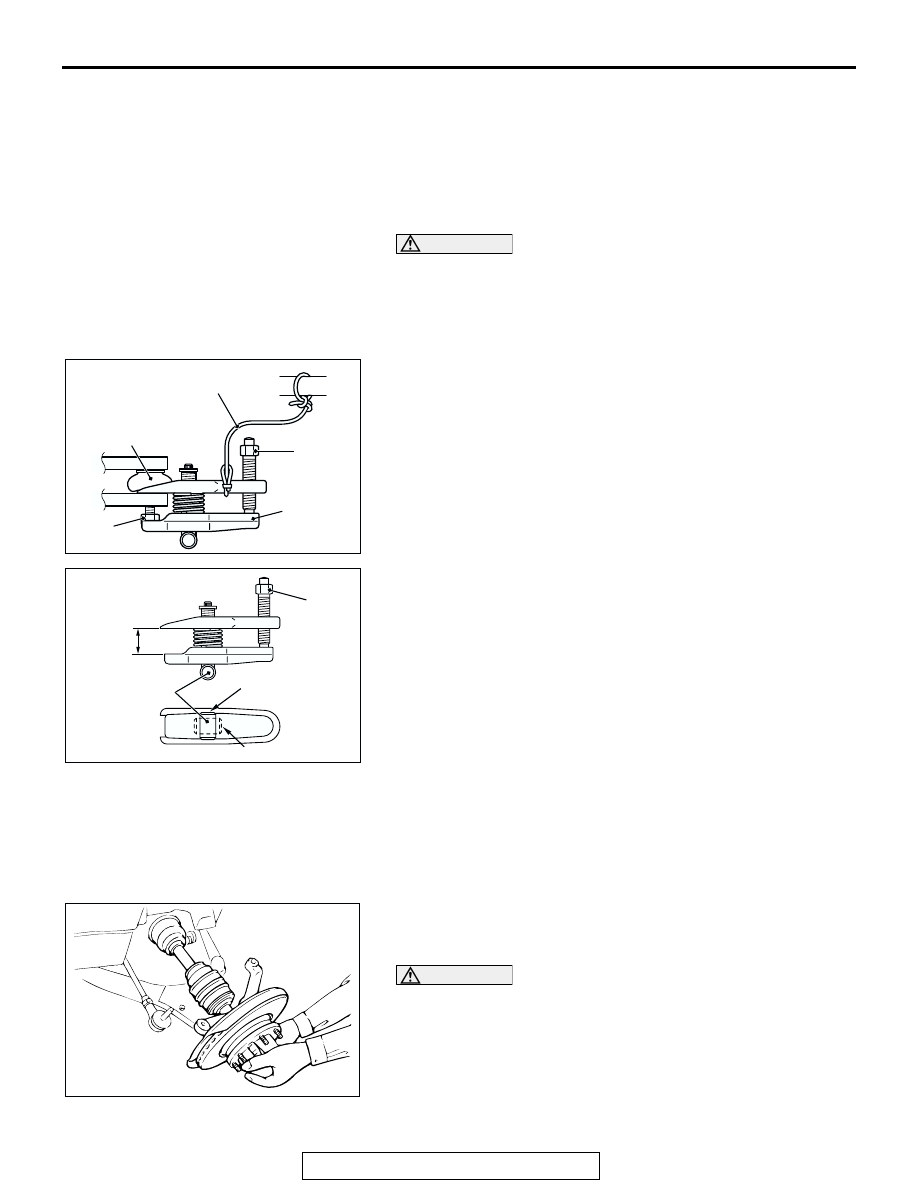

REMOVAL SERVICE POINTS

.

<<A>> CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with wire to prevent it
from falling off.

.

<<B>> TIE ROD END /LOWER ARM BALL JOINT /UPPER
ARM BALL JOINT DISCONNECTION

CAUTION

• Do not remove the nut from the ball joint. Loosen it and

use the special tool to avoid possible damage to ball
joint threads.

• Hang the special tool with a cord to prevent from fall-

ing.

1. Install special tool  MB991897 as shown in the figure.

2. Turn the bolt and knob as necessary to make the jaws of

special tool MB991897 parallel, tighten the bolt by hand and
confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make sure the
knob is in the position shown in the figure.

3. Tighten the bolt with a wrench to disconnect the tie rod end.

.

<<C>> KNUCKLE AND FRONT HUB ASSEMBLY REMOVAL
1. Press down the lower arm and remove the upper knuckle

towards you.
NOTE: Pull the DOJ side of the driveshaft assembly out
slightly from the front differential carrier.

2. Slightly back off driveshaft from the knuckle. Remove the

lower knuckle holding nut from the lower arm ball joint.

3. Disconnect the knuckle and lower ball joint.

CAUTION

Do not damage the knuckle oil seals with the driveshaft
spline.
4. Remove the knuckle and front hub assembly from the

driveshaft assembly.

.

AC106820 AB

CORD

BOLT

MB991897

NUT

BALL JOINT

AC106821

KNOB

PARALLEL

BOLT

CORRECT

WRONG

AC

AC004701 AB

DRIVE SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-27

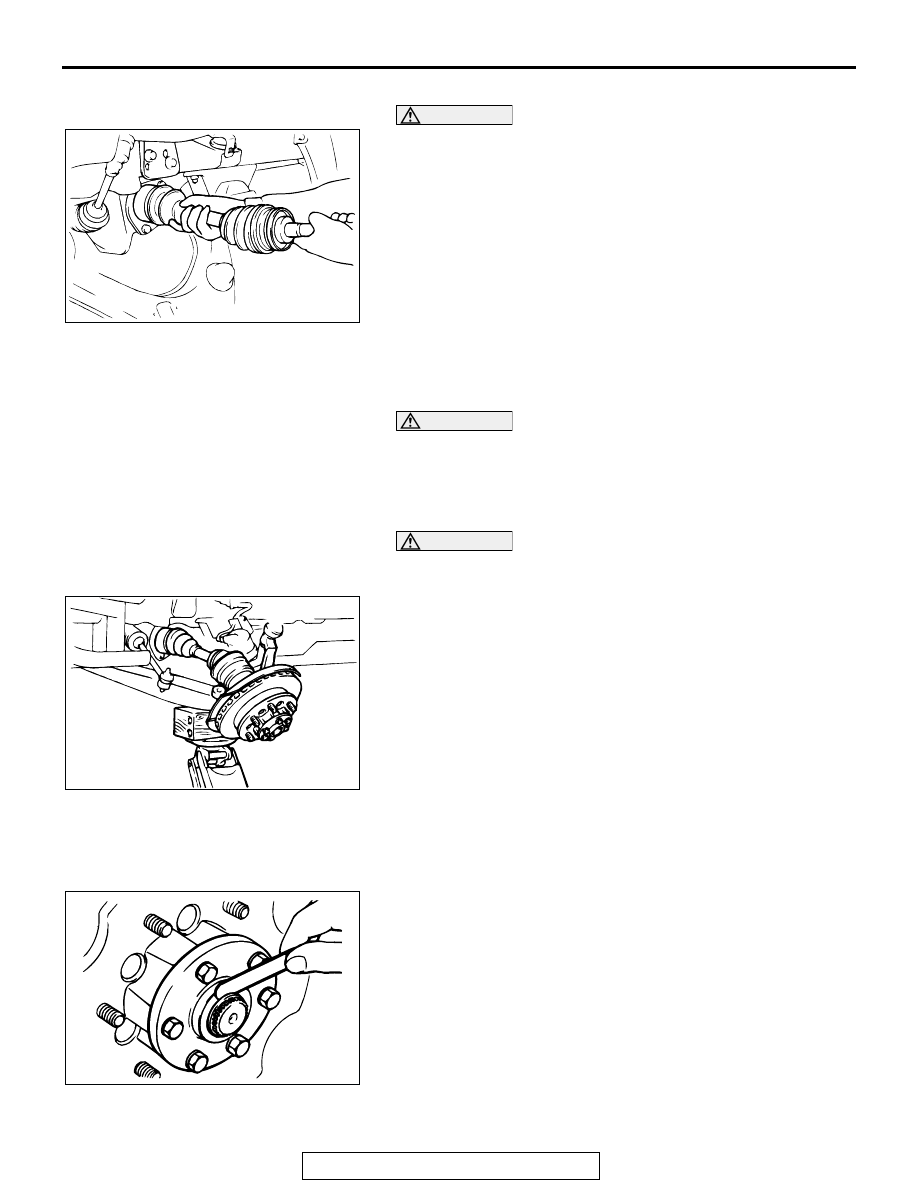

<<D>> DRIVESHAFT (LEFT SIDE) REMOVAL

CAUTION

When pulling the driveshaft out from the differential car-
rier, be careful that the spline part of the driveshaft does
not damage the oil seal.

INSTALLATION SERVICE POINTS

.

>>A<< DRIVE SHAFT (LEFT SIDE) INSTALLATION

CAUTION

Do not damage the oil seal of the differential carrier by the
drive shaft splines.

.

>>B<< KNUCKLE AND FRONT HUB ASSEMBLY
INSTALLATION

CAUTION

Do not damage the knuckle oil seal with the drive shaft
splines.
1. Insert the knuckle and front hub assembly to the driveshaft.
2. Assemble knuckle and lower ball joint and temporarily

tighten slotted nut.

3. Press up the lower arm and lock upper ball joint onto the

upper arm.

4. Tighten the lower ball joint mounting nuts to the specified

torque.

Tightening torque: 118

− 177 N⋅m (87 − 131 ft-lb)

.

>>C<< DRIVESHAFT END PLAY ADJUSTMENT
1. Push the driveshaft in by hand toward the knuckle until they

touch.

2. Measure the clearance between the drive flange and the

spacer with a feeler gauge as shown in the illustration.

Standard value: 0.4

− 0.7 mm (0.02 − 0.03 inch)

3. If the amount of play is not within the standard value, adjust

by selecting a shim that will bring the play to the standard
value.
NOTE: The shims available range from 0.3 mm (0.01 inch)
thick to 0.6 mm (0.02 inch) thick in steps of 0.1 mm (0.004
inch), and from 0.9 mm (0.04 inch) thick to 1.8 mm (0.07
inch) thick in steps of 0.3 mm (0.01 inch).

AC004702 AB

AC004703AB

AC004633 AB

DRIVE SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-28

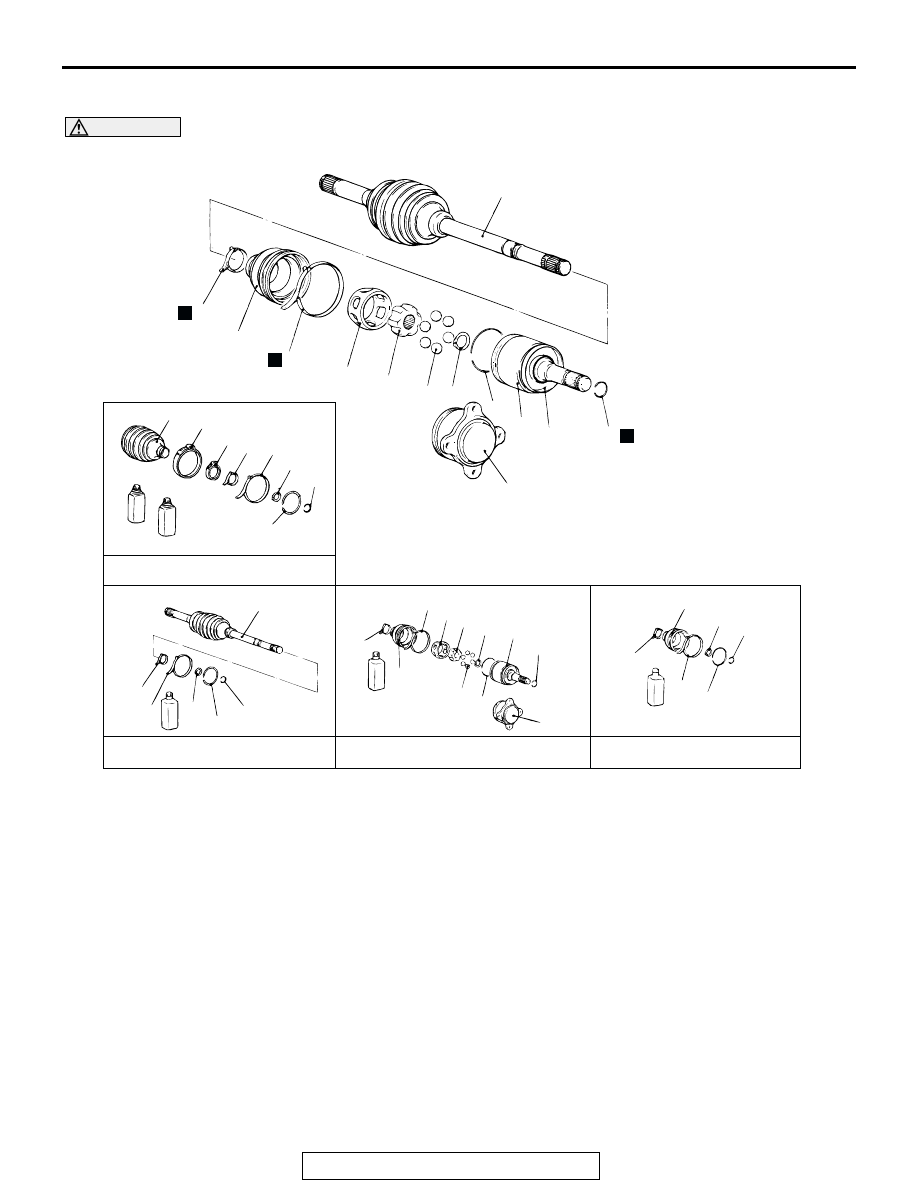

DISASSEMBLY AND ASSEMBLY

M1261003700229

CAUTION

Never disassemble the BJ assembly except when replacing the BJ boot.

NOTE:

.

•

DOJ: Double Offset Joint

•

BJ: Birfield Joint

Required Special Tool:

• MB991561: Boot Band Crimping Tool

AC004715 AB

BOOT REPAIR KIT (BJ)

BJ REPAIR KIT

DOJ REPAIR KIT

BOOT REPAIR KIT (DOJ)

10

2

3

1

8

12

12

4

8

9

7

4

3

6

10

2

1

(LH)

(RH)

11

12

3

8

1

2

3

12

8

1

2

13

14

15

12

4

8

9

7

10

1

4

5

3

6

2

N

N

N

(LH)

(RH)

11





DISASSEMBLY

STEPS





1.  DOJ BOOT BAND (LARGE)





2.  DOJ BOOT BAND (SMALL)





3. CIRCLIP





4. DOJ

OUTER

RACE

5. DUST COVER

<<A>>

6. BALLS

<<B>>

7. DOJ CAGE





8. SNAP

RING

9. DOJ INNER RACE

<<C>>

10. DOJ BOOT
11. BJ ASSEMBLY
12. CIRCLIP
13. BJ BOOT BAND (SMALL)
14. BJ BOOT BAND (LARGE)
15. BJ BOOT





ASSEMBLY

STEPS





12. CIRCLIP





11. BJ ASSEMBLY



 >>A<<

9. DOJ

ASSEMBLY



 >>A<<

8. SNAP

RING



 >>A<<

7. DOJ

CAGE



 >>A<<

6. BALLS



 >>B<<

4. DOJ

OUTER

RACE





5. DUST

COVER





3. CIRCLIP



 >>C<<

10. DOJ BOOT



 >>C<<

2.  DOJ BOOT BAND (SMALL)



 >>C<<

1.  DOJ BOOT BAND (LARGE)
