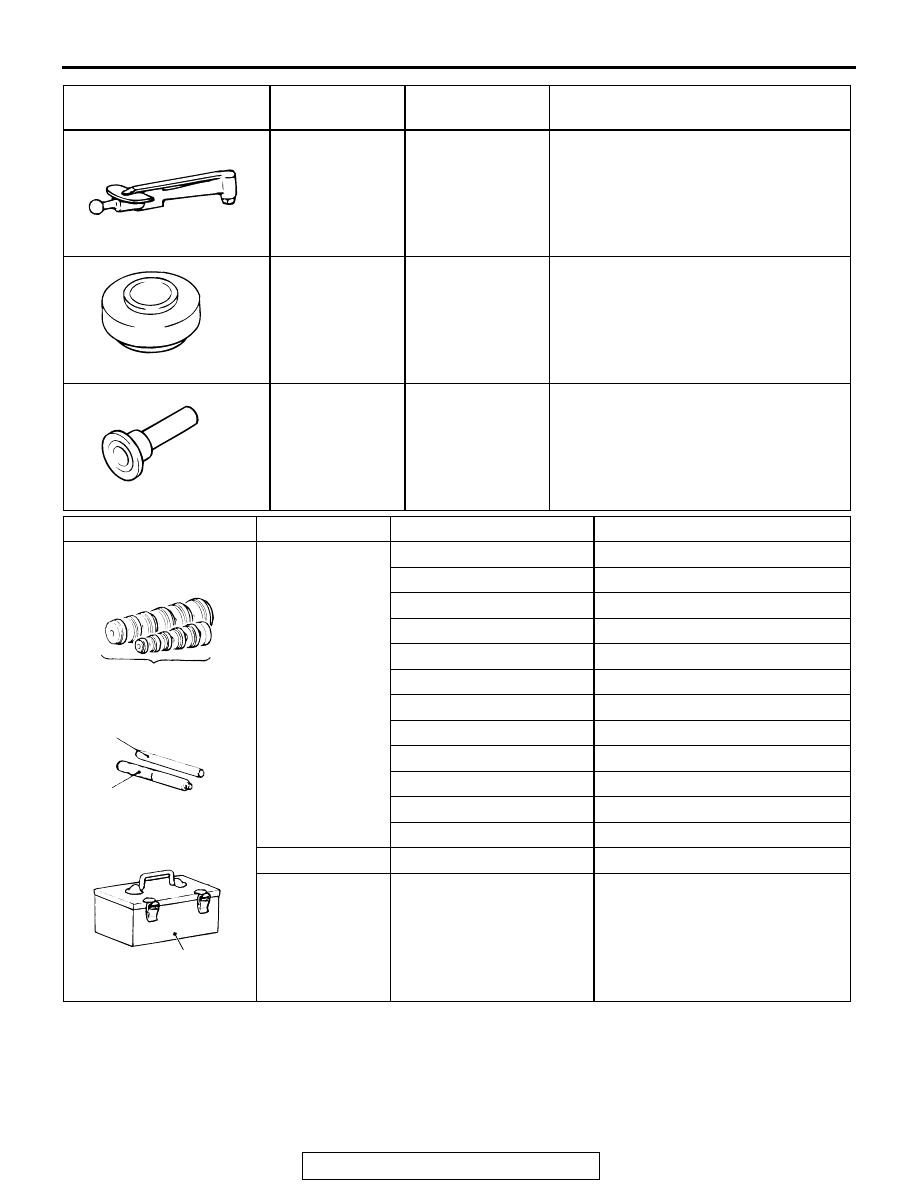

SPECIAL TOOLS

TSB Revision

FRONT AXLE

26-13

MB990685
Torque wrench

Measurement of drive pinion turning
torque

MB990802
Bearing installer

MB990802-01

• Press-fitting of drive pinion front

bearing inner race

• Press-fitting of side bearing inner

race

MB990031 or
MB990699
Drive pinion oil
seal installer

MB990031-01

Press-fitting of drive pinion oil seal

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION APPLICATION

MB990802

MB990031

TOOL

TYPE

TOOL NUMBER

O D mm (in)

A

MB990926

39.0 (1.54)

MB990927

45.0 (1.77)

MB990928

49.5 (1.95)

MB990929

51.0 (2.00)

MB990930

54.0 (2.13)

MB990931

57.0 (2.24)

MB990932

61.0 (2.40)

MB990933

63.5 (2.50)

MB990934

67.5 (2.66)

MB990935

71.5 (2.81)

MB990936

75.5 (2.97)

MB990937

79.0 (3.11)

B

MB990938

-

C

MB990939

-

ACX02372

A

B

C

BRASS BAR

BAR (SNAP-IN TYPE)

TOOL BOX

MB990925

AB

INSTALL ADAPTER

ON-VEHICLE SERVICE

TSB Revision

FRONT AXLE

26-14

ON-VEHICLE SERVICE

FRONT AXLE TOTAL BACKLASH CHECK

M1261001300076

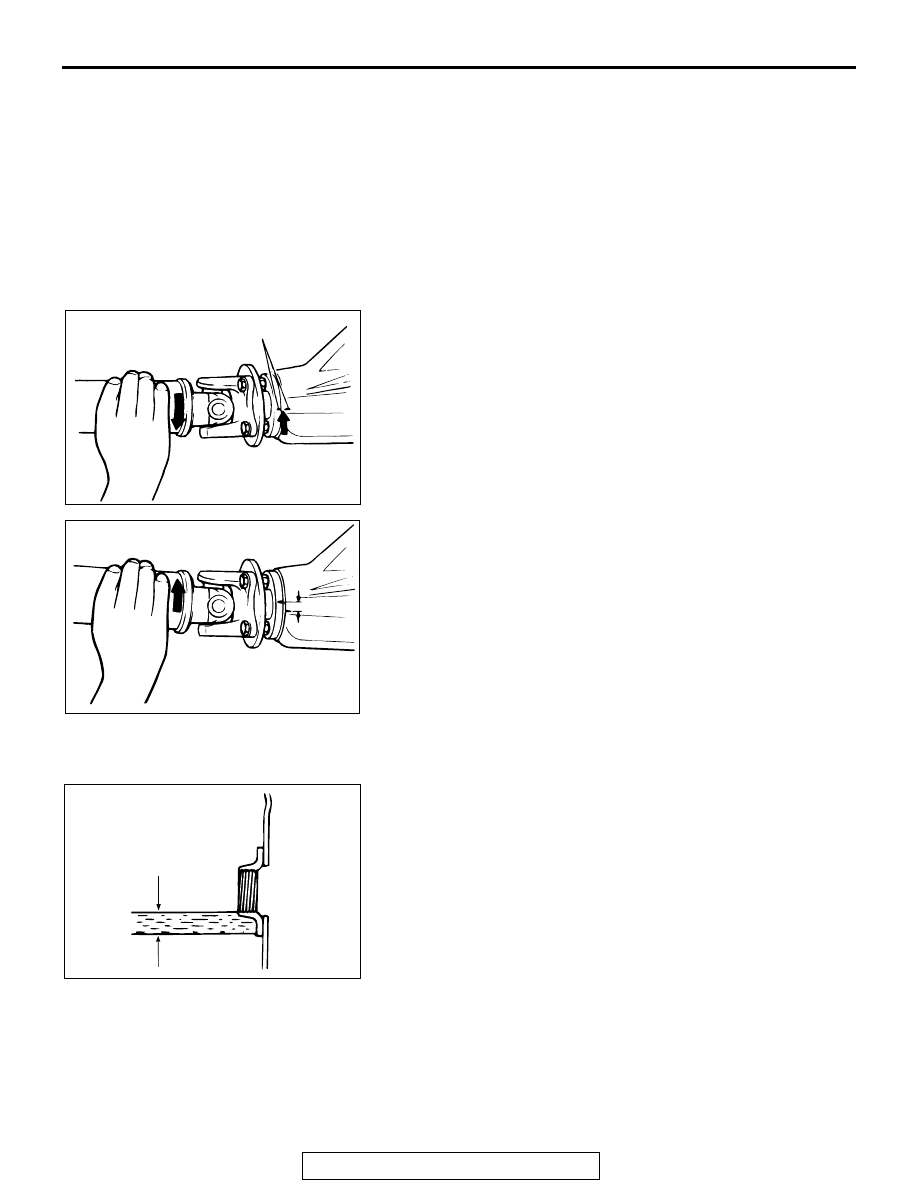

1. If the vehicle vibrates and produces a booming sound due to

an imbalance in the drive system, measure the front axle
total backlash by the following procedure to see if the
differential carrier assembly requires removal.

(1) Park the vehicle on a flat, level surface.
(2) Move the transmission control lever to the neutral

position. Apply the parking brake. Raise the vehicle on a
jack.

(3) Turn the companion flange clockwise as far as it will go.

Make the mating mark on the dust cover of the
companion flange and on the differential carrier.

(4) Turn the companion flange counterclockwise as far as it

will go, and measure the amount of distance the mating
marks moved.

Limit: 11 mm (0.4 inch)

2. If the backlash exceeds the limit, remove the differential

carrier assembly and final drive gear. Then check the
differential gear meshing condition and the looseness of the
driveshaft or inner shaft splines.

FRONT AXLE GEAR OIL LEVEL CHECK

M1262000900090

Remove the filler plug and check the gear oil level. Check that
the gear oil level is not more than 8 mm (0.3 inch) below the
bottom of the filler plug hole.

Specified gear oil: Hypoid gear oil API classification
GL-5 or higher [1.15 dm

3

 (1.21 quart)]

Above

23°C(10°F): SAE 90, 85W-90, 80W-90

From

34 to 23°C(30 to 10°F): SAE 80W, 80W-90

Below

34°C(30°F): SAE 75W

ACX00962 AB

MATING MARKS

ACX00964 AB

AC000439

UPPER LIMIT

LOWER LIMIT

AB

8 mm (0.3 in)

ON-VEHICLE SERVICE

TSB Revision

FRONT AXLE

26-15

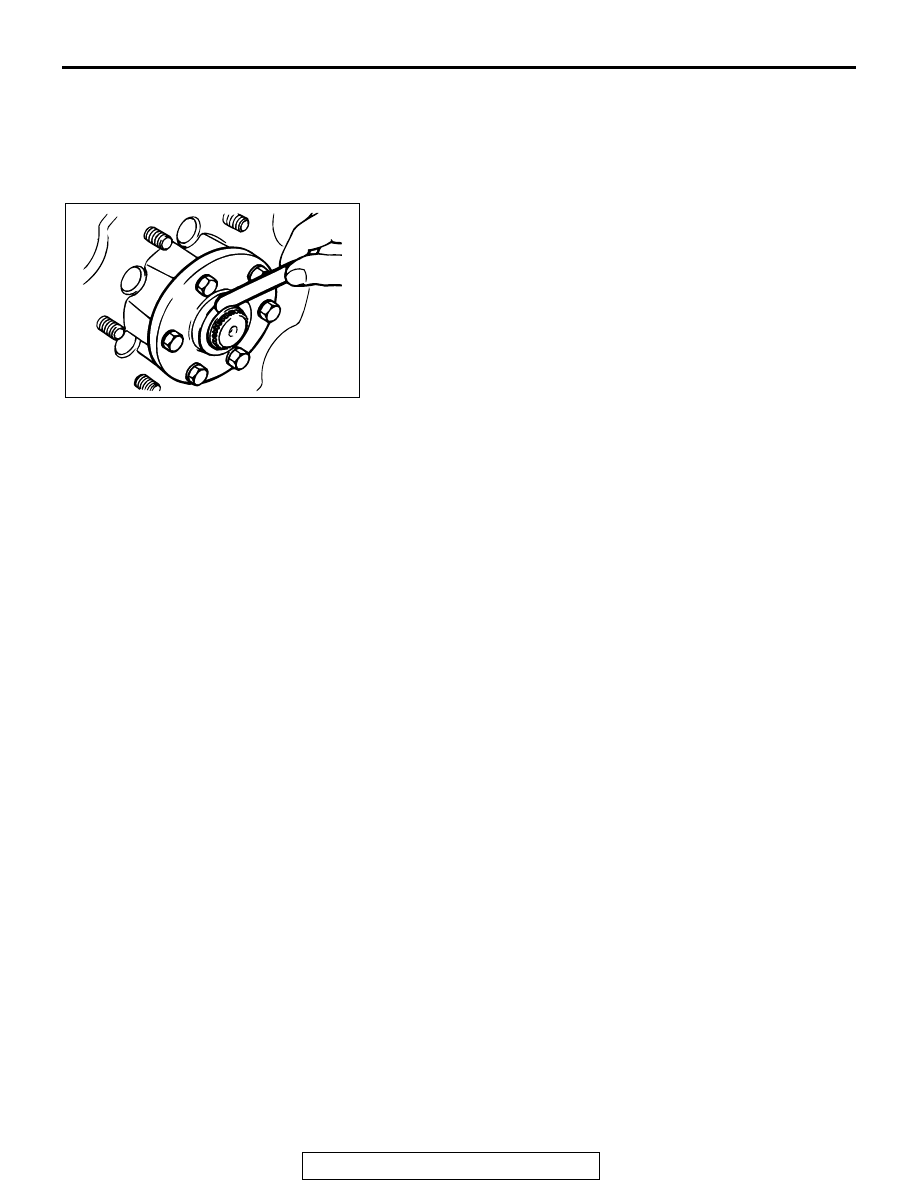

DRIVE SHAFT END PLAY CHECK

M1261001400062

1. Jack up the vehicle and remove the front wheels.
2. Remove the hub cap.
3. Manually push the driveshaft in the direction in which it will

closely contact the knuckle.

4. Use a feeler gauge to measure the clearance between the

drive flange and the snap ring as shown in the illustration.

Standard value: 0.4

 0.7 mm (0.02  0.03 inch)

5. If the play is not within the standard value, adjust by adding

or removing shims.

AC004633 AB

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-16

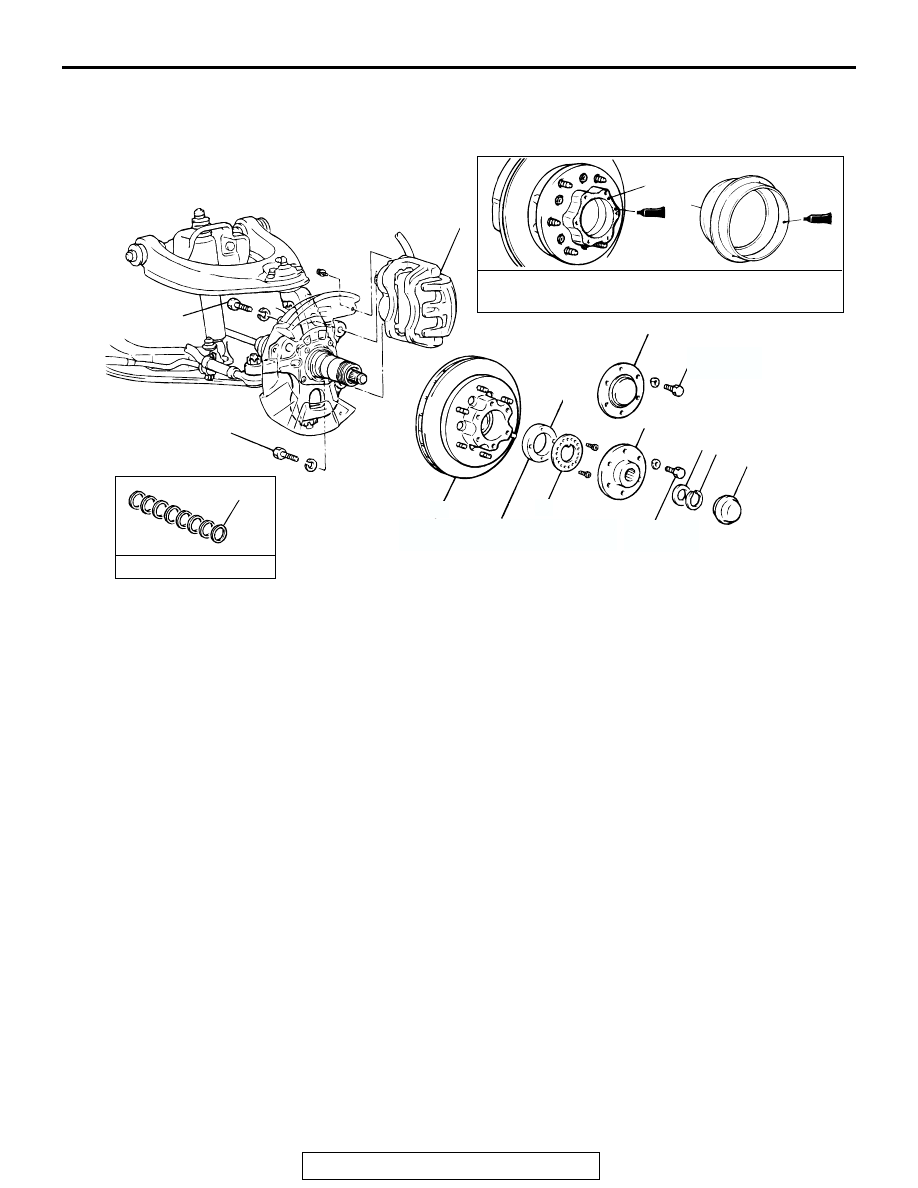

FRONT AXLE HUB ASSEMBLY

REMOVAL AND INSTALLATION

M1261001700438

Required Special Tool:

• MB990954: Lock Nut Wrench

REMOVAL SERVICE POINTS

.

<<A>> CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with wire to prevent it
from falling off.

.

AC004638 AC

FRONT HUB SHIM SET

<RWD>

<4WD>

2

5

2

3

4

7

6

49 - 59 N·m
36
- 43 ft-lb

49 - 59 N·m
36
- 43 ft-lb

127 - 196 N·m

→ 0 N·m → 25 N·m

94 - 145 ft-lb

→ 0 in-lb → 18 ft-lb

8

1

8

2

88 N·m
65 ft-lb

88 N·m
65 ft-lb

4

SEALANT: 3M™ AAD PART NO.8672, 8679, 8678, 8661,
8663 OR EQUIVALENT





REMOVAL

STEPS

<<A>>

1. CALIPER

ASSEMBLY

2. HUB CAP

 >>D<<

DRIVE SHAFT END PLAY
ADJUSTMENT <4WD>





3. SNAP

RING





4. SHIM





5. DRIVE

FLANGE

 >>C<<

HUB ROTARY SLIDING
RESISTANCE AND WHEEL
ADJUSTMENT <4WD>



 >>B<<

6. SPRING

WASHER

<<B>>  >>A<<

7. JAM

NUT

<<C>>

8.  FRONT HUB ASSEMBLY







REMOVAL STEPS  (Continued)
