EXTENSION HOUSING

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-15

EXTENSION HOUSING

DISASSEMBLY AND ASSEMBLY

M1233007600034

<R4A51>

Required Special Tool:

• MB990929: Installer Adapter

• MB990938: Handle

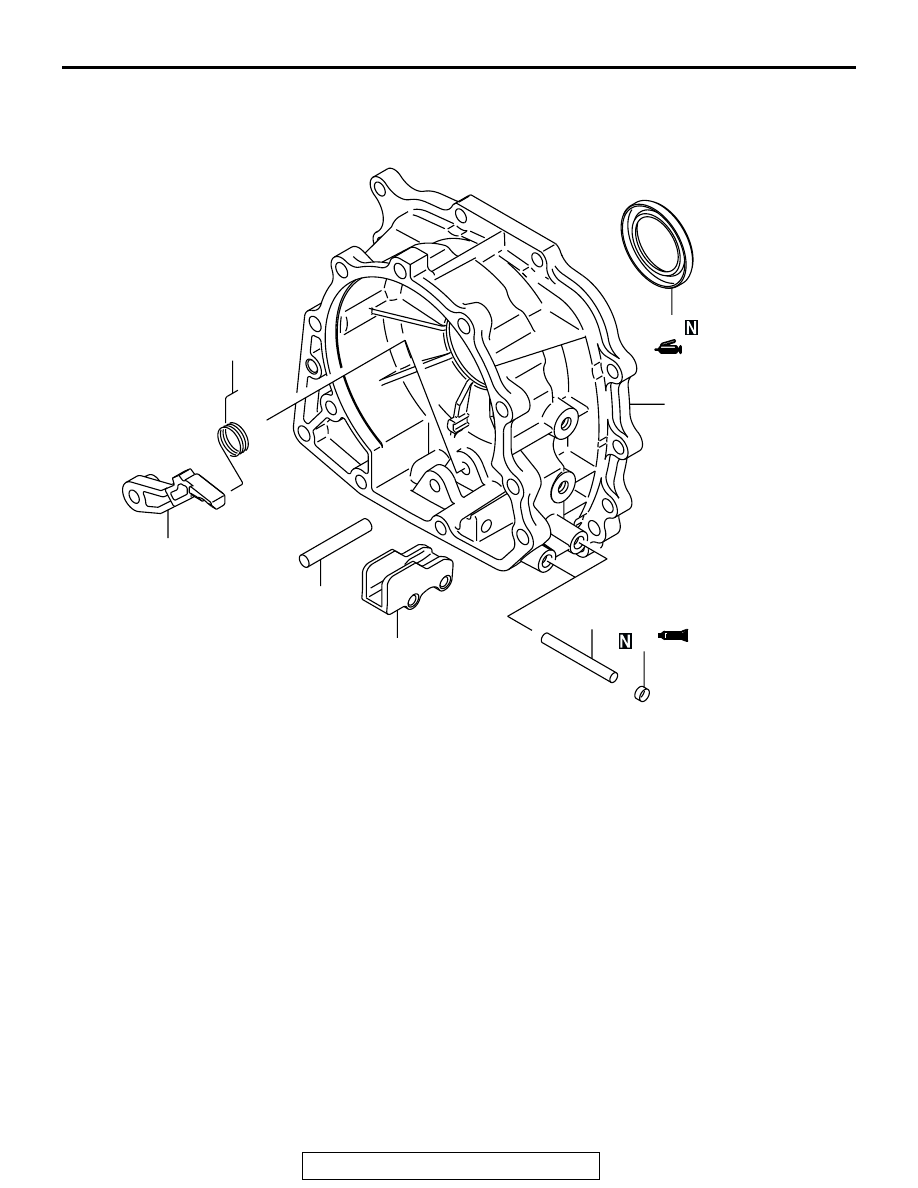

A K X 0 0 0 1 0

1

2

3

4

5

6

7

8

AB

DISASSEMBLY STEPS

1.

PARKING SPRAG SHAFT

>>C<<

2.

PARKING SPRAG SPRING

3.

PARKING SPRAG

>>B<<

4.

SEALING CAP

5.

PARKING ROLLER SUPPORT
SHAFT

6.

PARKING ROLLER SUPPORT

>>A<<

7.

OIL SEAL

8.

EXTENSION HOUSING

DISASSEMBLY STEPS

EXTENSION HOUSING

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-16

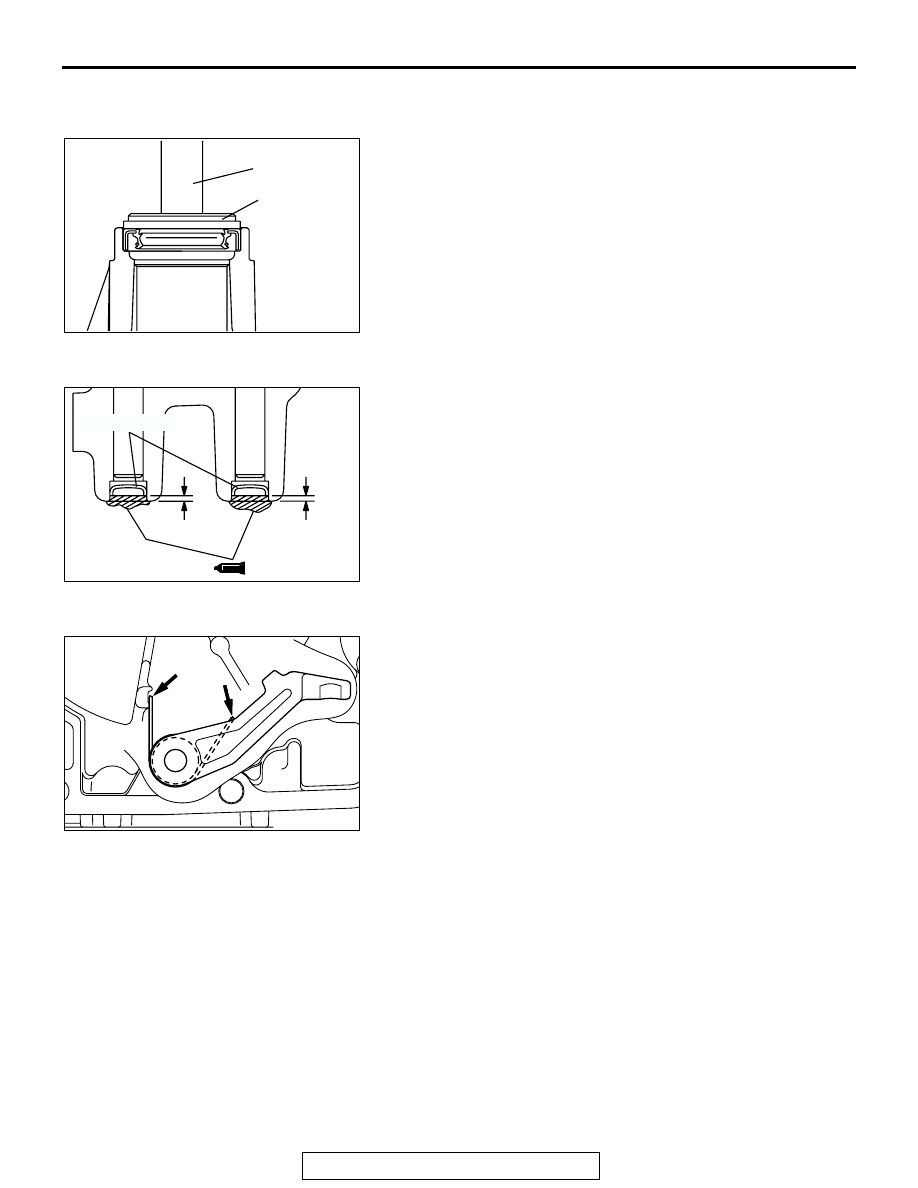

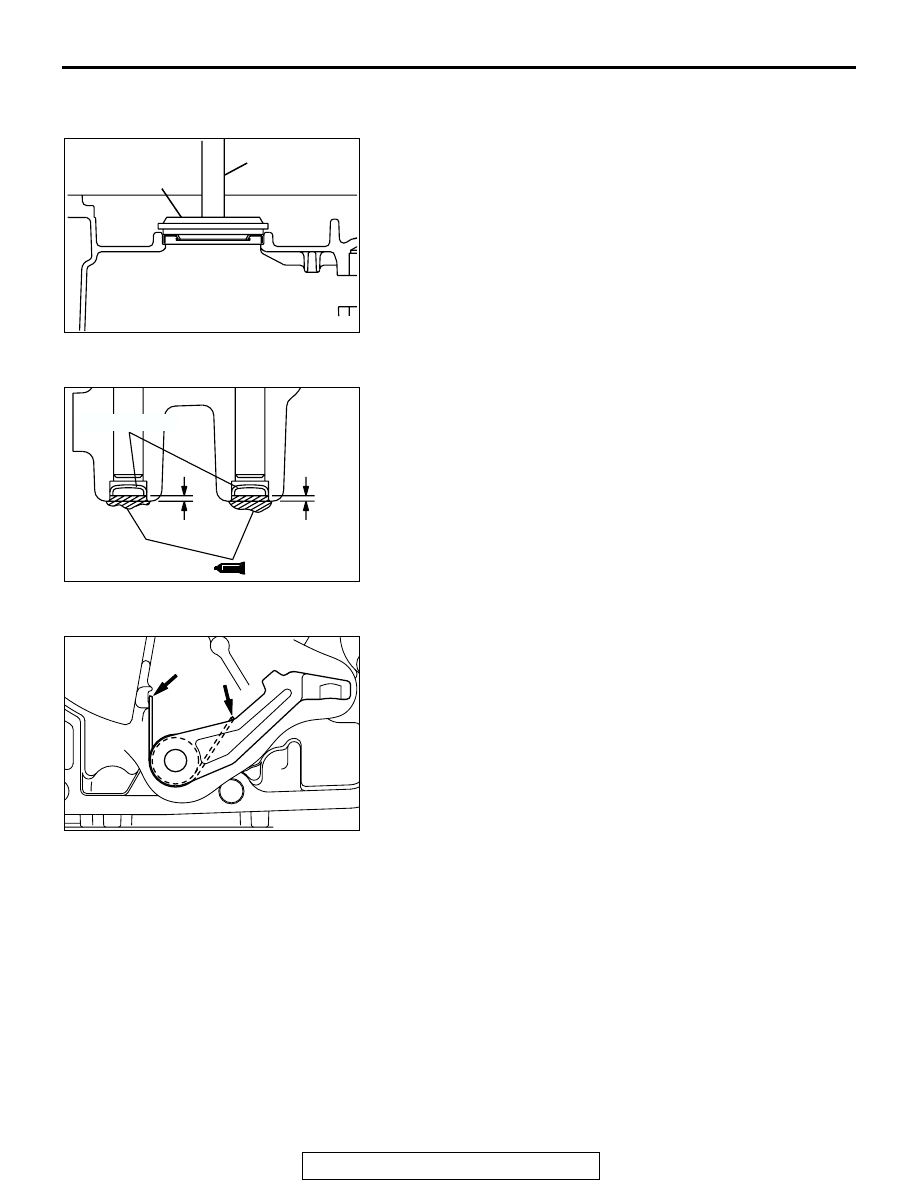

ASSEMBLY SERVICE POINTS

.

>>A<<OIL SEAL INSTALLATION
Use special tools MB990929 and MB990938 to install the oil
seal.

.

>>B<<SEALING CAP INSTALLATION
1. Press into the dimensions shown in the illustration so that it

is not slanted.

2. Apply the sealant (3M

AAD part number 8672 or

equivalent) as shown in the illustration.

.

>>C<<PARKING SPRAG SPRING INSTALLATION
Attach the end of the spring to the position shown in the illustra-
tion.

A K X 0 0 0 1 1

MB990938

MB990929

AB

A K X 0 0 0 1 2

1.5 mm
(0.06 in)

1.5 mm
(0.06 in)

SEALING CAP

AB

A K X 0 0 0 1 3

TRANSFER CASE ADAPTER

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-17

TRANSFER CASE ADAPTER

TRANSFER CASE ADAPTER DISASSEMBLY AND ASSEMBLY

M1233007000043

Required Special Tools:

• MB990929: Installer Adapter

• MB990938: Handle

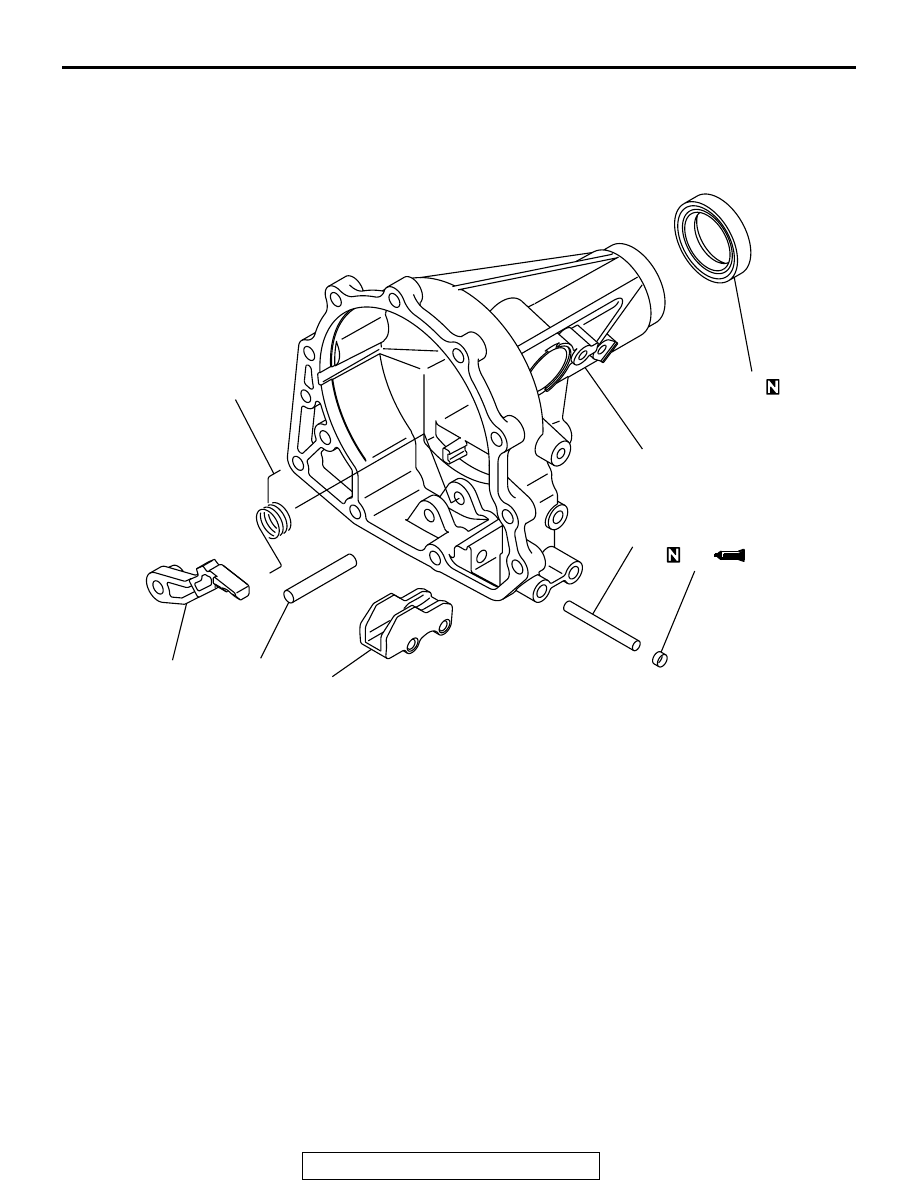

A K X 0 0 0 1 4

7

8

3

5

6

2

4

1

AB

DISASSEMBLY STEPS

1.

PARKING SPRAG SHAFT

>>C<<

2.

PARKING SPRAG SPRING

3.

PARKING SPRAG

>>B<<

4.

SEALING CAP

5.

PARKING ROLLER SUPPORT
SHAFT

6.

PARKING ROLLER SUPPORT

>>A<<

7.

OIL SEAL

8.

EXTENSION HOUSING

DISASSEMBLY STEPS

TRANSFER CASE ADAPTER

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-18

ASSEMBLY SERVICE POINTS

.

>>A<<OIL SEAL INSTALLATION
Use special tools MB990929 and MB990938 to install the oil
seal.

.

>>B<<SEALING CAP INSTALLATION
1. Press into the dimensions shown in the illustration so that it

is not slanted.

2. Apply the sealant (3M

 AAD part number 8672 or

equivalent) as shown in the illustration.

.

>>C<<PARKING SPRAG SPRING INSTALLATION
Attach the end of the spring to the position shown in the illustra-
tion.

A K X 0 0 0 1 5

MB990938

MB990929

AB

A K X 0 0 0 1 2

1.5 mm
(0.06 in)

1.5 mm
(0.06 in)

SEALING CAP

AB

A K X 0 0 0 1 3
