Mitsubishi Montero Sport (2004+). Manual - part 262





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-461

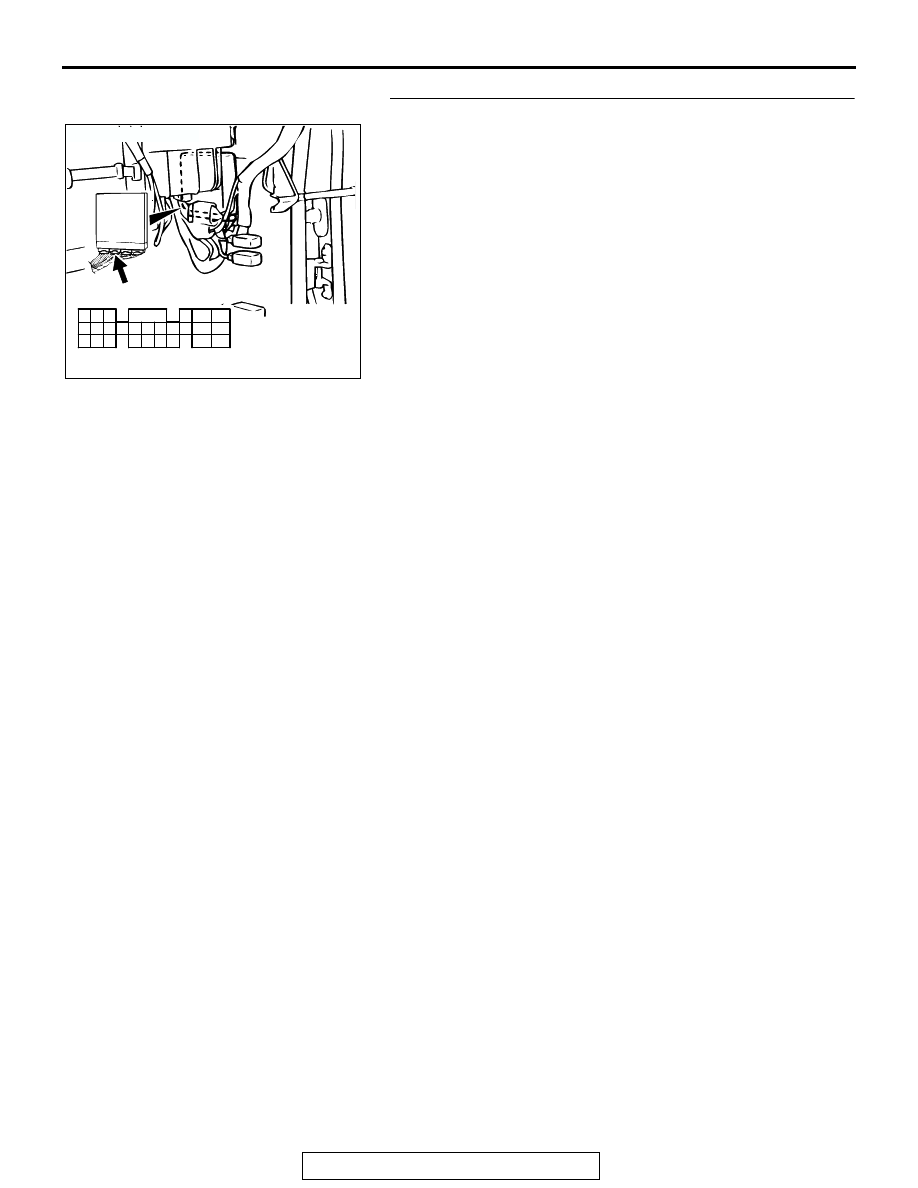

STEP 9. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-462

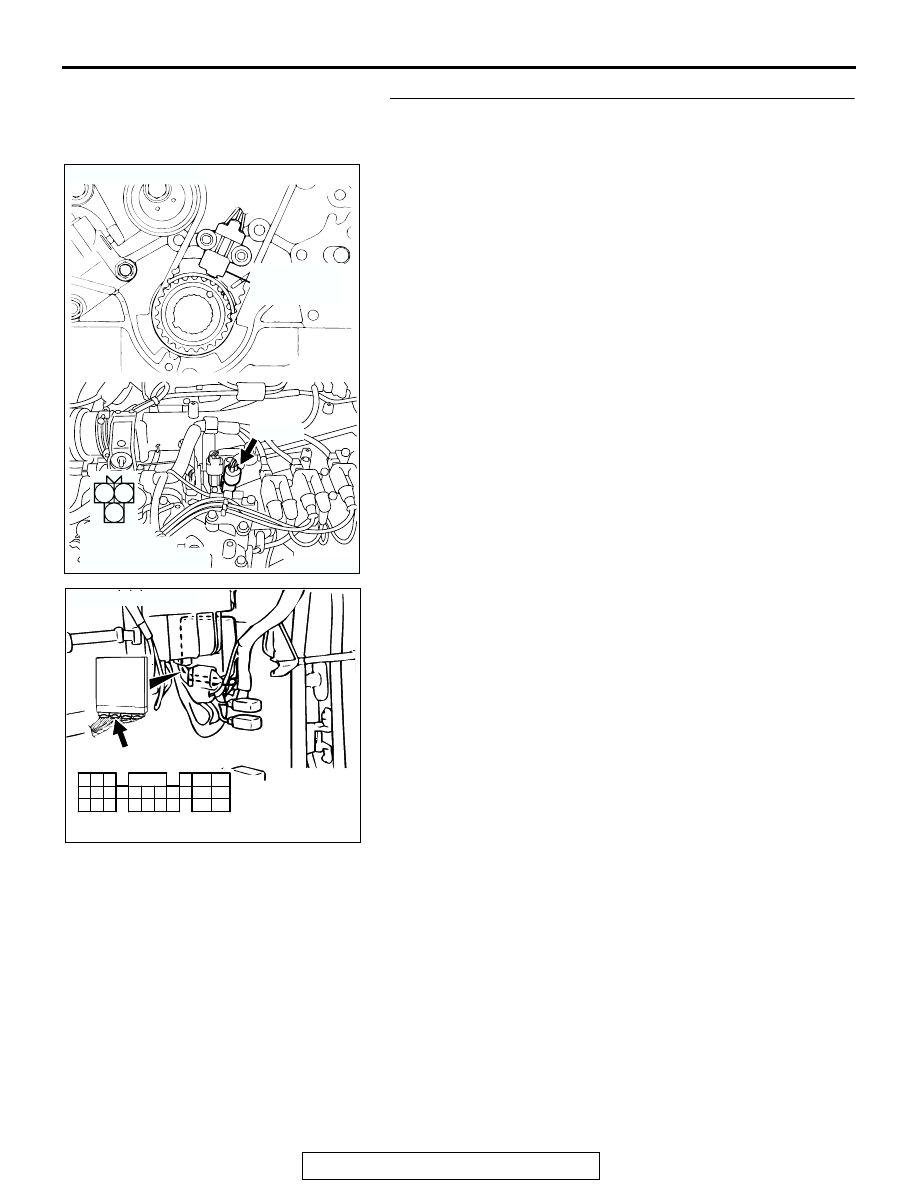

STEP 10. Check for short circuit to ground between
crankshaft position sensor connector A-43 (terminal No. 2)
and PCM connector C-90 (terminal No. 45).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 20.
NO :  Repair it. Then go to Step 20.

AK200494

1

2

3

A-43(B)

AB

CONNECTOR: A-43

HARNESS
CONNECTOR:
COMPONENT SIDE

CRANKSHAFT
POSITION
SENSOR

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-463

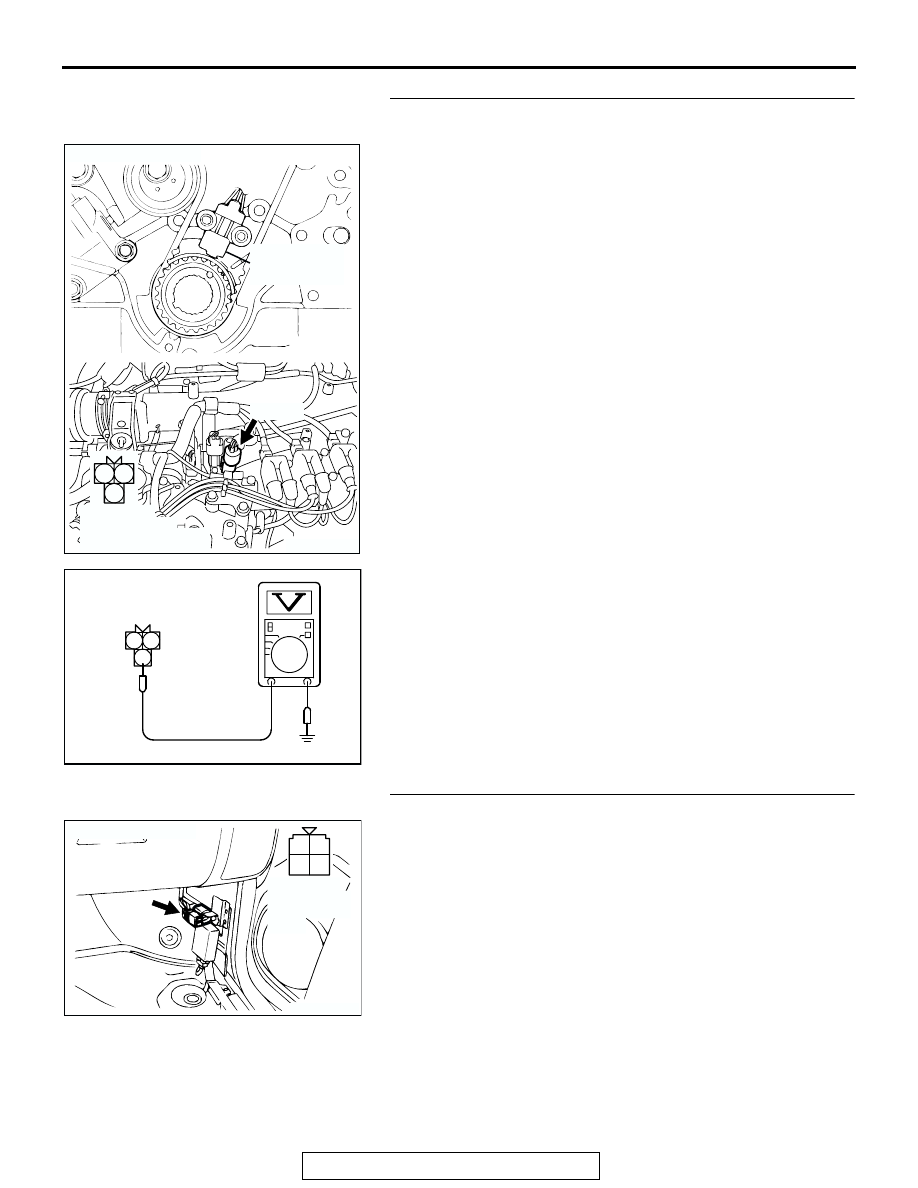

STEP 11. Measure the power supply voltage at crankshaft
position sensor harness side connector A-43.
(1) Disconnect the connector A-43 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 3 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 13.
NO :  Go to Step 12.

STEP 12. Check connector C-59 at MFI relay for damage.
Q: Is the connector in good condition?

YES : Check connector C-14 at intermediate connector for

damage, and repair or replace as required. Refer to
GROUP 00E, Harness Connector Inspection

P.00E-2

. If intermediate connector is in good

condition, repair harness wire between MFI relay
connector C-59 (terminal No. 1) and crankshaft
position sensor connector A-43 (terminal No. 3)
because of open circuit or short circuit to ground.
Then go to Step 20.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

AK200494

1

2

3

A-43(B)

AB

CONNECTOR: A-43

HARNESS
CONNECTOR:
COMPONENT SIDE

CRANKSHAFT
POSITION
SENSOR

AKX01417AM

2 1

3

A-43 HARNESS
CONNECTOR:
COMPONENT SIDE

AK200023

2 1

3

4

CONNECTOR: C-59

AB

C-59

HARNESS
CONNECTOR:
COMPONENT
SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-464

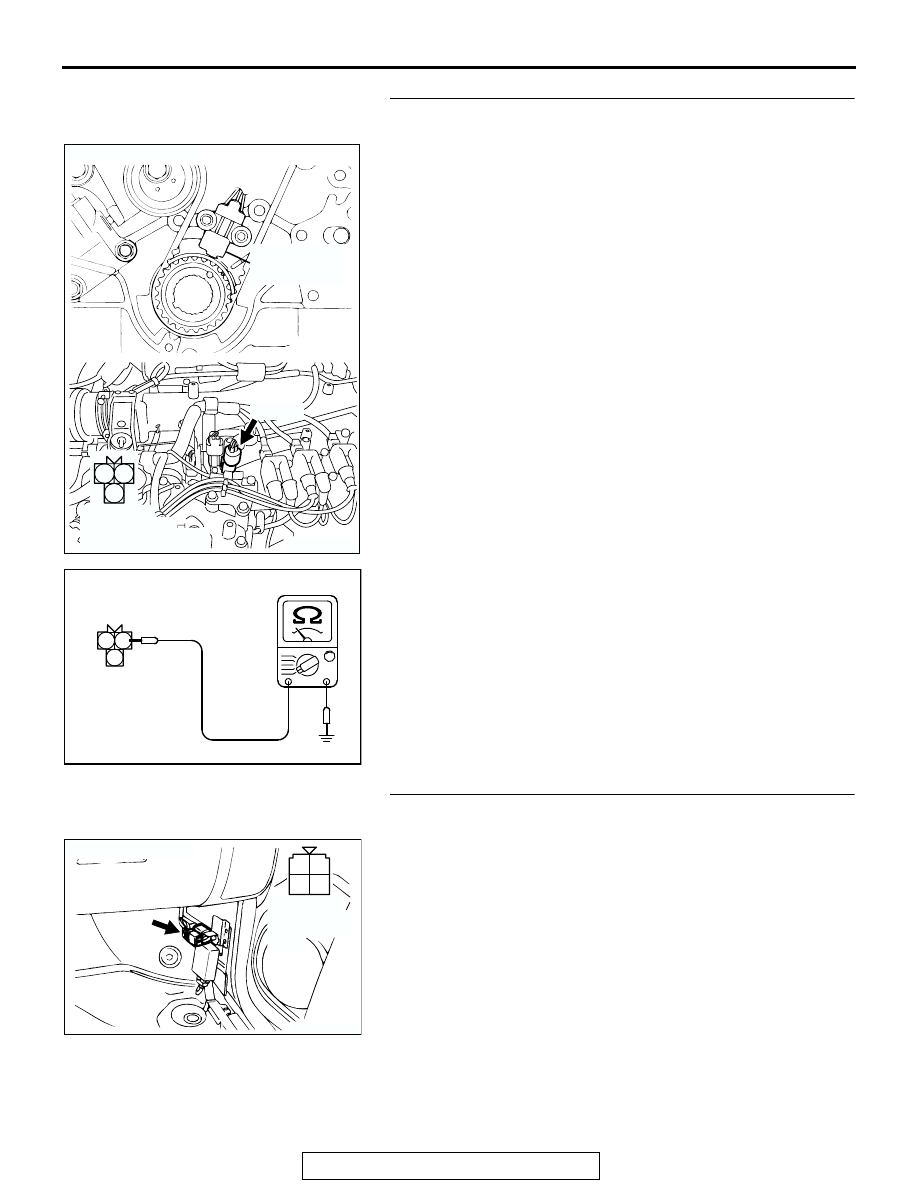

STEP 13. Check for continuity at crankshaft position
sensor harness side connector A-43.
(1) Disconnect the connector A-43 and measure at the harness

side.

(2) Check for the continuity between terminal No. 1 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 14.
NO :  Repair harness wire between crankshaft position

sensor connector A-43 (terminal No. 1) and ground
because of open circuit or harness damage. Then go
to Step 20.

STEP 14. Check connector C-59 at the MFI relay for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 15.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

AK200494

1

2

3

A-43(B)

AB

CONNECTOR: A-43

HARNESS
CONNECTOR:
COMPONENT SIDE

CRANKSHAFT
POSITION
SENSOR

AKX01418 AH

2 1

3

A-43 HARNESS
CONNECTOR:
COMPONENT SIDE

AK200023

2 1

3

4

CONNECTOR: C-59

AB

C-59

HARNESS
CONNECTOR:
COMPONENT
SIDE
