MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-409

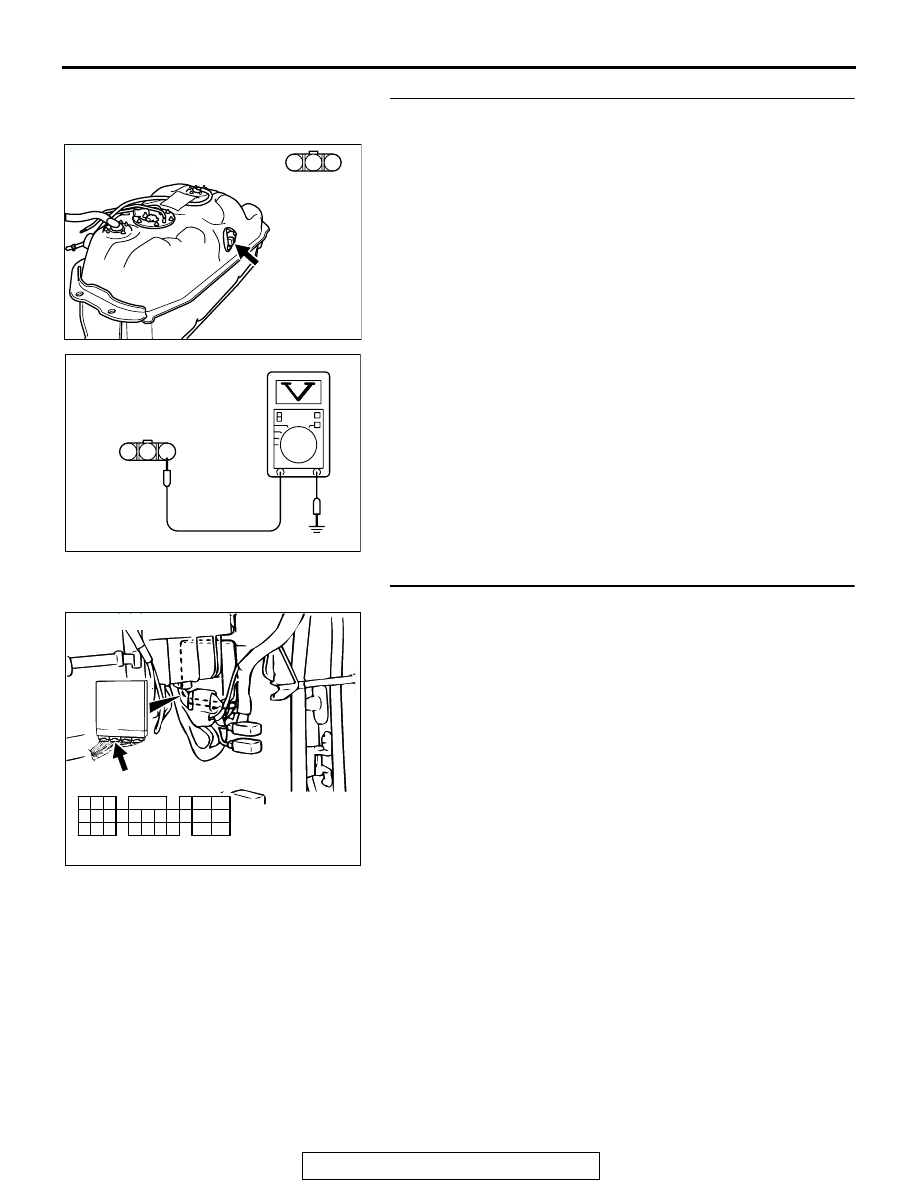

STEP 6. Measure the sensor supply voltage at fuel tank
temperature sensor harness side connector E-30.
(1) Disconnect the connector E-30 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be between 4.5 and 4.9 volts

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 8.
NO :  Go to Step 7.

STEP 7. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200019

3 2 1

CONNECTOR: E-30

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

E-30

3 2

AK000574

1

E-30 HARNESS
CONNECTOR:
COMPONENT SIDE

AD

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-410

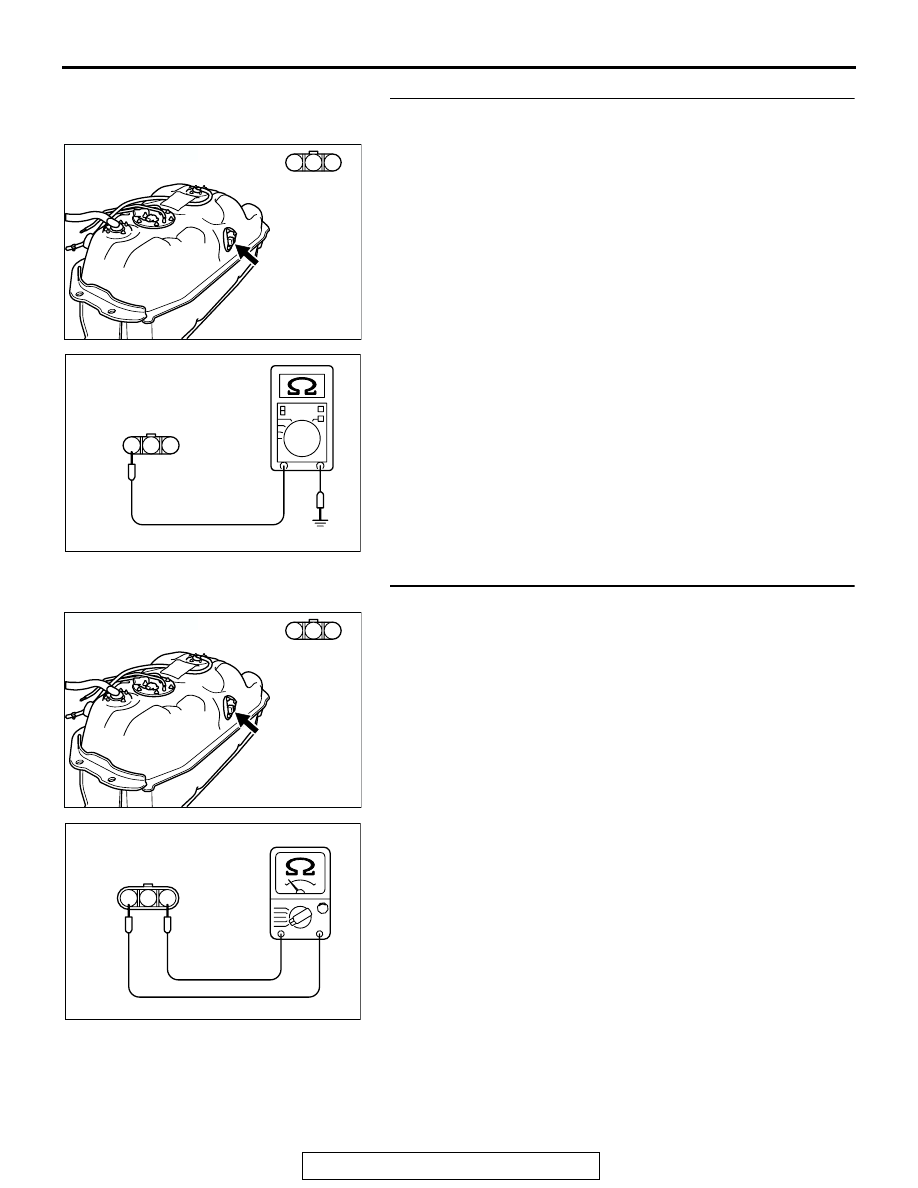

STEP 8. Check for continuity at fuel tank temperature
sensor harness side connector E-30.
(1) Disconnect the connector E-30 and measure at the harness

side.

(2) Check for the continuity between terminal No. 3 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 9.
NO :  Check connector E-44 at intermediate connector for

damage, and repair or replace as required. Refer to
GROUP 00E, Harness Connector Inspection

P.00E-2

. If intermediate connector is in good

condition, repair harness wire between fuel tank
temperature sensor connector E-30 (terminal No. 3)
and ground because of open circuit or harness
damage. Then go to Step 12.

STEP 9. Check the fuel tank temperature sensor.
(1) Disconnect the fuel tank temperature sensor connector

E-30.

(2) Measure the resistance between terminal No. 1 and No. 3

of the fuel tank temperature sensor.

Standard value:

0.5

− 12.0 kΩ

Q: Is the resistance between 0.5 and 12.0 k

Ω?

YES : Go to Step 10.
NO :  Replace the fuel tank temperature sensor. Then go to

Step 12.

AK200019

3 2 1

CONNECTOR: E-30

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

E-30

AK000575

3 2 1

E-30 HARNESS
CONNECTOR:
COMPONENT SIDE

AD

AK200019

3 2 1

CONNECTOR: E-30

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

E-30

AK000576

3

1 2

FUEL TANK TEMPERATURE
SENSOR CONNECTOR

AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-411

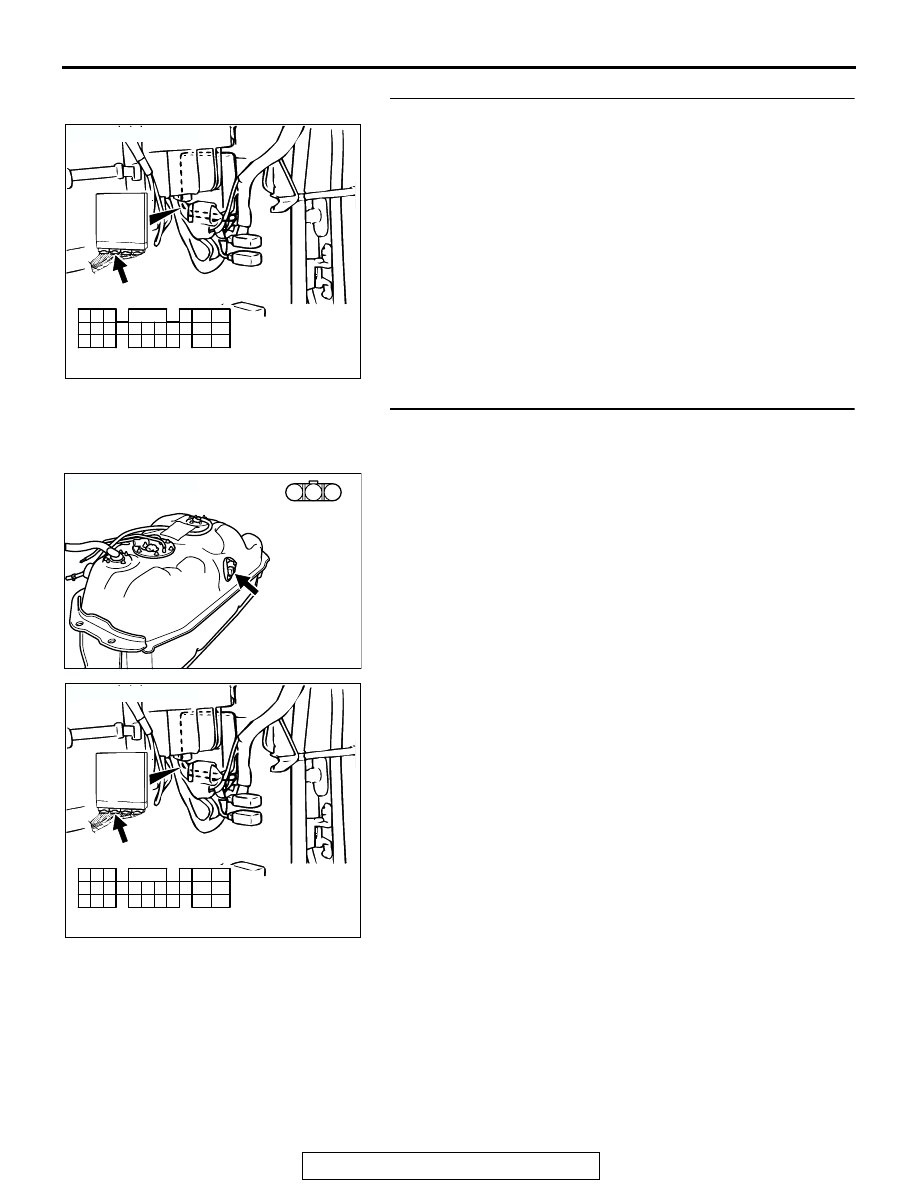

STEP 10. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 11. Check for harness damage between fuel tank
temperature sensor connector E-30 (terminal No. 1) and
PCM connector C-90 (terminal No. 51).

NOTE: Check harness after checking intermediate connector
C-85 and E-44. If intermediate connectors are damaged, repair
or replace them. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. Then go to Step 12.

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200019

3 2 1

CONNECTOR: E-30

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

E-30

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-412

STEP 12. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0181 set?

YES : Repeat the troubleshooting.
NO :  The procedure is complete.
