MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-169

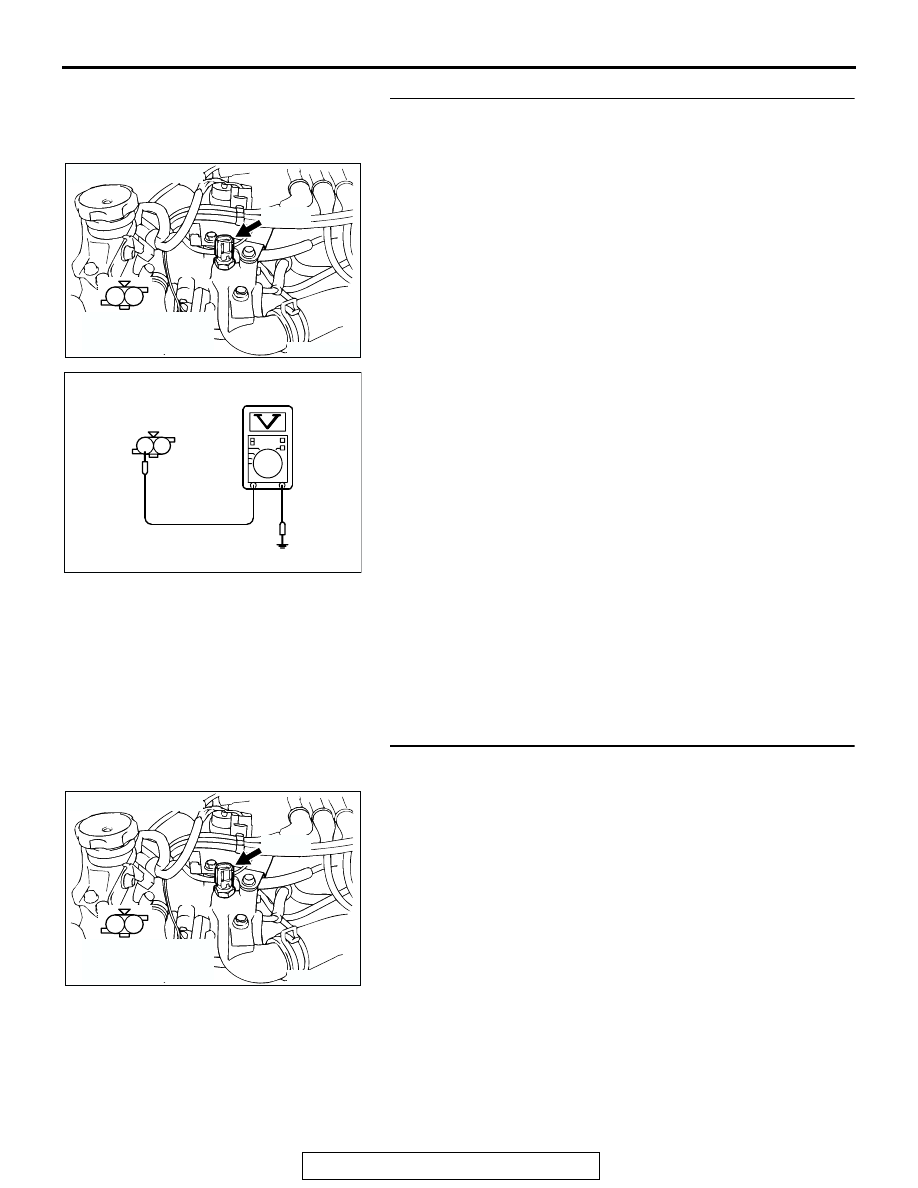

STEP 2. Measure the sensor output voltage at engine
coolant temperature sensor connector A-67 by
backprobing.
(1) Do not disconnect the connector A-67.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 1 and ground by

backprobing.

• When engine coolant temperature is −20°C (−4°F), volt-

age should measure 3.9 and 4.5 volts.

• When engine coolant temperature is 0°C (32°F), voltage

should measure 3.2 and 3.8 volts.

• When engine coolant temperature is 20°C (68°F), volt-

age should measure 2.3 and 2.9 volts.

• When engine coolant temperature is 40°C (104°F), volt-

age should measure 1.3 and 1.9 volts.

• When engine coolant temperature is 60°C (140°F), volt-

age should measure 0.7 and 1.3 volts.

• When engine coolant temperature is 80°C (176°F), volt-

age should measure 0.3 and 0.9 volt.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage within the specified range?

YES : Go to Step 3.
NO :  Go to Step 5.

STEP 3. Check connector A-67 at the engine coolant
temperature sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK104023

1

2

A-67(B)

AB

CONNECTOR: A-67

HARNESS
CONNECTOR:
COMPONENT SIDE

AK000233

A-67 HARNESS
CONNECTOR:
HARNESS SIDE

1 2

AK

AK104023

1

2

A-67(B)

AB

CONNECTOR: A-67

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-170

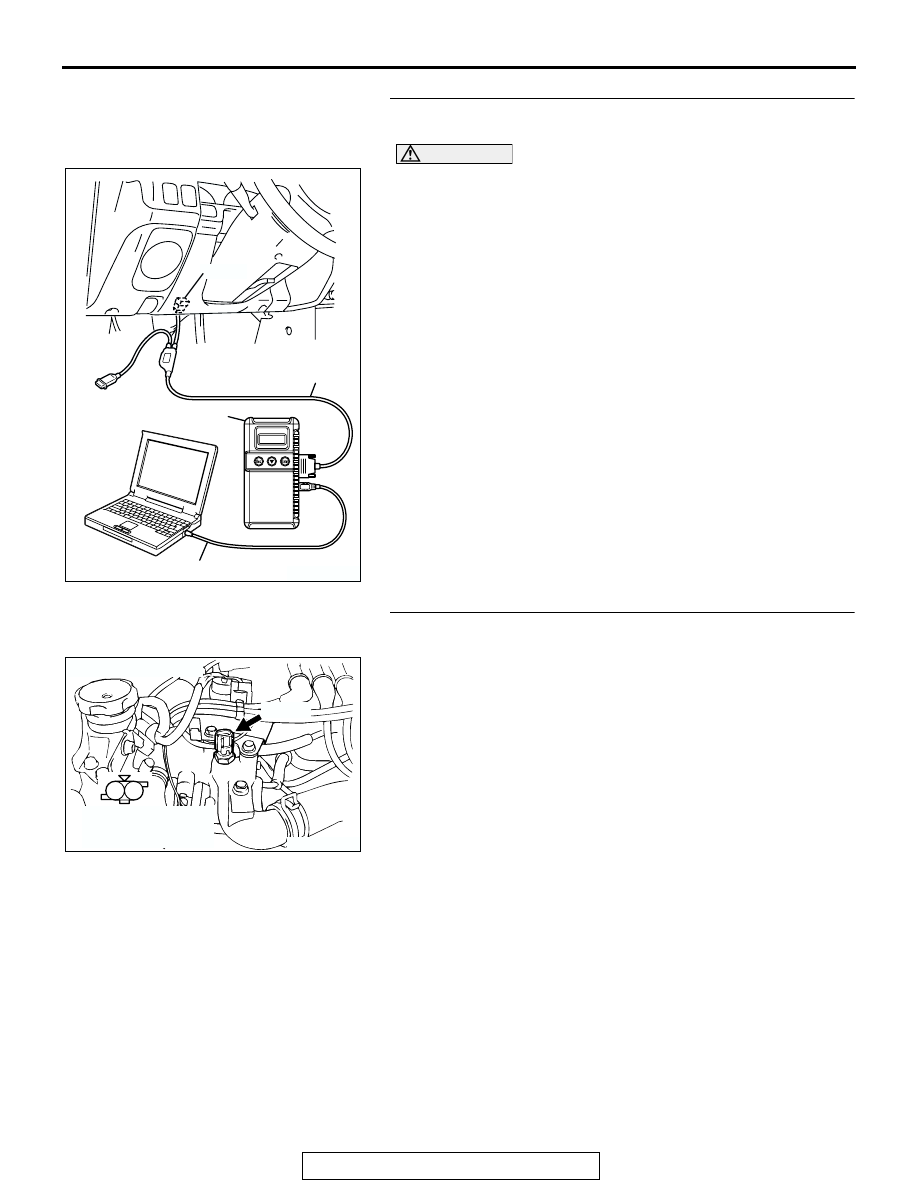

STEP 4. Using scan tool MB991958, check data list item 21:
Engine Coolant Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

21, Engine Coolant Temperature Sensor.

• The engine coolant temperature and temperature

shown with the scan tool should approximately match.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-7

.

NO :  Replace the PCM. Then go to Step 14.

STEP 5. Check connector A-67 at engine coolant
temperature sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK303629AB

MB991911

MB991827

MB991824

16-PIN

AK104023

1

2

A-67(B)

AB

CONNECTOR: A-67

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-171

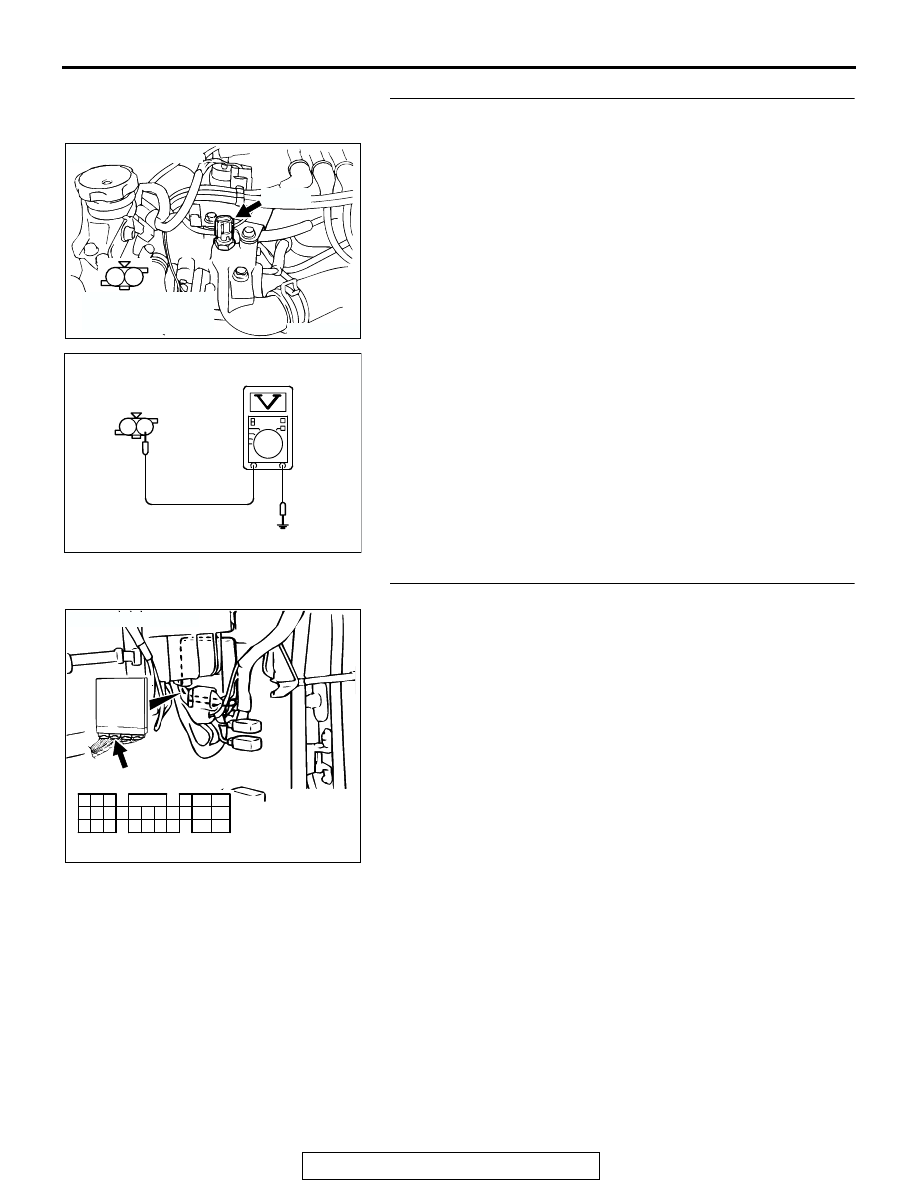

STEP 6. Measure the sensor supply voltage at engine
coolant temperature sensor harness side connector A-67.
(1) Disconnect the connector A-67 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be between 4.5 and 4.9 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 8.
NO :  Go to Step 7.

STEP 7. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Replace the PCM. Then go to Step 14.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK104023

1

2

A-67(B)

AB

CONNECTOR: A-67

HARNESS
CONNECTOR:
COMPONENT SIDE

AK000234

A-67 HARNESS
CONNECTOR:
COMPONENT SIDE

2 1

AO

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-172

STEP 8. Check for continuity at engine coolant
temperature sensor harness side connector A-67.
(1) Disconnect the connector A-67 and measure at the harness

side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 11.
NO :  Go to Step 9.

STEP 9. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK104023

1

2

A-67(B)

AB

CONNECTOR: A-67

HARNESS
CONNECTOR:
COMPONENT SIDE

AK000235

A-67 HARNESS
CONNECTOR:
COMPONENT SIDE

2 1

AK

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)
