MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-161

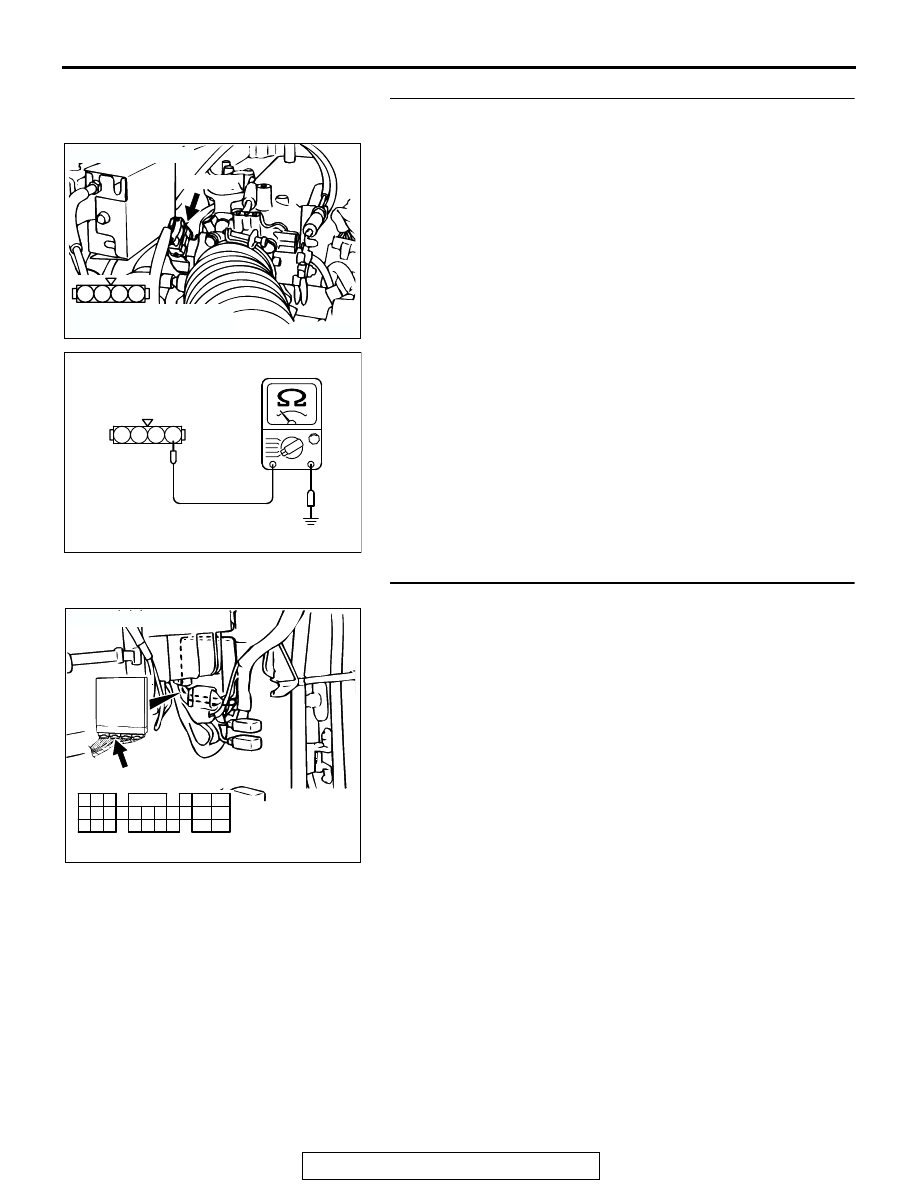

STEP 3. Check for continuity at throttle position sensor
harness side connector A-41.
(1) Disconnect the connector A-41 and measure at the harness

side.

(2) Measure the continuity between terminal No. 1 and ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 6.
NO :  Go to Step 4.

STEP 4. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 8.

AK000363

AK104027

4 3 2 1

CONNECTOR: A-41

AB

HARNESS CONNECTOR:
COMPONENT SIDE

A-41(B)

AK000237AG

A-41 HARNESS
CONNECTOR:
COMPONENT SIDE

4 3 2 1

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-162

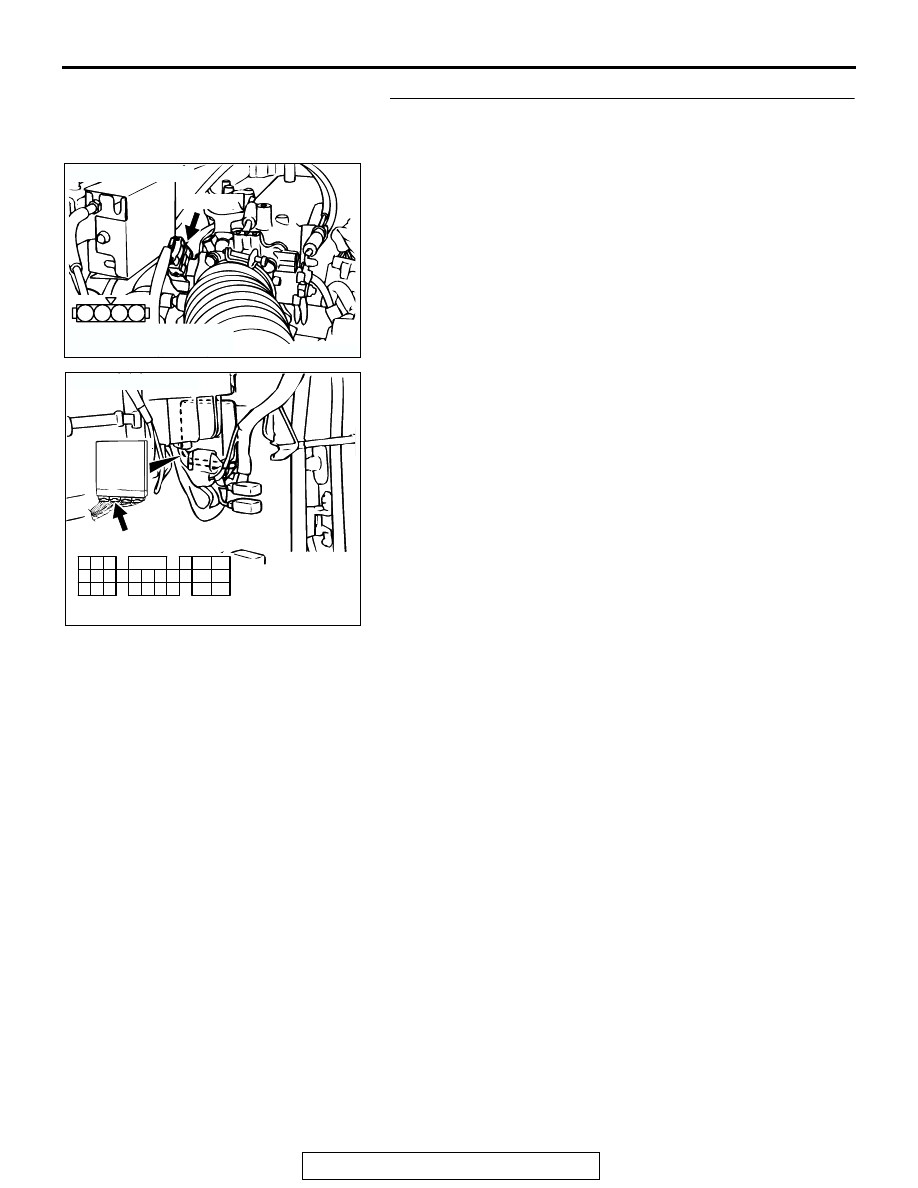

STEP 5. Check for open circuit and harness damage
between throttle position sensor connector A-41 (terminal
No. 1) and PCM connector C-90 (terminal No. 57).

NOTE: Check harness after checking intermediate connector
C-71. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 14.
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 8.
NO :  Repair it. Then go to Step 8.

AK000363

AK104027

4 3 2 1

CONNECTOR: A-41

AB

HARNESS CONNECTOR:
COMPONENT SIDE

A-41(B)

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-163

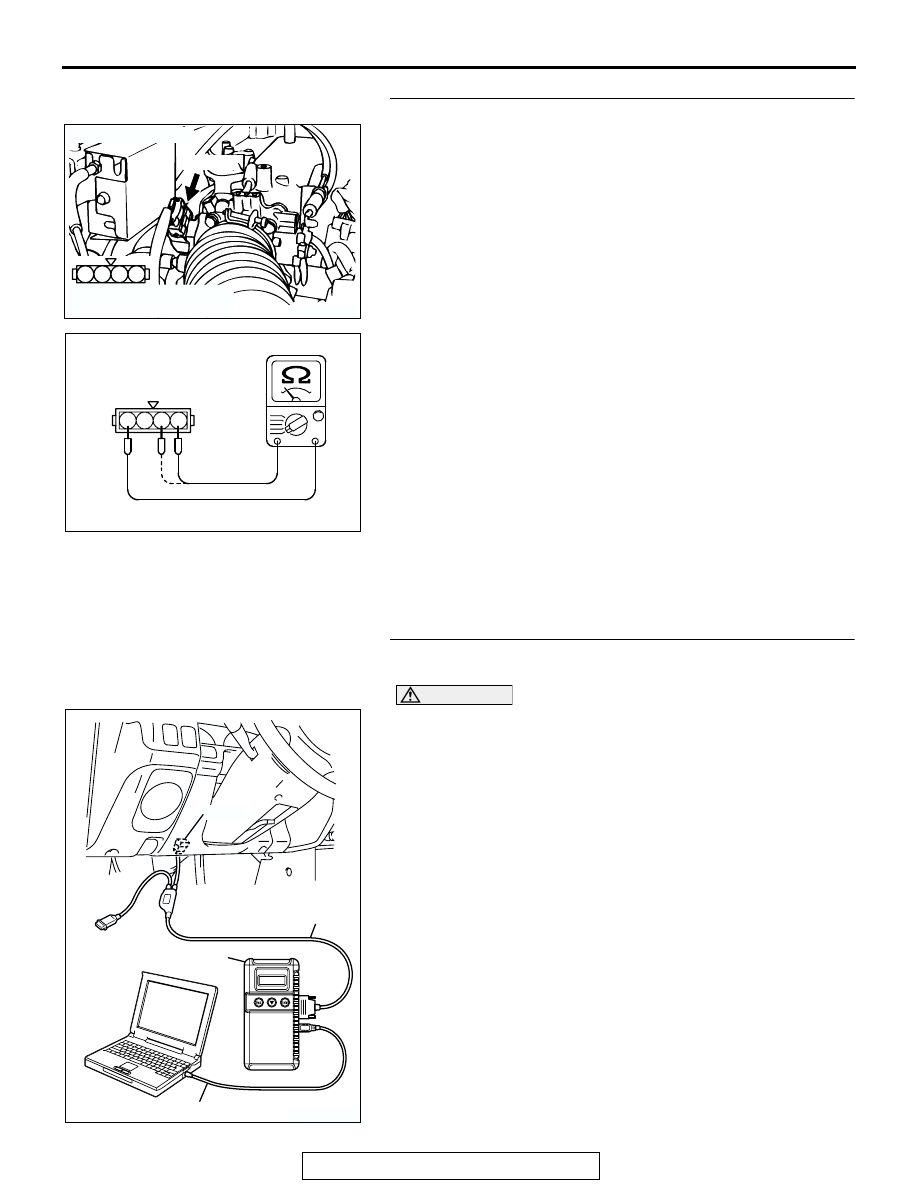

STEP 6. Check the throttle position sensor.
(1) Disconnect the connector A-41.

(2) Measure the resistance between throttle position sensor

side connector terminal No. 1 and No. 4.

Standard value: 3.5

− 6.5 kΩ

(3) Measure resistance between the throttle position sensor

side connector terminal No. 1 and No. 3.

(4) Move the throttle valve from the idle position to the full-open

position.

• Resistance should change smoothly in proportion to the

opening angle of the throttle valve.

Q: Is the resistance normal?

YES : Go to Step 7.
NO :  Replace the throttle position sensor. Refer to Throttle

Body Assembly

− Disassembly And Assembly

P.13A-903

 . Then go to Step 8.

STEP 7. Using scan tool MB991958, check data list item 14:
Throttle Position Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

14, Throttle Position Sensor.

• With the throttle valve in the idle position, voltage should

measure between 0.535 and 0.735 volt.

• With the throttle valve in the full-open position, voltage

should measure between 4.5 and 5.5 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-7

.

NO :  Replace the PCM. Then go to Step 8.

AK000363

AK104027

4 3 2 1

CONNECTOR: A-41

AB

HARNESS CONNECTOR:
COMPONENT SIDE

A-41(B)

AK000320

1 2 3 4

THROTTLE POSITION
SENSOR SIDE
CONNECTOR

AB

AK303629AB

MB991911

MB991827

MB991824

16-PIN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-164

STEP 8. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0123 set?

YES : Repeat the troubleshooting.
NO :  The procedure is complete.

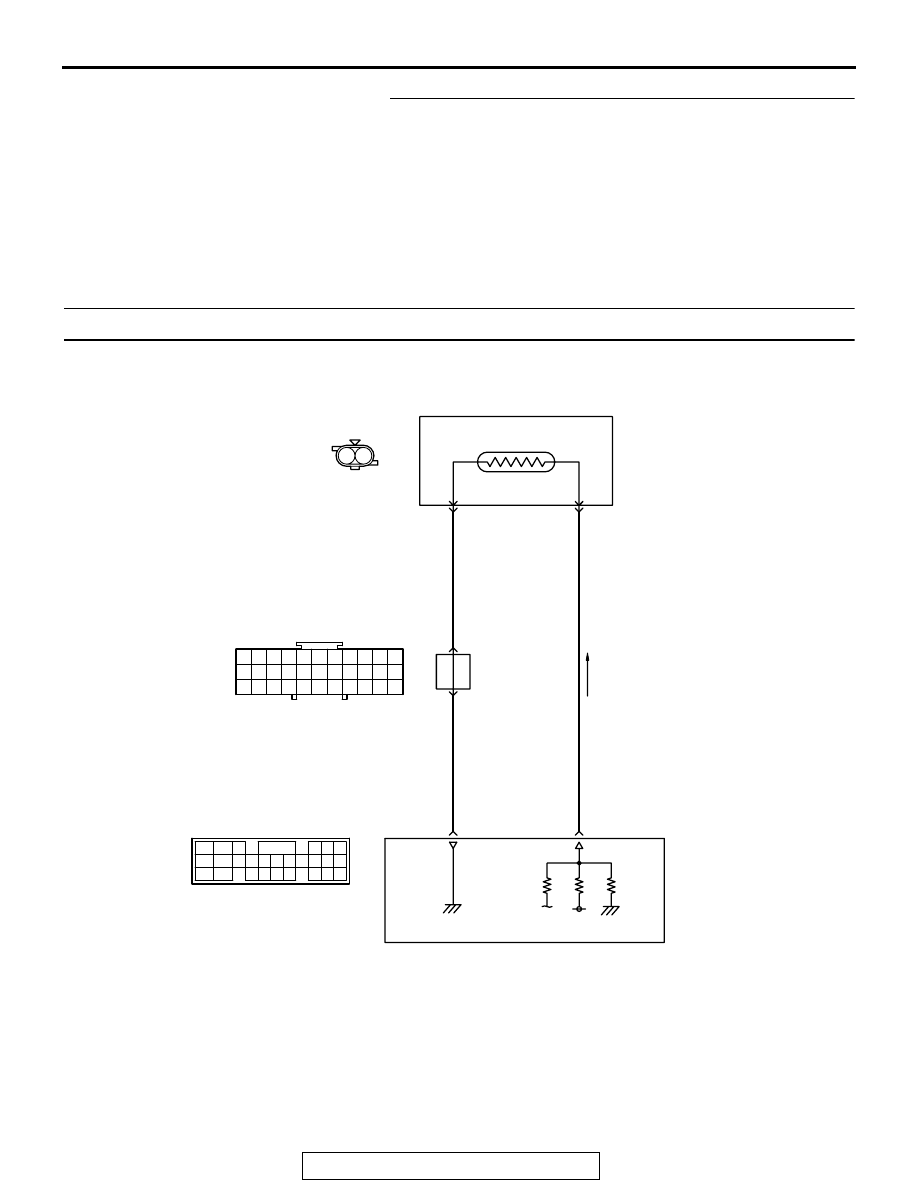

DTC P0125: Insufficient Coolant Temperature for Closed Loop Fuel Control

AK000421

Intake Air Temperature Sensor Circuit

BLA

CK

YELLO

W

-GREEN

BLA

CK

57

2

5V

POWERTRAIN CONTROL MODULE (PCM)

ENGINE COOLANT
TEMPERATURE SENSOR

12

1

44

16

1

10

2 3 4 5 6 7 8 9

11

12 13 14 15 16 17 18 19 20 21 22

23 24 25 26 27 28 29 30 31 32 33

C-71

47

41

42 43

48 49 50 51 52 53 54 55 56 57

46

45

44

58

59

60 61 62 63

64 65 66

C-90
(MU803781)

1 2

A-67
(MU802406)

JOINT
CONNEC-
TOR (4)
