MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-121

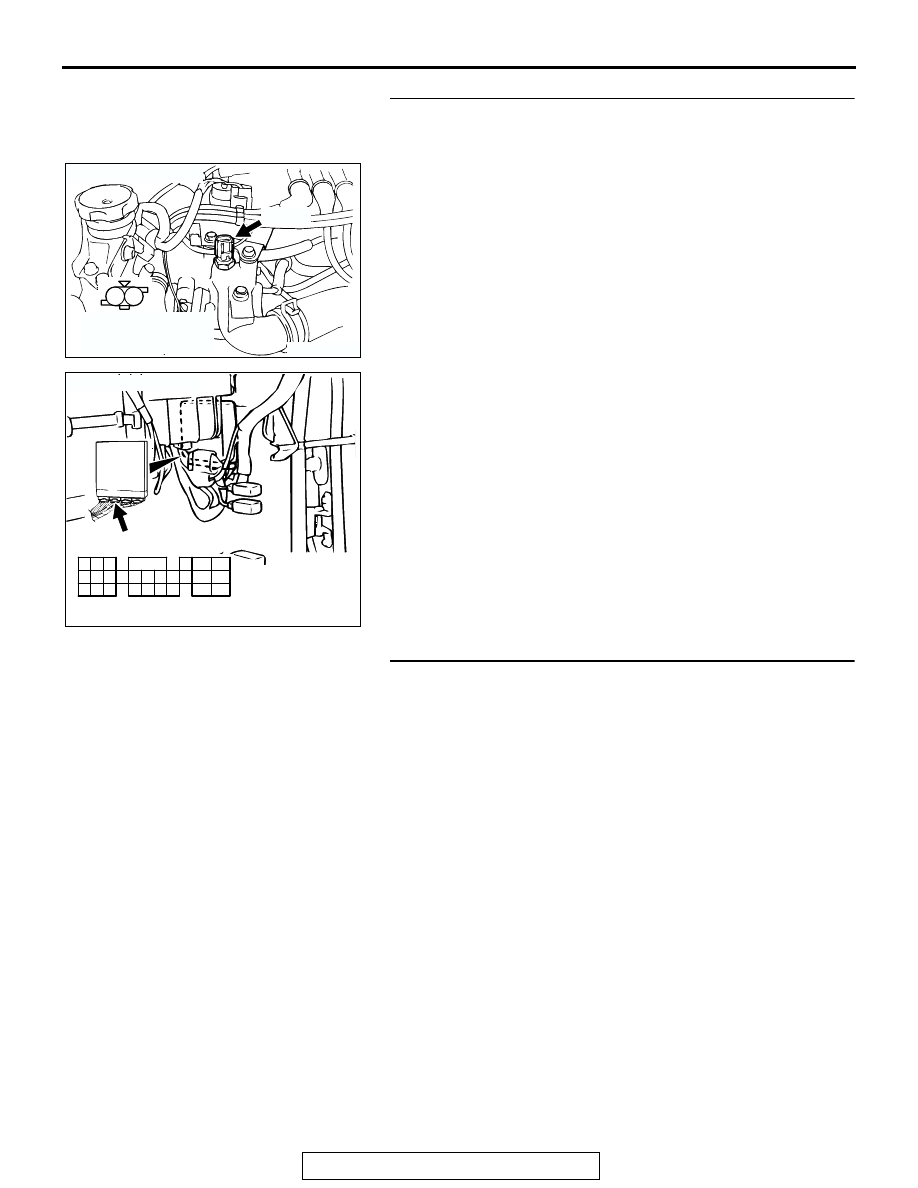

STEP 13. Check for harness damage between engine
coolant temperature sensor connector A-67 (terminal No.
1) and PCM connector C-90 (terminal No. 44).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 14.
NO :  Repair it. Then go to Step 14.

STEP 14. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0116 set?

YES : Repeat the troubleshooting.
NO :  The procedure is complete.

AK104023

1

2

A-67(B)

AB

CONNECTOR: A-67

HARNESS
CONNECTOR:
COMPONENT SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-122

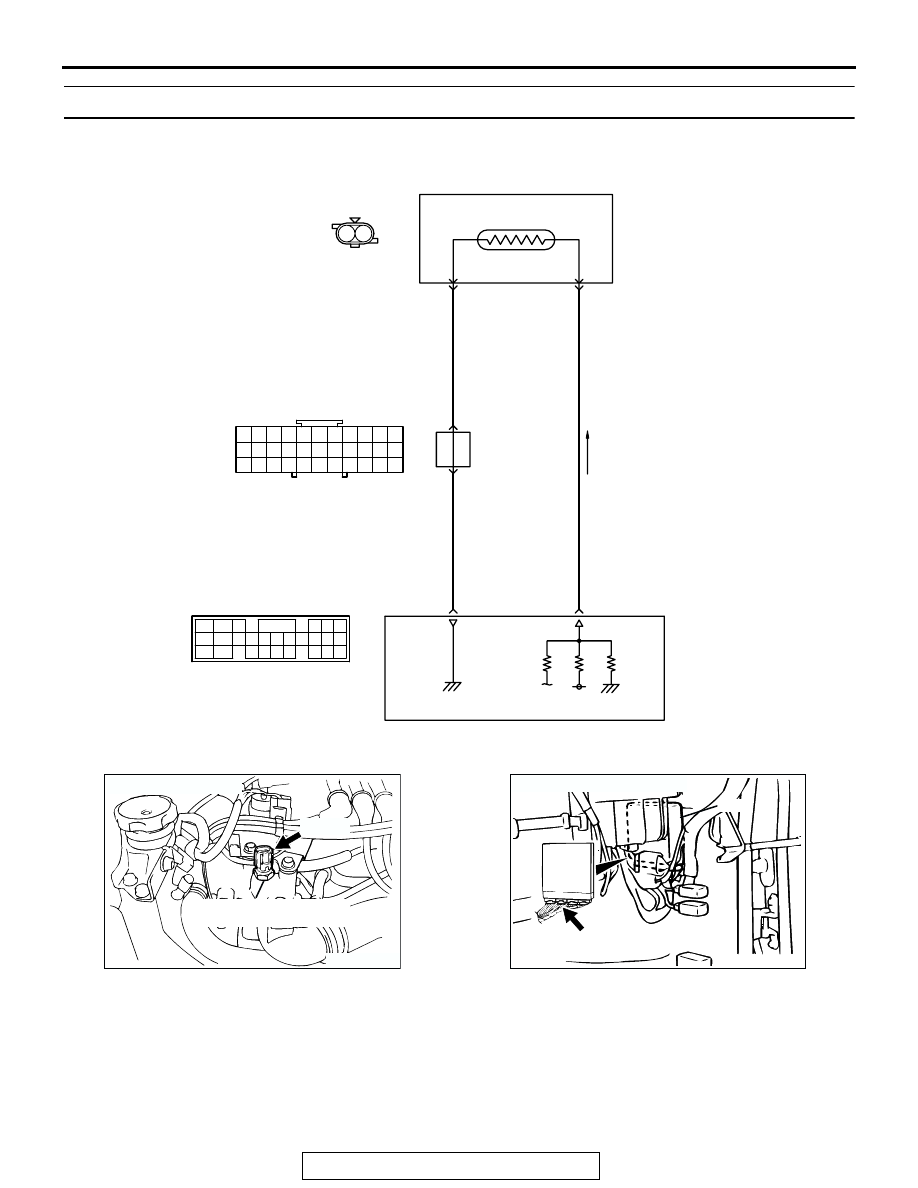

DTC P0117: Engine Coolant Temperature Circuit Low Input

AK000421

Intake Air Temperature Sensor Circuit

BLA

CK

YELLO

W

-GREEN

BLA

CK

57

2

5V

POWERTRAIN CONTROL MODULE (PCM)

ENGINE COOLANT
TEMPERATURE SENSOR

12

1

44

16

1

10

2 3 4 5 6 7 8 9

11

12 13 14 15 16 17 18 19 20 21 22

23 24 25 26 27 28 29 30 31 32 33

C-71

47

41

42 43

48 49 50 51 52 53 54 55 56 57

46

45

44

58

59

60 61 62 63

64 65 66

C-90
(MU803781)

1 2

A-67
(MU802406)

JOINT
CONNEC-
TOR (4)

AK104030

ENGINE COOLANT
TEMPERATURE SENSOR

A-67(B)

AB

CONNECTOR: A-67

AK103738AC

CONNECTOR: C-90

PCM

C-90(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-123

.

CIRCUIT OPERATION

• 5-volt voltage is applied to the engine coolant

temperature sensor output terminal (terminal No.
1) from the PCM (terminal No. 44) via the resistor
in the PCM. The ground terminal (terminal No. 2)
is grounded with (terminal No. 57).

• The engine coolant temperature sensor is a neg-

ative temperature coefficient type of resistor. It
has the characteristic that when the engine cool-
ant temperature rises the resistor decreases.

• The engine coolant temperature sensor output

voltage increases when the resistor increases
and decreases when the resistor decreases.

.

TECHNICAL DESCRIPTION

• The engine coolant temperature sensor converts

the engine coolant temperature to a voltage and
output it.

• The PCM checks whether this voltage is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Engine coolant temperature sensor output voltage is

out of specified range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

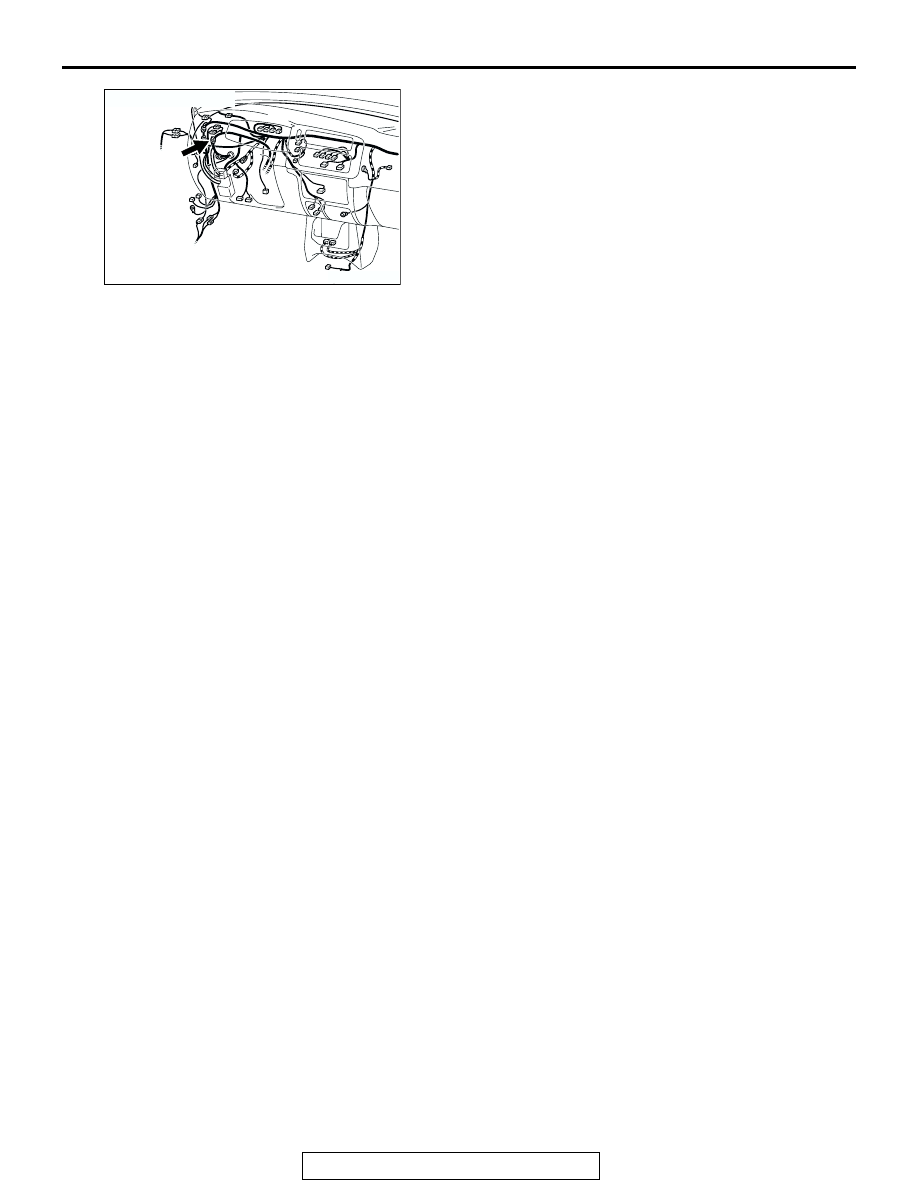

AK103912AB

CONNECTOR: C-71

C-71

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-124

DTC SET CONDITIONS

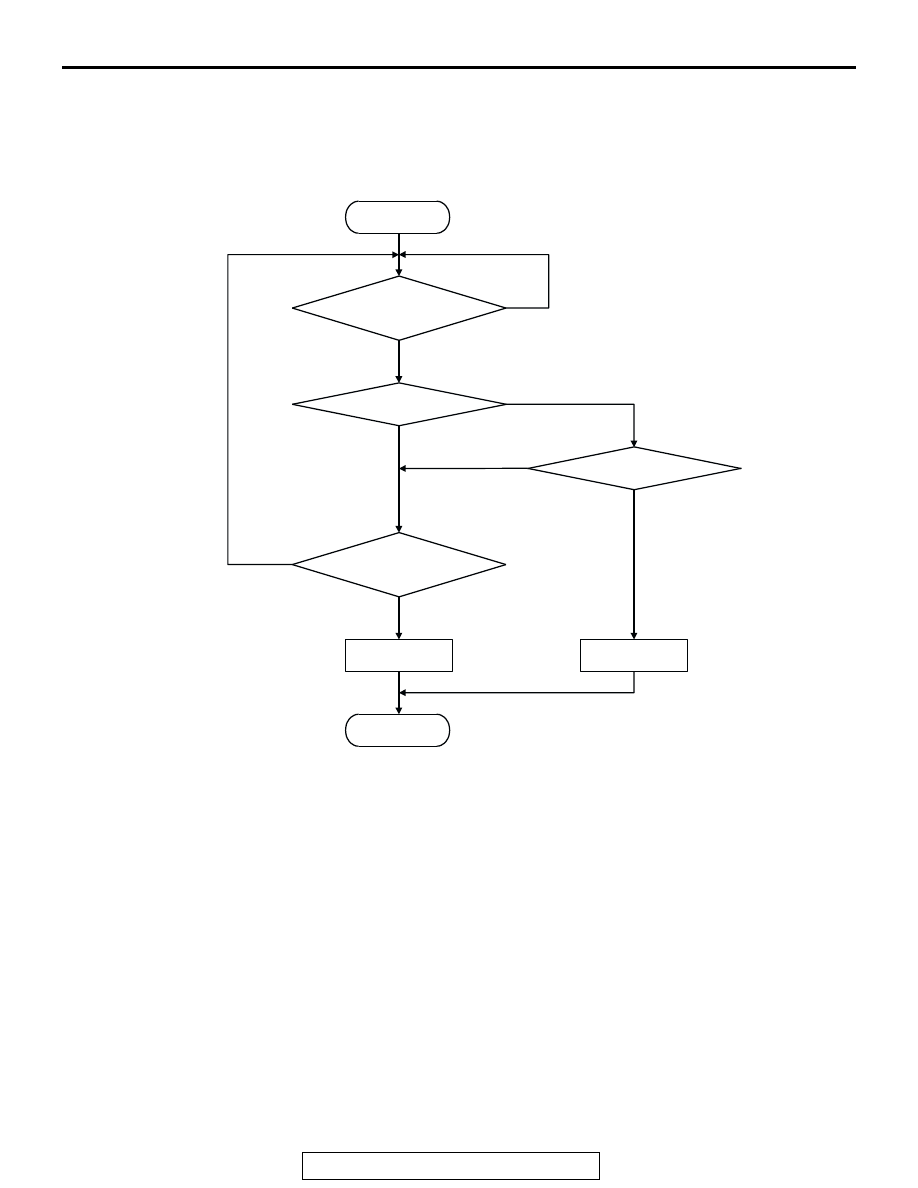

Logic Flow Chart

.

Check Conditions

• 2 seconds or more have passed since the staring

sequence was completed.

Judgement Criteria

• Engine coolant temperature sensor output volt-

age has continued to be 0.1 volt or lower [corre-
sponding to coolant temperature of 140

°C

(284

°F) or higher] for 2 seconds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Engine coolant temperature sensor failed.

• Shorted engine coolant temperature sensor cir-

cuit, or connector damage.

• PCM failed.

START

OUTPUT VOLTAGE > 4.6V

OUTPUT VOLTAGE < 0.1V

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR 2secs

MONITORING

CONDITIONS?

NO

YES

AK301426
