MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-109

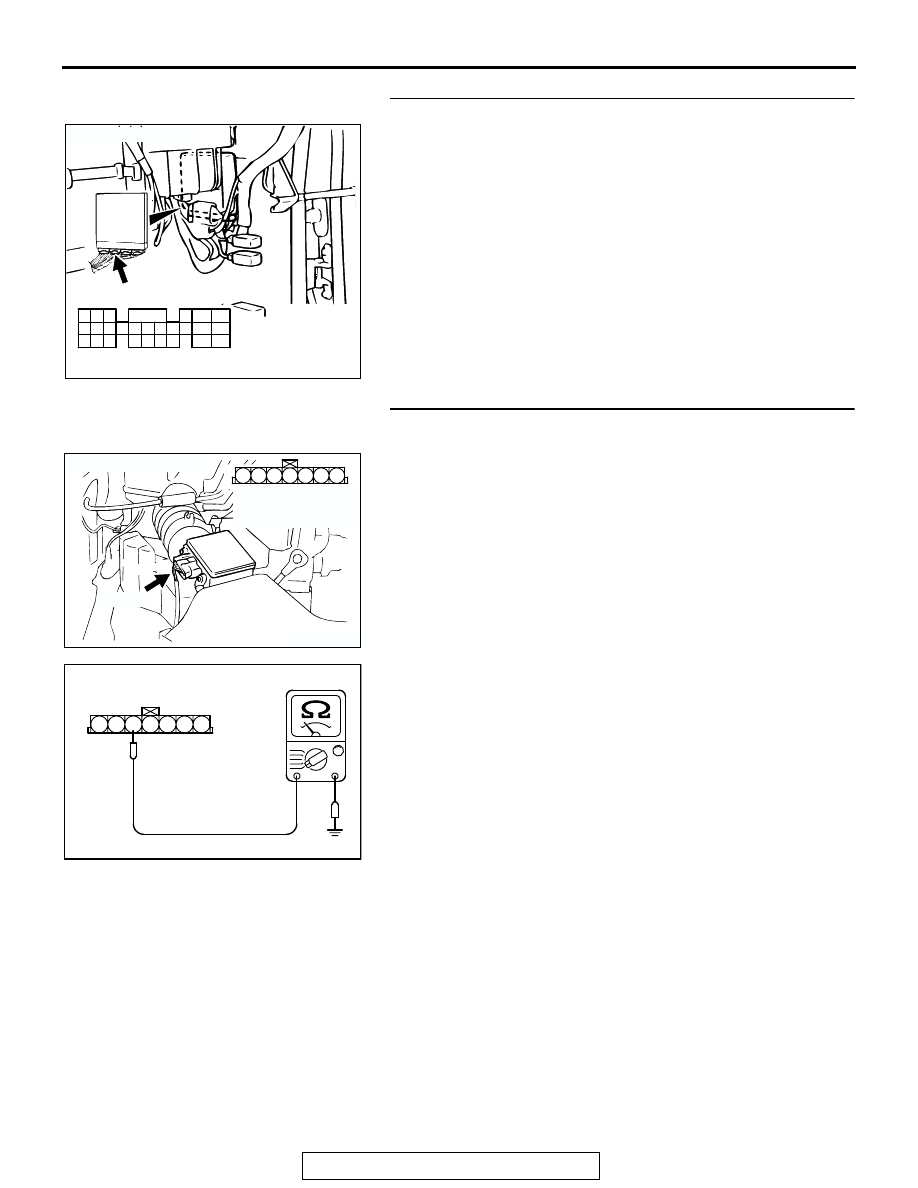

STEP 7. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Replace the PCM. Then go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

STEP 8. Check for continuity at intake air temperature
sensor harness side connector A-01.
(1) Disconnect the connector A-01 and measure at the harness

side.

(2) Check for the continuity between terminal No. 5 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Replace the PCM. Then go to Step 11.
NO :  Go to Step 9.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK103913

3

4

5

1

2

6

7

CONNECTOR: A-01

A-01(B)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01409AM

A-01 HARNESS CONNECTOR:
COMPONENT SIDE

7 6 5 4 3 2 1

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-110

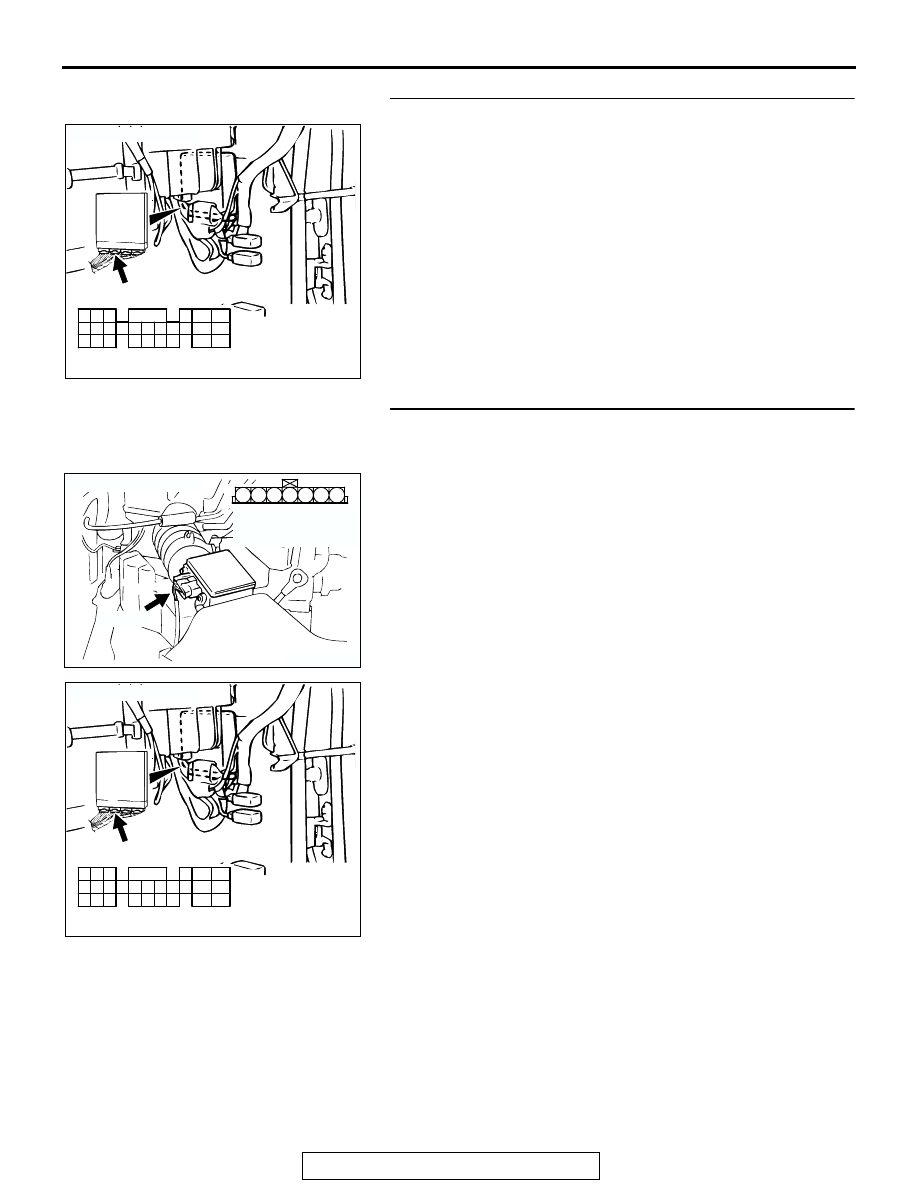

STEP 9. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

STEP 10. Check for open circuit between intake air
temperature sensor connector A-01 (terminal No.5) and
PCM connector C-90 (terminal No.57).

NOTE: Check harness after checking intermediate connector
C-71. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 11.
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 11.
NO :  Repair it. Then go to Step 11.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK103913

3

4

5

1

2

6

7

CONNECTOR: A-01

A-01(B)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-111

STEP 11. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0113 set?

YES : Repeat the troubleshooting.
NO :  The procedure is complete.

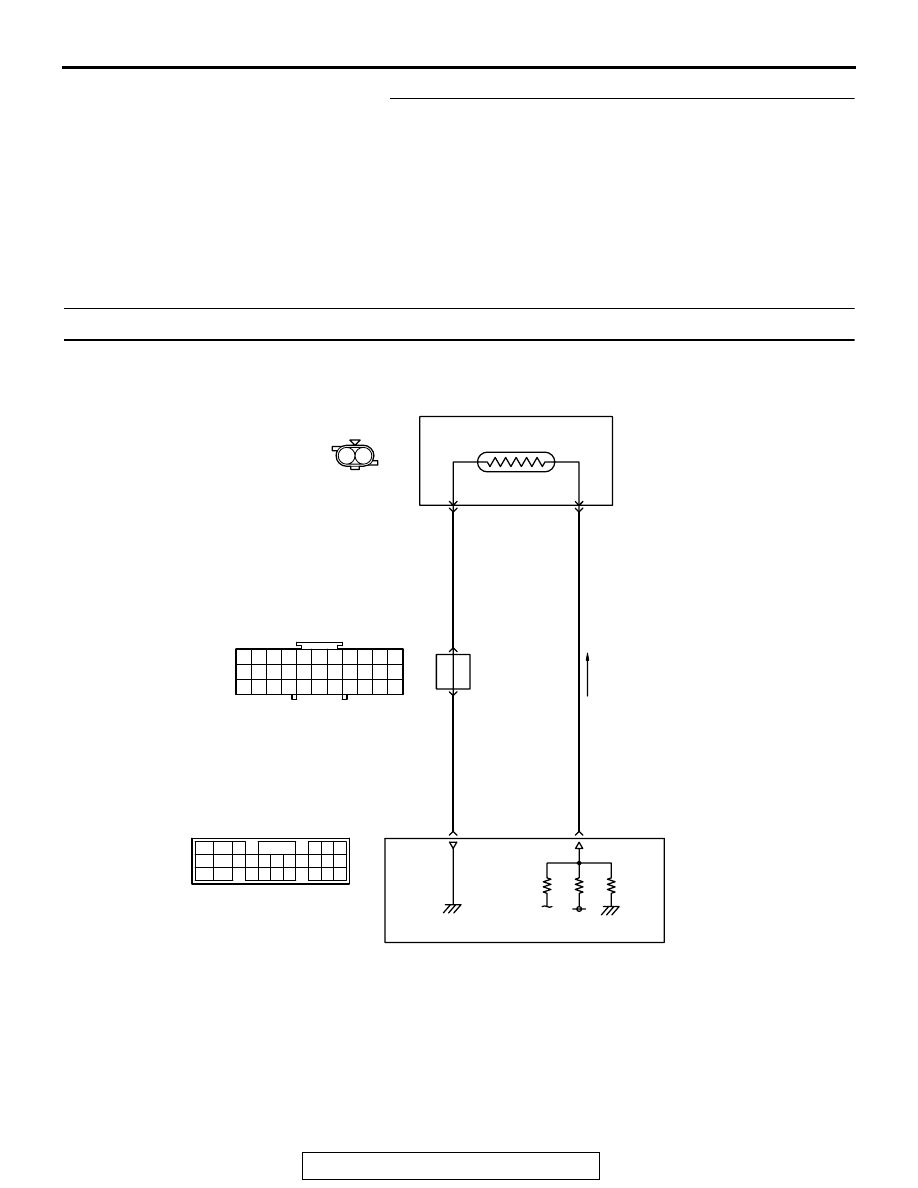

DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem

AK000421

Intake Air Temperature Sensor Circuit

BLA

CK

YELLO

W

-GREEN

BLA

CK

57

2

5V

POWERTRAIN CONTROL MODULE (PCM)

ENGINE COOLANT
TEMPERATURE SENSOR

12

1

44

16

1

10

2 3 4 5 6 7 8 9

11

12 13 14 15 16 17 18 19 20 21 22

23 24 25 26 27 28 29 30 31 32 33

C-71

47

41

42 43

48 49 50 51 52 53 54 55 56 57

46

45

44

58

59

60 61 62 63

64 65 66

C-90
(MU803781)

1 2

A-67
(MU802406)

JOINT
CONNEC-
TOR (4)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-112

.

CIRCUIT OPERATION

• 5-volt voltage is applied to the engine coolant

temperature sensor output terminal (terminal No.
1) from the PCM (terminal No. 44) via the resistor
in the PCM. The ground terminal (terminal No. 2)
is grounded with PCM (terminal No. 57).

• The engine coolant temperature sensor is a neg-

ative temperature coefficient type of resistor. It
has the characteristic that when the engine cool-
ant temperature rises the resistor decreases.

• The engine coolant temperature sensor output

voltage increases when the resistor increases
and decreases when the resistor decreases.

.

TECHNICAL DESCRIPTION

• The engine coolant temperature sensor converts

the engine coolant temperature to a voltage and
output it.

• The PCM checks whether this voltage is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Engine coolant temperature sensor output voltage

does not change for specified period when
engine coolant temperature sensor output volt-
age at engine start is over 7

°C (45°F).

.

MONITOR EXECUTION
Once per driving cycle

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Volume airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

.

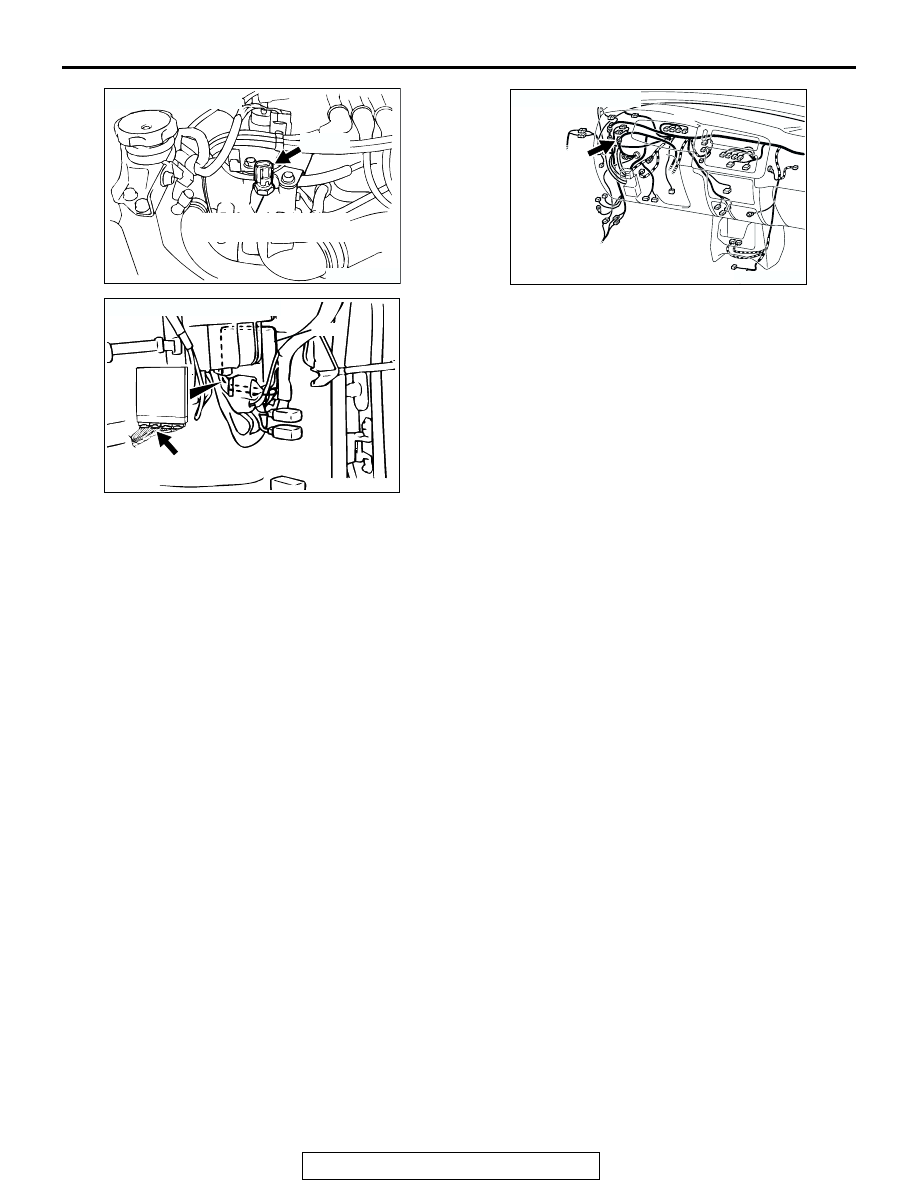

AK104030

ENGINE COOLANT
TEMPERATURE SENSOR

A-67(B)

AB

CONNECTOR: A-67

AK103738AC

CONNECTOR: C-90

PCM

C-90(GR)

AK103912AB

CONNECTOR: C-71

C-71
