Mitsubishi Montero Sport (2004+). Manual - part 161





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-57

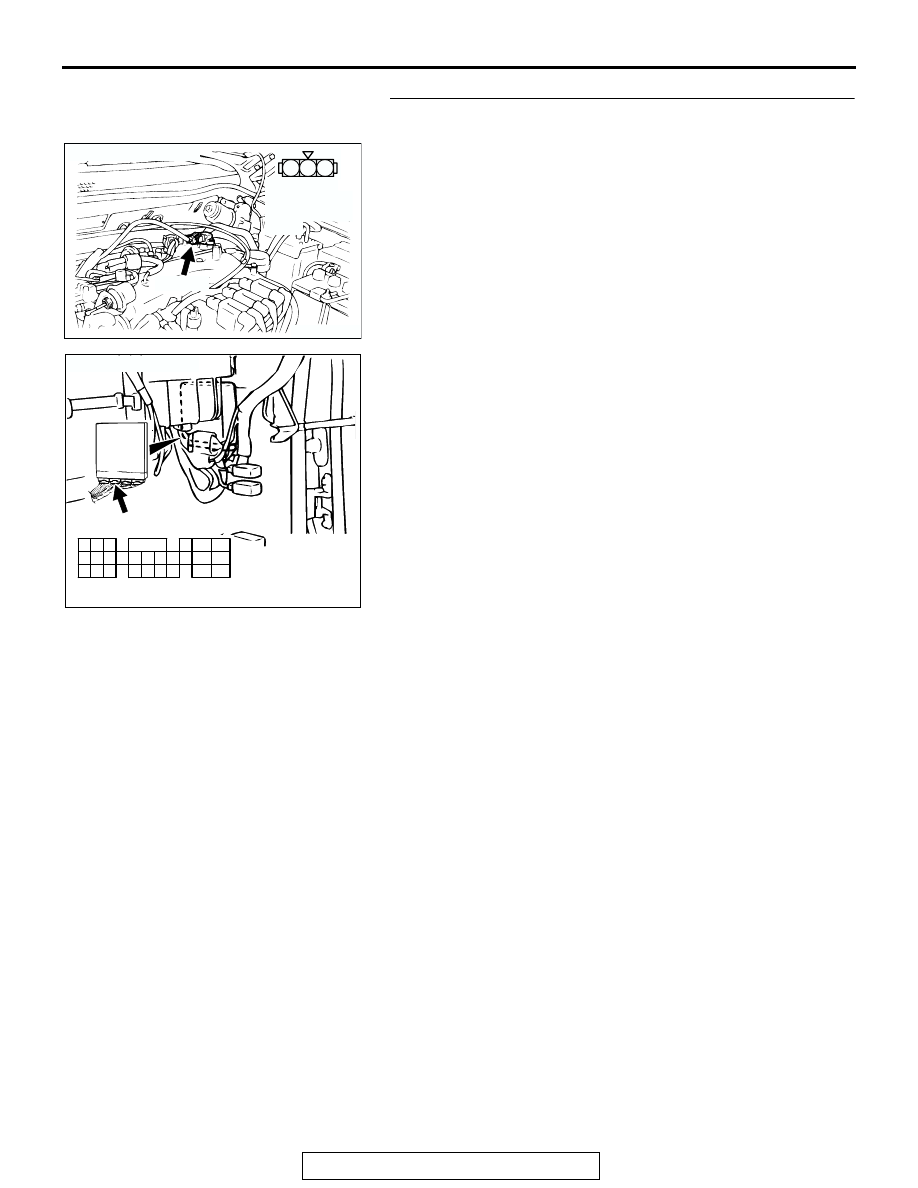

STEP 4. Check connector A-12 at the manifold absolute
pressure sensor and connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between manifold absolute

pressure sensor connector A-12 (terminal No. 3) and
PCM connector C-90 (terminal No. 46) because of
open circuit or harness damage. Then go to Step 12.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-58

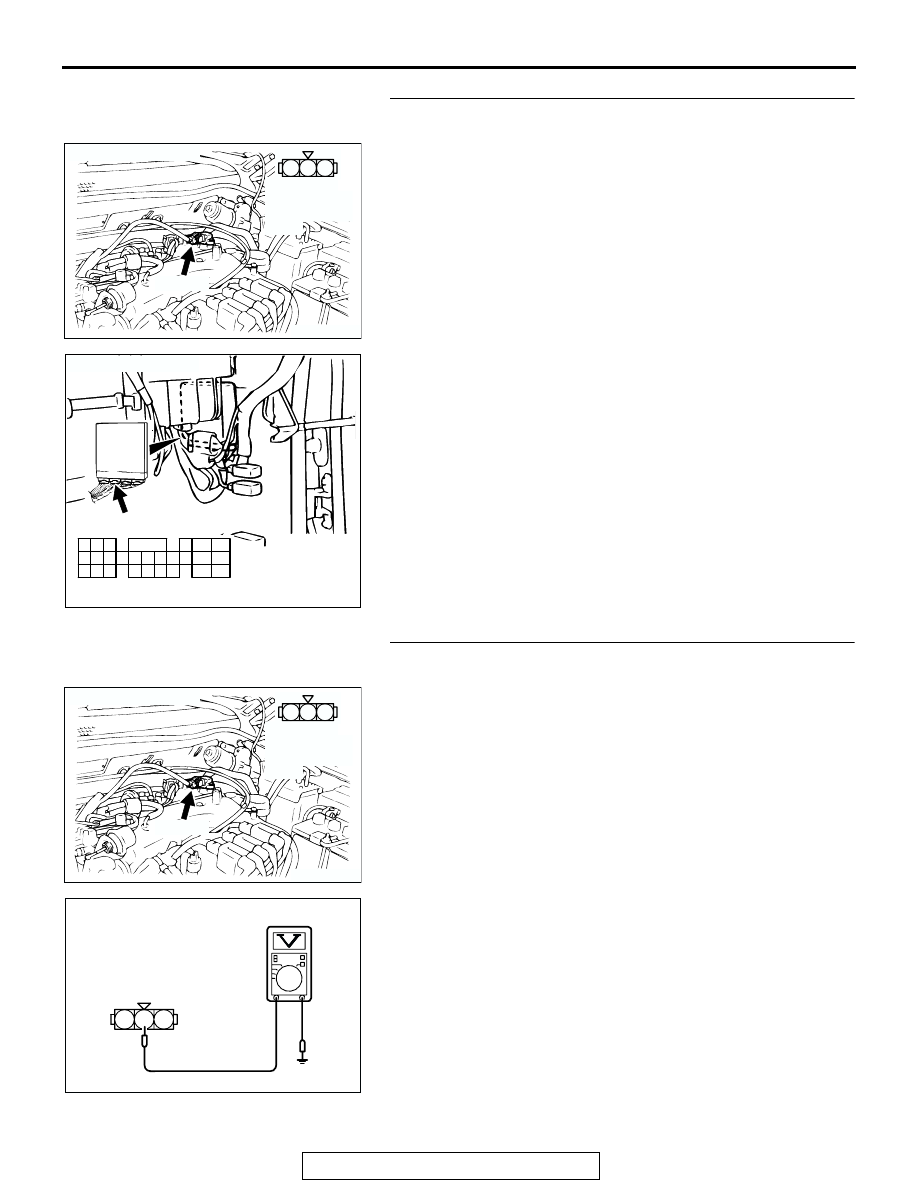

STEP 5. Check connector A-12 at the manifold absolute
pressure sensor and connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 6. Measure the ground voltage at manifold absolute
pressure sensor connector A-12 by backprobing.
(1) Do not disconnect the connector A-12.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 2 and ground by

backprobing.

• Voltage should be 0.5 volt or less.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage 0.5 volt or less?

YES : Go to Step 9.
NO :  Go to Step 7.

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE

3

2

1

AK203038

A-12 HARNESS
CONNECTOR:
HARNESS SIDE

AF

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-59

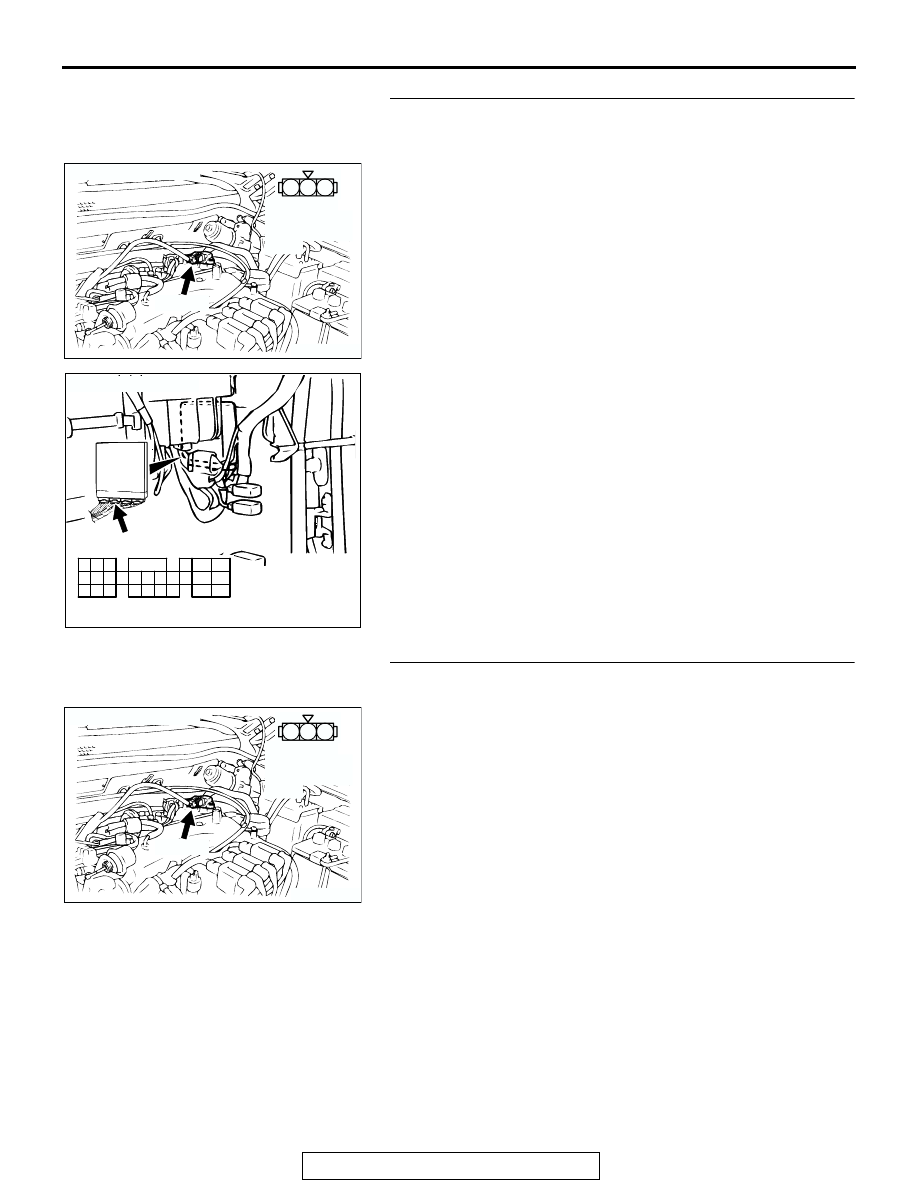

STEP 7. Check connector A-12 at the manifold absolute
pressure sensor and connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-60

STEP 8. Check for harness damage between manifold
absolute pressure sensor connector A-12 (terminal No. 2)
and PCM connector C-90 (terminal No. 57).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

STEP 9. Check connector A-12 at manifold absolute
pressure sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE
