Mitsubishi Montero Sport (2004+). Manual - part 119





AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-71

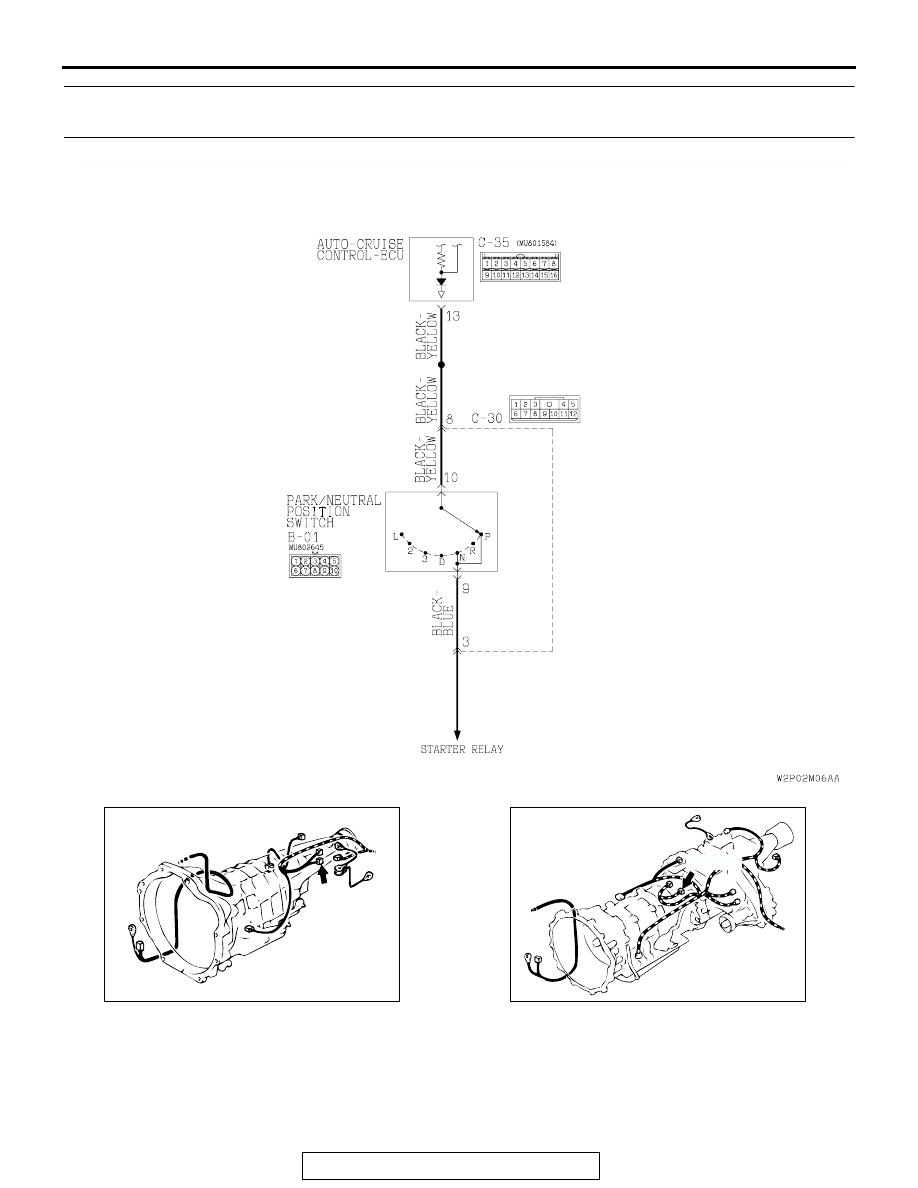

INSPECTION PROCEDURE 3: When the Selector Lever is Moved to "N" Range, Auto-cruise Control is
not Cancelled.

AC103595

Park/neutral Position Switch Circuit

AB

AC004771 AC

CONNECTOR: B-01 <RWD>

B-01 (B)

AC004772

CONNECTOR: B-01 <4WD>

AC

B-01 (B)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-72

.

CIRCUIT OPERATION
This circuit transmits the "N" or "P" position signal of
the park/neutral position switch to the auto-cruise
control-ECU.
When the park/neutral position switch is at the "N" or
"P" position, auto-cruise control-ECU terminal num-
ber 13 will receives 0 volt.

.

TECHNICAL DESCRIPTION (COMMENT)
The cause is probably an open-circuit in the output
signal circuit in "N" range.

.

TROUBLESHOOTING HINTS

• Malfunction of the park/neutral position switch

• Damaged harness or connector

• Malfunction of the auto-cruise control-ECU

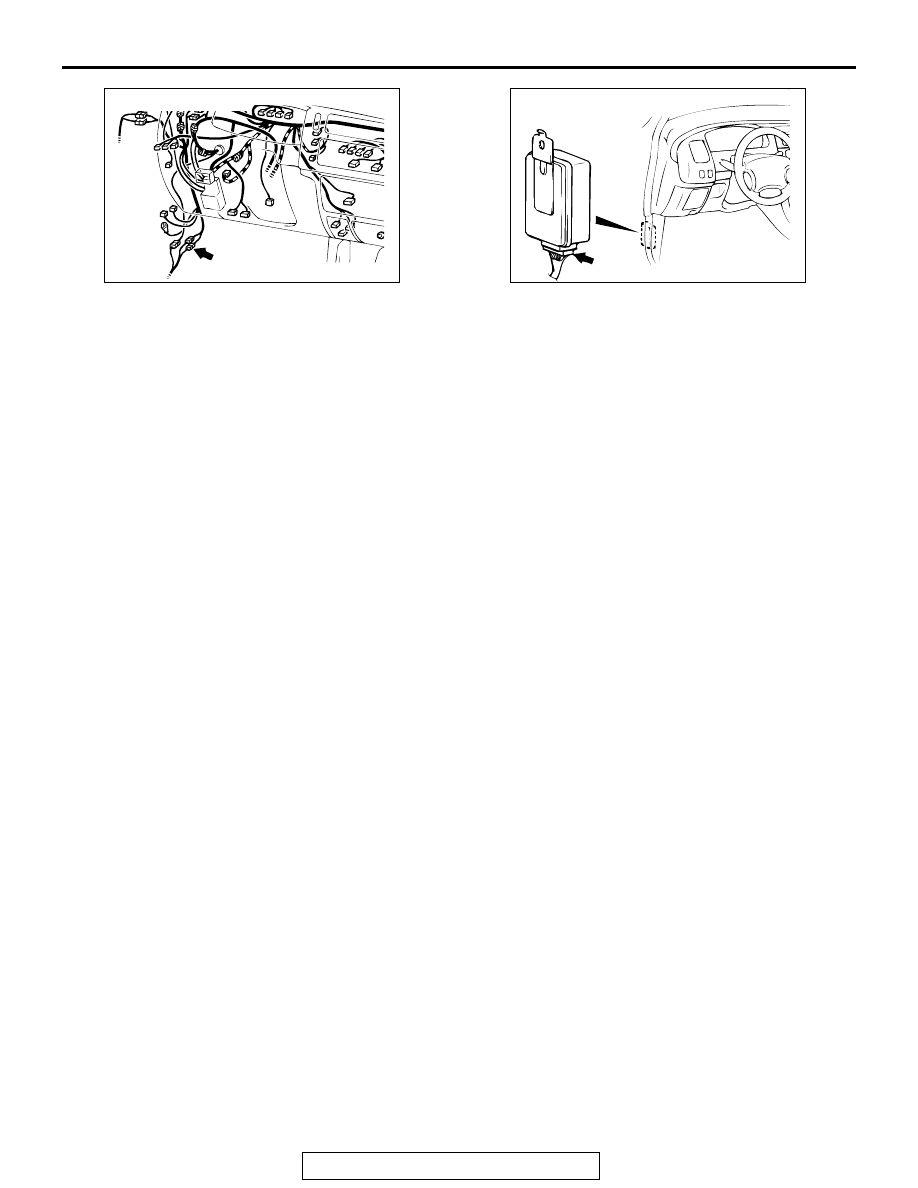

AC004751 AK

CONNECTOR: C-30

C-30

AC004747 AC

CONNECTOR: C-35

C-35 (B)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-73

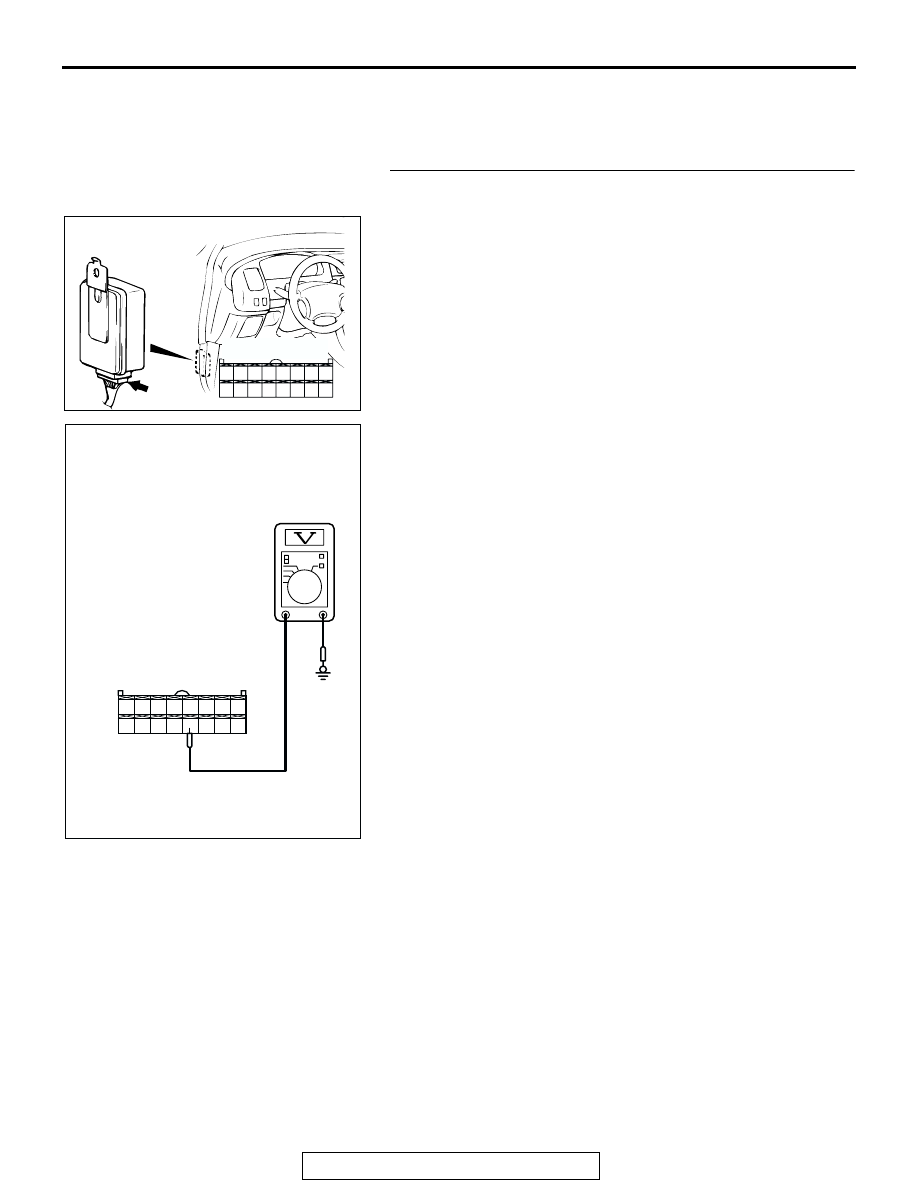

DIAGNOSIS

Required Special Tool:

• MB991223: Harness set

STEP 1. Measure the signal voltage at auto-cruise
control-ECU connector C-35 by backprobing.
(1) Do not disconnect auto-cruise control-ECU connector C-35.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between auto-cruise control-ECU

connector C-35 terminal 13 and ground by backprobing.

• The measured voltage should measure battery positive

voltage. (When select lever is in a position other than
"N" range).

• The measured voltage should measure 0.5 volts or less.

(When select lever is in "N" range).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are all of the measured voltage satisfied?

YES : Go to Step 5 .
NO :  Go to Step 2 .

AC202155

2

3

10

11

5

6

13

14

12

4

8

16 15

7

9

1

C-35 (B)

AB

CONNECTOR: C-35

C-35 HARNESS SIDE
CONNECTOR

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

ACX01906AK

C-35 HARNESS CONNECTOR:
HARNESS SIDE

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-74

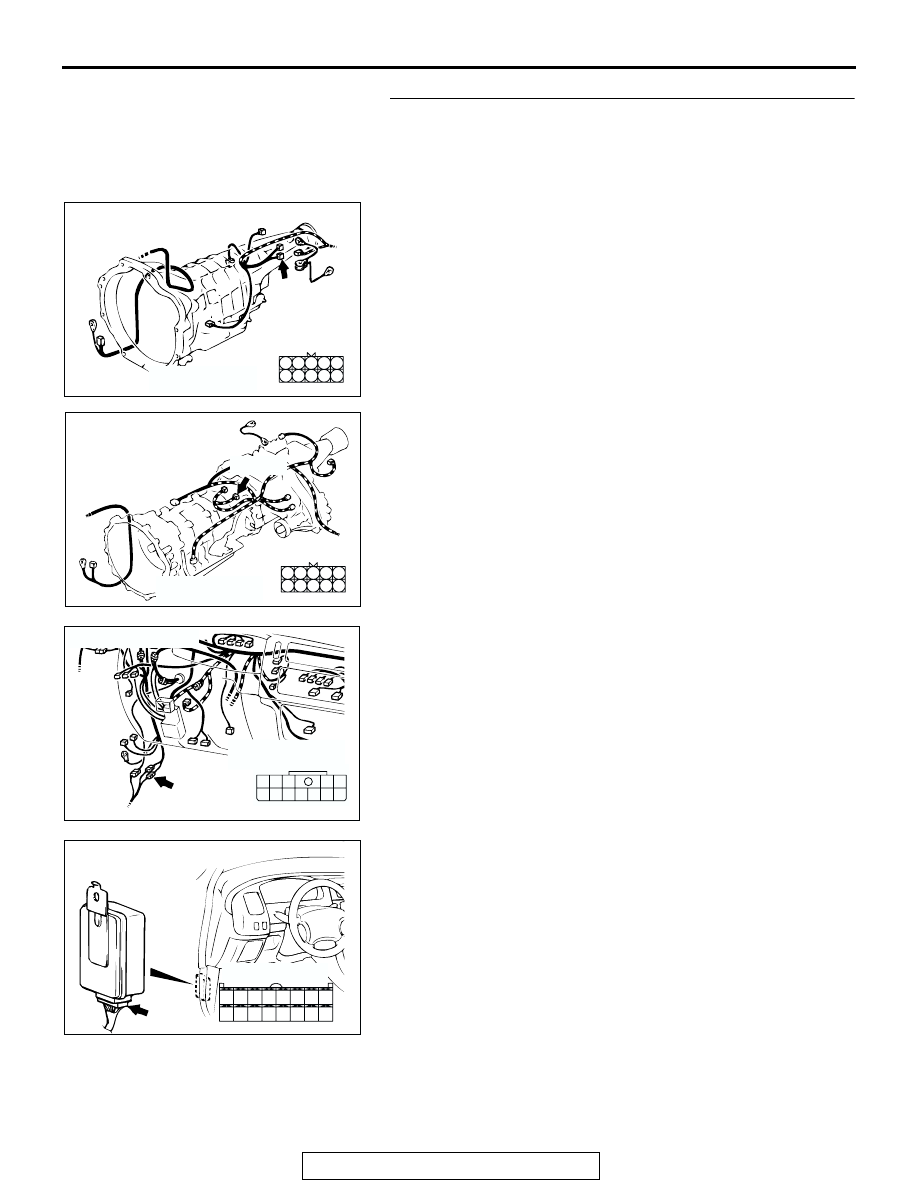

STEP 2. Check park/neutral position switch connector
B-01, intermediate connector C-30 and auto-cruise
control-ECU connector C-35 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 3 .
NO :  Repair or replace the faulty connector. (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

). Then go to Step 6 .

AC203159

1
6

3
8

2
9

5

10

7

2

AC

CONNECTOR: B-01 <RWD>

B-01 (B)

B-01: HARNESS
SIDE CONNECTOR

AC203158

1
6

3
8

4
9

5

10

7

2

CONNECTOR: B-01 <4WD>

AC

B-01 (B)

B-01: HARNESS
SIDE CONNECTOR

AC203160

1

2

3

4

5

6

7

8

9

10

11

12

CONNECTOR: C-30

AB

C-30

C-30: HARNESS
SIDE CONNECTOR

AC202155

2

3

10

11

5

6

13

14

12

4

8

16 15

7

9

1

C-35 (B)

AB

CONNECTOR: C-35

C-35 HARNESS SIDE
CONNECTOR
