CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-5

STEP 4.
Q: Does the generator malfunction light go out after

starting the engine?
YES :
Go to Step 5 .
NO :  Check the generator (Refer to Charging System

−

Generator Assembly

− Inspection

P.16-17

.)

STEP 5.
Q: Is an oscilloscope available?

YES : Go to Step 6 .
NO :  Go to Step 7.

STEP 6.
Q: Dose the oscilloscope show a normal wave pattern?

(Refer to Charging System

 On-vehicle Service  Wave

Pattern Check Using an Oscilloscope

P.16-11

.)

YES : Go to Step 7.
NO :  Check the generator. (Refer to Charging System

−

Generator Assembly

− Inspection

P.16-17

.)

STEP 7.

• Engine: 2,500 r/min

• Headlight: ON (high beam)

• Voltage between generator terminal B and the positive bat-

tery terminal
OK: 0.5 V or less

• Voltage between the negative battery terminal and genera-

tor body
OK: 0.5 V or less

Q: Are the generator output line and ground line in good

condition?
YES :
Go to Step 8 .
NO :  Check the generator output line and ground line.

STEP 8.
Q: Is the output current normal? (Refer to Charging

System

 On-vehicle Service  Output Current Test

P.16-8

.)

YES : Go to Step 9 .
NO :  Check the generator (Refer to Charging System

−

Generator Assembly

− Inspection

P.16-17

.)

STEP 9.
Q: Is the regulated voltage normal? (Refer to Charging

System

 On-vehicle Service  Regulated Voltage Test

P.16-10

.)

YES : Go to Step 10 .
NO :  Check the generator (Refer to Charging System

−

Generator Assembly

− Inspection

P.16-17

.)

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-6

STEP 10.
Q: Is the voltage drop in the generator output line normal?

YES : Generator is normal. Check other systems.
NO :  Check the output line.

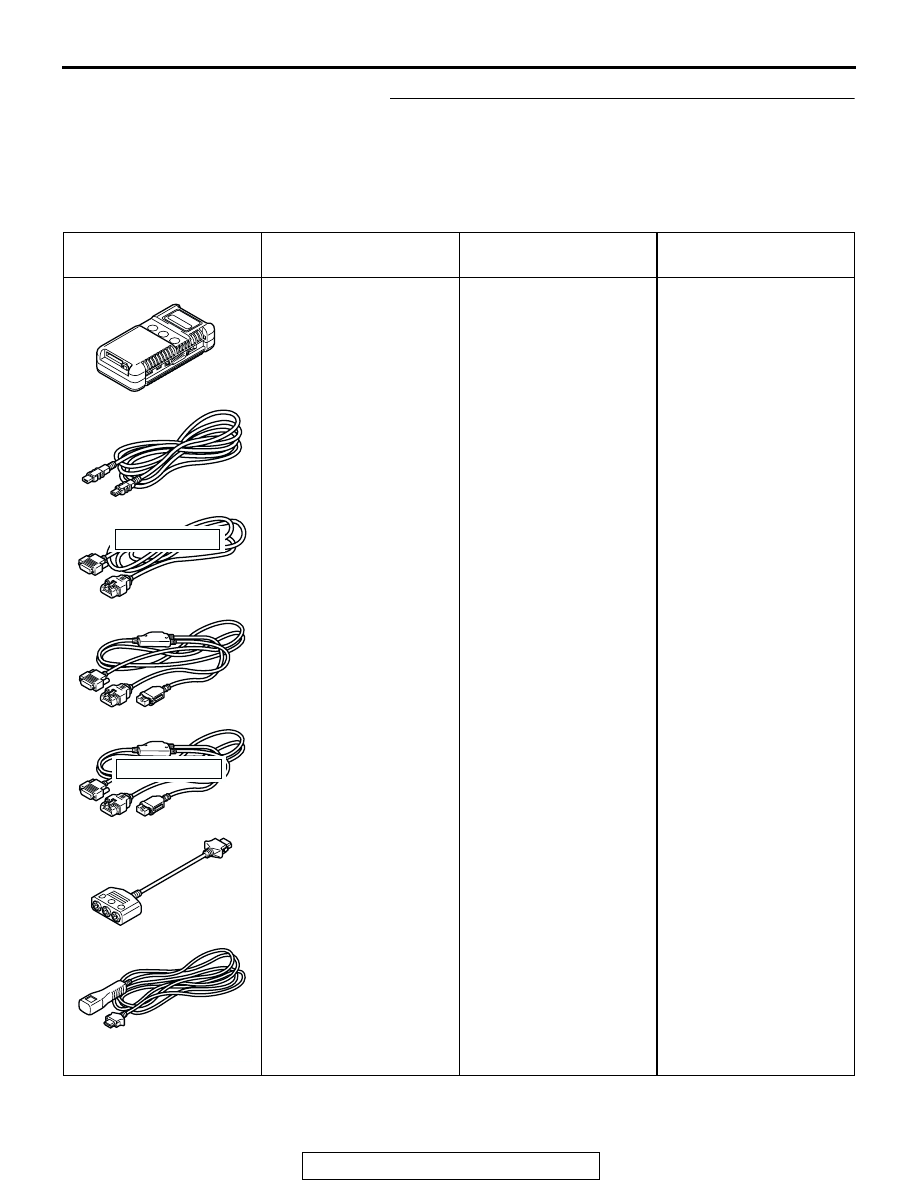

SPECIAL TOOL

M1161000600271

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991958
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826
MUT-III sub assembly
A: Vehicle
Communication Interface
(V.C.I.)
B: MUT-III USB Cable
C: MUT-III Main Harness
A (Vehicles with CAN
communication system)
D: MUT-III Main Harness
B (Vehicles without CAN
communication system)
E: MUT-III Main Harness
C (for Daimler Chrysler
models only)
F: MUT-III Adapter
Harness
G: MUT-III Trigger
Harness

MB991824-KIT
NOTE: G: MB991826
MUT-III Trigger Harness
is not necessary when
pushing V.C.I. ENTER
key.

Checking of engine idle
speed

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-7

ON-VEHICLE SERVICE

GENERATOR OUTPUT LINE VOLTAGE DROP TEST

M1161000900379

Required Special Tool:
MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

This test determines whether the wiring from the
generator "B" terminal to the positive battery terminal
(including the fusible link) is in good condition or not:

WARNING

Battery posts, terminals and related acces-
sories contain lead and lead compounds.
WASH HANDS AFTER HANDLING.

1. Always be sure to check the following before the

test.

• Generator installation

• Generator drive belt tension (Refer to GROUP

00, General <Body and Chasis>

− Maintenance

Service

− 8. Drive Belt (For Generator and Water

Pump, Power Steering Pump) (Check Condition)

P.00-46

.)

• Fusible link

• Abnormal noise from the generator while the

engine is running

2. Turn the ignition switch to the "LOCK" (OFF)

position.

3. Disconnect the negative battery cable.

4. Disconnect the generator output wire from the

generator "B" terminal and connect a DC test
ammeter with a range of 0

− 100 A in series

between the "B" terminal and the disconnected
output wire. (Connect the positive lead of the
ammeter to the "B" terminal, and then connect the
negative lead of the ammeter to the disconnected
output wire.)
NOTE: A clamp-type ammeter which enables
measurements to be taken without disconnecting
the generator output wire is recommended. If the
voltage may have dropped due to a bad connec-
tion at generator "B" terminal and the generator
"B" terminal is loosened when the test ammeter is
connected, the connection will be completed at
this time and the possibility of finding the problem
will be reduced.

5. Connect a digital-type voltmeter between the

generator "B" terminal and the positive battery
terminal. (Connect the positive lead of the
voltmeter to the "B" terminal, and then connect the
negative lead of the voltmeter to the positive
battery cable.)

6. Reconnect the negative battery cable.
7. Connect an engine tachometer or scan tool

MB991958.

8. Leave the hood open.
9. Start the engine.

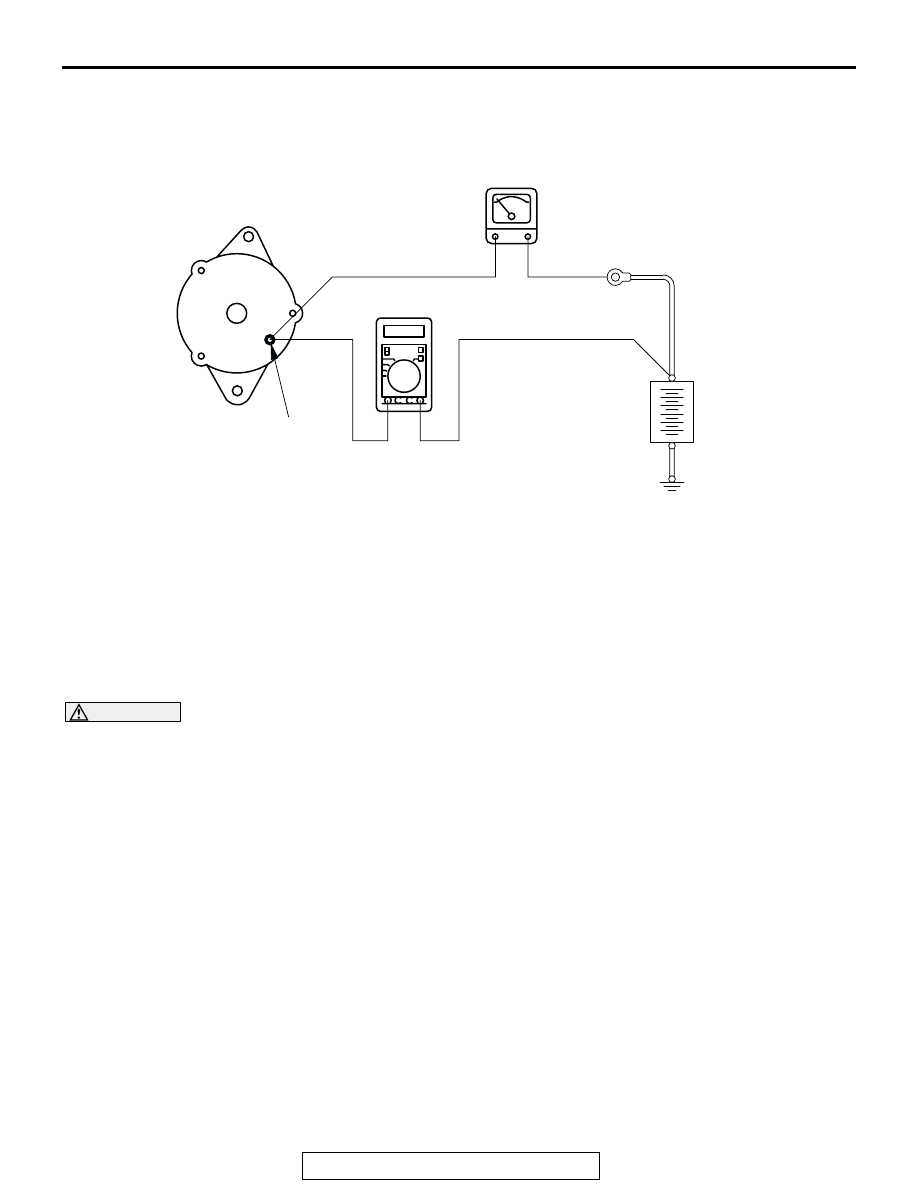

AKX00185

GENERATOR

AMMETER

VOLTMETER
(DIGITAL-TYPE)

BATTERY

+

"B"TERMINAL

AB

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-8

10.With the engine running at 2,500 r/min, turn the

headlights and other lights on and off to adjust the
generator load so that the value displayed on the
ammeter is slightly above 30 A.

Limit value: maximum 0.3 V

NOTE: When the generator output is high and the
value displayed on the ammeter does not
decrease to 30 A, set the value to 40 A. Read the
value displayed on the voltmeter at this time.
In this case the limit value becomes maximum 0.4
V.
Adjust the engine speed by gradually decreasing
it until the value displayed on the ammeter is 30
A. Take a reading of the value displayed on the
voltmeter at this time.

11.If the value displayed on the voltmeter is above

the limit value, there is probably a malfunction in
the generator output wire. Check the wiring
between the generator "B" terminal and the
positive battery terminal (including fusible link).

If a terminal is not sufficiently tight or if the
harness has become discolored due to
overheating, repair and then test again.

12.After the test, run the engine at idle.
13.Turn off all lights and turn the ignition switch to the

"LOCK" (OFF) position.
NOTE: Vehicles for Canada, the headlight, tail-
light, etc. remain lit even when the lighting switch
is in "OFF" position.

14.Disconnect the engine tachometer or scan tool

MB991958.

15.Disconnect the negative battery cable.
16.Disconnect the ammeter and voltmeter and

engine tachometer.

17.Connect the generator output wire to the

generator "B" terminal.

18.Connect the negative battery cable.

OUTPUT CURRENT TEST

M1161001000379

Required Special Tool:
MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: MUT-III V.C.I.

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

This test determines whether the generator outputs
normal current.

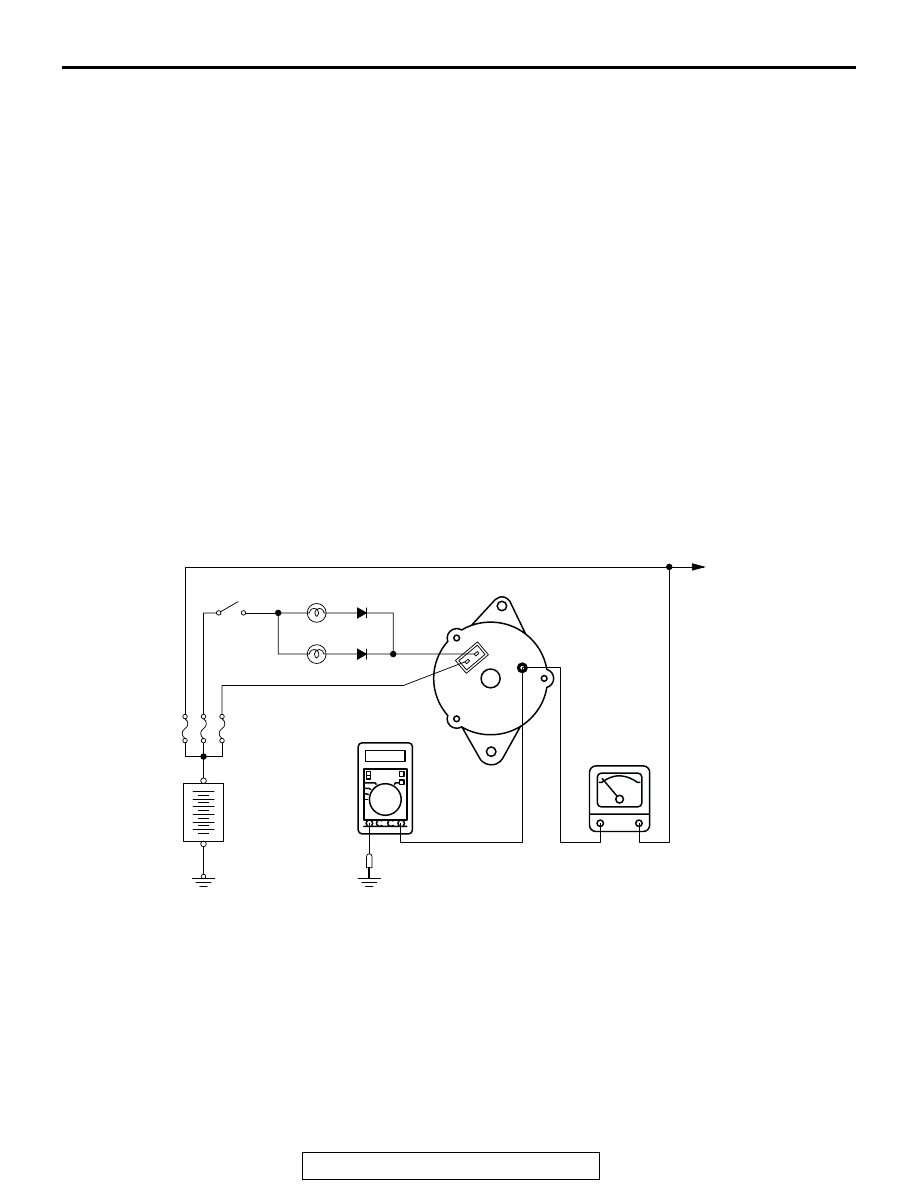

AKX00186

GENERATOR

AMMETER

VOLTMETER

BATTERY

+

+

+

-

-

-

IGNITION
SWITCH

GENERATOR MALFUNCTION
LIGHT

BRAKE WARNING LIGHT

L

S

B

LOAD

AD
