TIMING BELT

TSB Revision

ENGINE MECHANICAL

11A-37

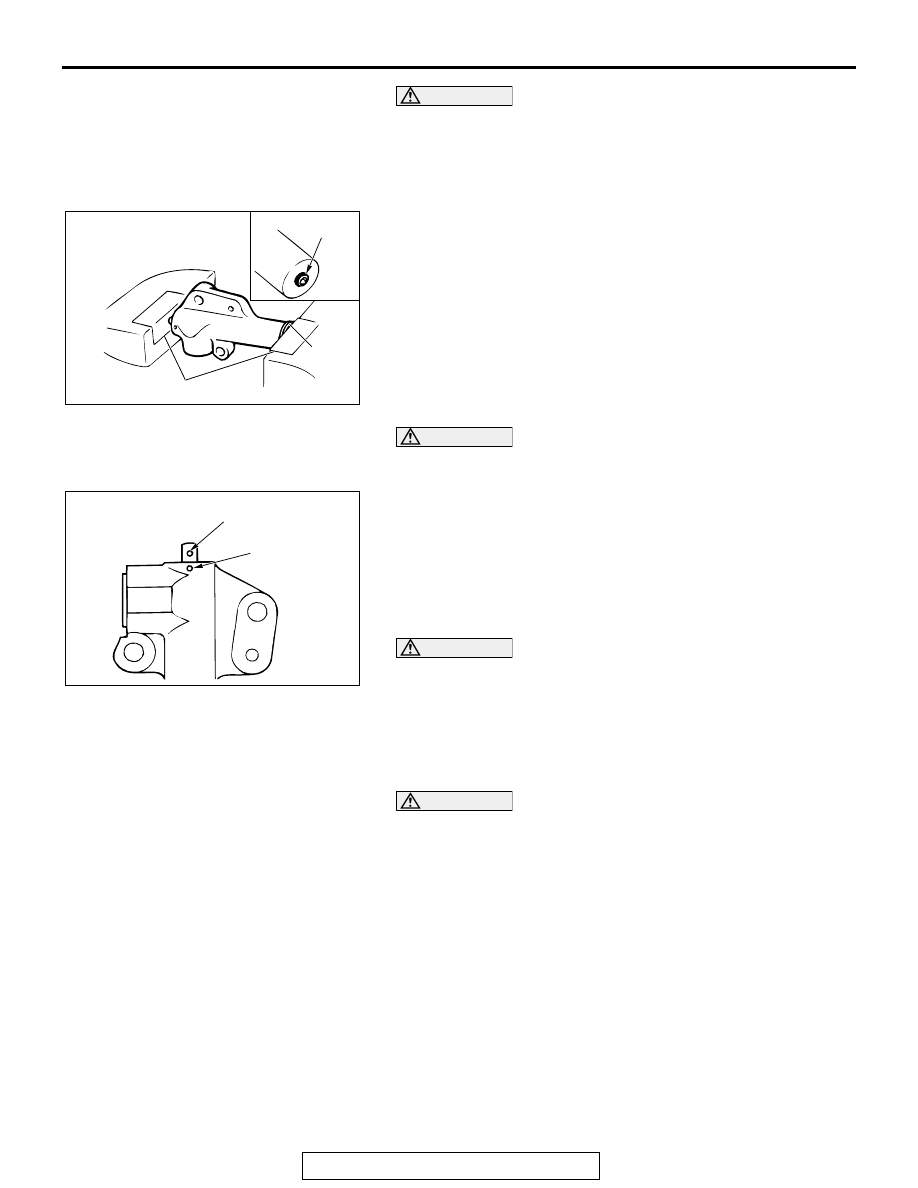

CAUTION

• Place the auto-tensioner perpendicular to the jaws of

the vice.

• If there is a plug at the base of the auto-tensioner, insert

a plain washer onto the end of the auto-tensioner to
protect the plug.

3. Place two dolly blocks in a vice as shown in the illustration,

and then place the auto-tensioner in the vice.

CAUTION

Never compress the pushrod too fast, or the pushrod may
be damaged.
4. Slowly compress the pushrod of the auto-tensioner until pin

hole A in the pushrod is aligned with pin hole B in the
cylinder.

5. Insert the setting pin into the pin holes once they are

aligned.
NOTE: If replacing the auto-tensioner, the pin will already be
inserted into the pin holes of the new part.

CAUTION

Do not remove the setting pin from the auto-tensioner.
6. Install the auto-tensioner to the engine.

.

>>B<< TIMING BELT INSTALLATION
1. Align the timing marks of the camshaft sprocket with those

of crankshaft sprocket.

CAUTION

The camshaft sprocket (right side) can turn easily due to
the spring force applied, so be careful not to get your fin-
gers caught.
2. Install the timing belt by the following procedure so that

there is no deflection in the timing belt between each
sprocket and pulley.

(1) Crankshaft sprocket
(2) Idler pulley
(3) Camshaft sprocket (Left side)
(4) Water pump pulley
(5) Camshaft sprocket (Right side)
(6) Tension pulley

ACX00333

PLUG

PLAIN

WASHER

DOLLY BLOCKS

AB

ACX00334 AB

PIN HOLE A

PIN HOLE B

TIMING BELT

TSB Revision

ENGINE MECHANICAL

11A-38

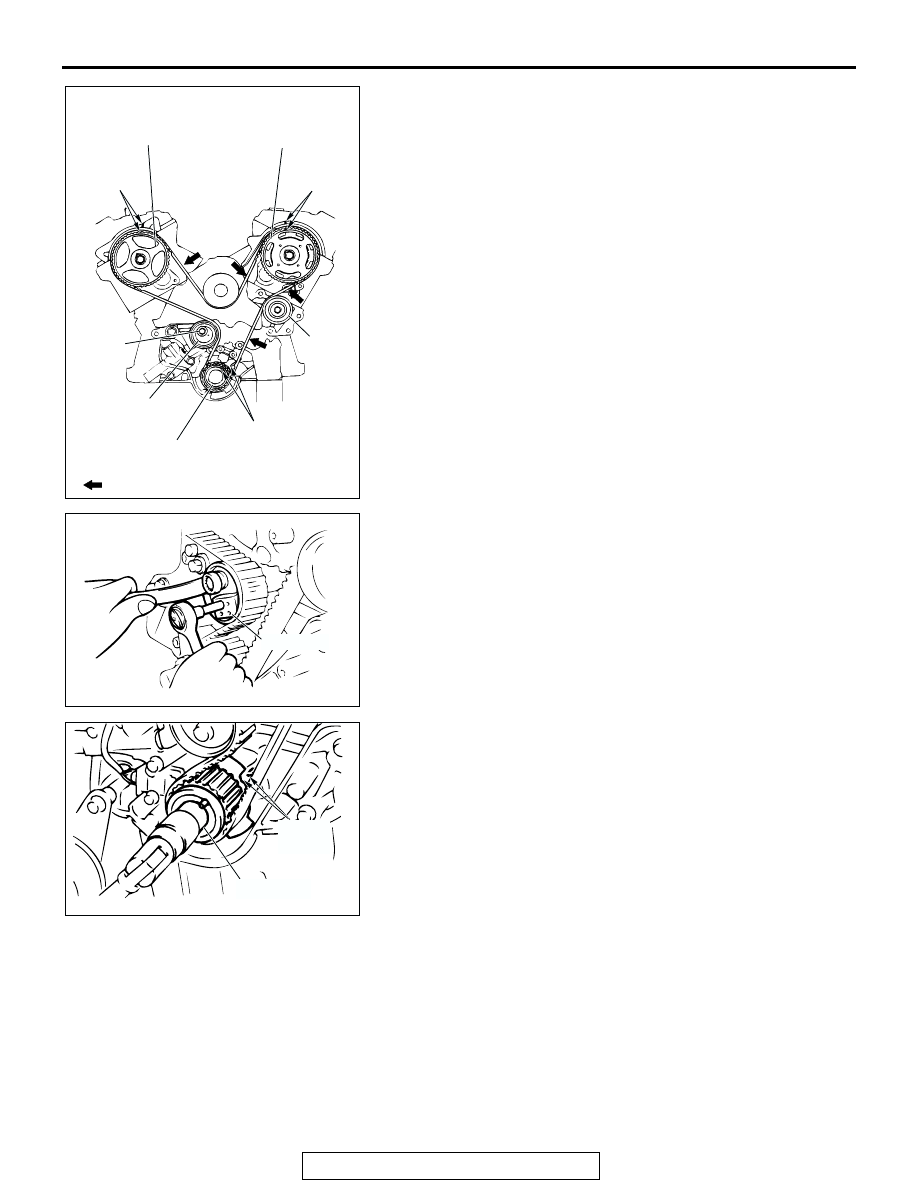

3. Turn the camshaft sprocket counterclockwise until the

tension side of the timing belt is firmly stretched. Check all
timing marks again.

4. Use special tool MD998767 to push the tensioner pulley into

the timing belt, and then temporarily tighten the center bolt.

5. Use special tool MD998769 to turn the crankshaft 1/4 turn

counterclockwise and then turn it again clockwise until the
timing marks are aligned.

ACX00332

TIMING
MARK

TIMING
MARK

TIMING
MARK

CAMSHAFT
SPROCKET
(RIGHT BANK)

CAMSHAFT
SPROCKET
(LEFT BANK)

CRANKSHAFT
SPROCKET

TENSION
PULLEY

CENTER
BOLT

AC

WATER
PUMP
PULLEY

IDLER
PULLEY

: BELT TENSION SIDE

ACX00335AB

MD998767

ACX00336AB

MD998769

TIMING
MARK

TIMING BELT

TSB Revision

ENGINE MECHANICAL

11A-39

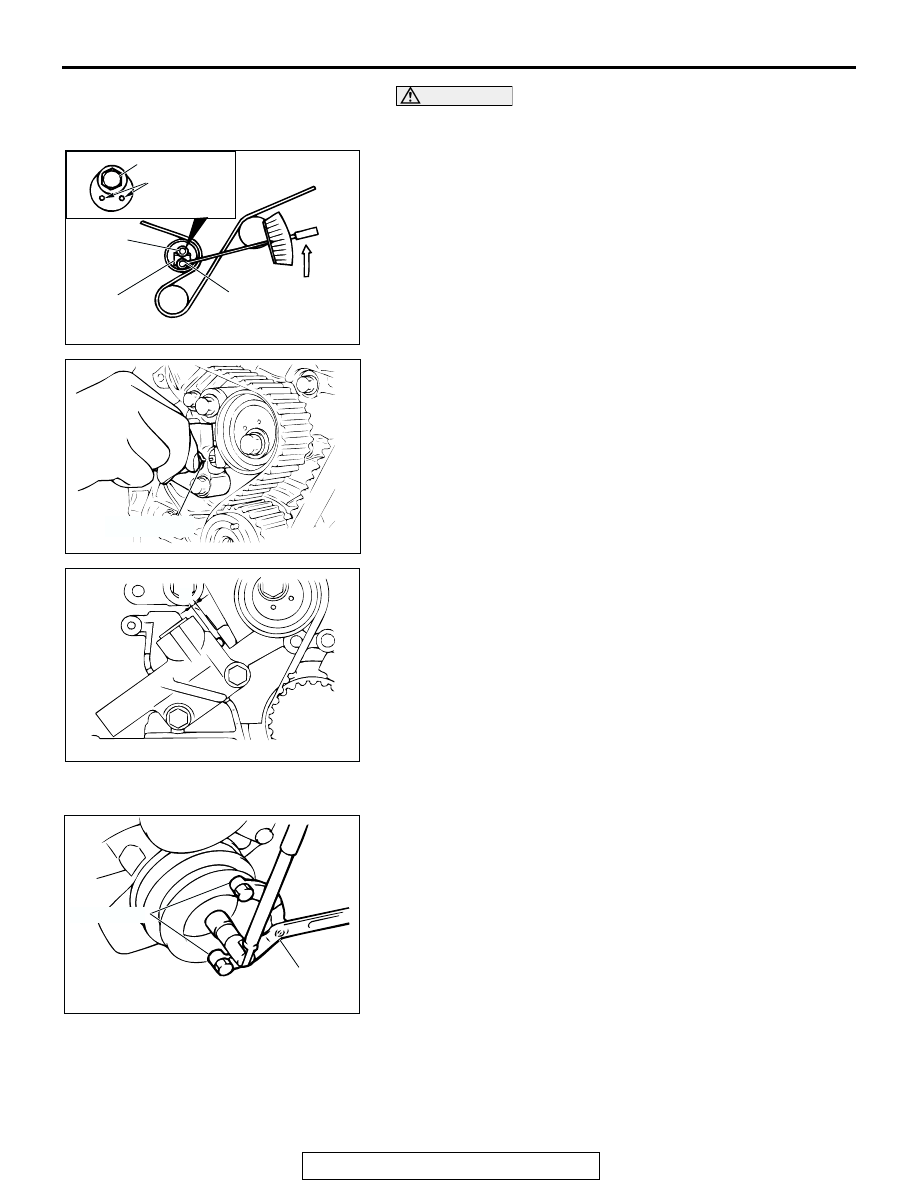

CAUTION

When tightening the center bolt, be careful that the ten-
sioner pulley does not turn with the bolt.
6. Loosen the center bolt of the tensioner pulley. Use special

tool MD998767 and a torque wrench to apply the standard
torque to the timing belt as shown in the illustration. Then
tighten the center bolt to the specified torque.

Standard value: 4.4 N

⋅m (39 in-lb) <Timing belt ten-

sion torque>

Tightening torque: 48 N

⋅m (35 ft-lb)

7. Remove the setting pin that has been inserted into the

auto-tensioner.

8. Turn the crankshaft two turns clockwise to align the timing

marks.

9. Wait for at least five minutes, and then check that the

auto-tensioner pushrod extends within the standard value.

Standard value (A): 3.8

− 5.0 mm (0.15 − 0.20 inch)

10.If no, repeat the operation in steps (5) to (9) above.
11.Check again that the timing marks of each sprocket are

aligned.

.

>>C<< CRANKSHAFT PULLEY INSTALLATION
Use special tools MD998715 and MB990767 to install the
crankshaft pulley.

ACX00337

CENTER BOLT

PIN HOLES

TENSION PULLEY
TENSION TORQUE

4.4 N·m (39 in-lb)

MD998767

48 N·m
(35 ft-lb)

AB

ACX00339 AB

SETTING PIN

ACX00339

A

AB

ACX00323 AB

MD998715

MB990767

SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL

11A-40

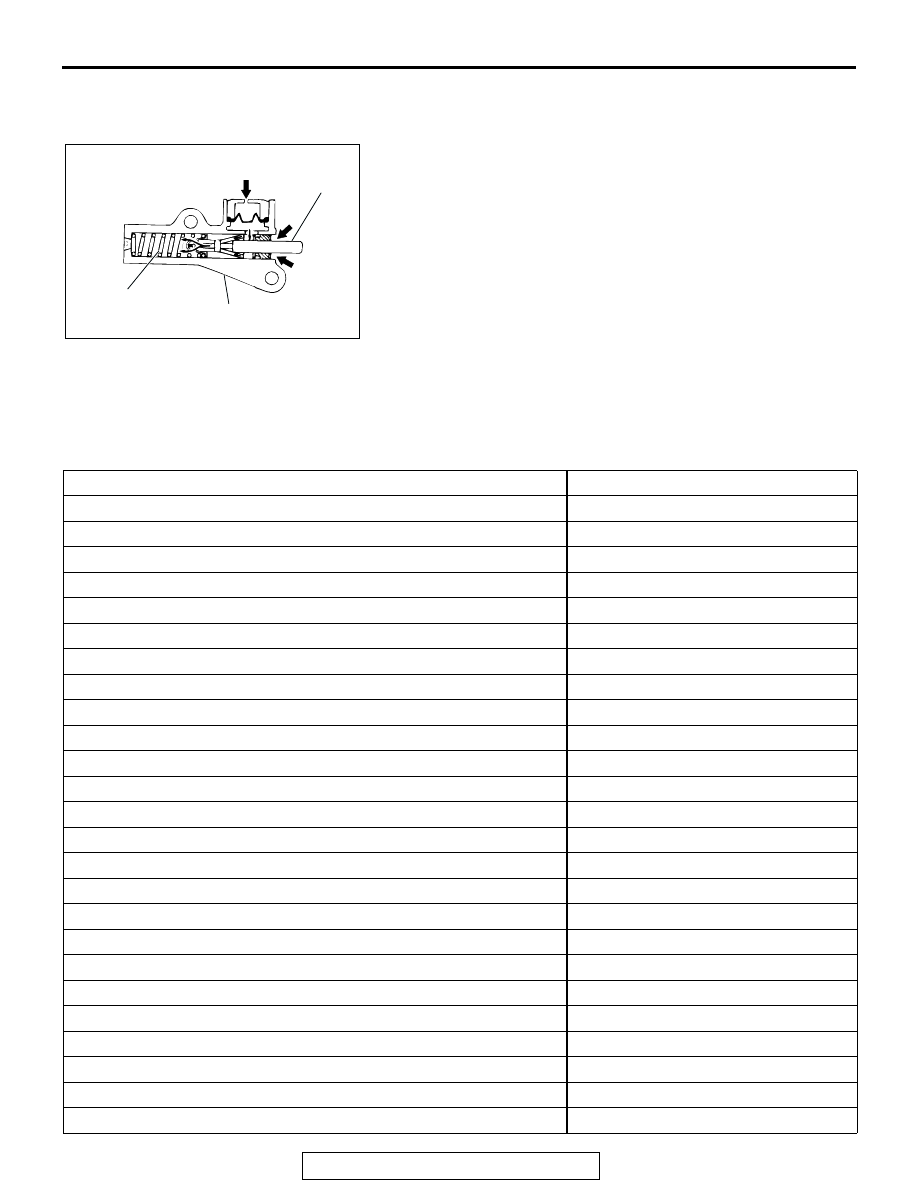

INSPECTION

M1112004400222

AUTO-TENSIONER

• Check the auto-tensioner for possible leaks.

• Check the pushrod for cracks.

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1111003800428

ACX00340AB

PUSHROD

SPRING

AUTO-TENSIONER

ITEM

SPECIFICATION

Accessory mount assembly mounting bolt

44 N

⋅m (33 ft-lb)

Accessory mount assembly mounting bolt (12

× 100)

74 N

⋅m (54 ft-lb)

Baffle plate attaching bolt

9.8

− 12 N⋅m (87 − 106 in-lb)

Camshaft position sensor attaching bolt

8.8 N

⋅m (78 in-lb)

Camshaft sprocket attaching bolt

88 N

⋅m (65 ft-lb)

Camshaft thrust case attaching bolt

13 N

⋅m (115 in-lb)

Cover bolt

9.8

− 12 N⋅m (87 − 106 in-lb)

Crankshaft position sensor attaching bolt

8.8 N

⋅m (78 in-lb)

Crankshaft pulley attaching bolt

181 N

⋅m (134 ft-lb)

Cylinder head bolt <cold engine>

108 N

⋅m (80 ft-lb)

Drive plate bolt

74 N

⋅m (55 ft-lb)

Engine mount insulator attaching bolt

44 N

⋅m (33 ft-lb)

Engine mount insulator attaching nut

25 N

⋅m (18 ft-lb)

Generator drive belt tension pulley fixing nut

49 N

⋅m (36 ft-lb)

High-pressure fuel hose attaching bolt

4.9 N

⋅m (43 in-lb)

Lower oil pan attaching bolt

9.8

− 12 N⋅m (87 − 106 in-lb)

Oil dipstick assembly attaching bolt

48 N

⋅m (35 ft-lb)

Oil pan drain plug

39 N

⋅m (29 ft-lb)

Oil screen attaching bolt (8

×20)

19 N

⋅m (14 ft-lb)

Oil screen attaching bolt

8.8 N

⋅m (78 in-lb)

Power steering drive belt cover attaching bolt

4.9 N

⋅m (43 in-lb)

Power steering oil pump mounting bolt

24 N

⋅m (17 ft-lb)

Rocker arm and shaft assembly mounting bolt

32 N

⋅m (23 ft-lb)

Rocker cover attaching bolt

3.4 N

⋅m (30 in-lb)

Timing belt auto-tensioner attaching bolt

24 N

⋅m (17 ft-lb)
