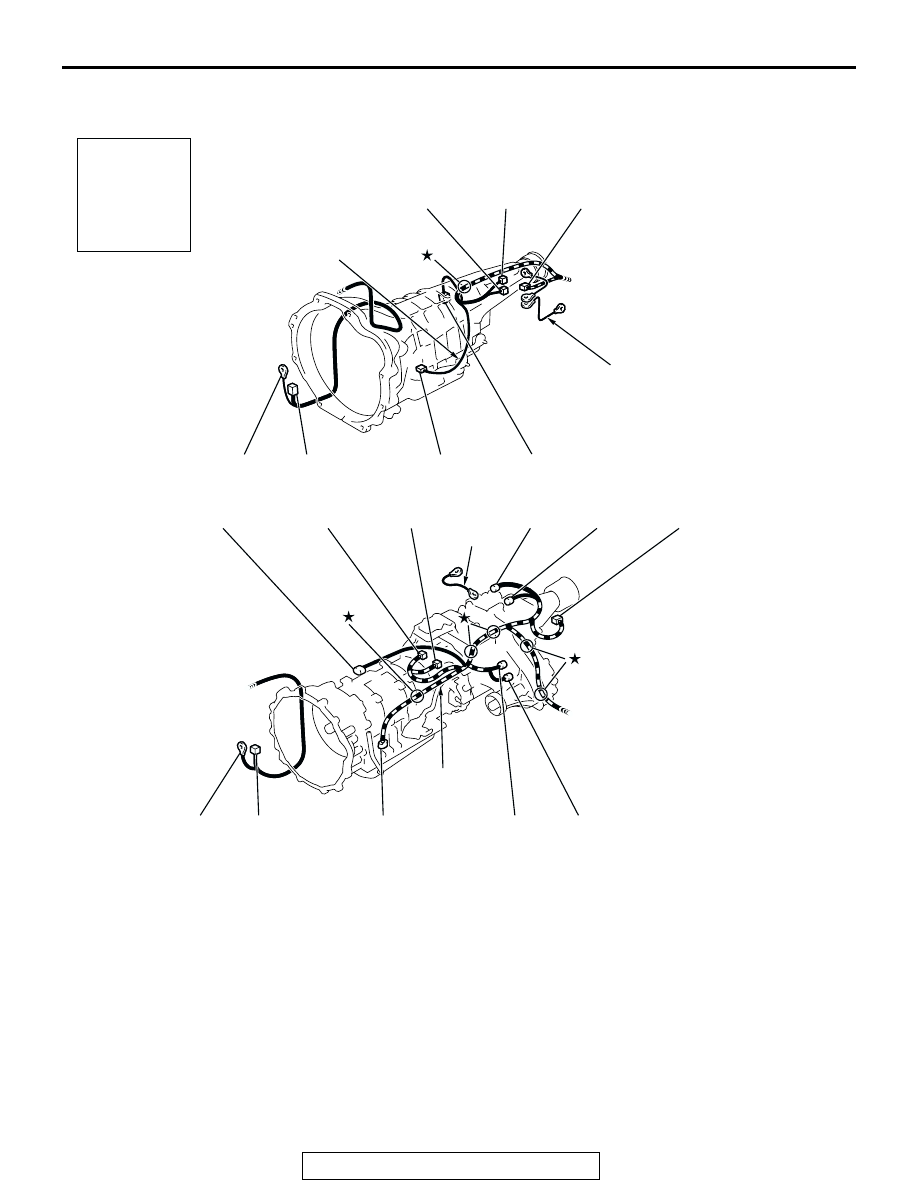

ENGINE COMPARTMENT
TSB Revision

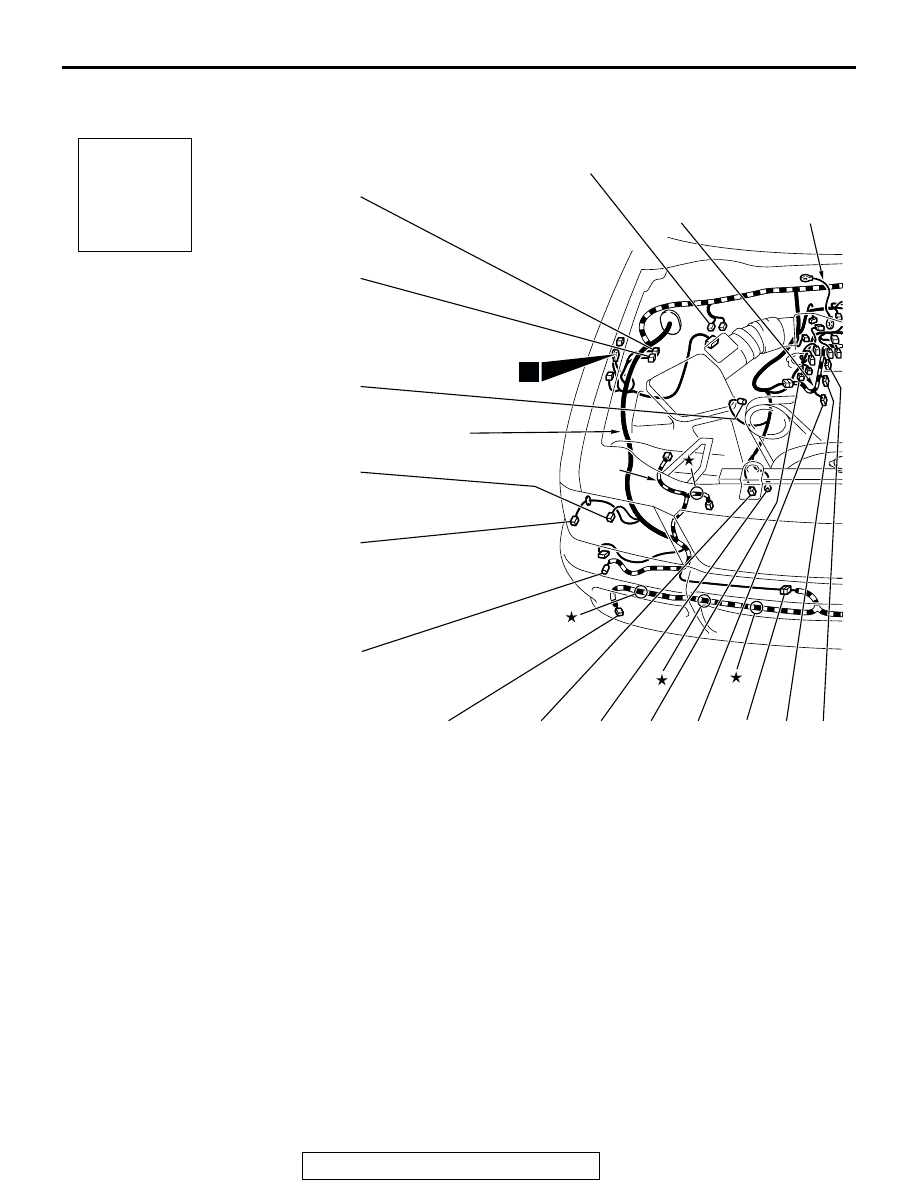

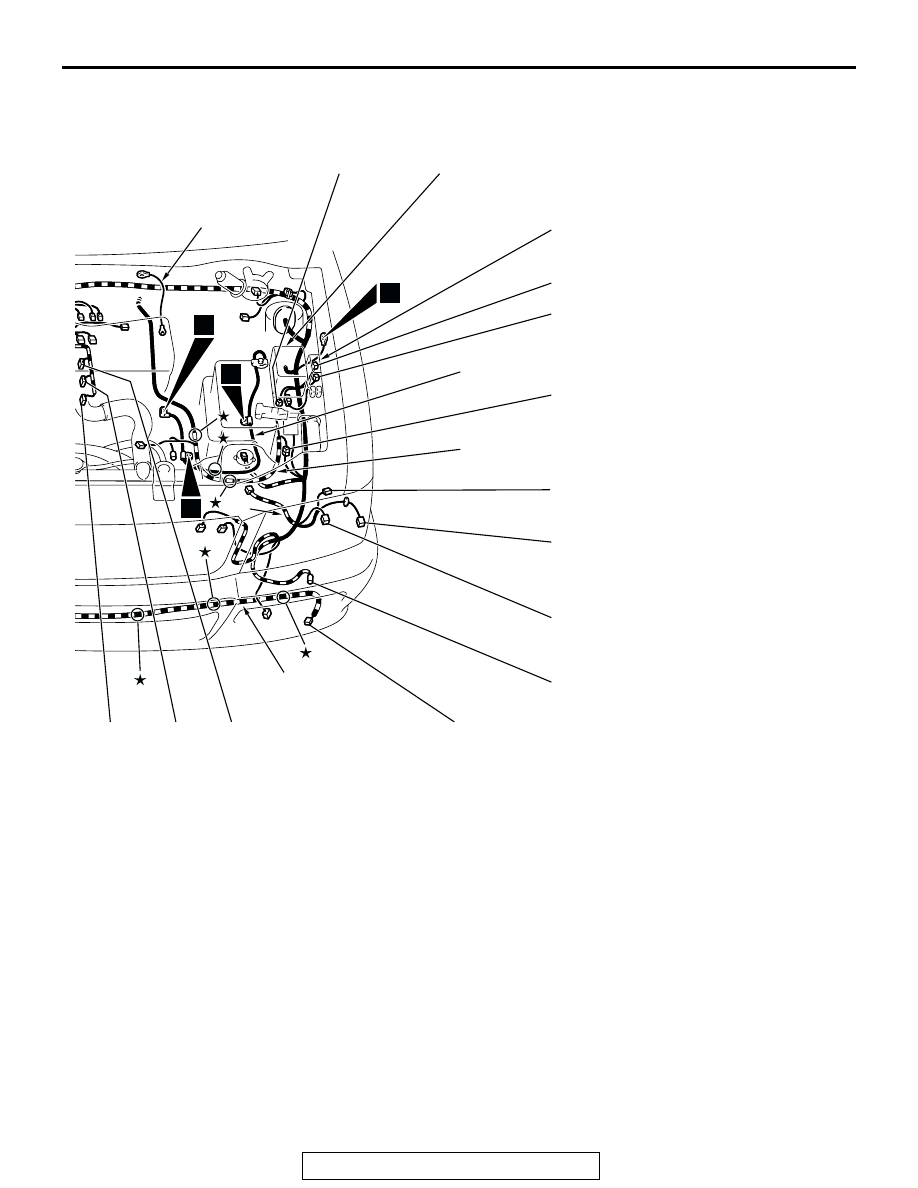

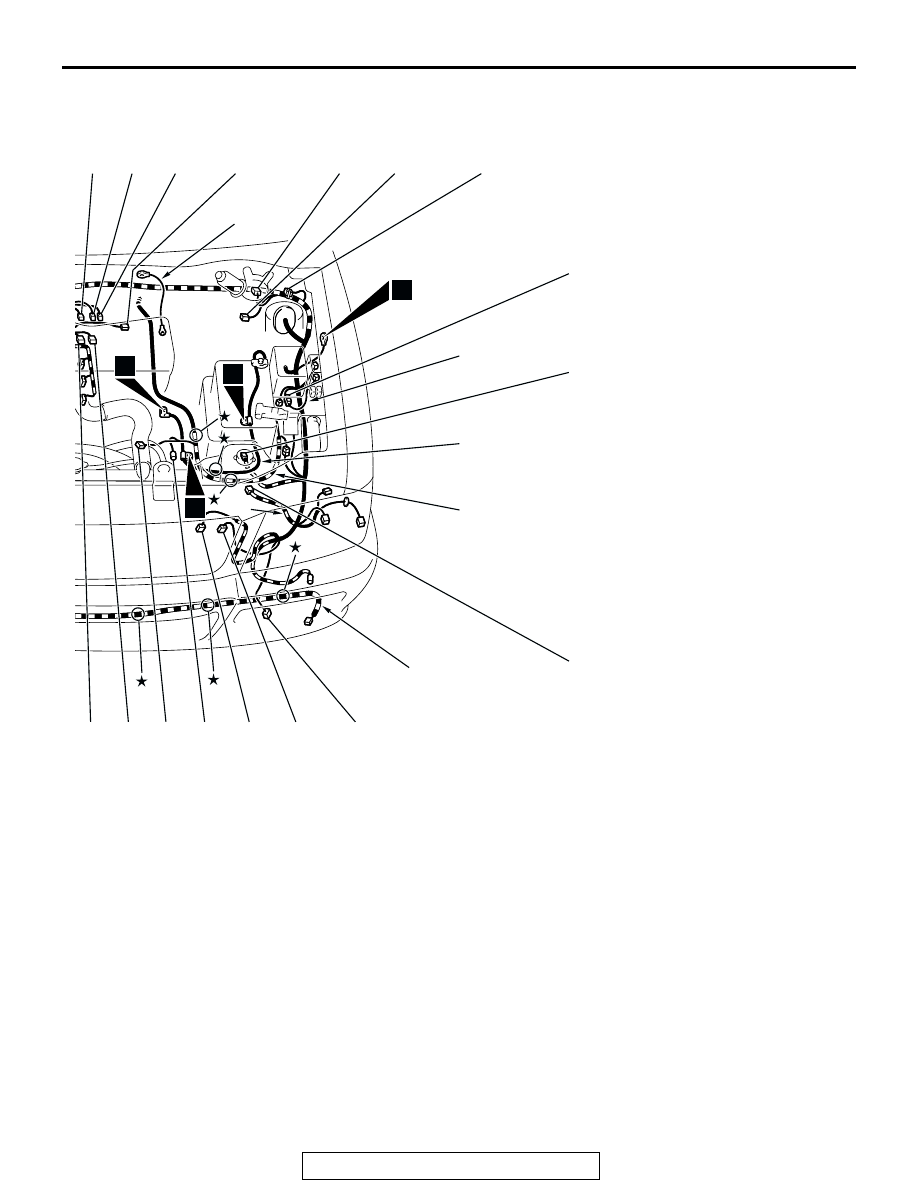

CONFIGURATION DIAGRAMS
80A-5
AC305387
AC305387
A-09
A-45
CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW
A-10
A-11
A-12
AB
Y
GROUND
CABLE
A-15
A-47
A-37
A-17
A-18
A-22
A-23
A-24
A-25
A-28
2
10
11
12
A-20
FOG LIGHT
WIRING
HARNESS
A/C WIRING
HARNESS
NEGATIVE
BATTERY
CABLE
POSITIVE
BATTERY
CABLE
A-46
A-22
(2-BR)
AMBIENT TEMPERATURE SENSOR
<COMPASS AND TEMPERATURE
DISPLAY>
A-23
(2-BR)
DUAL PRESSURE SWITCH
A-24
(2-B)
CONDENSER FAN MOTOR
A-25
(3-B)
MAGNETIC CLUTCH AND
REFRIGERANT TEMPERATURE
SWITCH
A-27
(1-B)
CAPACITOR
A-28
(1-B)
OIL PRESSURE SWITCH
A-31
(2-B)
WHEEL SPEED SENSOR (FRONT:
RH) <ABS>
A-32
(2-Y)
FRONT IMPACT SENSOR (RH)
A-35
(4-B)
ABS RELAY
A-36
(4-B)
HORN RELAY
A-37
(1-L)
ENGINE SPEED DETECTION
CONNECTOR
A-40
(6-B)
IDLE AIR CONTROL MOTOR
A-41
(4-B)
THROTTLE POSITION SENSOR
A-42
(3-GR)
CAMSHAFT POSITION SENSOR
A-43
(3-B)
CRANKSHAFT POSITION SENSOR
A-44
(2-B)
IGNITION COIL (2)
A-45
(2-B)
IGNITION COIL (1)
A-46
(2-B)
IGNITION COIL (3)
A-47
(2)
BRAKE FLUID LEVEL SWITCH
