Mitsubishi Montero Sport (2004+). Manual - part 1





OVERALL CONFIGURATION DIAGRAM

TSB Revision

CONFIGURATION DIAGRAMS

80A-2

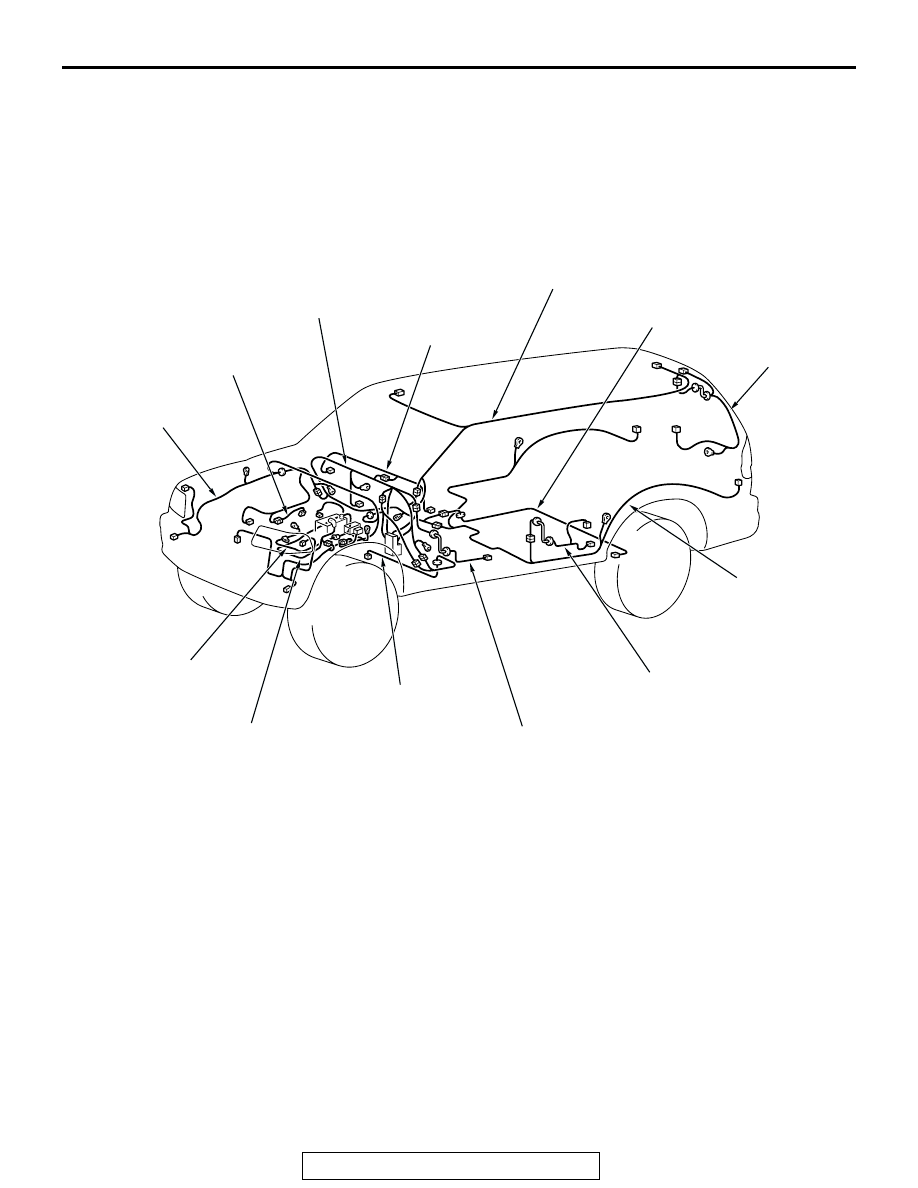

OVERALL CONFIGURATION DIAGRAM

M1801000100428

NOTE:

.

1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.

AC002402 AC

FRONT WIRING
HARNESS

INJECTION
WIRING HARNESS

BODY WIRING
HARNESS

INSTRUMENT PANEL
WIRING HARNESS

ROOF WIRING
HARNESS

LIFTGATE
WIRING
HARNESS

FRAME WIRING
HARNESS

FLOOR WIRING
HARNESS

REAR DOOR
WIRING
HARNESS (LH)*

FRONT DOOR
WIRING HARNESS
(DRIVER'S SIDE)*

TRANSMISSION
WIRING HARNESS

POSITIVE BATTERY
CABLE

NEGATIVE BATTERY
CABLE

HOW TO READ CONFIGURATION DIAGRAMS

TSB Revision

CONFIGURATION DIAGRAMS

80A-3

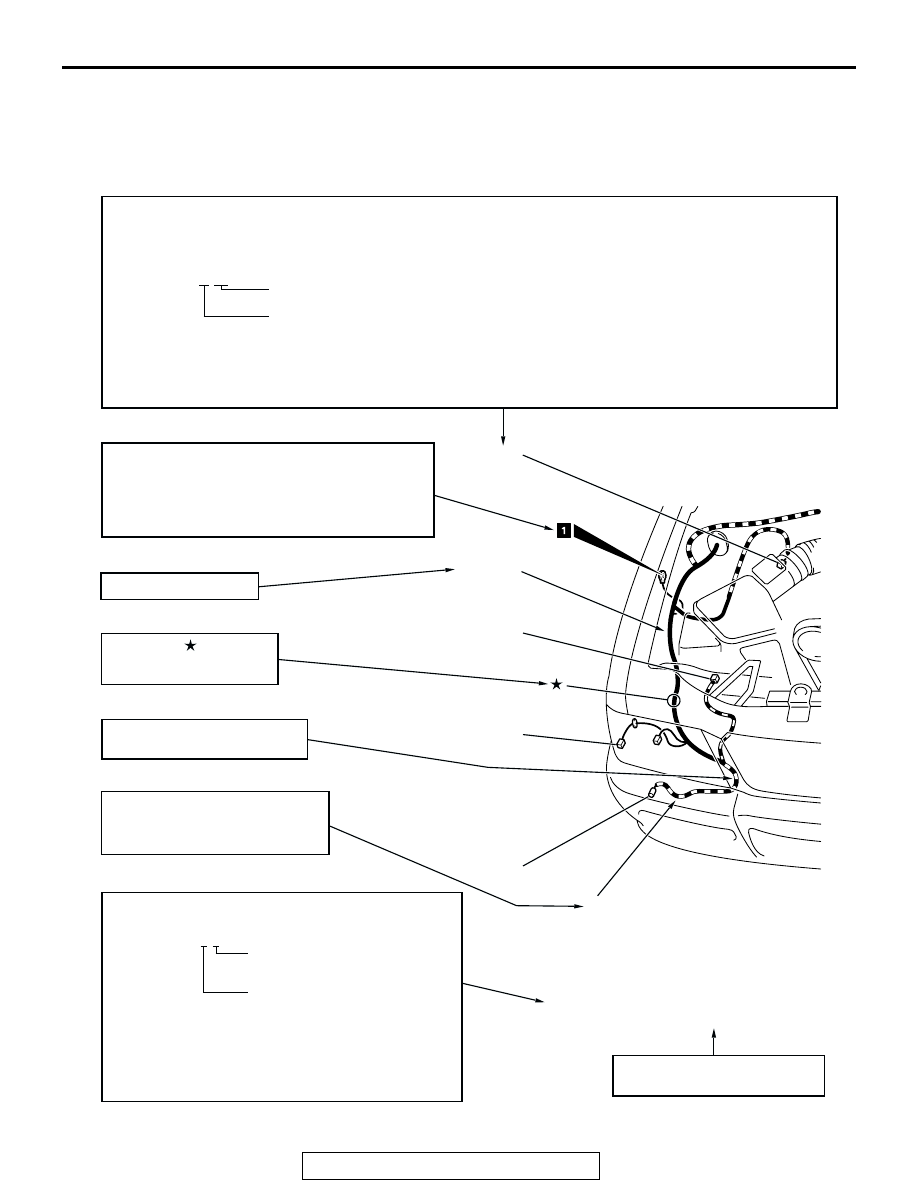

HOW TO READ CONFIGURATION DIAGRAMS

M1801000200339

The wiring harness diagrams clearly show the connector locations and harness routings at each site on
actual vehicles.

AC002715

Denotes connector No.
The same connector No. is used throughout the circuit diagrams to facilitate connector location searches.
The first alphabetical symbol indicates the location site of the connector and a number that follows is the unique number.
Numbers are usually assigned to parts in clockwise order on the diagram.

       Example: A-19

Number specific to connector (serial number)

Connector location site symbol
A:  ENGINE COMPARTMENT

E:  FLOOR AND ROOF

B:  TRANSMISSION

F:  DOOR

C:  DASH PANEL

G: LIFTGATE

D:  JUNCTION BLOCK AND
     STEERING COLUMN

Denotes ground point.
Same ground number is used throughout circuit
diagrams to facilitate search of ground point.
Refer to GROUP 70 SINGLE PART INSTALLATION
POSITION - GROUND MOUNTING LOCATIONS
for details of ground points.

Denotes the color of harness outer
tube (If not specified, it is black.)
R:  Red
Y:   Yellow

The number of connector pins and the connector color
(except milk white)* are shown for ease of retrieval.

       Example: (2-B)

          Connector color
          (milk white if no color is indicated)

          Number of connector pins

*: Typical connector colors
        B:   Black

BR: Brown

        Y:    Yellow

V:    Violet

        L:    Blue

O:   Orange

        G:   Green

GR: Gray

        R:   Red

NONE: Milk white

A-16 (1)             HORN (LOW)
A-17 (3-B)          FRONT COMBONATION

            LIGHT (RH)

A-18 (2-B)          FRONT IMPACT SENSOR (RH)
A-19 (7-BR)       VOLUME AIR FLOW SENSOR

Indicates the device to which the
connector is connected.

AD

A-17

A-16

A-18

A-19

Y

Denotes a section covered by a
corrugated tube.

The mark            shows the
standard mounting position
of wiring harness.

Denotes harness name.

FRONT
WIRING
HARNESS

ENGINE COMPARTMENT

TSB Revision

CONFIGURATION DIAGRAMS

80A-4

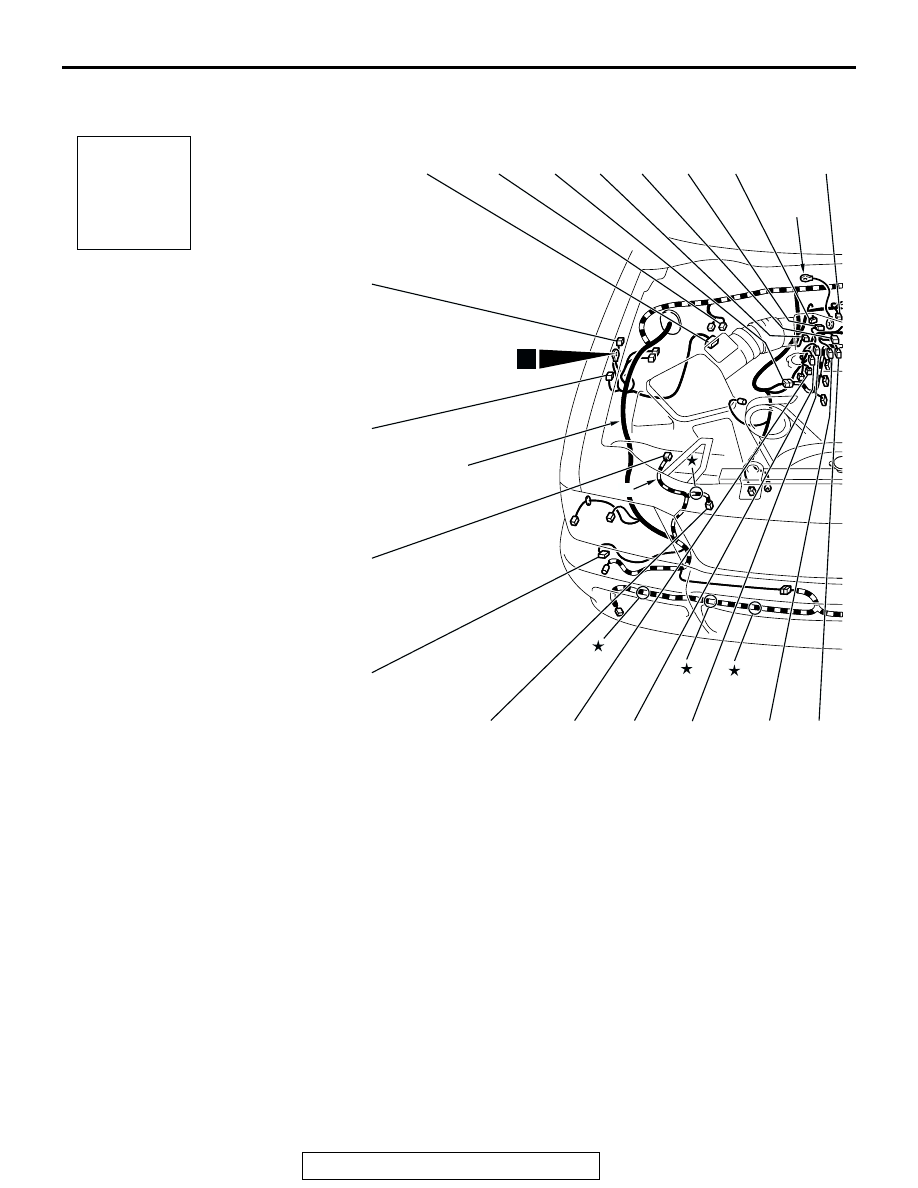

ENGINE COMPARTMENT

M1801000300831

AC305386

AC305386

Connector
symbol

-01
thru
-47

A

AB

A-07

A-41

A-27

A-44

A-40

A-43

A-42

Y

A-04

A-02

A-01

A-36

A-35

A-32

A-21

A-31

A-08

A-05

A-06

GROUND
CABLE

1

FRONT
WIRING
HARNESS

A-01

(7-B)

VOLUME AIRFLOW SENSOR

A-02

(4-B)

AUTO-CRUISE VACUUM PUMP

A-04

(8-B)

FRONT WIRING HARNESS AND
INJECTION WIRING HARNESS
COMBINATION

A-05

(6-B)

IGNITION POWER TRANSISTOR

A-06

(3-B)

IGNITION POWER TRANSISTOR

A-07

(4-B)

RIGHT BANK HEATED OXYGEN
SENSOR (FRONT)

A-08

(1-B)

ENGINE COOLANT TEMPERATURE
GAUGE UNIT

A-09

(4-GR)

LEFT BANK HEATED OXYGEN
SENSOR (FRONT)

A-10

(2-B)

EVAPORATIVE EMISSION PURGE
SOLENOID

A-11

(2-BR)

EGR SOLENOID

A-12

(3-B)

MANIFOLD DIFFERENTIAL
PRESSURE SENSOR

A-15

(4)

WINDSHIELD WIPER MOTOR

A-17

(10-B)

FRONT WIRING HARNESS AND A/C
WIRING HARNESS COMBINATION

A-18

(2-B)

WHEEL SPEED SENSOR (FRONT:
LH) <ABS>

A-20

(2-Y)

FRONT IMPACT SENSOR (LH)

A-21

(2-B)

WINDSHIELD WASHER MOTOR
