TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-423

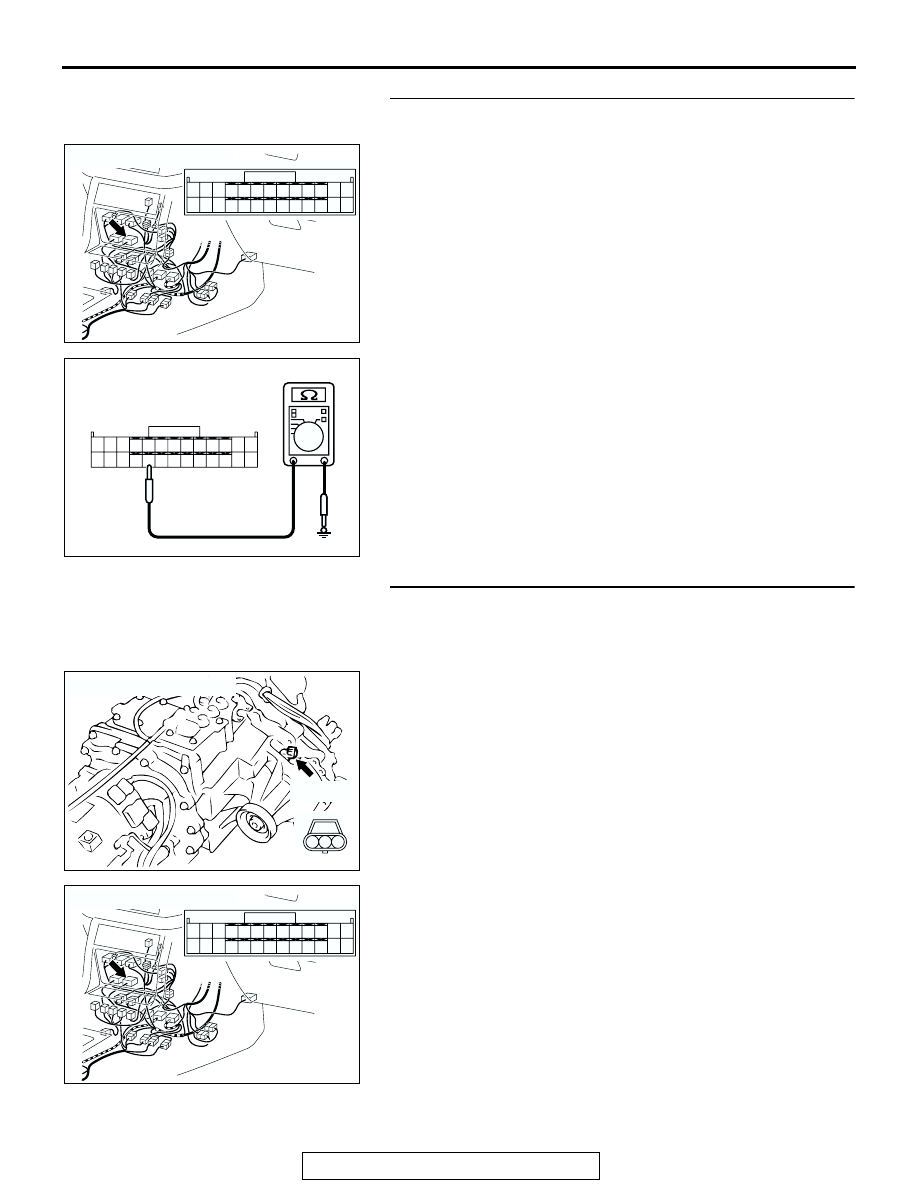

STEP 12. Measure the resistance at the transfer-ECU
connector E-109 by backprobing.
(1) Do not disconnect connector E-109.

(2) Measure the resistance between terminal 18 and ground by

backprobing.

• The resistance should measure less than 2 ohms.

Q: Is the measured resistance less than 2 ohms?

YES : Go to Step 13.
NO :  Go to Step 15.

STEP 13. Check front propeller shaft speed sensor
connector C-13 and transfer-ECU connector E-109 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 14.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC204918 CF

E-109 HARNESS CONNECTOR :
HARNESS SIDE

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC204752

CONNECTOR : C-13

AB

2 3

1

C-13 (B)

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-424

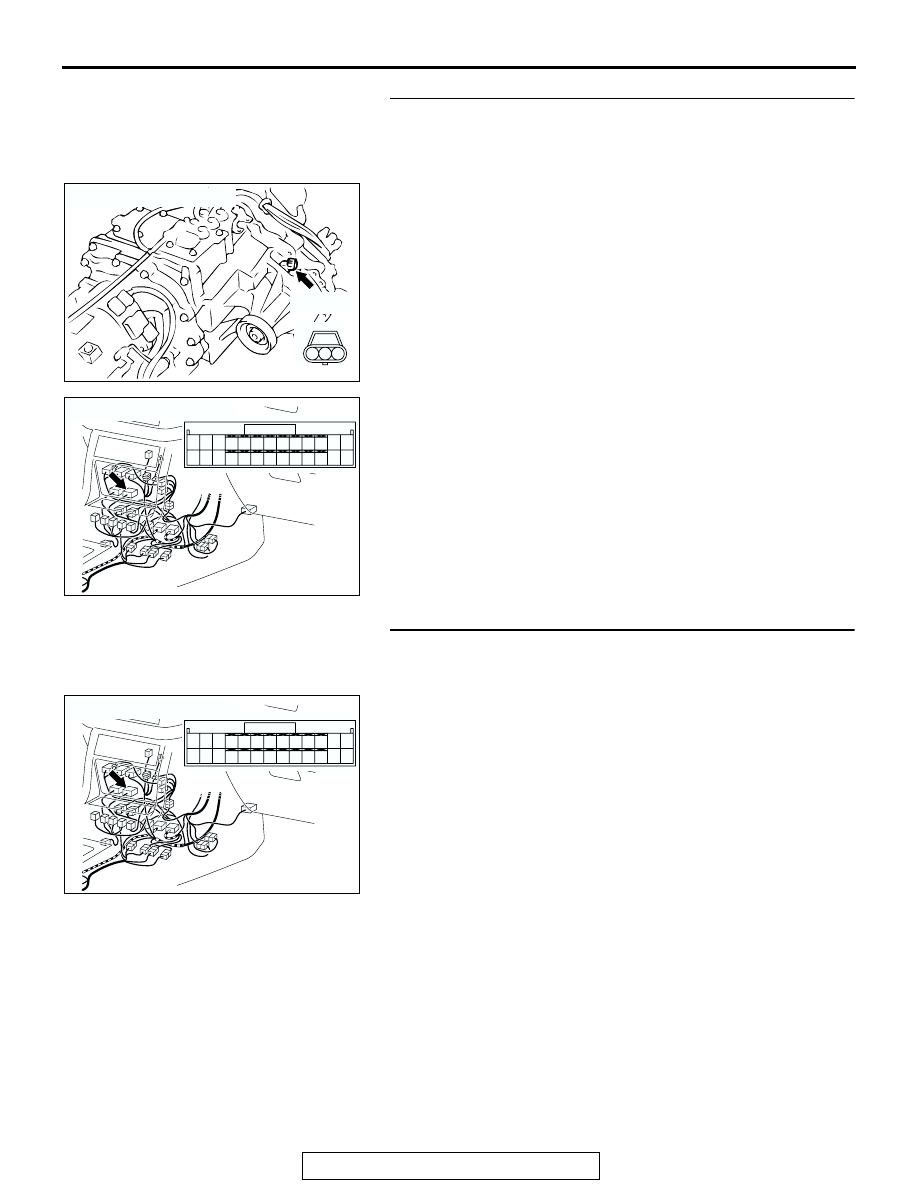

STEP 14. Check harness for open circuit or damage
between front propeller shaft speed sensor harness side
connector C-13 terminal 1 and transfer-ECU connector
E-109 terminal 18.
Q: Is the harness wire in good condition?

YES : Go to Step 16.
NO :  Repair or replace the harness wire.

STEP 15. Check transfer-ECU connector E-109 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are the connector and terminals in good condition?

YES : Replace the PCM.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204752

CONNECTOR : C-13

AB

2 3

1

C-13 (B)

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-425

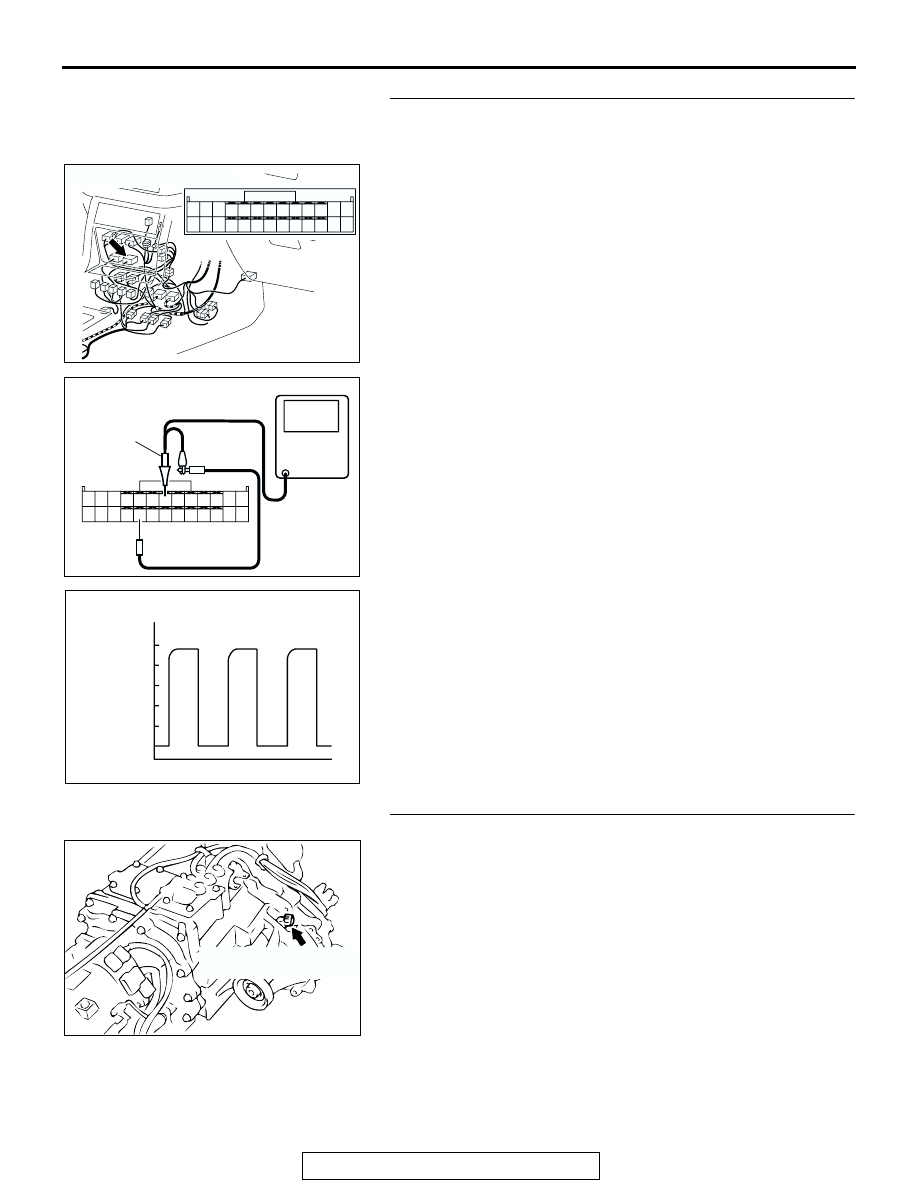

STEP 16. Using an oscilloscope, check the front propeller
shaft speed sensor waveform at transfer-ECU connector
E-109 by backprobing.
(1) Do not disconnect connector E-109.

(2) Connect an oscilloscope probe to transfer-ECU connector

E-109 terminal 7 and 18 by backprobing.

(3) Start the engine and drive the vehicle at constant speed of

30 km/h (19 mph).

(4) Check the front propeller shaft speed sensor waveform.

• The front propeller shaft speed sensor waveform should

show a pattern similar to the illustration. The maximum
value should be 4.8 volts and more and the minimum
value 0.8 volt and less. The output waveform should not
contain electrical noise.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the waveform normal?

YES : Go to Step 19.
NO :  Go to Step 17.

STEP 17. Replace the front propeller shaft speed sensor.
(1) Replace the front propeller shaft speed sensor. Refer to

GROUP 23B, Transfe

P.23B-75

.

(2) Test drive the vehicle.
(3) Check for transfer diagnostic trouble code.
Q: Is transfer DTC 22 or 23 set?

YES : Go to Step 18.
NO :  The procedure is complete.

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC204946 AB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

OSCILLO-
SCOPE

PROBE

E-109 HARNESS CONNECTOR :
HARNESS SIDE

AC100335

NORMAL WAVEFORM

(V)

5

0

AB

ACX01229AE

FRONT PROPELLER
SHAFT SPEED SENSOR

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-426

STEP 18. Replace the sensor rotor.
(1) Replace the sensor rotor. Refer to GROUP 23B, Front

Output Shaft

P.23B-95

.

(2) Test drive the vehicle.
(3) Check for transfer diagnostic trouble code.
Q: Is transfer DTC 22 or 23 set?

YES : The transfer DTC may have set due to external radio

frequency interference (RFI), possibly caused by
cellular phone activity, or aftermarket components
installed on the vehicle.

NO :  The procedure is complete.

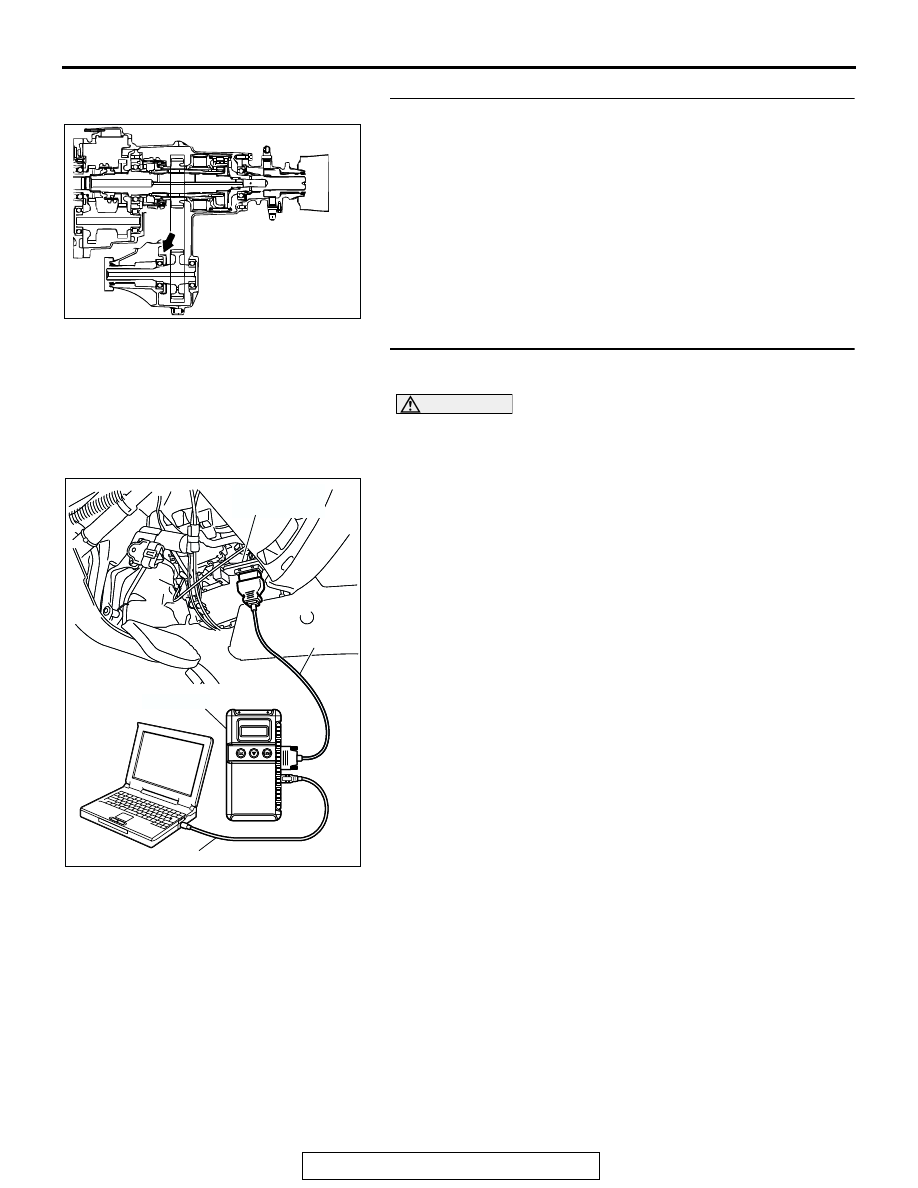

STEP 19. Using scan tool MB991958, check data list item
02: Front Propeller Shaft Speed Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991958 to data reading mode.

• Item 02: Front Propeller Shaft Speed Sensor.

• When driving at constant speed of 30 km/h (19

mph), the display should be "30 km/h (19 mph)."

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

NO :  Replace the transfer-ECU.

ACX02196AB

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR
