INVECS-II CANCEL COMMAND

TSB Revision

AUTOMATIC TRANSMISSION

23A-391

INVECS-II CANCEL COMMAND

M1231109300104

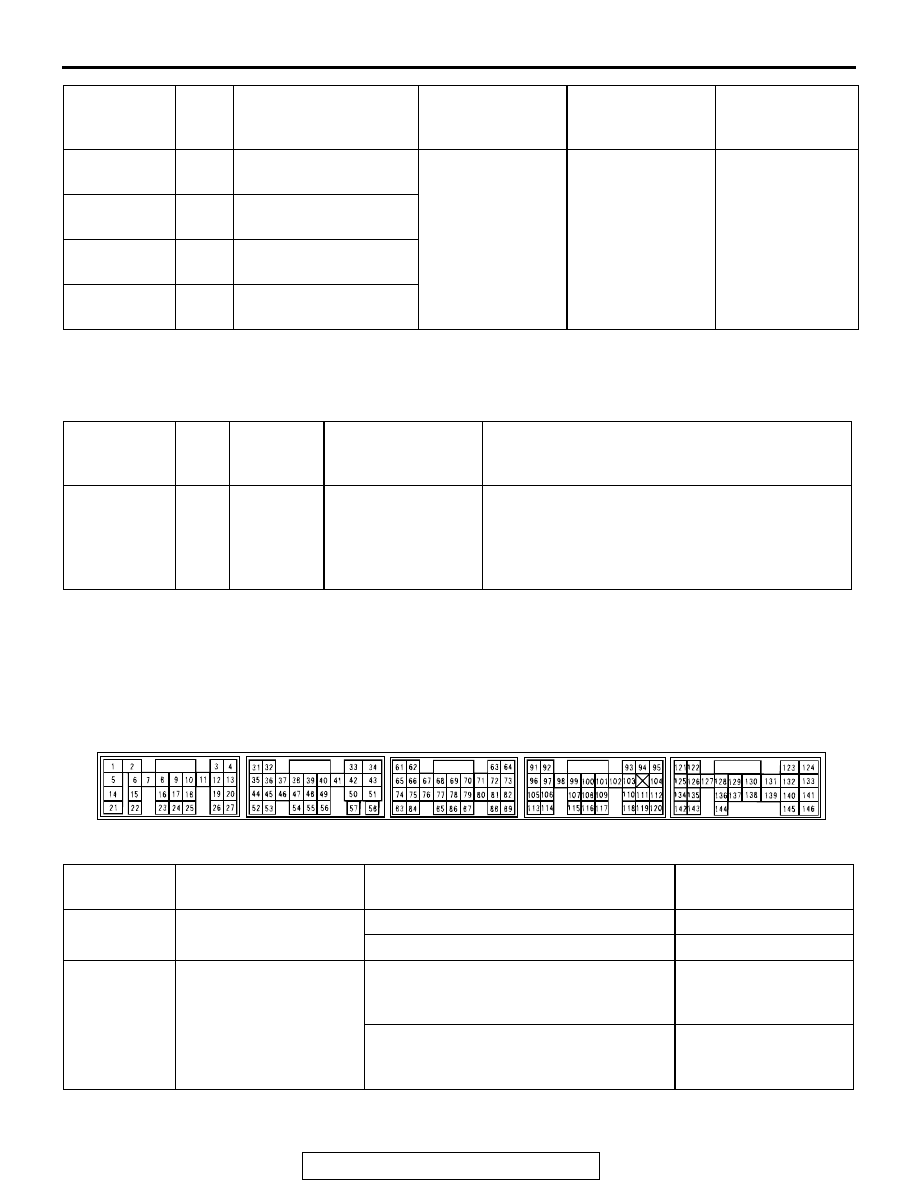

PCM TERMINAL VOLTAGE REFERENCE CHART FOR

TRANSMISSION

M1231101400130

O/D SOL

04

Overdrive solenoid
valve

RED SOL

05

Reduction solenoid
valve

TCC SOL

06

Torque converter clutch
solenoid valve

U/D SOL

02

Underdrive solenoid
valve

MUT-III
SCAN TOOL
DISPLAY

ITEM
NO.

INSPECTION ITEM

TEST CONTENT

INSPECTION
REQUIREMENT

NORMAL
CONDITION

MUT-III
SCAN TOOL
DISPLAY

ITEM
NO.

ITEM

CONTENT

REMARKS

Std. SIFT
PATN

14

Standard
shift pattern

Stops the INVECS-II
control and shifts
gears according to
the standard shift
pattern.

Use this function when performing procedure 8 in
the road tests (Refer to

P.23A-18

).

The INVECS-II cancel command will last until the
ignition switch is turned from "ON" to "LOCK"
(OFF) or vice versa.

AC204035AB

D-132

D-133

D-134

D-135

D-136

TERMINAL
NO.

INSPECTION ITEMS

INSPECTION REQUIREMENT

NORMAL CONDITION

39

Stoplight switch

Brake pedal: Depressed

Battery positive voltage

Brake pedal: Released

1 V or less

55

4LLc detection switch

• Ignition switch: ON

• Selector lever operation: N

• Transfer position: 4LLc

1 V or less

• Ignition switch: ON

• Selector lever operation: N

• Transfer position: Other than above

Battery positive voltage

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION

23A-392

64

Input shaft speed sensor

• Measure between terminals 88 and 64

with an oscilloscope.

• Engine: 2,000 r/min

• Gear range: 4th gear

Refer to

P.23A-395

,

Inspection Procedure
Using an Oscilloscope.

66

Transmission range
switch: P

• Ignition switch: ON

• Transmission range: P

Battery positive voltage

• Ignition switch: ON

• Transmission range: Other than above

1 V or less

67

Transmission range
switch: R

• Ignition switch: ON

• Transmission range: R

Battery positive voltage

• Ignition switch: ON

• Transmission range: Other than above

1 V or less

68

Shift switch (Down)

• Ignition switch: ON

• Selector lever operation: Downshift

and hold the selector lever

Battery positive voltage

• Ignition switch: ON

• Selector lever operation: Other than

above

1 V or less

70

Crankshaft position
sensor

Engine: Idling

1.5

− 2.5 V

73

Output shaft speed
sensor

• Measure between terminals 88 and 73

with an oscilloscope.

• Engine: 2,000 r/min

• Gear range: 4th gear

Refer to

P.23A-395

,

Inspection Procedure
Using an Oscilloscope.

75

Transmission range
switch: N

• Ignition switch: ON

• Transmission range: N

Battery positive voltage

• Ignition switch: ON

• Transmission range: Other than above

1 V or less

76

Transmission range
switch: D

• Ignition switch: ON

• Transmission range: D

Battery positive voltage

• Ignition switch: ON

• Transmission range: Other than above

1 V or less

77

Shift switch (Up)

• Ignition switch: ON

• Selector lever operation: Upshift and

hold the selector lever

Battery positive voltage

• Ignition switch: ON

• Selector lever operation: Other than

above

1 V or less

79

Vehicle speed sensor

• Measure between terminals 131 and

79 with an oscilloscope.

• Engine: 2,000 r/min

• Gear range: 4th gear

Refer to

P.23A-395

,

Inspection Procedure
Using an Oscilloscope.

TERMINAL
NO.

INSPECTION ITEMS

INSPECTION REQUIREMENT

NORMAL CONDITION

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION

23A-393

85

Select switch

• Ignition switch: ON

• Selector lever operation: Sport mode

Battery positive voltage

• Ignition switch: ON

• Selector lever operation: Other than

above

1 V or less

119

Transmission fluid
temperature sensor

• Ignition switch: ON

• Transmission fluid temperature: 20°C

(68

°F)

3.8

− 4.0 V

• Ignition switch: ON

• Transmission fluid temperature: 40°C

(104

°F)

3.2

− 3.4 V

• Ignition switch: ON

• Transmission fluid temperature: 80°C

(176

°F)

1.7

− 1.9 V

121

Shift indicator light: 1st

• Engine: Idling

• Gear range: 1st gear

Battery positive voltage

• Engine: Idling

• Gear range: Other than 1st gear

1 V or less

122

Shift indicator light: 5th

• Engine: Idling

• Gear range: 5th gear

Battery positive voltage

• Engine: Idling

• Gear range: Other than 5th gear

1 V or less

123

Solenoid valve power
supply

Ignition switch: LOCK (OFF)

1V or less

Ignition switch: ON

Battery positive voltage

124

Solenoid valve power
supply

Ignition switch: LOCK (OFF)

1V or less

Ignition switch: ON

Battery positive voltage

125

Shift indicator light: 2nd

• Engine: Idling

• Gear range: 2nd gear

Battery positive voltage

• Engine: Idling

• Gear range: Other than 2nd gear

1 V or less

127

A/T control relay

Ignition switch: ON

Battery positive voltage

128

Low-reverse solenoid
valve

• Engine: Idling

• Transmission range: P

Battery positive voltage

• Engine: Idling

• Gear range: 2nd gear

6

− 9 V

129

Reduction solenoid
valve

• Engine: Idling

• Transmission range: P

Battery positive voltage

• Engine: Idling

• Gear range: 5th gear

6

− 9 V

130

Torque converter clutch
solenoid valve

• Engine: Idling

• Gear range: 1st gear

Battery positive voltage

131

Ground

Always

1 V or less

TERMINAL
NO.

INSPECTION ITEMS

INSPECTION REQUIREMENT

NORMAL CONDITION

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION

23A-394

134

Shift indicator light: 3rd

• Engine: Idling

• Gear range: 3rd gear

Battery positive voltage

• Engine: Idling

• Gear range: Other than 3rd gear

1 V or less

135

Transmission fluid
temperature warning
light

Ignition switch: LOCK(OFF)

→ ON

1 V or less

→ Battery

positive voltage (after
several seconds have
elapsed)

136

Second solenoid valve

• Engine: Idling

• Gear range: 2nd gear

Battery positive voltage

• Engine: Idling

• Transmission range: P

6

− 9 V

137

Under drive solenoid
valve

• Engine: Idling

• Gear range: 1st gear

Battery positive voltage

• Engine: Idling

• Transmission range: P

6

− 9 V

138

Overdrive solenoid valve

• Engine: Idling

• Gear range: 3rd gear

Battery positive voltage

• Engine: Idling

• Transmission range: P

6

− 9 V

139

Ground

Always

1 V or less

142

Shift indicator light: 4th

• Engine: Idling

• Gear range: 4th gear

Battery positive voltage

• Engine: Idling

• Gear range: Other than 4th gear

1 V or less

TERMINAL
NO.

INSPECTION ITEMS

INSPECTION REQUIREMENT

NORMAL CONDITION
