Mitsubishi Montero (2004+). Manual - part 947

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-363

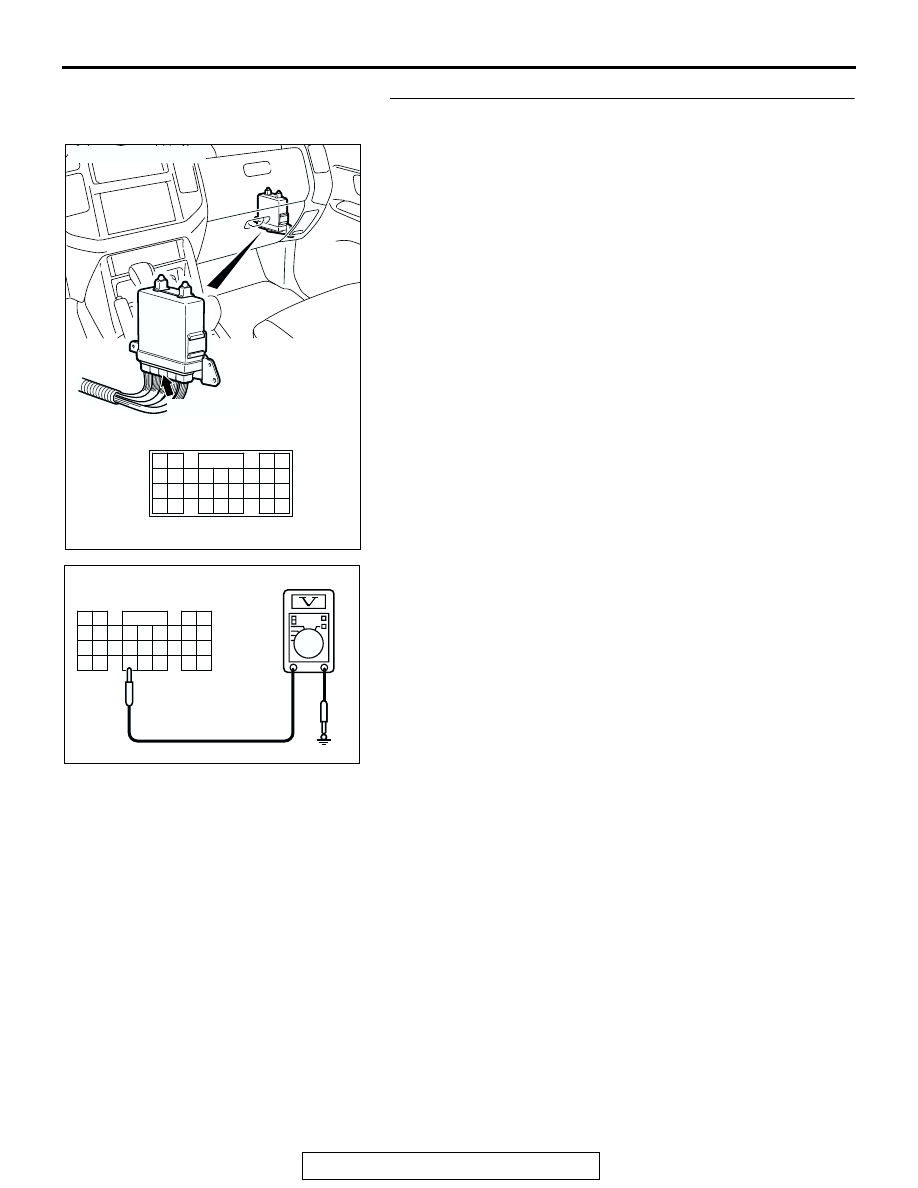

STEP 11. Measure the switch output voltage at PCM
connector D-134 by backprobing.
(1) Do not disconnect connector D-134.
(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be sport mode.

(4) Measure the voltage between terminal 85 and ground by

backprobing.

• The voltage should measure battery positive voltage.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 14.
NO :  Go to Step 12.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204918 BP

D-134 HARNESS CONNECTOR :
HARNESS SIDE

76

85

65

72

71

73

82

75

81

74

63 64

66

70

69

68

67

78

87

79

88 89

80

77

86

62

61

83 84

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-364

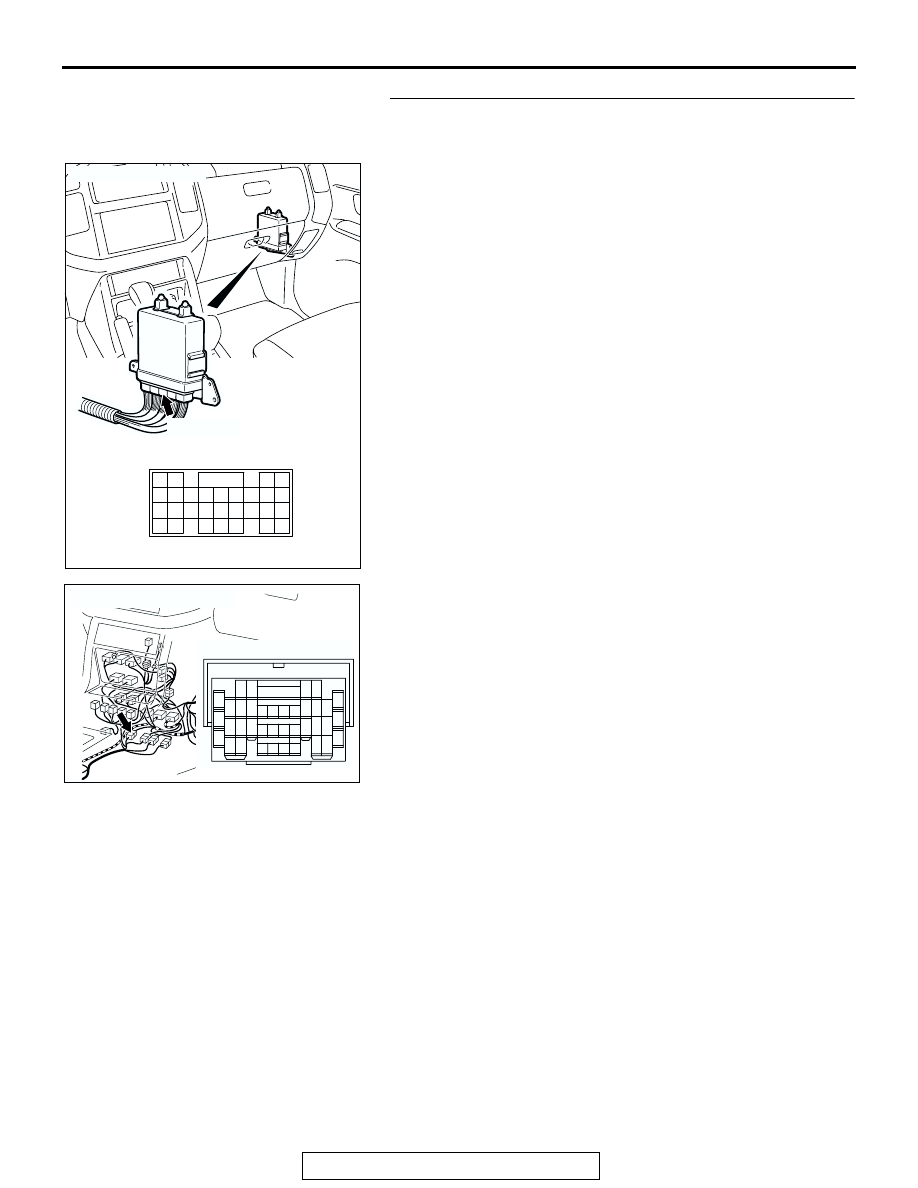

STEP 12. Check PCM connector D-134 and intermediate
connector E-114 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 13.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204176

CONNECTOR : E-114

BD

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-365

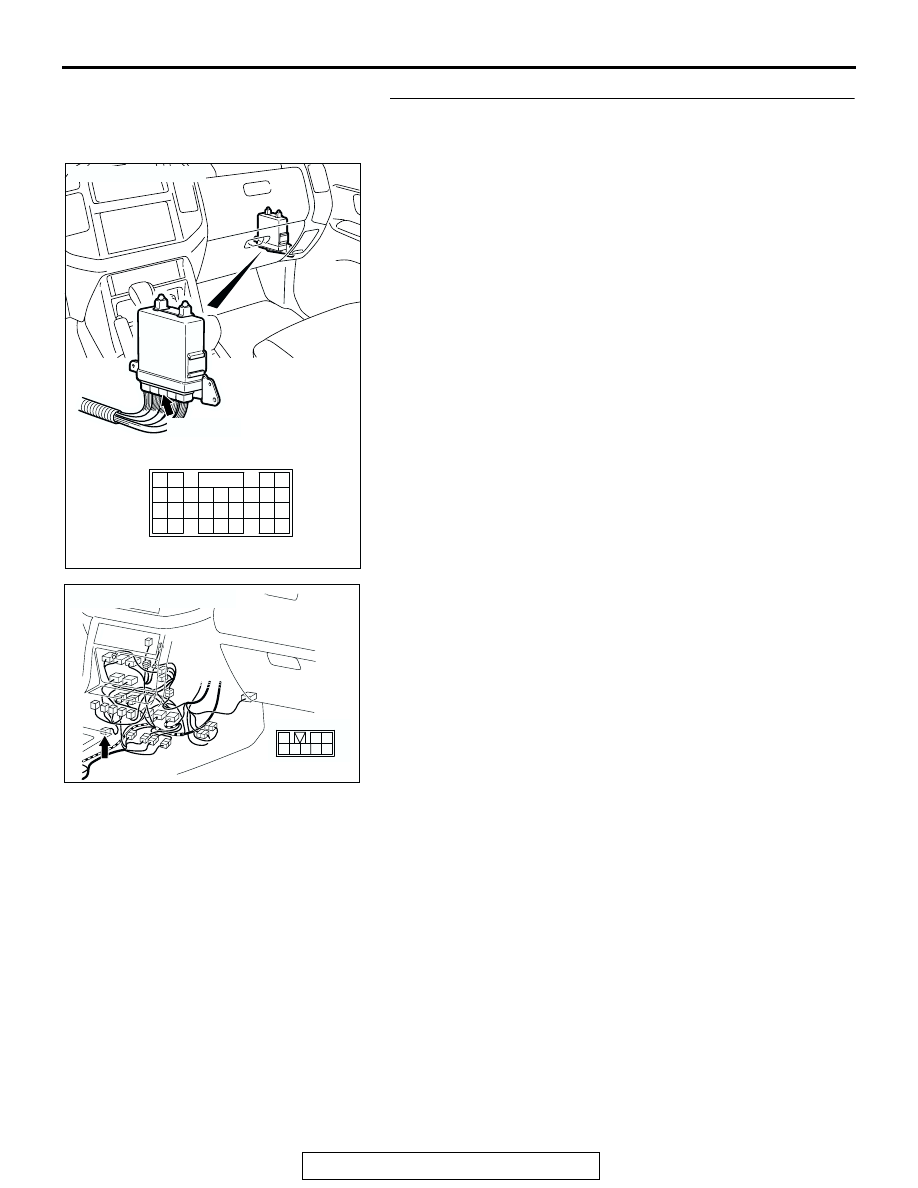

STEP 13. Check harness for open circuit or short circuit to
ground between PCM connector D-134 terminal 85 and
shift switch assembly connector E-115 terminal 4.
Q: Is the harness wire in good condition?

YES : Go to Step 25.
NO :  Repair or replace the harness wire.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204176

CONNECTOR : E-115

BE

8

3

4 5

1

2

6 7

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-366

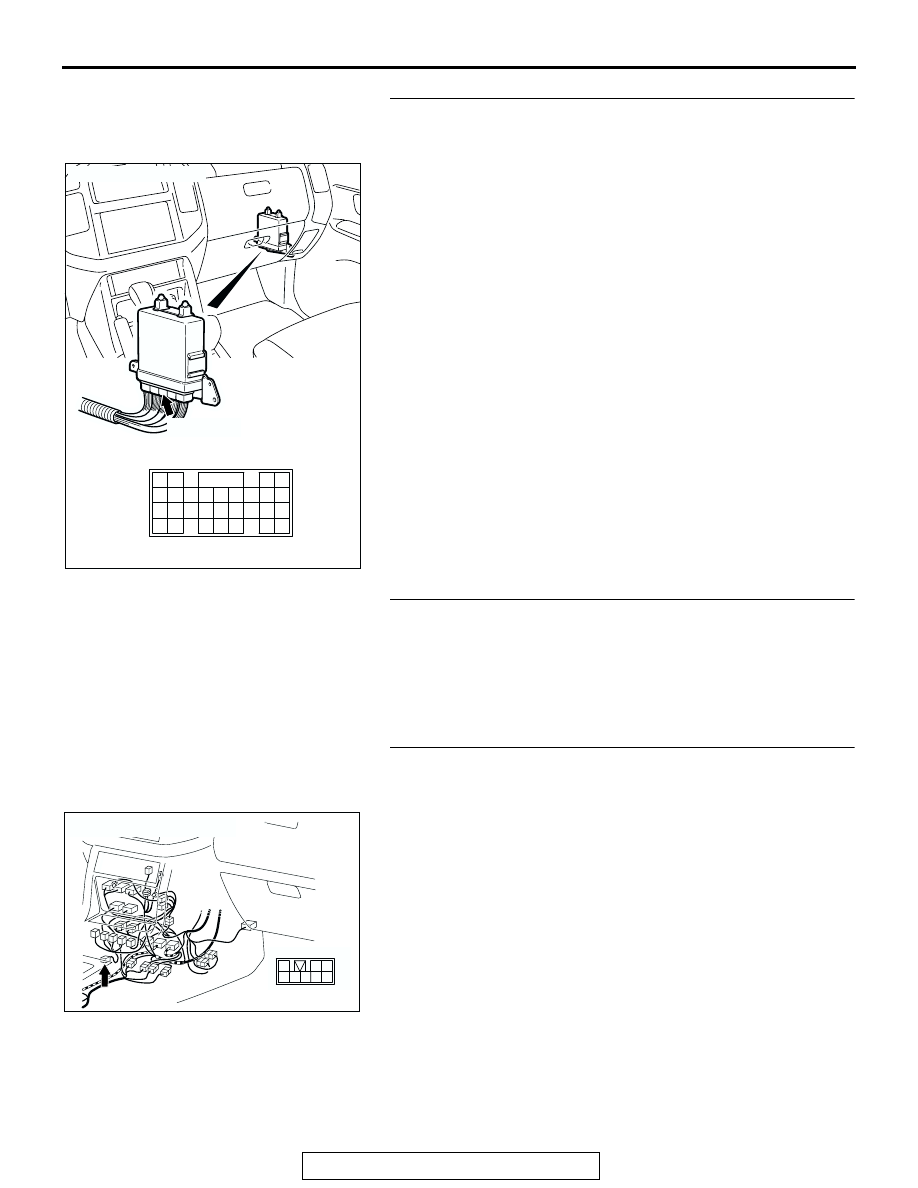

STEP 14. Check PCM connector D-134 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 25.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 15. Check the shift switch assembly.
Refer to

P.23A-559

, Transmission Control.

Q: Is the switch operating properly?

YES : Go to Step 16.
NO :  Replace the shift switch assembly. Refer to

P.23A-559

, Transmission Control.

STEP 16. Check shift switch assembly connector E-115 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 17.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204176

CONNECTOR : E-115

BE

8

3

4 5

1

2

6 7
