AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-299

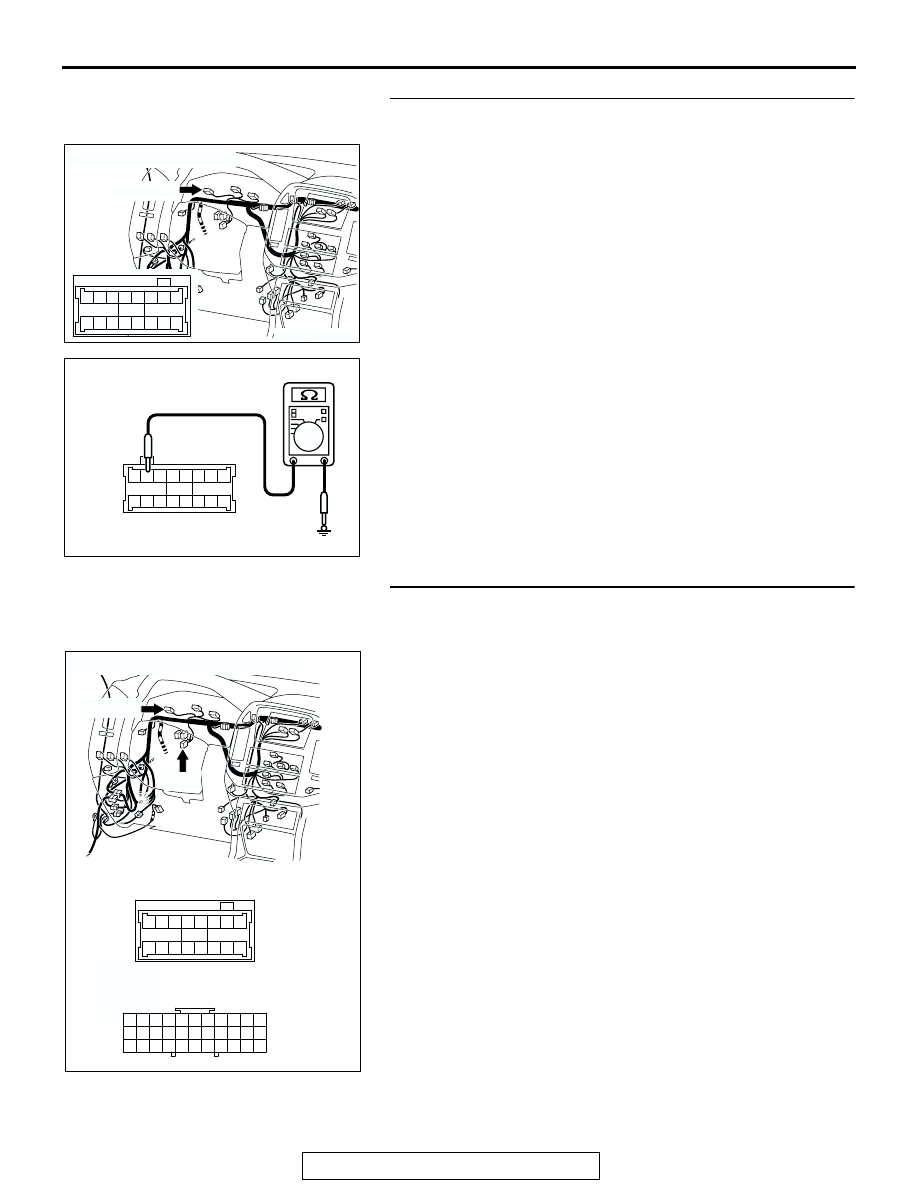

STEP 4. Measure the resistance at combination meter
connector D-03.
(1) Disconnect connector D-03 and measure at the harness

side.

(2) Measure the resistance between terminal 57 and ground.

• The measured resistance should be less than 2 ohms.

Q: Is the measured resistance less than 2 ohms?

YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check combination meter connector D-03 and
joint connector D-30 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204170

CONNECTOR : D-03

CE

D-03 (GR)

58

57

67

66

56

54 55

64

59

53

52

62

61

63

65

60

51

AC204918

D-03 HARNESS CONNECTOR :
COMPONENT SIDE

DK

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

AC204188

CONNECTORS : D-03, D-30

D-03 (GR)

D-03

D-30

D-30

AU

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

58

57

67

66

56

54 55

64

59

53

52

62

61

63

65

60

51

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-300

STEP 6. Check the harness for open circuit or damage
between combination meter connector D-03 terminal 57
and body ground.
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair or replace the harness wire.

AC204170

CONNECTOR : D-03

CE

D-03 (GR)

58

57

67

66

56

54 55

64

59

53

52

62

61

63

65

60

51

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-301

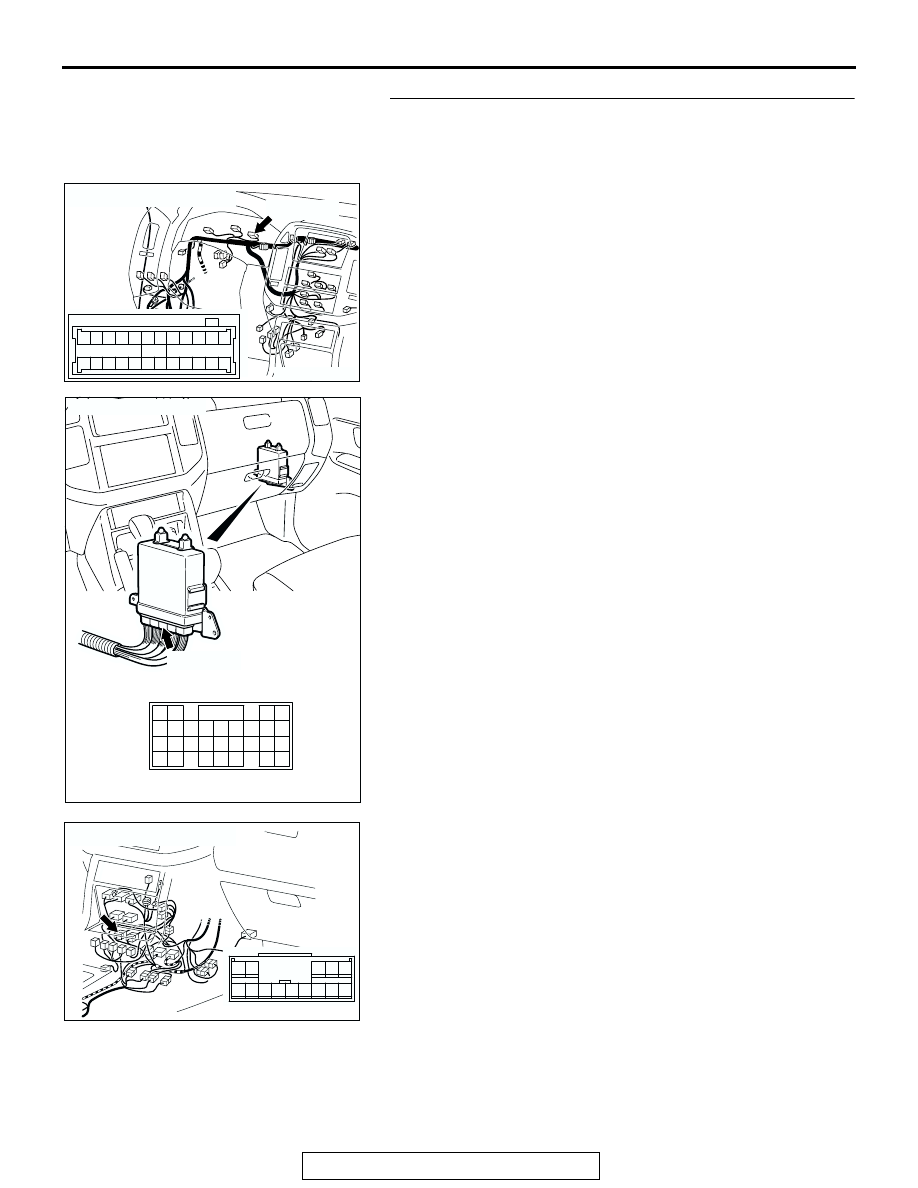

STEP 7. Check combination meter connector D-32, PCM
connector D-134 and intermediate connectors E-113 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 8.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204170

CONNECTOR : D-32

CF

D-32 (GR)

10

9

23

22

12

11

25

24

8

6 7

20

13

5

4

18

17

19

21

16

3

2

15

14

1

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204176

CONNECTOR : E-113

BC

1

6

2

7 8 9 10 11 12 13 14

3 4 5

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-302

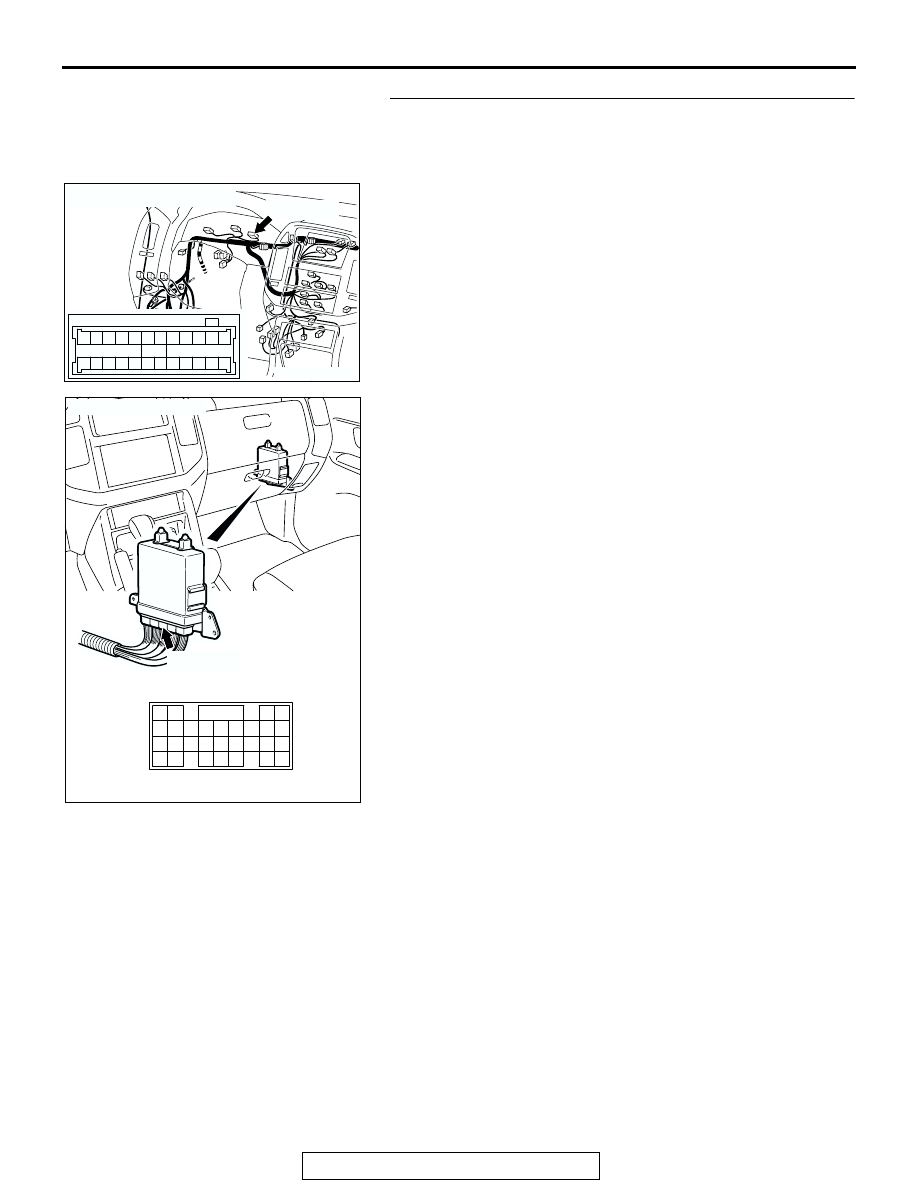

STEP 8. Check the harness for open circuit, short circuit to
ground and damage between combination meter
connector D-32 terminal 3 and PCM connector D-134
terminal 75.
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair or replace the harness wire.

AC204170

CONNECTOR : D-32

CF

D-32 (GR)

10

9

23

22

12

11

25

24

8

6 7

20

13

5

4

18

17

19

21

16

3

2

15

14

1

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83
