AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-243

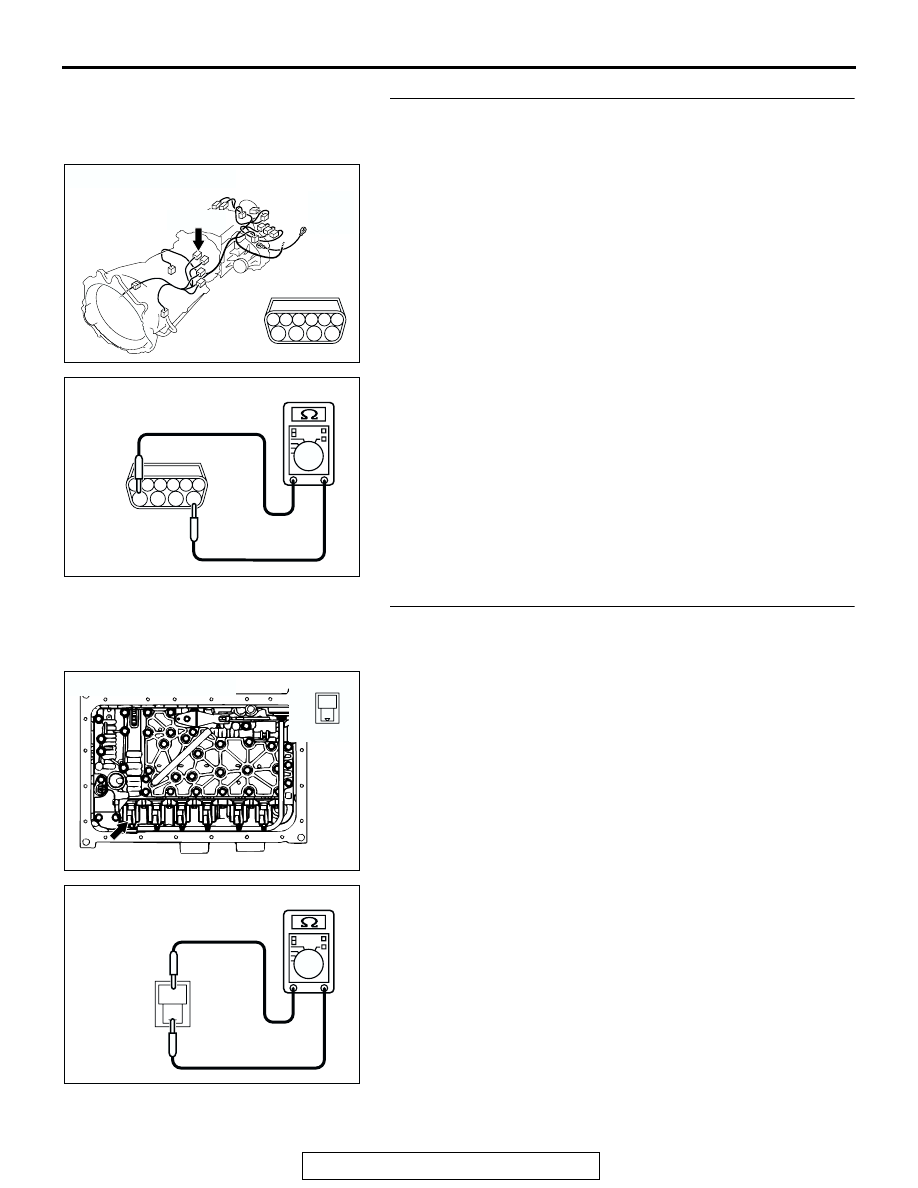

STEP 4. Measure the torque converter clutch solenoid
valve resistance at A/T control solenoid valve assembly
connector C-03.
(1) Disconnect connector C-03 and measure at the solenoid

valve side.

(2) Measure the resistance between solenoid valve assembly

connector C-03 terminals 7 and 10.

Resistance value: 2.7

 3.4  [at 20°C (68°F)]

Q: Is the measured resistance 2.7

 3.4  [at 20°C (68°F)]?

YES : Go to Step 6.
NO :  Go to Step 5.

STEP 5. Measure the solenoid valve resistance at the
torque converter clutch solenoid valve connector C-03-4
inside the transmission.
(1) Disconnect solenoid valve connector C-03-4 and measure

at the solenoid valve side.

(2) Measure the resistance between torque converter clutch

solenoid valve terminals 1 and 2.

Resistance value: 2.7

 3.4  [at 20°C (68°F)]

Q: Is the measured resistance 2.7

 3.4  [at 20°C (68°F)?

YES : Replace the harness wire between A/T control

solenoid valve assembly connector C-03 and the
solenoid valves.

NO :  Replace the torque converter clutch solenoid valve.

Refer to GROUP 23B, Valve Body

P.23B-63

.

AC204395

CONNECTOR : C-03

AE

C-03 (B)

6

10

4

9

5

3

8

2

7

1

AC204918

C-03 HARNESS CONNECTOR :
SOLENOID VALVE SIDE

CX

6

10

4

9

5

3

8

2

7

1

AC204748

CONNECTOR : C-03-4

AE

1
2

AC204918

C-03-4 HARNESS CONNECTOR :
TORQUE CONVERTER CLUTCH
SOLENOID VALVE SIDE

CP

1
2

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-244

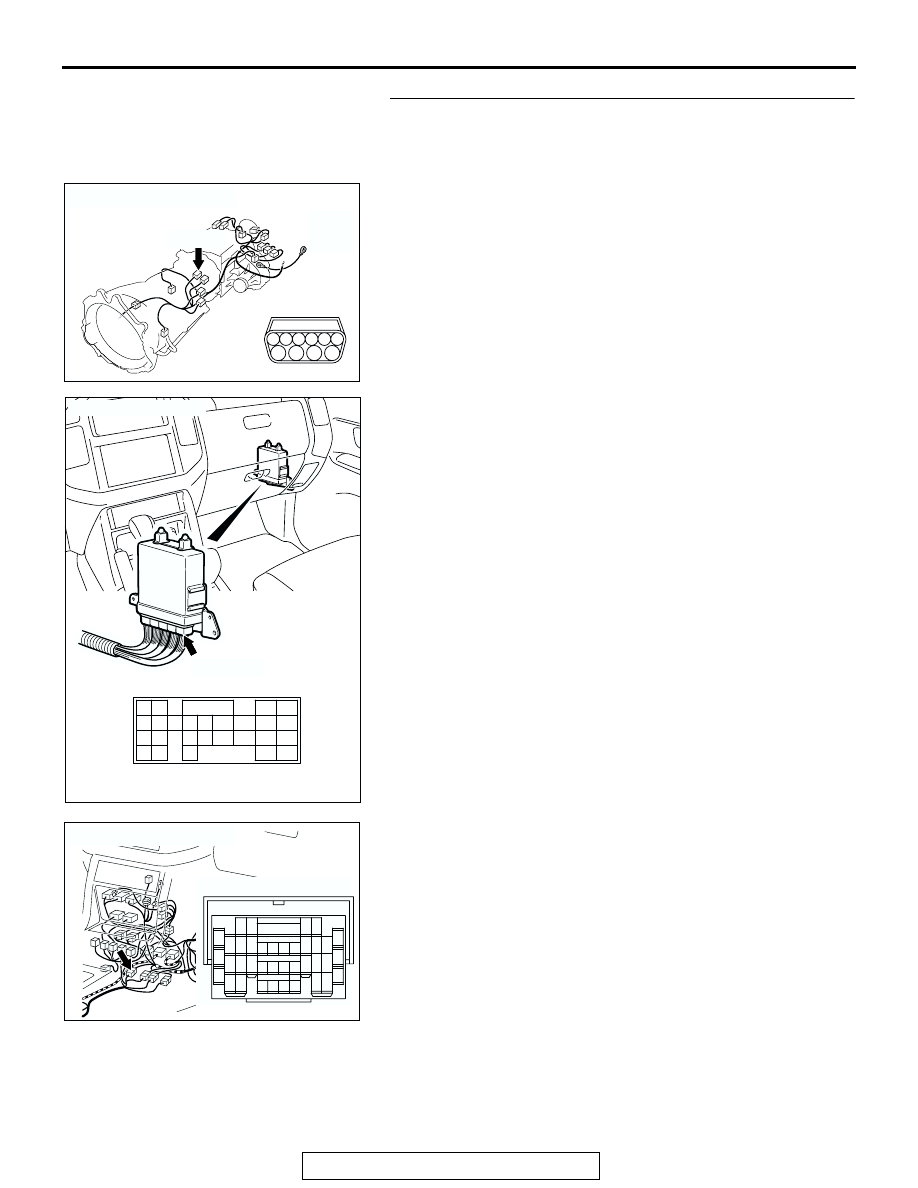

STEP 6. Check A/T control solenoid valve assembly
connector C-03, PCM connector D-136 and intermediate
connector E-114 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204395

CONNECTOR : C-03

AE

C-03 (B)

6

10

4

9

5

3

8

2

7

1

AC204681AD

CONNECTOR: D-136

D-136 (GR)

121 122

123

124

125 126 127 128 129 130

131 132

133

134 135

136 137 138

139 140

141

142 143

144

145

146

AC204176

CONNECTOR : E-114

BD

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-245

STEP 7. Check the harness for an open or short circuit to
ground between A/T control solenoid valve assembly
connector C-03 terminal 7 and PCM connector D-136
terminal 130.
Q: Is the harness wire in good condition?

YES : Replace the PCM.
NO :  Repair or replace the harness wire.

AC204395

CONNECTOR : C-03

AE

C-03 (B)

6

10

4

9

5

3

8

2

7

1

AC204681AD

CONNECTOR: D-136

D-136 (GR)

121 122

123

124

125 126 127 128 129 130

131 132

133

134 135

136 137 138

139 140

141

142 143

144

145

146

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-246

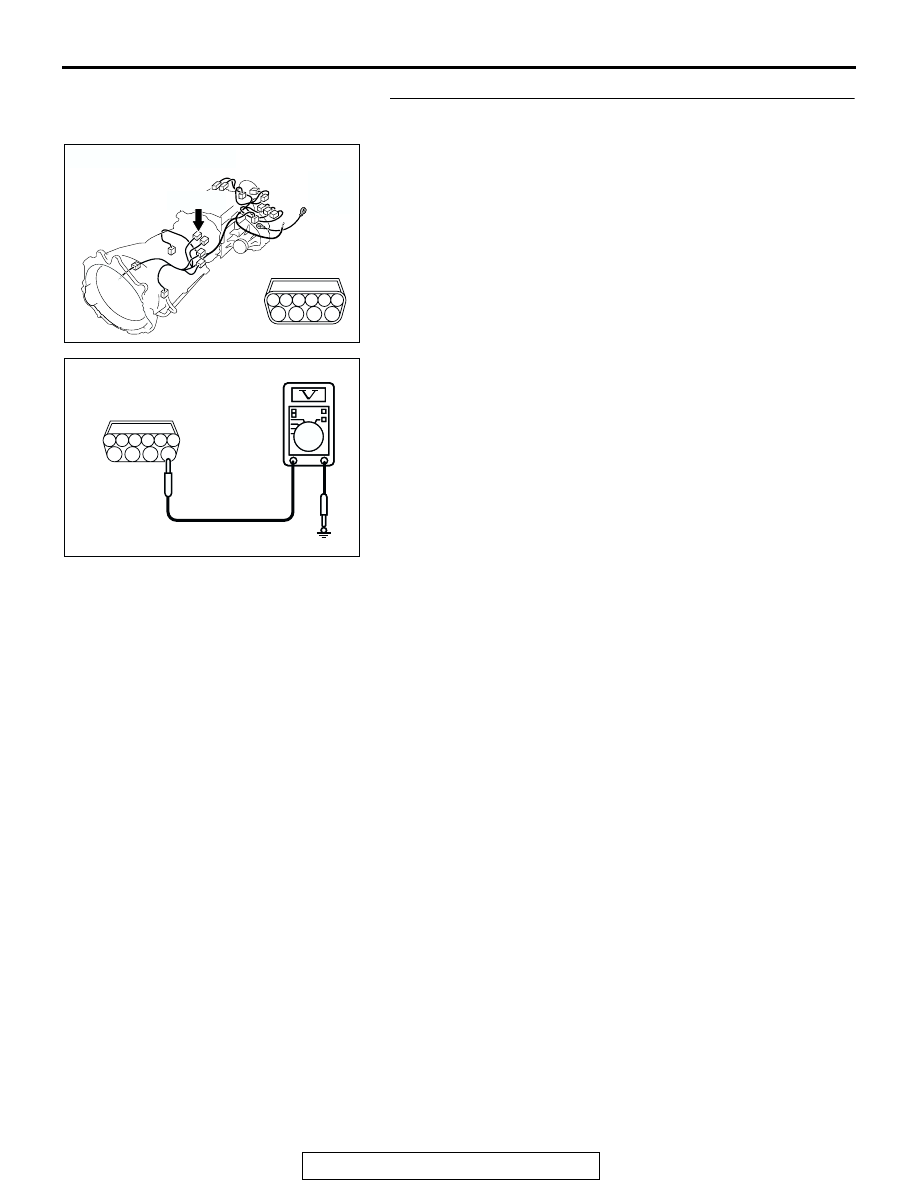

STEP 8. Measure the supply voltage at A/T control
solenoid valve assembly connector C-03 by backprobing.
(1)  Do not disconnect solenoid valve assembly harness

connector C-03.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between harness connector C-03

terminal 10 and ground by backprobing.

• The voltage should equal battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 11.
NO :  Go to Step 9.

AC204395

CONNECTOR : C-03

AE

C-03 (B)

6

10

4

9

5

3

8

2

7

1

AC204918

6

9

5

10

8

3

7

2

1

4

AC204918 AK

C-03 HARNESS CONNECTOR :
HARNESS SIDE
