AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-135

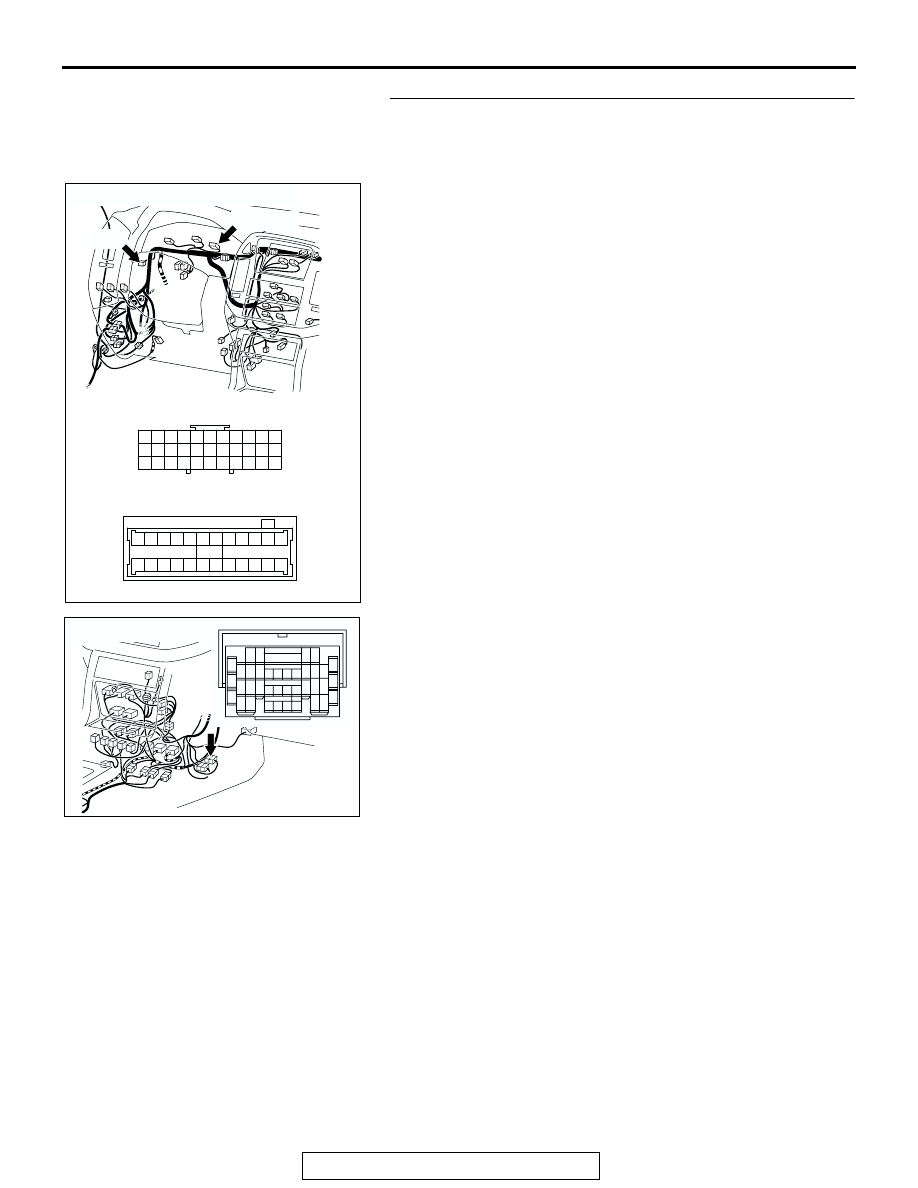

STEP 17. Check joint connector D-116, PCM connector
D-134 and intermediate connector E-114 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector
Q: Are the connectors and terminals in good condition?

YES : Go to Step 18.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204171

CONNECTOR : D-116

AN

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204176

CONNECTOR : E-114

BD

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-136

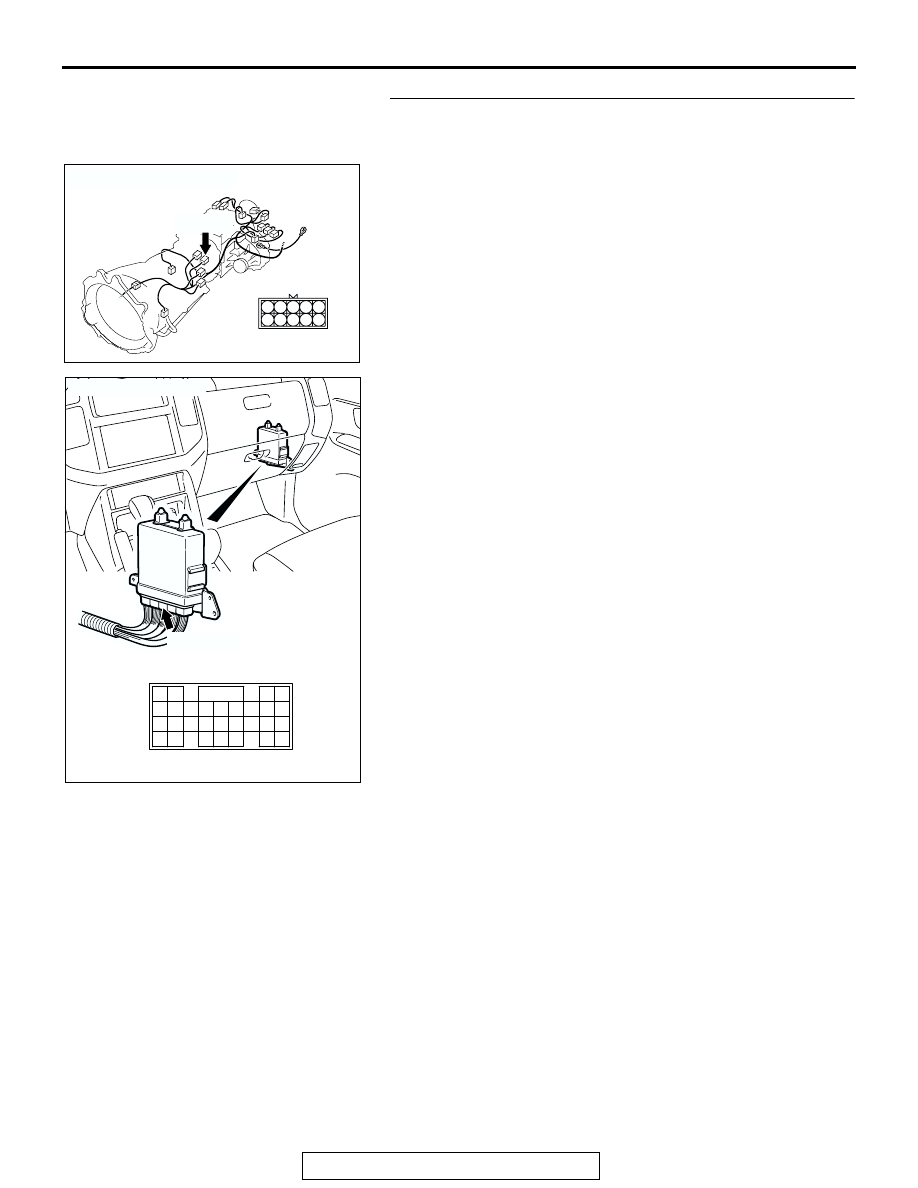

STEP 18. Check harness for open circuit or short circuit to
ground between transmission range switch connector
C-04 terminal 8 and PCM connector D-134 terminal 67.
Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair or replace the harness wire.

AC204395

CONNECTOR : C-04

AF

C-04 (B)

4
9

5

10

3
8

2
7

6

1

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-137

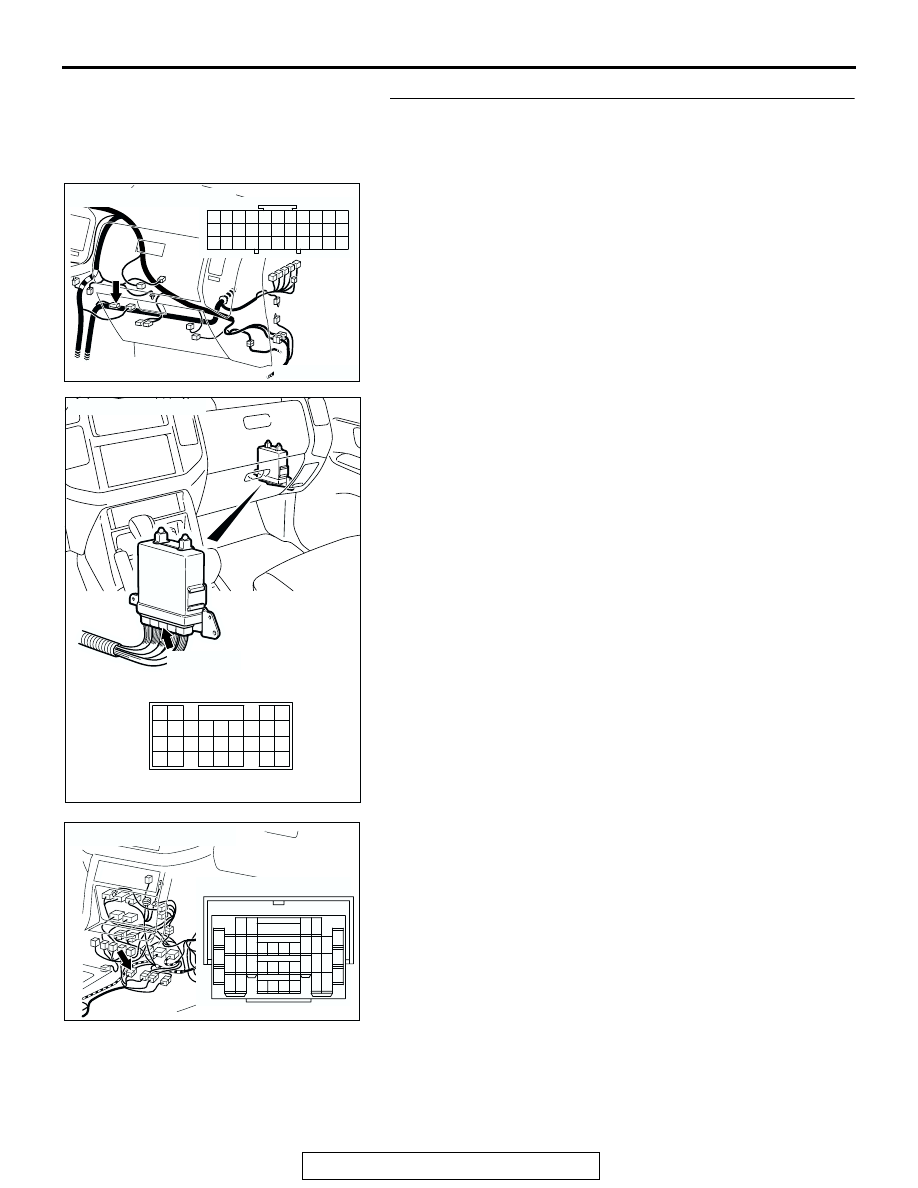

STEP 19. Check joint connector D-29, combination meter
connector D-32 and intermediate connector E-111 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 20.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204188

CONNECTORS : D-29, D-32

D-29

BB

D-32 (GR)

D-32

D-29

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

10

9

23

22

12

11

25

24

8

6 7

20

13

5

4

18

17

19

21

16

3

2

15

14

1

AC204176

CONNECTOR : E-111

BF

15

4

14

37

36

26 27

12

11

35

34

23 24

3

13

25

9

2

8

32

20 21

6

5

17

29

30

18

1

7

19

31

10

22

33

16

28

38

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-138

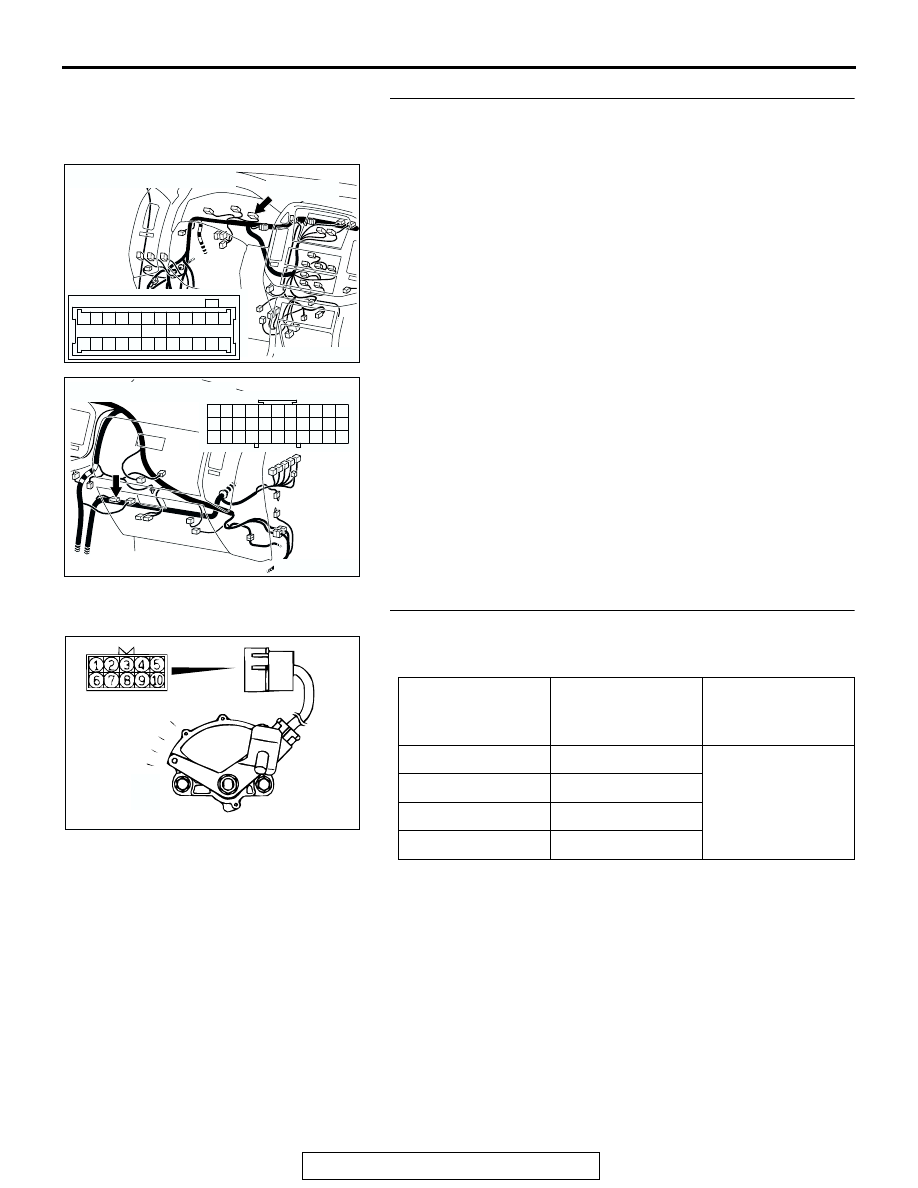

STEP 20. Check harness for short circuit to ground
between combination meter connector D-32 terminal 2 and
joint connector D-116 terminal 33.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

STEP 21. Check the transmission range switch.
Measure the resistance between the terminals for each trans-
mission range as indicated in the table below.

Q: Is the measured resistance less than 2 ohms for each

transmission range?
YES : Go to Step 22.
NO :  Replace the transmission range switch. Refer to

GROUP 23B, Transmission

P.23B-14

.

AC204170

CONNECTOR : D-32

CF

D-32 (GR)

10

9

23

22

12

11

25

24

8

6 7

20

13

5

4

18

17

19

21

16

3

2

15

14

1

AC204171

CONNECTOR : D-116

AN

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

TRANSMISSION
RANGE

TERMINAL
CONNECTION OF
TESTER

SPECIFIED
CONDITION

P

1

− 7

Less than 2 ohms.

R

7

− 8

N

2

− 7

D

3

− 7

ACX01187AD

P

R

N

D
