REAR DEFLECTOR

TSB Revision

EXTERIOR

51-21

REMOVAL SERVICE POINT

.

<<A>> REAR DEFLECTOR COVER REMOVAL

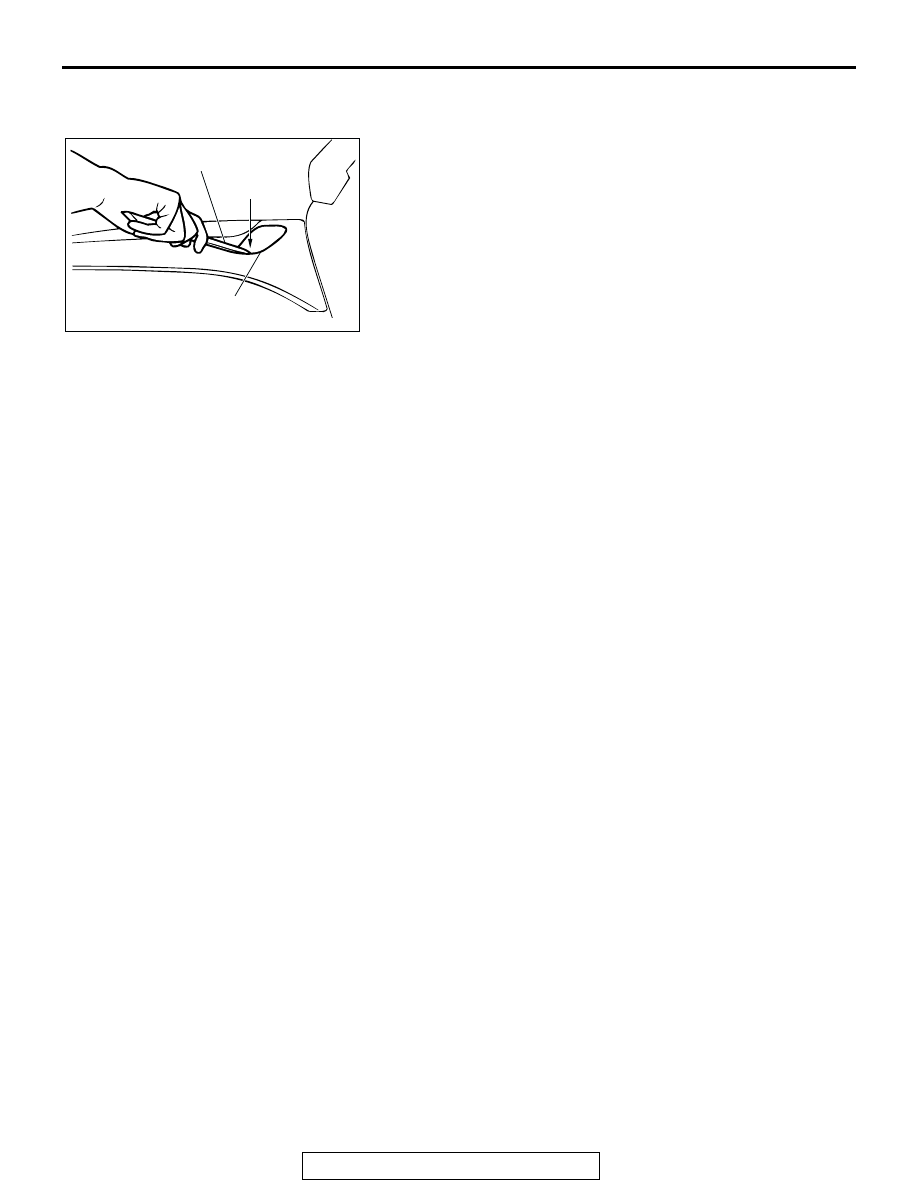

1. Insert the special tool MB990784 into the slit on the rear

deflector cover.

2. Release the tab by prying it towards the front of the vehicle.

AC409457

SLIT

MB990784

 REAR DEFLECTOR COVER

AB

SIDE STEP

TSB Revision

EXTERIOR

51-22

SIDE STEP

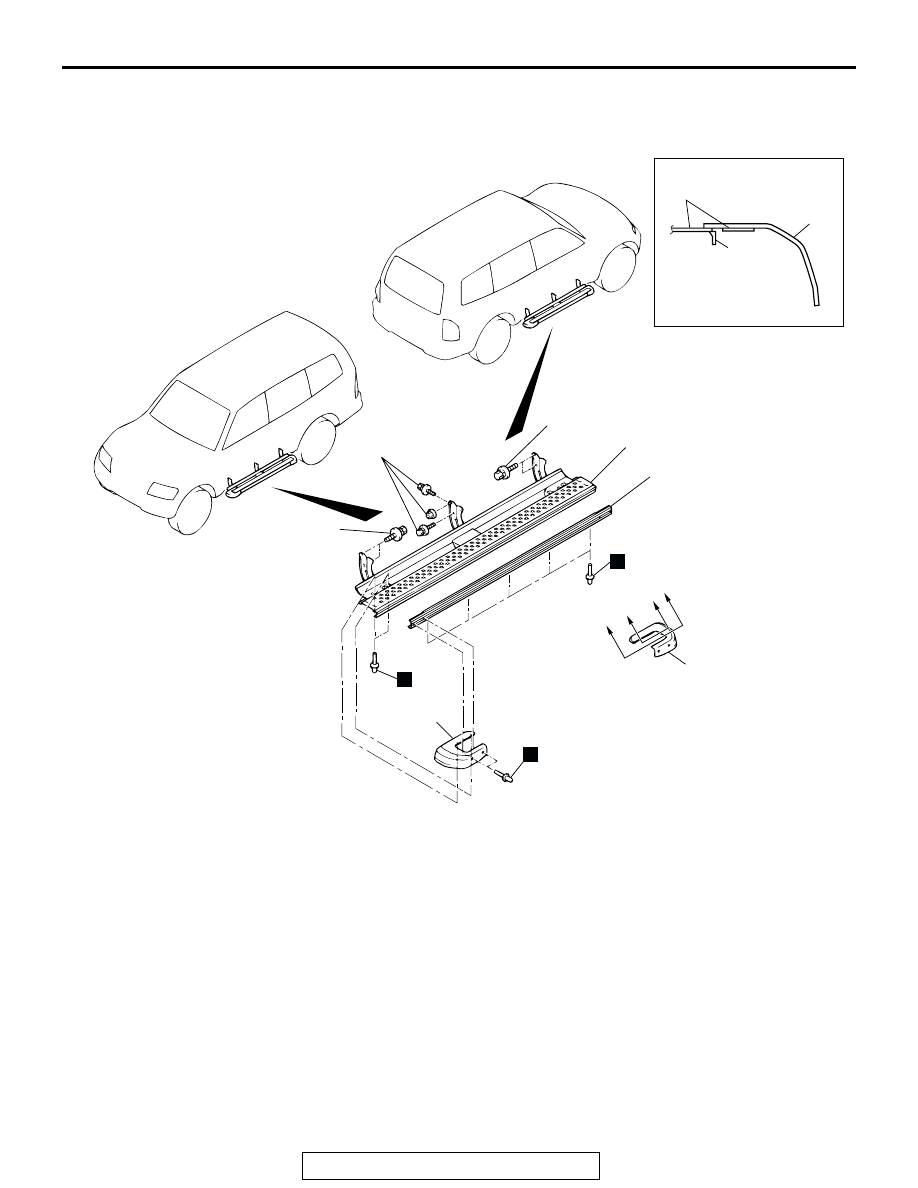

REMOVAL AND INSTALLATION

M1511011500129

AC309216

AX1070CA

3

1

SECTION A – A

TAB

A

A

A

A

1

2

3

1

11.0 ± 2.0 N·m
98 ±17 in-lb

N

N

N

38 ± 2 N·m
28 ± 2 ft-lb

38 ± 2 N·m
28 ± 2 ft-lb

AB

<TYPE A>

REMOVAL STEPS

<<A>> >>A<<

1. SIDE STEP COVER

<<A>> >>A<<

2. NON-SLIP COVER
3. SIDE STEP ASSEMBLY

REMOVAL STEPS (Continued)

SIDE STEP

TSB Revision

EXTERIOR

51-23

REMOVAL SERVICE POINT

.

<<A>> SIDE STEP COVER, NON-SLIP COVER REMOVAL
Remove by the same procedure as for REAR MUDGUARD
REINFORCEMENT, REAR BUMPER SIDE RETAINER, REAR
BUMPER CORNER BRACKET REMOVAL (Refer to

P.51-8

).

INSTALLATION SERVICE POINTS

.

>>A<< SIDE STEP COVER, NON-SLIP COVER INSTALLA-
TION
Install by the same procedure as for REAR MUDGUARD REIN-
FORCEMENT, REAR BUMPER SIDE RETAINER, REAR
BUMPER CORNER BRACKET INSTALLATION (Refer to

P.51-8

).

AC309062AB

1

3

2

60 ± 5 N·m
45 ± 3 ft-lb

60 ± 5 N·m
45 ± 3 ft-lb

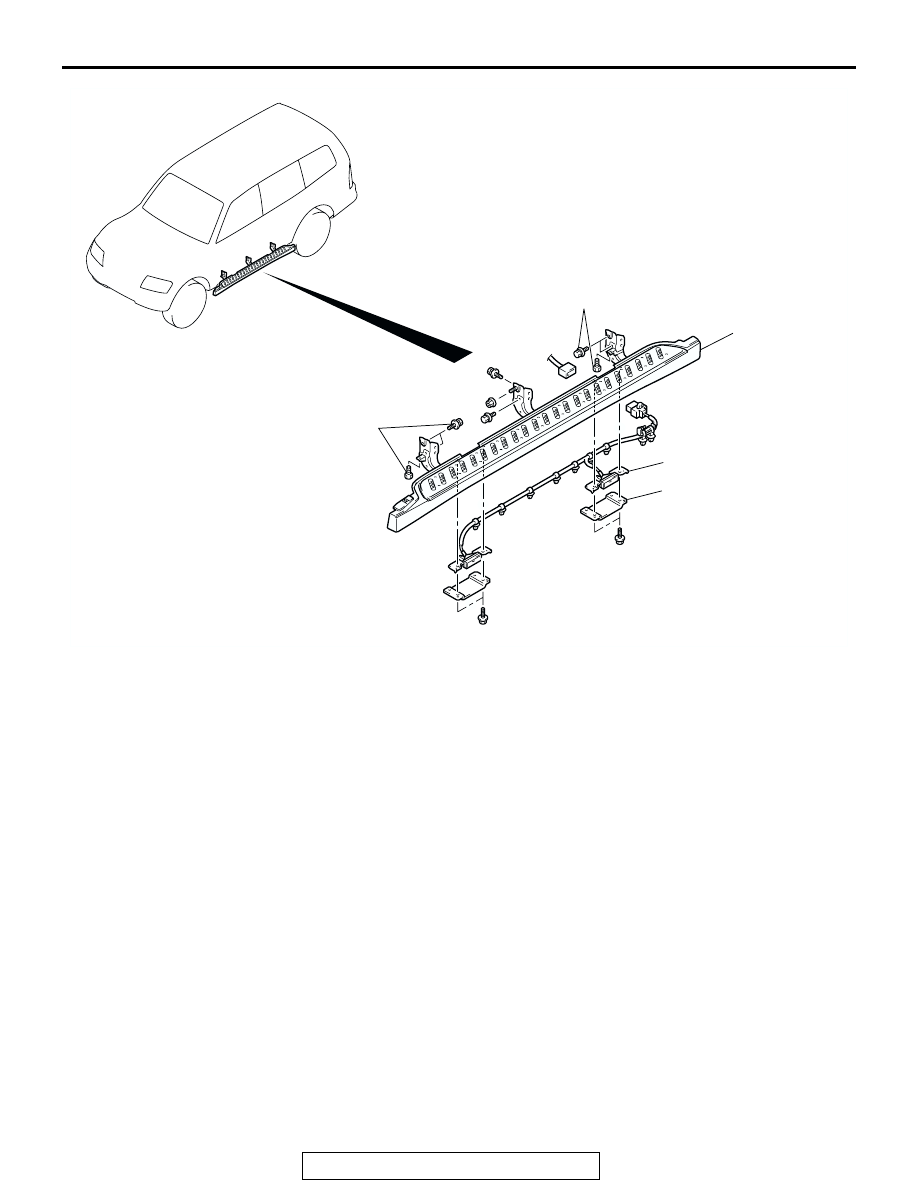

<TYPE B>

REMOVAL STEPS
• SIDE STEP LIGHT ASSEMBLY

CONNECTOR CONNECTION

1. SIDE STEP ASSEMBLY

2. SIDE STEP LIGHT BRACKET

PROTECTOR

3. SIDE STEP LIGHT ASSEMBLY

REMOVAL STEPS (Continued)

SIDE STEP

TSB Revision

EXTERIOR

51-24

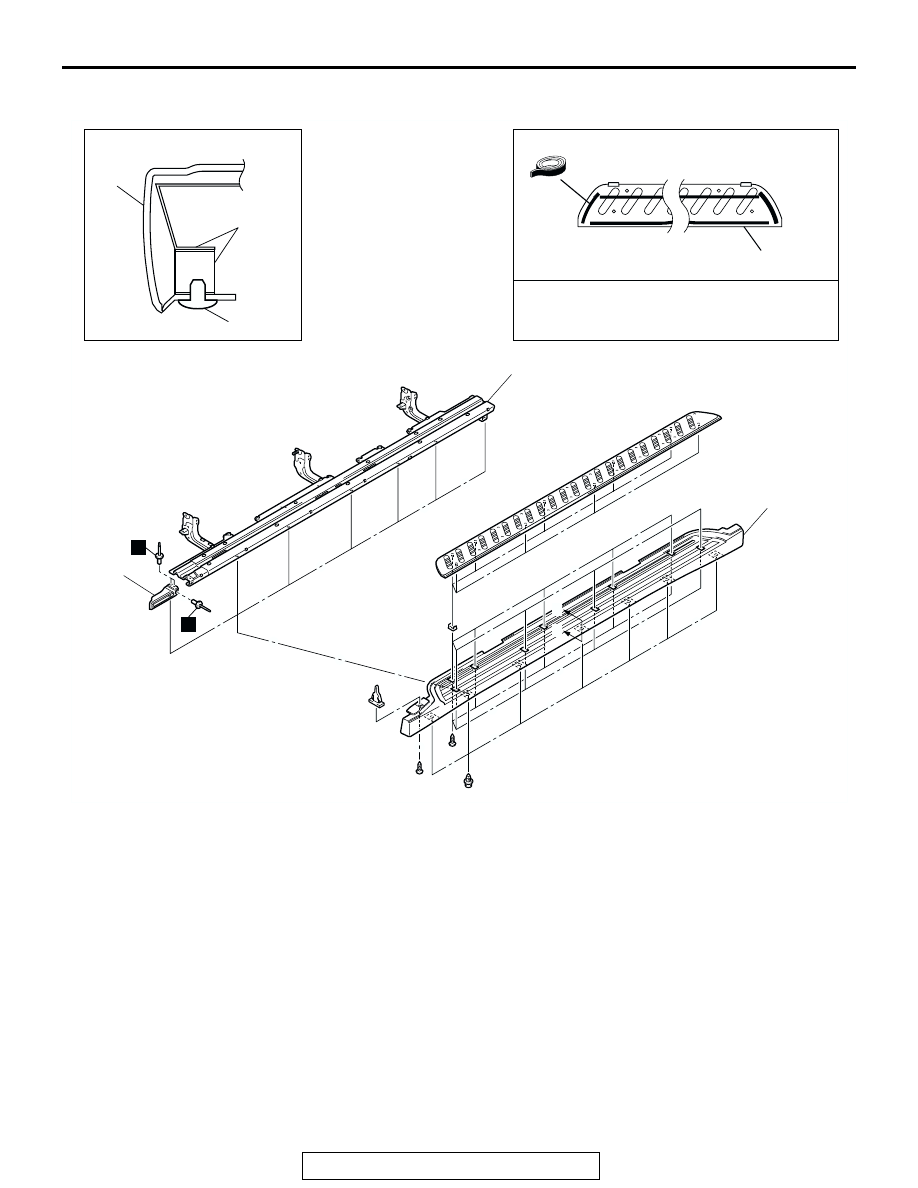

SIDE STEP DISASSEMBLY AND REASSEMBLY

M1511014300038

AC203469

3

4

1

AB

2

ADHESIVE TAPE:
DOUBLE-SIDED TAPE [  8 mm ( 0.3 in )
WIDTH AND 1.2 mm ( 0.05 in ) THICKNESS]

3

CLIP

SECTION A – A

1

A

A

N

N

DISASSEMBLY STEPS
1. SIDE STEP GARNISH
2. SIDE STEP COVER

3. SIDE STEP
4. SIDE STEP GARNISH BRACKET

DISASSEMBLY STEPS (Continued)
