INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-613

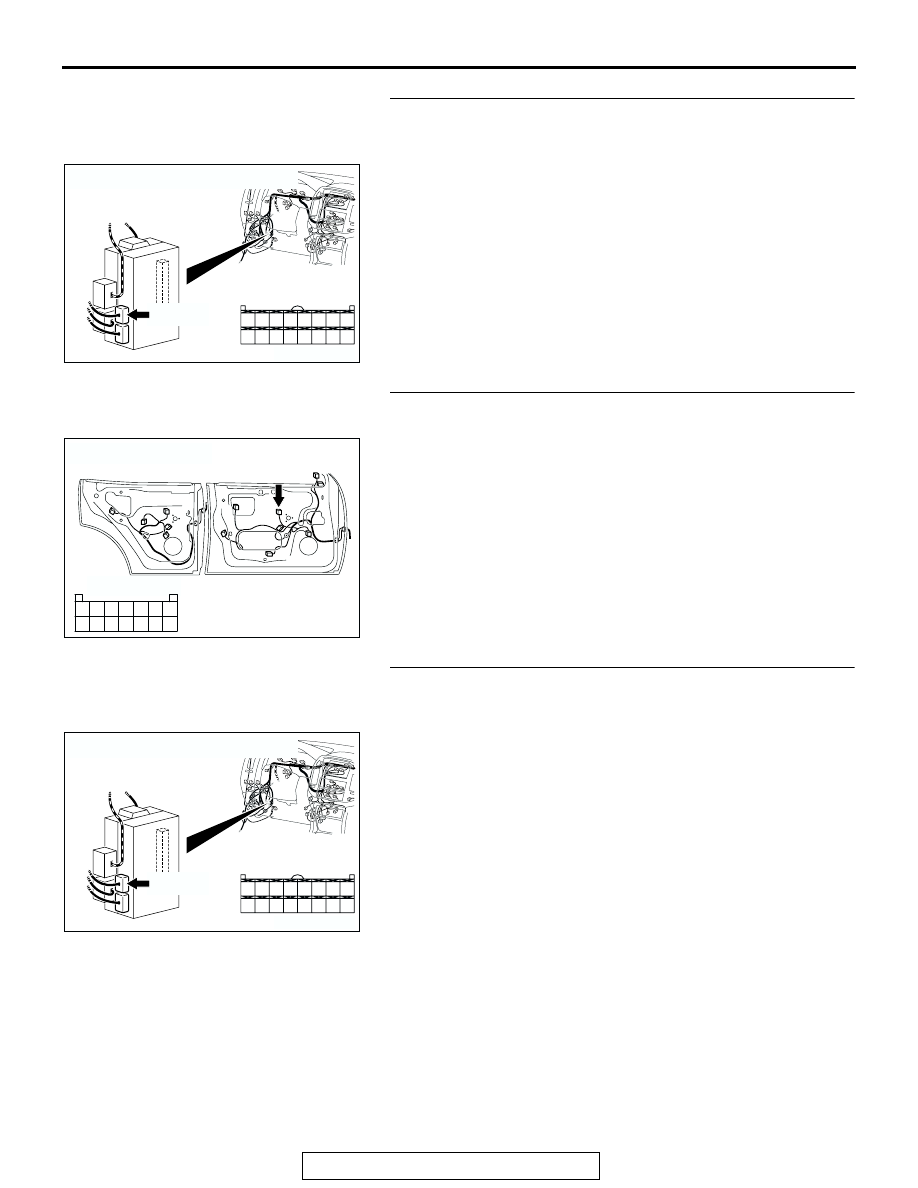

STEP 14. Check ETACS-ECU connector D-223 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector D-223 in good condition?

YES : Go to Step 15.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the central door locking system works

normally, input signal from the door lock switch should
be normal.

STEP 15. Check the wiring harness between power
window main switch H-05 (terminal 3) and ground.
Q: Is the wiring harness between power window main

switch connector H-05 (terminal 3) and ground in good
condition?
YES : Replace the ETACS-ECU.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the central
door locking system works normally, input signal from
the door lock switch should be normal.

STEP 16. Check ETACS-ECU connector D-223 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector D-223 in good condition?

YES : Go to Step 17.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the central door locking system works

normally, input signal from the door lock switch should
be normal.

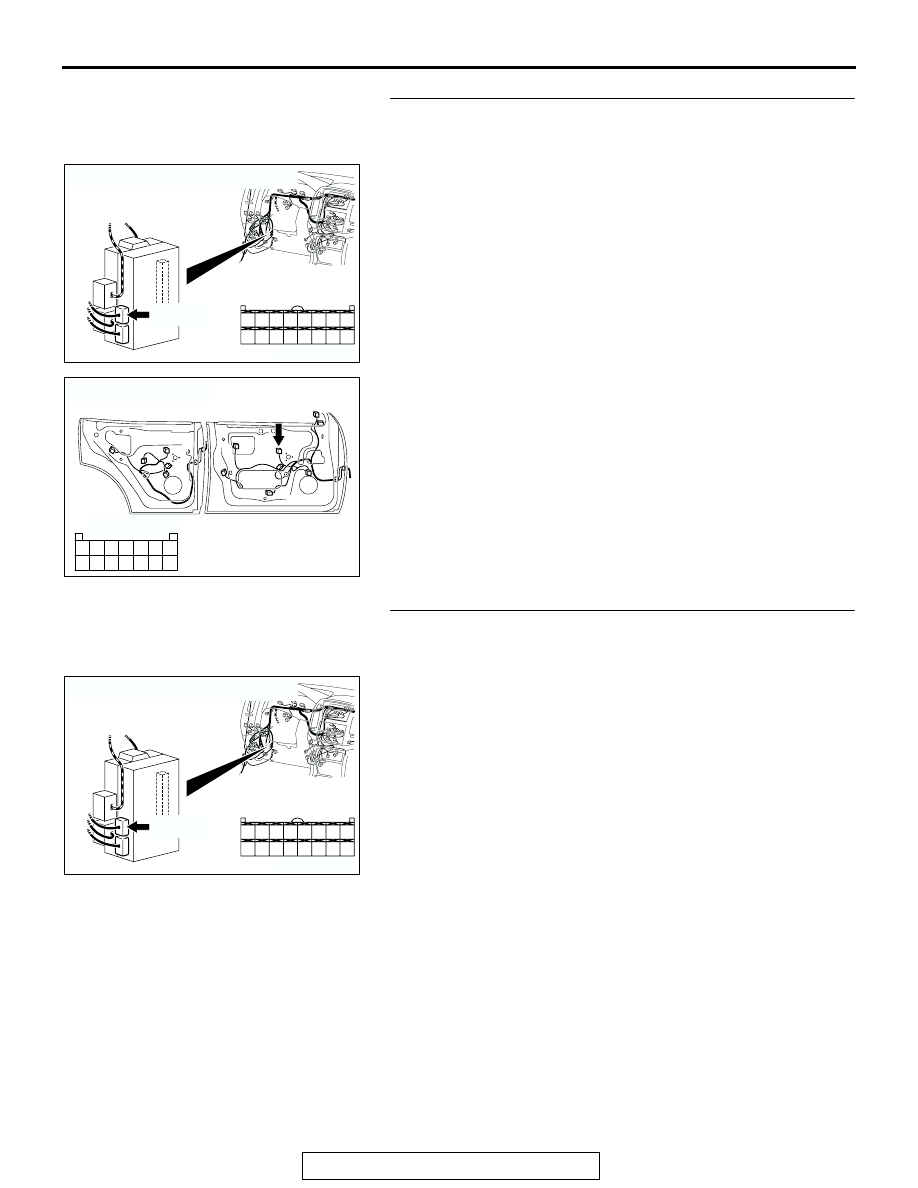

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

AC204180

CONNECTOR : H-05

AC

HARNESS SIDE

<DRIVER'S SIDE>

1
8

3

4

6

7

5

10

11

13

14

12

2
9

H-05

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-614

STEP 17. Check the wiring harness between power
window main switch connector H-05 (terminals 12) and
ETACS-ECU connector D-223 (terminals 53).
Q: Is the wiring harness between power window main

switch connector H-05 (terminals 12) and ETACS-ECU
connector D-223 (terminals 53) in good condition?
YES : Replace the ETACS-ECU. If the central door locking

system works normally, input signal from the door lock
switch should be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the central
door locking system works normally, input signal from
the door lock switch should be normal.

STEP 18. Check ETACS-ECU connector D-223 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector D-223 in good condition?

YES : Go to Step 19.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the central door locking system works

normally, input signal from the door lock switch should
be normal.

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

AC204180

CONNECTOR : H-05

AC

HARNESS SIDE

<DRIVER'S SIDE>

1
8

3

4

6

7

5

10

11

13

14

12

2
9

H-05

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-615

STEP 19. Check the wiring harness between power
window main switch connector H-05 (terminals 10) and
ETACS-ECU connector D-223 (terminals 54).
Q: Is the wiring harness between power window main

switch connector H-05 (terminals 10) and ETACS-ECU
connector D-223 (terminals 54) in good condition?
YES : Replace the ETACS-ECU. If the central door locking

system works normally, input signal from the door lock
switch should be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the central
door locking system works normally, input signal from
the door lock switch should be normal.

INSPECTION PROCEDURE P-8: ETACS-ECU does not receive an auto-stop signal from the rear wiper
motor.

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

AC204180

CONNECTOR : H-05

AC

HARNESS SIDE

<DRIVER'S SIDE>

1
8

3

4

6

7

5

10

11

13

14

12

2
9

H-05

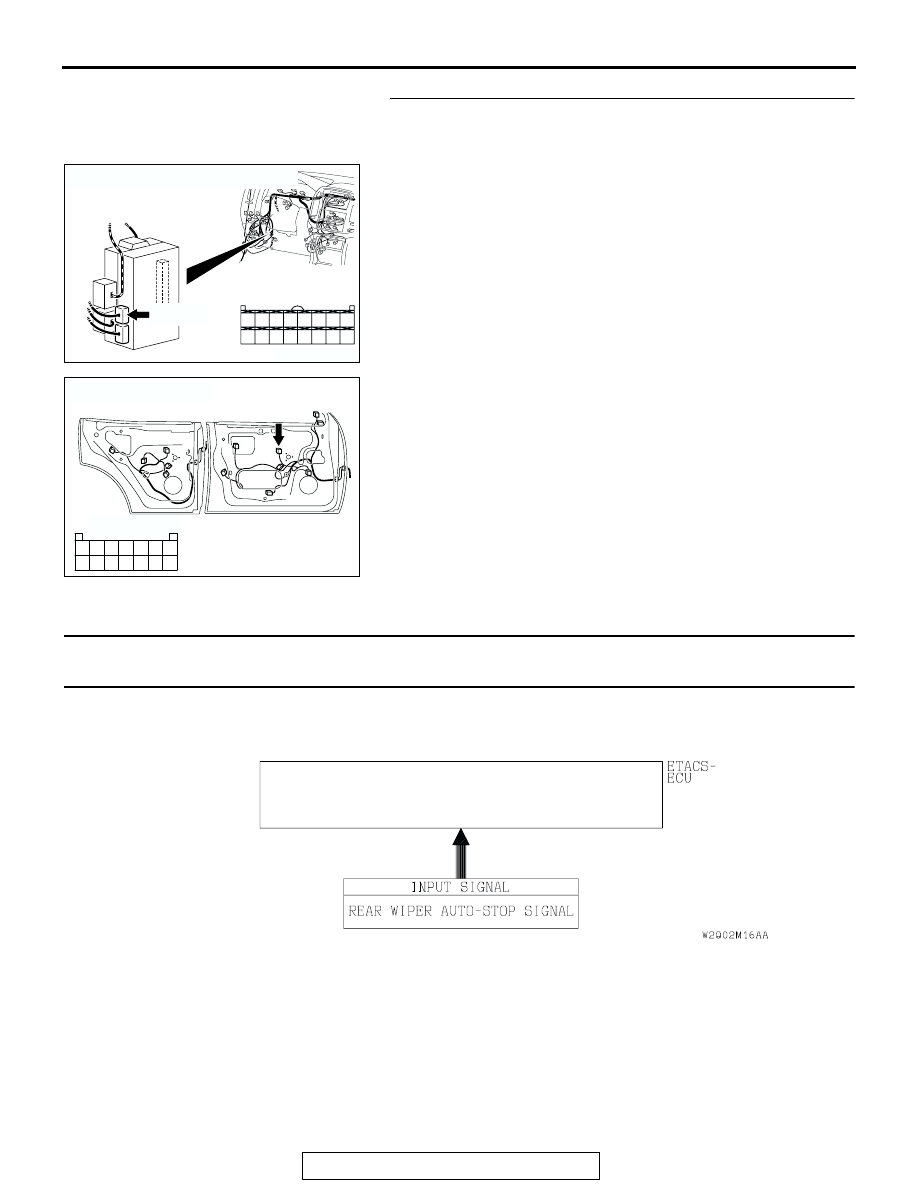

Rear Wiper Auto-stop Signal Input

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-616

.

CIRCUIT OPERATION
The ETACS-ECU makes the rear wiper stop at the
predetermined park position according to the
auto-stop signal from the rear wiper motor.

.

TECHNICAL DESCRIPTION (COMMENT)
If this signal is not normal, the rear wiper does not
stop at the predetermined park position.

.

TROUBLESHOOTING HINTS

• The rear wiper motor may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

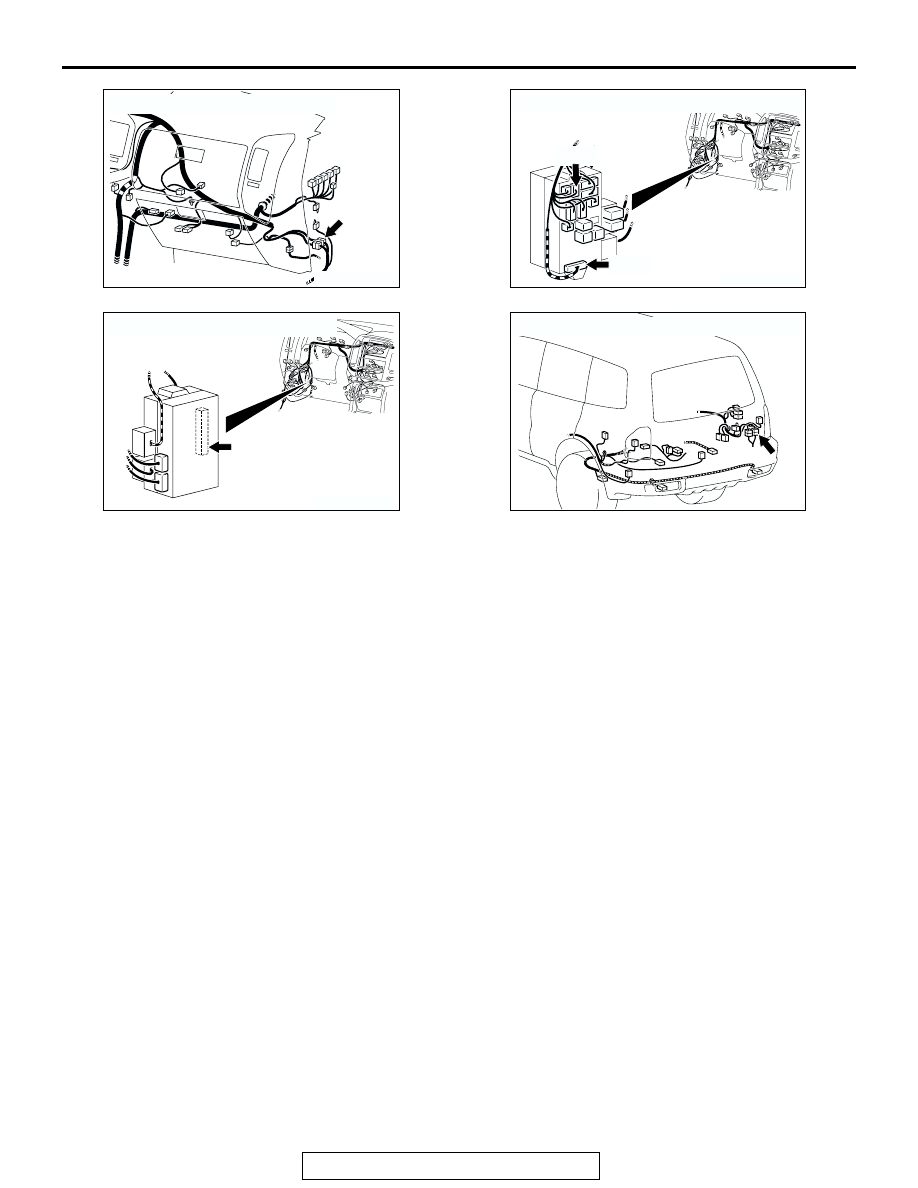

AC204171

CONNECTOR : D-111

AG

AC204173

CONNECTORS : D-208, D-217

D-208

D-217

AS

AC204174

CONNECTOR : D-222

AE

AC204179

CONNECTOR : G-10

AJ
