Mitsubishi Montero (2004+). Manual - part 820





INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-537

INSPECTION PROCEDURE O-9: Sunroof Switch: ETACS-ECU does not receive any signal from the
up, open or close/down switch.

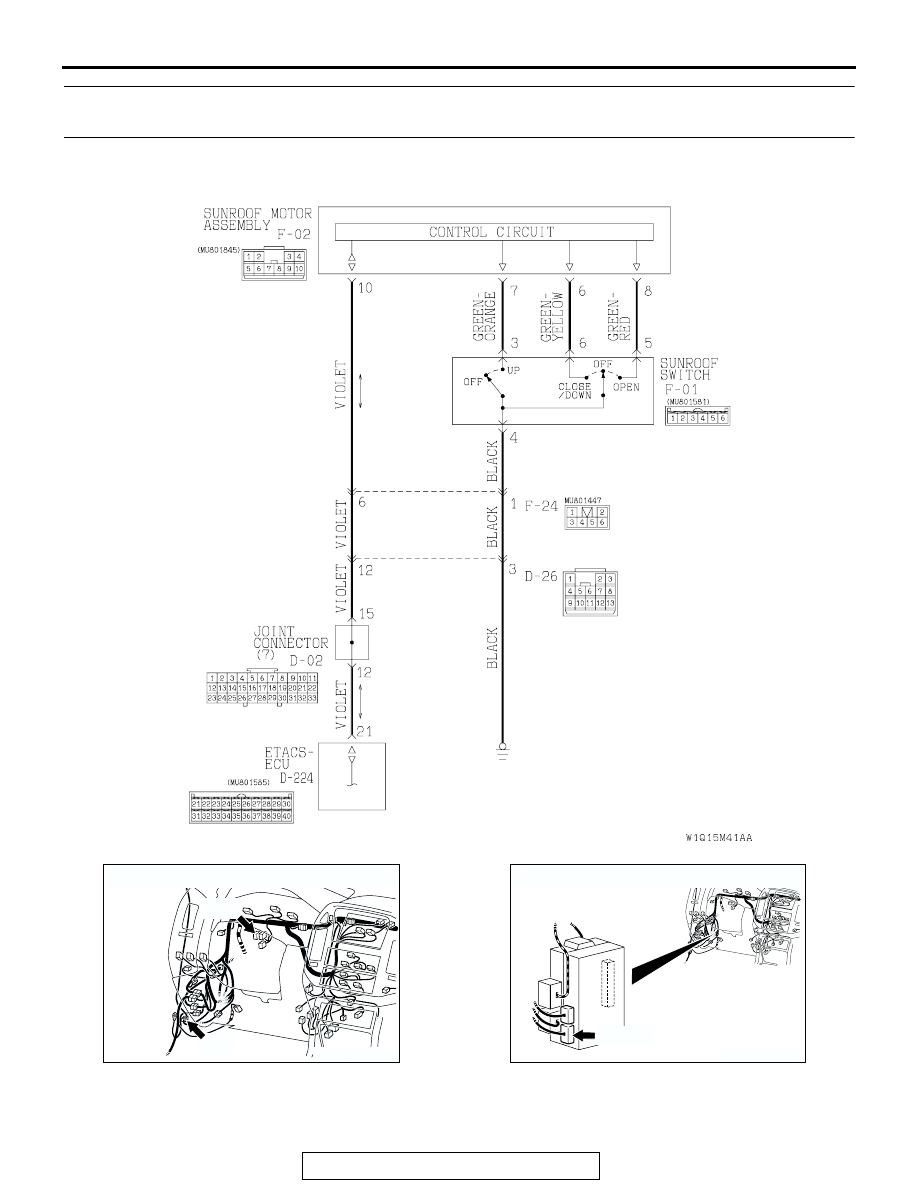

Sunroof Switch Input Circuit

AC204170

CONNECTORS : D-02, D-26

BO

D-02

D-26

AC204174

CONNECTOR : D-224

D-224(B)

AG

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-538

.

CIRCUIT OPERATION
The ETACS-ECU receives a signal through the
sunroof motor assembly via the SWS communication
line from the sunroof switch, and sends a signal to
the data link connector.

.

TECHNICAL DESCRIPTION (COMMENT)
If the SWS communication line between the sunroof
motor assembly and the ETACS-ECU is defective,
the ETACS-ECU cannot identify the input signal from
the sunroof switch even if the sunroof is normal.

.

TROUBLESHOOTING HINTS

• The sunroof switch may be defective

• The sunroof motor assembly may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

STEP 1. Verify the sunroof operation.
Q: Does the sunroof work normally?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure F-1 "Sunroof does not

operate

P.54B-213

."

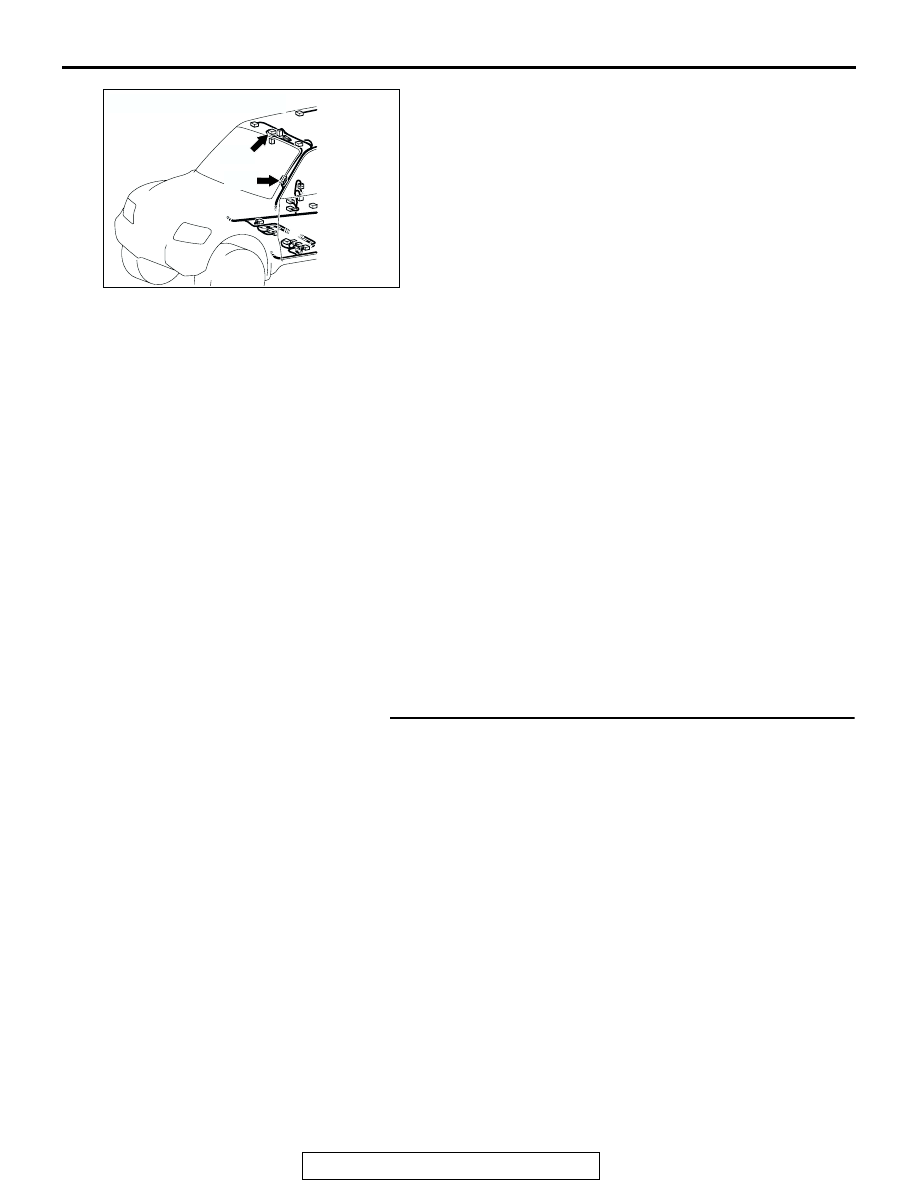

AC204177

CONNECTORS : F-02, F-24

AJ

F-02

F-24

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-539

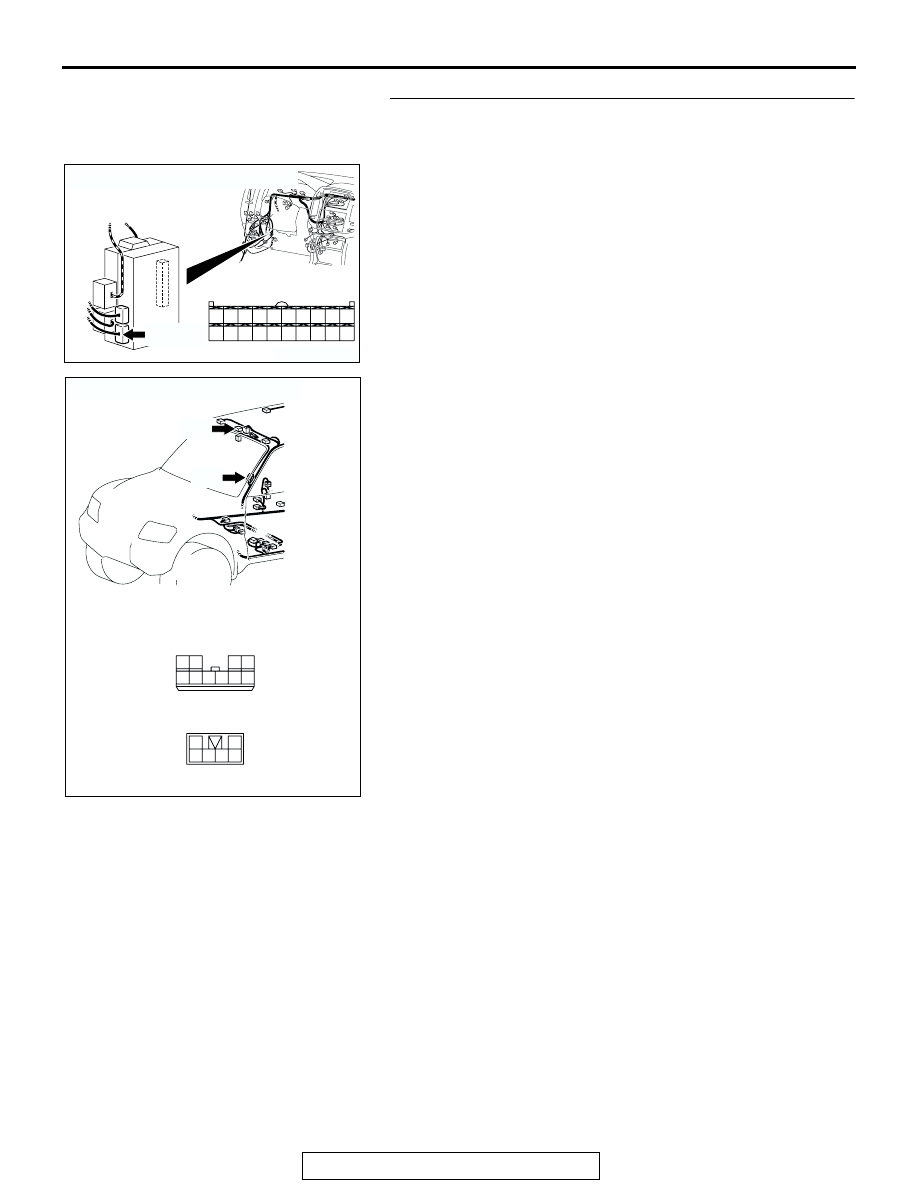

STEP 2. Check sunroof motor assembly connector F-02
and ETACS-ECU connector D-224 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are sunroof motor assembly connector F-02 and

ETACS-ECU connector D-224 in good condition?
YES :
Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the sunroof operates normally, it indicates

that a correct signal is sent from the sunroof switch.

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

AC204177

CONNECTOR : F-02

AB

HARNESS SIDE

1

5

2

7

8

6

3

4

10 9

F-02

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-540

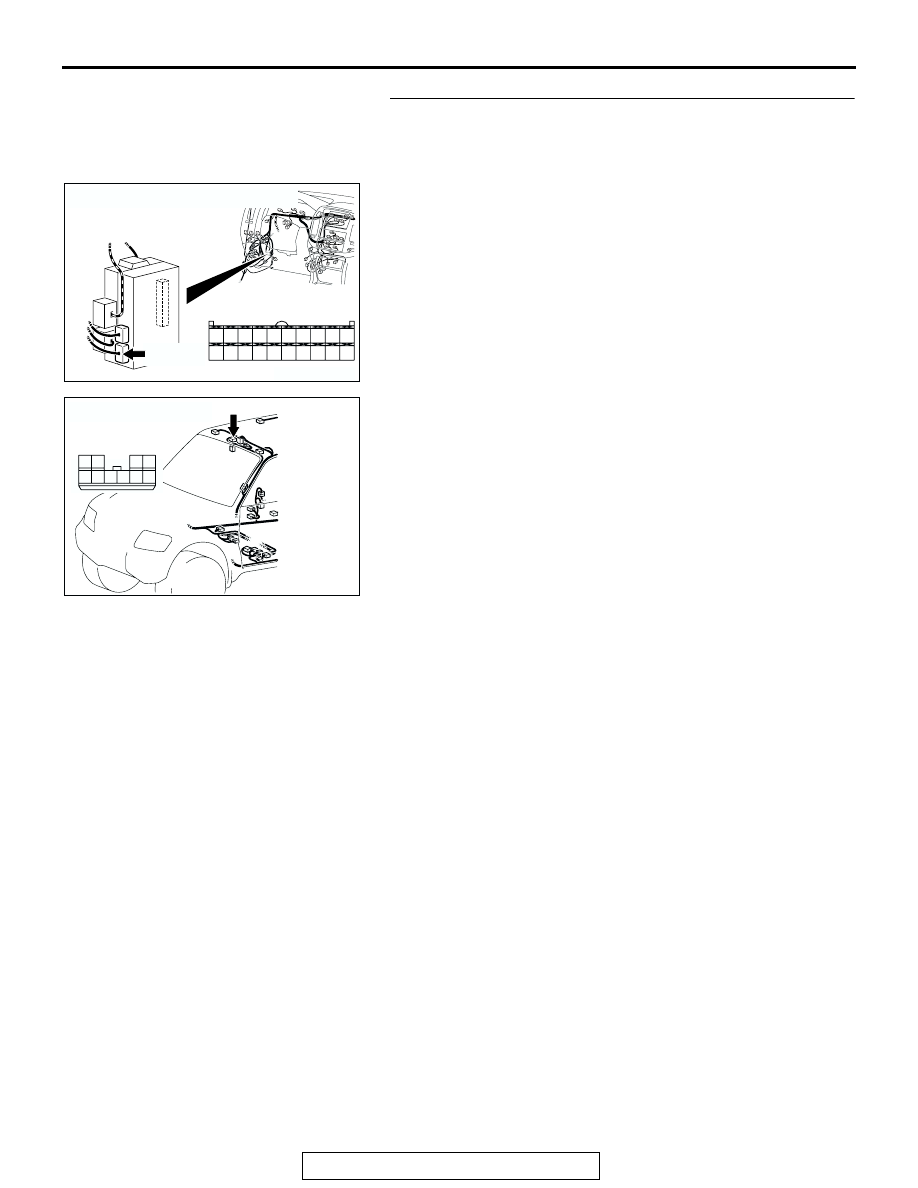

STEP 3. Check the wiring harness between sunroof motor
assembly connector F-02 (terminal 10) and ETACS-ECU
connector D-224 (terminal 21).

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

AC204195

CONNECTORS : F-02, F-24

F-02

AB

HARNESS SIDE

F-24

F-02

F-24

1

5

2

7

8

6

3

4

10 9

6

2

5

4

3

1
