INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-533

INSPECTION PROCEDURE O-8: Column Switch: ETACS-ECU does not receive any signal from the
windshield intermittent wiper interval adjusting knob.

.

CIRCUIT OPERATION
The ETACS-ECU calculates the windshield intermit-
tent wiper interval according to the position of the
windshield intermittent wiper interval adjusting knob,
which is incorporated in column switch (windshield
wiper and washer switch).

.

TECHNICAL DESCRIPTION (COMMENT)
If the windshield intermittent wiper interval can not be
adjusted, the column switch or the ETACS-ECU may
be defective.

.

TROUBLESHOOTING HINTS

• The column switch (windshield wiper and washer

switch) may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

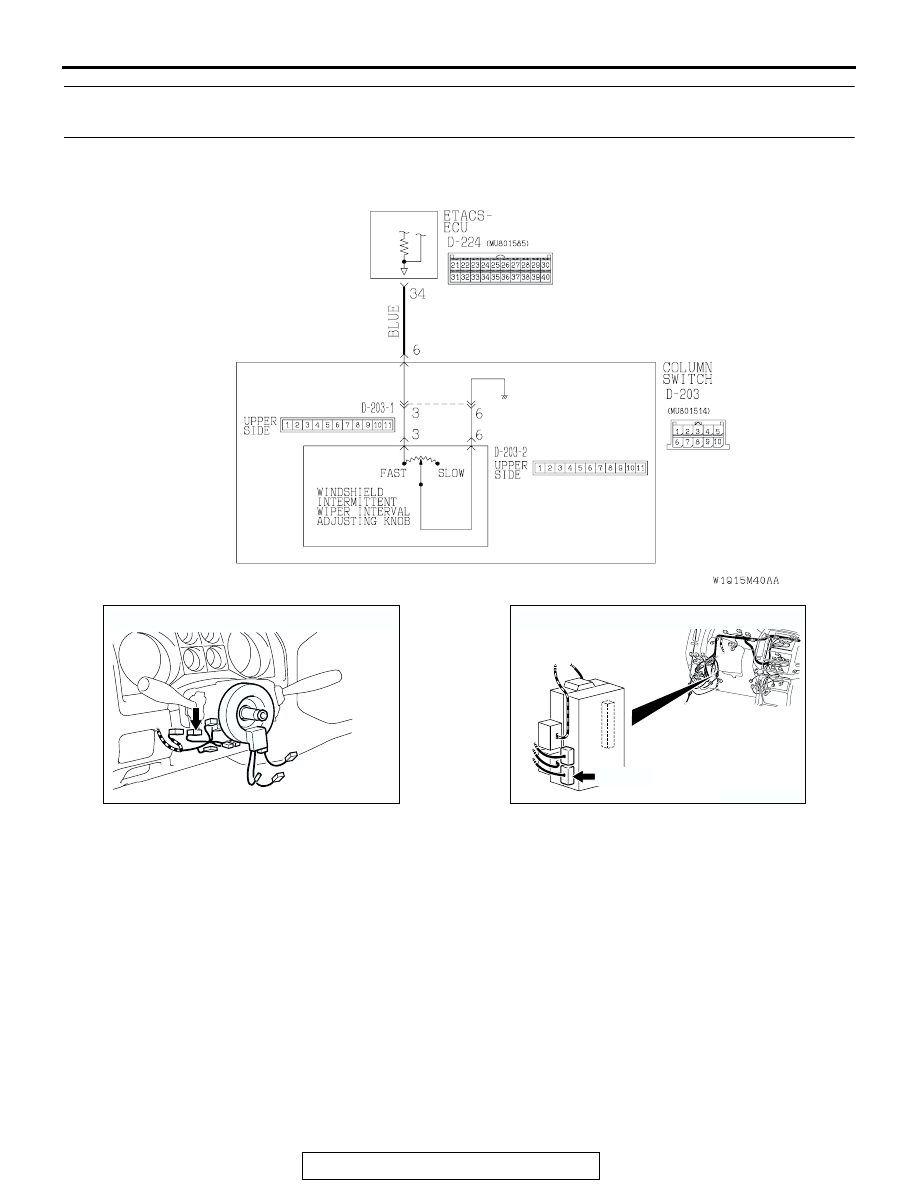

Windshield Intermittent Wiper Interval Adjusting Knob Input Circuit

AC204172

CONNECTOR : D-203

AG

AC204174

CONNECTOR : D-224

D-224(B)

AG

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-534

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

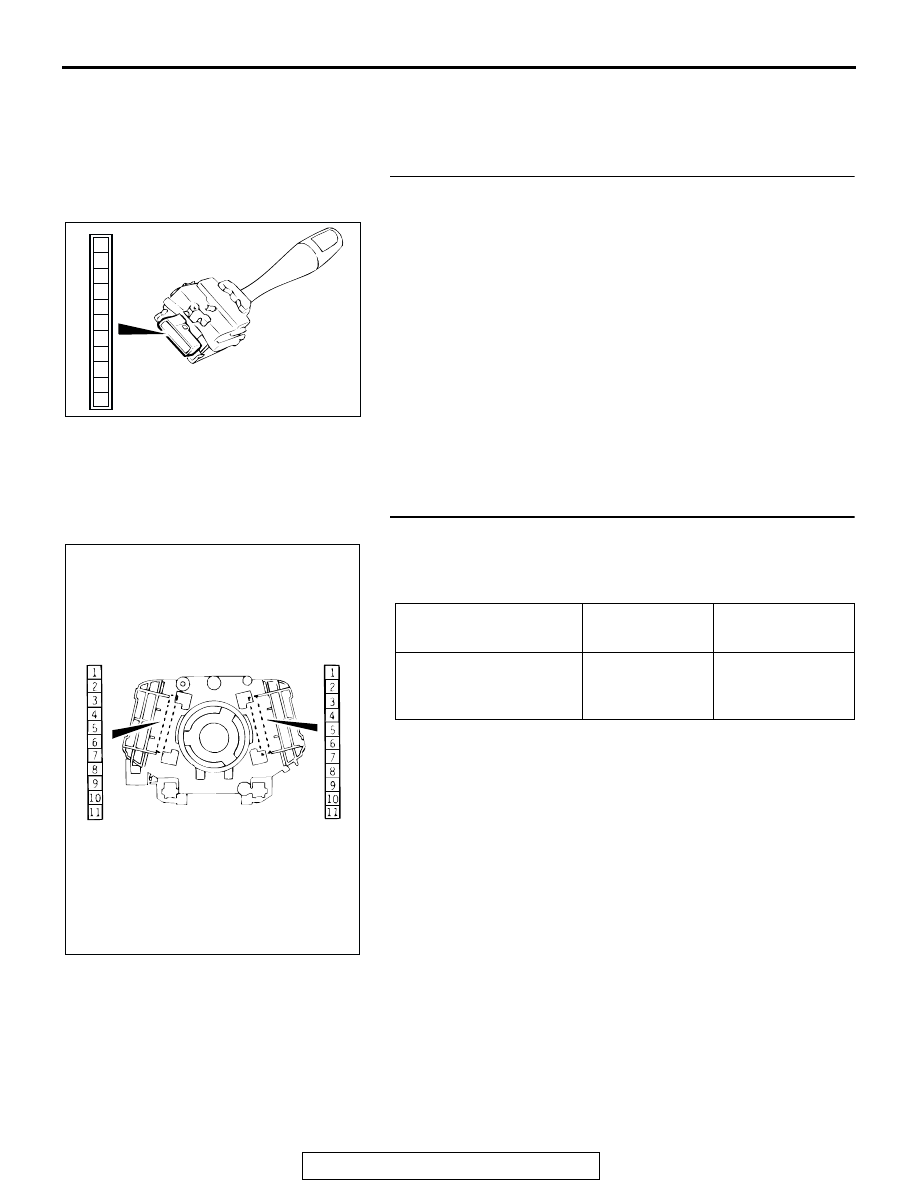

STEP 1. Check the windshield intermittent wiper interval
adjusting knob.
(1) Remove the windshield wiper and washer switch, and

check at the switch side.

(2) Measure the resistance value between terminals 3 and 6.

The measured resistance should change smoothly from
approximately 0 ohm ("FAST" position) to 1 kiloohm
("SLOW" position).

Q: Is the windshield intermittent wiper interval adjusting

knob in good condition?
YES : Go to Step 2.
NO :  Replace the column switch (windshield wiper and

washer switch). If the wiper interval can be adjusted
normally, it indicates that the windshield intermittent
wiper interval adjusting knob should send a signal to
the ECU.

STEP 2. Check the column switch body.
Remove the turn-signal light and lighting switch and windshield
wiper and washer switch. Then check continuity between the
switch body terminals.

Q: Is the column switch body in good condition?

YES : Go to Step 3.
NO :  Replace the column switch body. If the wiper interval

can be adjusted normally, it indicates that the
windshield intermittent wiper interval adjusting knob
should send a signal to the ECU.

1

6

8

11

10

9

7

5

4

3

2

AC000417

SWITCH BODY

TESTER
CONNECTION

SPECIFIED
CONDITION

Lighting switch side

−

Windshield wiper and
washer switch side

3

− 3,

6

− 6

Less than 2 ohms

ACX00803

LIGHTING
SWITCH SIDE

WINDSHIELD
WIPER AND
WASHER
SWITCH SIDE

AC

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-535

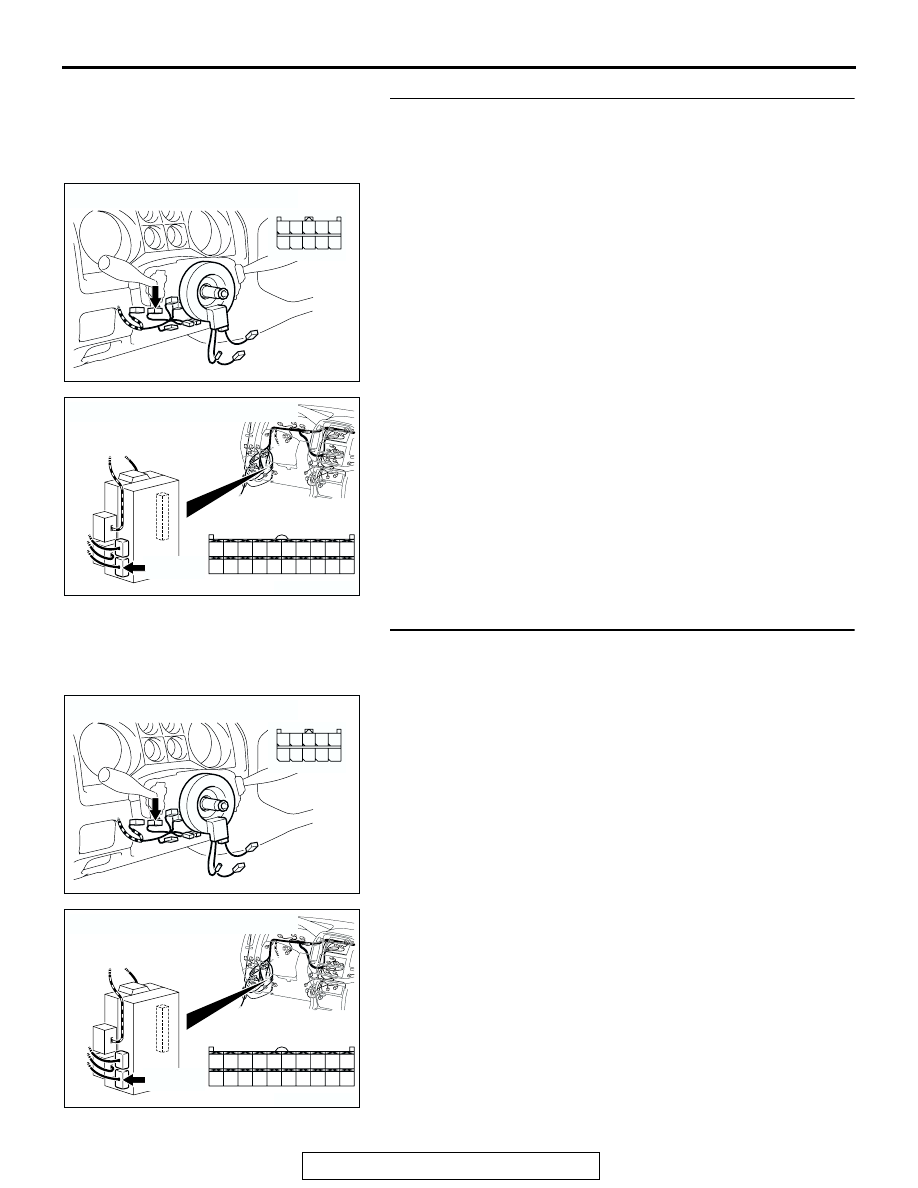

STEP 3. Check column switch connector D-203 and
ETACS-ECU connector D-224 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are column switch connector D-203 and ETACS-ECU

connector D-224 in good condition?
YES : Go to Step 4.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the wiper interval can be adjusted

normally, it indicates that the windshield intermittent
wiper interval adjusting knob should send a signal to
the ECU.

STEP 4. Check the wiring harness between column switch
connector D-203 (terminal 6) and ETACS-ECU connector
D-224 (terminal 34).
Q: Is the wiring harness between column switch connector

D-203 (terminal 6) and ETACS-ECU connector D-224
(terminal 34) in good condition?
YES : Go to Step 5.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the wiper
interval can be adjusted normally, it indicates that the
windshield intermittent wiper interval adjusting knob
should send a signal to the ECU.

AC204172

CONNECTOR : D-203

AC

HARNESS SIDE

1

2

3

7

8

6

5

10

4

9

D-203

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

AC204172

CONNECTOR : D-203

AC

HARNESS SIDE

1

2

3

7

8

6

5

10

4

9

D-203

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-536

STEP 5. Replace the ECU.
(1) Replace the ETACS-ECU.
(2) If the wiper interval can be adjusted normally, it indicates

that the windshield intermittent wiper interval adjusting knob
should send a signal to the ECU.

Q: Can input signal be confirmed when the windshield

intermittent wiper interval adjusting knob is operated?
YES : No action is necessary and testing is complete.
NO :  Replace the column switch (windshield wiper and

washer switch). If the wiper interval can be adjusted
normally, it indicates that the windshield intermittent
wiper interval adjusting knob should send a signal to
the ECU.
