INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-517

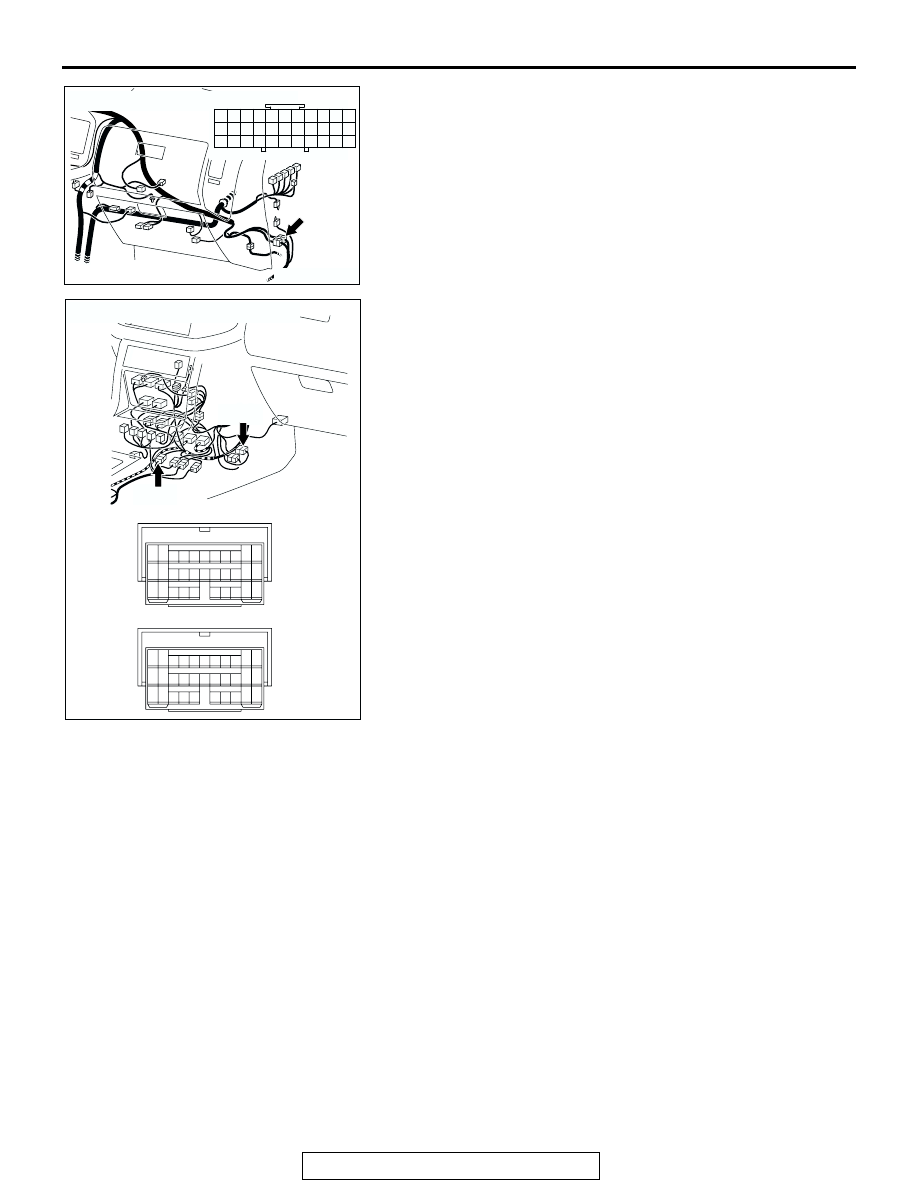

NOTE: Also check joint connector D-01, junction block connec-
tors D-208, D-212 and intermediate connector E-11 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If joint connector D-01, junction block connector
D-208, D-212 or intermediate connector E-11 is damaged,
Repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

Q: Is the wiring harness between transmission range

switch connector C-04 (terminal 7) and the ignition
switch (IG1) in good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the rear
wiper operates normally, it indicates that a correct "R"
position signal is sent from the transmission range
switch.

AC204170

CONNECTOR: D-01

AB

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

AC204191

CONNECTORS : D-208, D-212

D-208

AD

HARNESS SIDE

HARNESS SIDE

D-212

D-208

D-212

1

2

3

5

6

4

7 6 5

2 1

9 8

11 10

4 3

AC204176

CONNECTOR: E-11

AB

3

10

16

9

7 8

6

1

4

2

5

11

14

1213

15

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-518

STEP 5. Check ETACS-ECU connector D-224 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are ETACS-ECU connector D-224 in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

If the rear wiper operates normally, it

indicates that a correct "R" position signal is sent from
the transmission range switch.

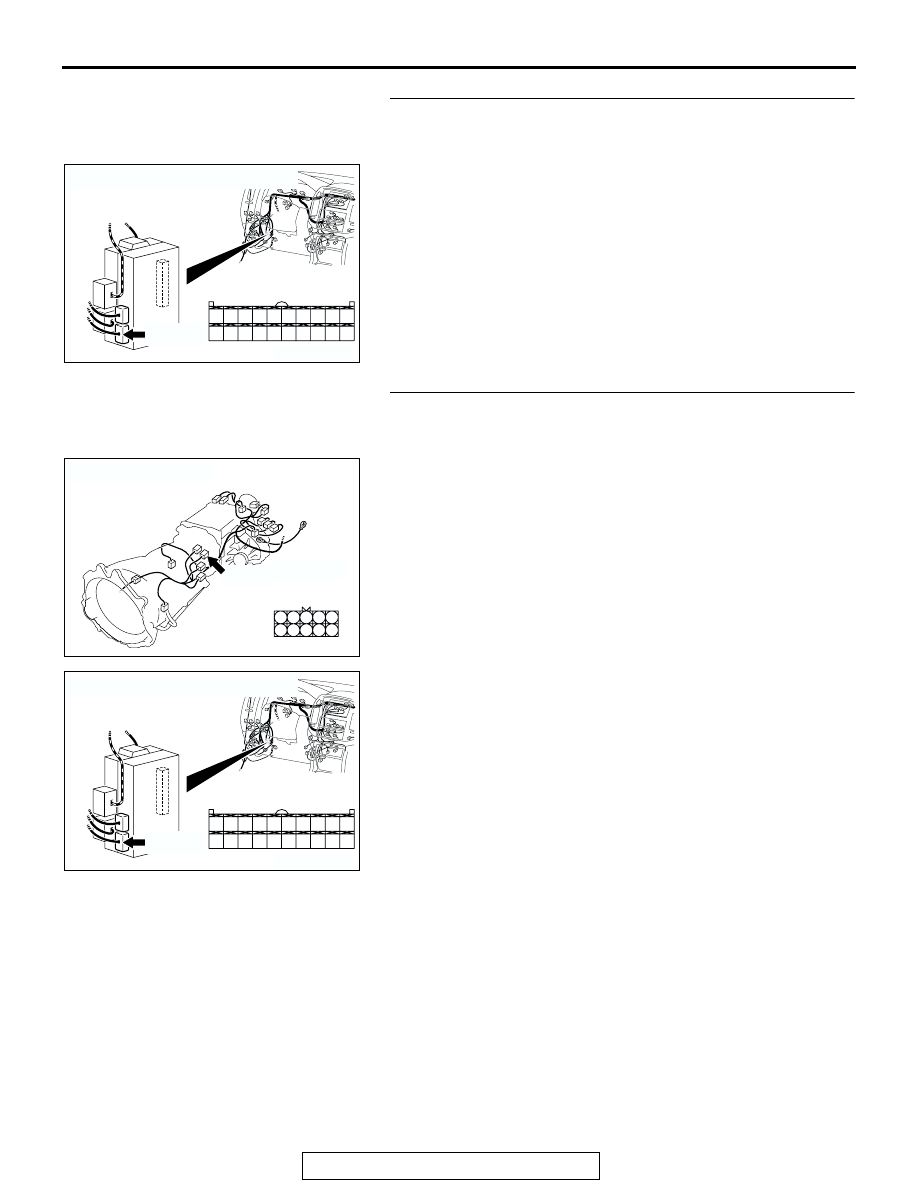

STEP 6. Check the wiring harness between transmission
range switch connector C-04 (terminal 8) and ETACS-ECU
connector D-224 (terminal 35).

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

AC204395

CONNECTOR : C-04

HARNESS
SIDE

C-04(B)

C-04(B)

AB

1
6

3
8

4
9

5

10

7

2

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-519

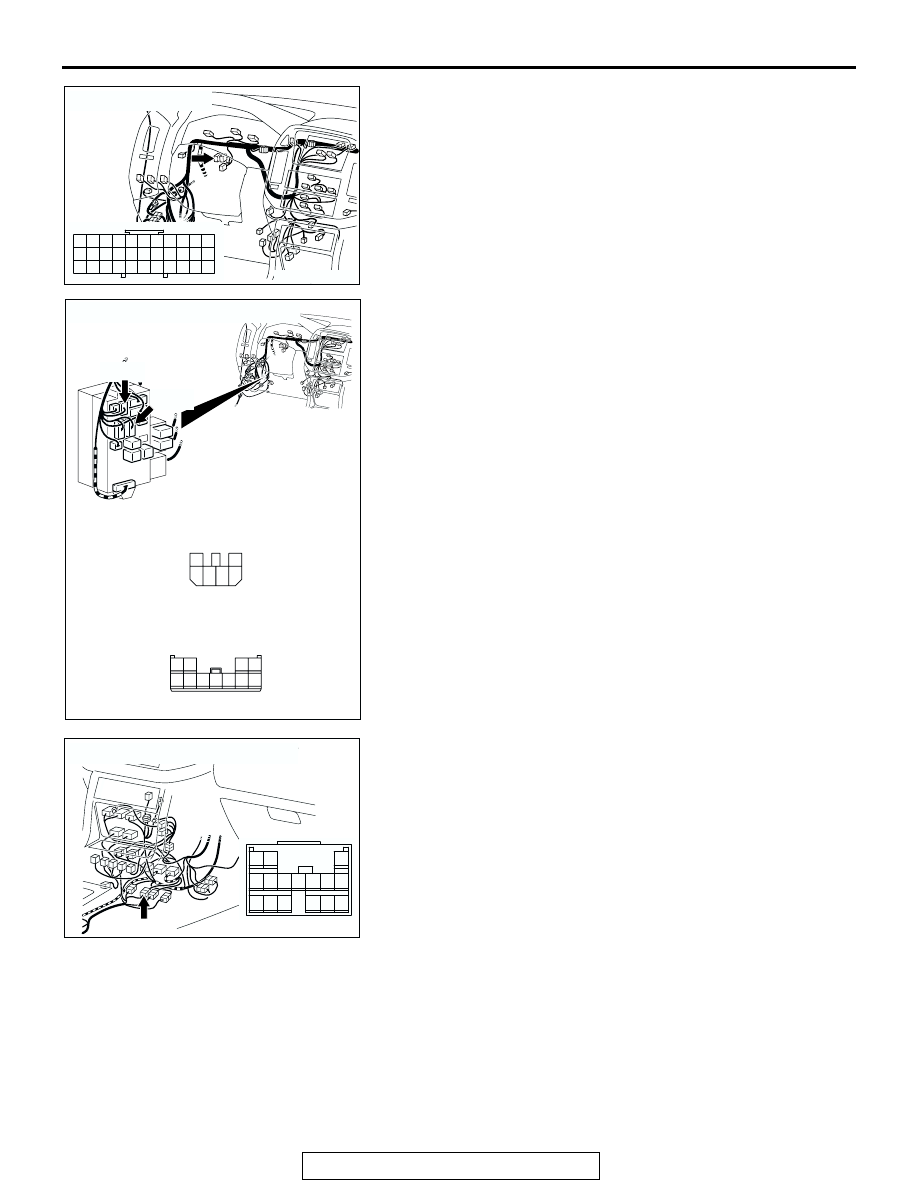

NOTE: Also check joint connector D-116, intermediate connec-
tors E-111 and E-114 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If joint
connector D-116, intermediate connector E-111 or E-114 is
damaged, Repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

Q: Is the wiring harness between transmission range

switch connector C-04 (terminal 8) and ETACS-ECU
connector D-224 (terminal 35) in good condition?
YES :
Replace the ETACS-ECU. If the rear wiper operates

normally, it indicates that a correct "R" position signal
is sent from the transmission range switch.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the rear
wiper operates normally, it indicates that a correct "R"
position signal is sent from the transmission range
switch.

AC204171

CONNECTOR : D-116

AD

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

AC204194

CONNECTORS : E-111, E-114

E-111

AB

E-114

E-111

E-114

10

9

31

30

20 21

7

6

28

17 18

8

19

29

4

3

25 26

14 15

1

23

12

2

13

24

5

16

27

11

22

32

10

9

31

30

20 21

7

6

28

17 18

8

19

29

4

3

25 26

14 15

1

23

12

2

13

24

5

16

27

11

22

32

INPUT SIGNAL PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-520

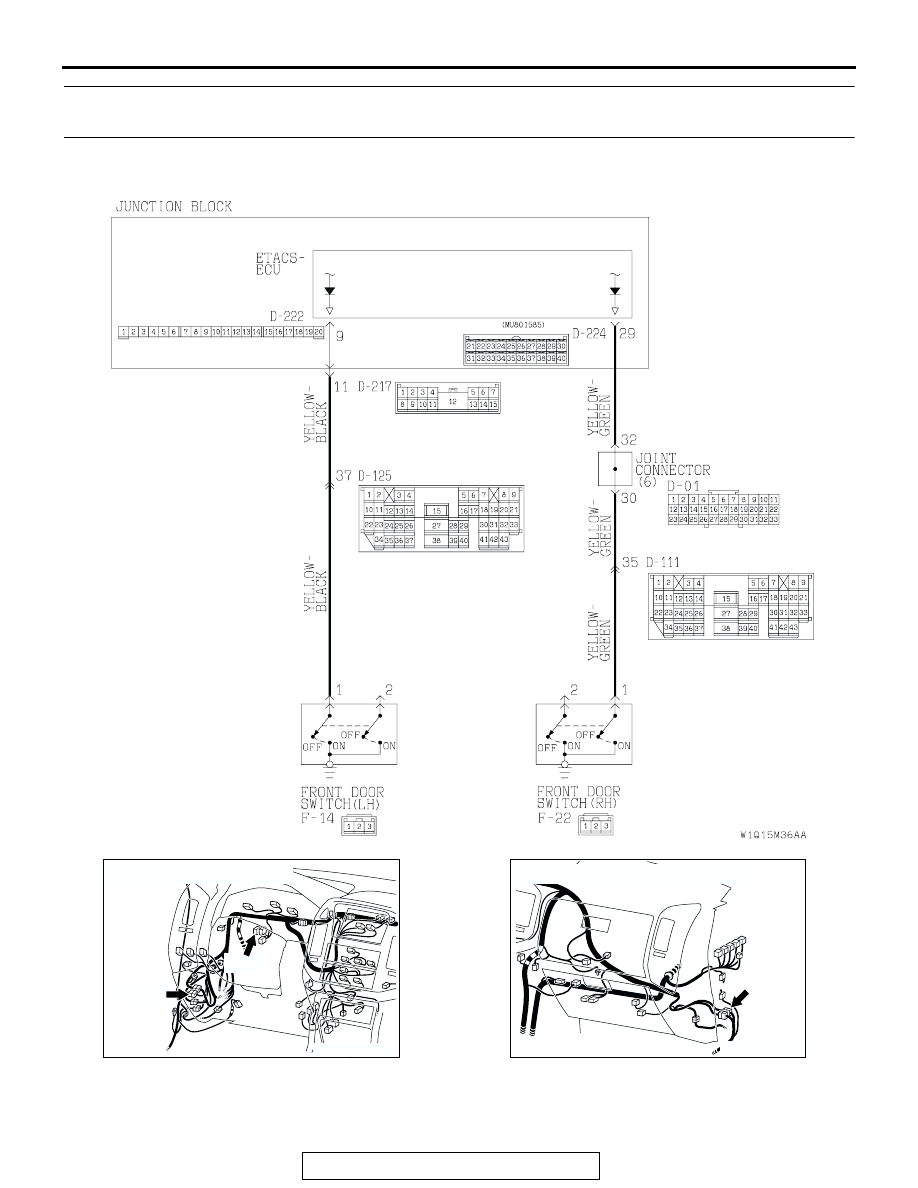

INSPECTION PROCEDURE O-5: ETACS-ECU does not receive any signal from the driver's or the front
passenger's door switch.

Front Door Switches Input Circuit

AC204170

CONNECTORS: D-01, D-125

D-125

D-01

BY

AC204171

CONNECTOR : D-111

AG
