SYMPTOM PROCEDURES

TSB Revision

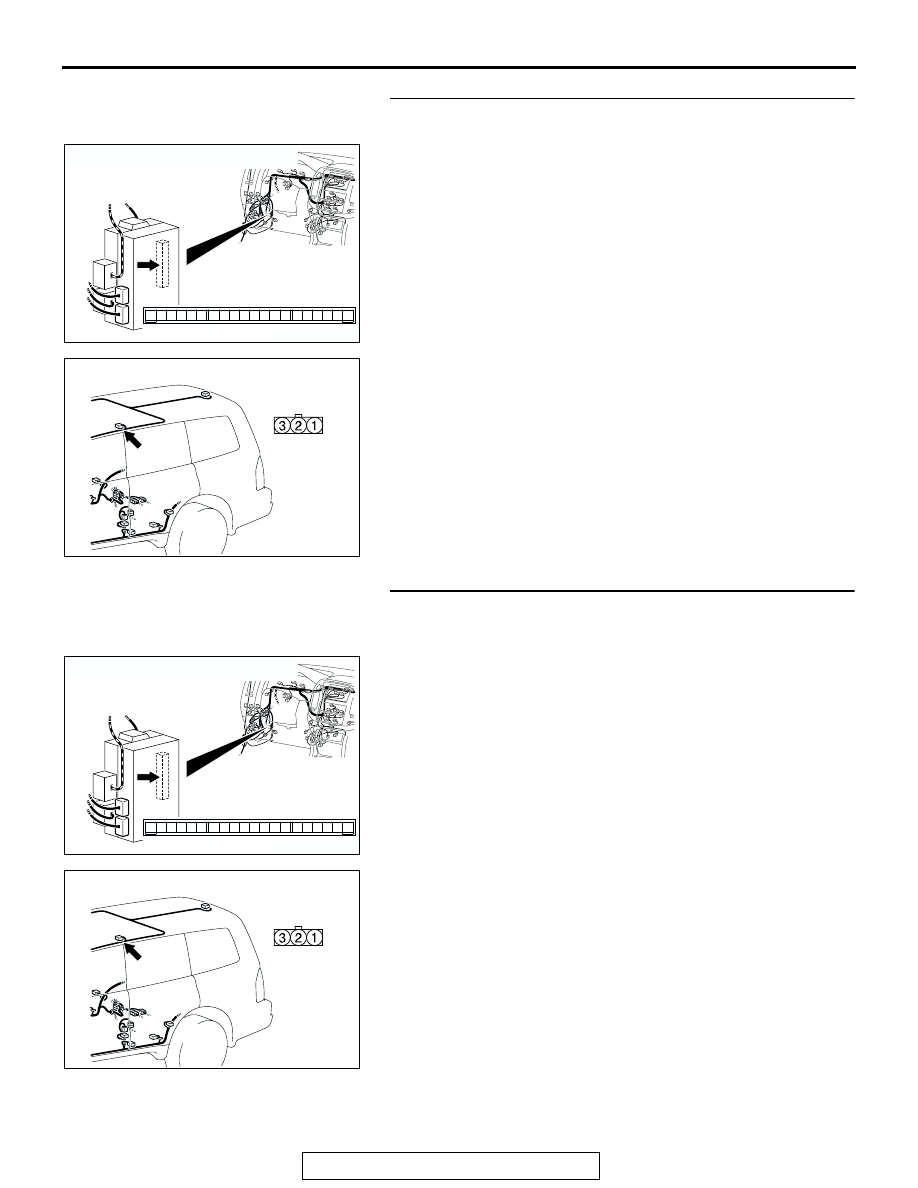

SIMPLIFIED WIRING SYSTEM (SWS)

54B-449

STEP 27. Check rear personal light (LH) connectors F-06
and ETACS-ECU connector D-222 for damage.
Q: Are rear personal light (LH) connector F-06 and

ETACS-ECU connector D-222 in good condition?
YES : Go to Step 28.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Verify

that the rear personal light (LH) illuminates normally.

STEP 28. Check the wiring harness between rear personal
light (LH) connector F-06 (terminal 2) and ETACS-ECU
connector D-222 (terminal 18).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204178

CONNECTOR : F-06

AQ

HARNESS SIDE

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204178

CONNECTOR : F-06

AQ

HARNESS SIDE

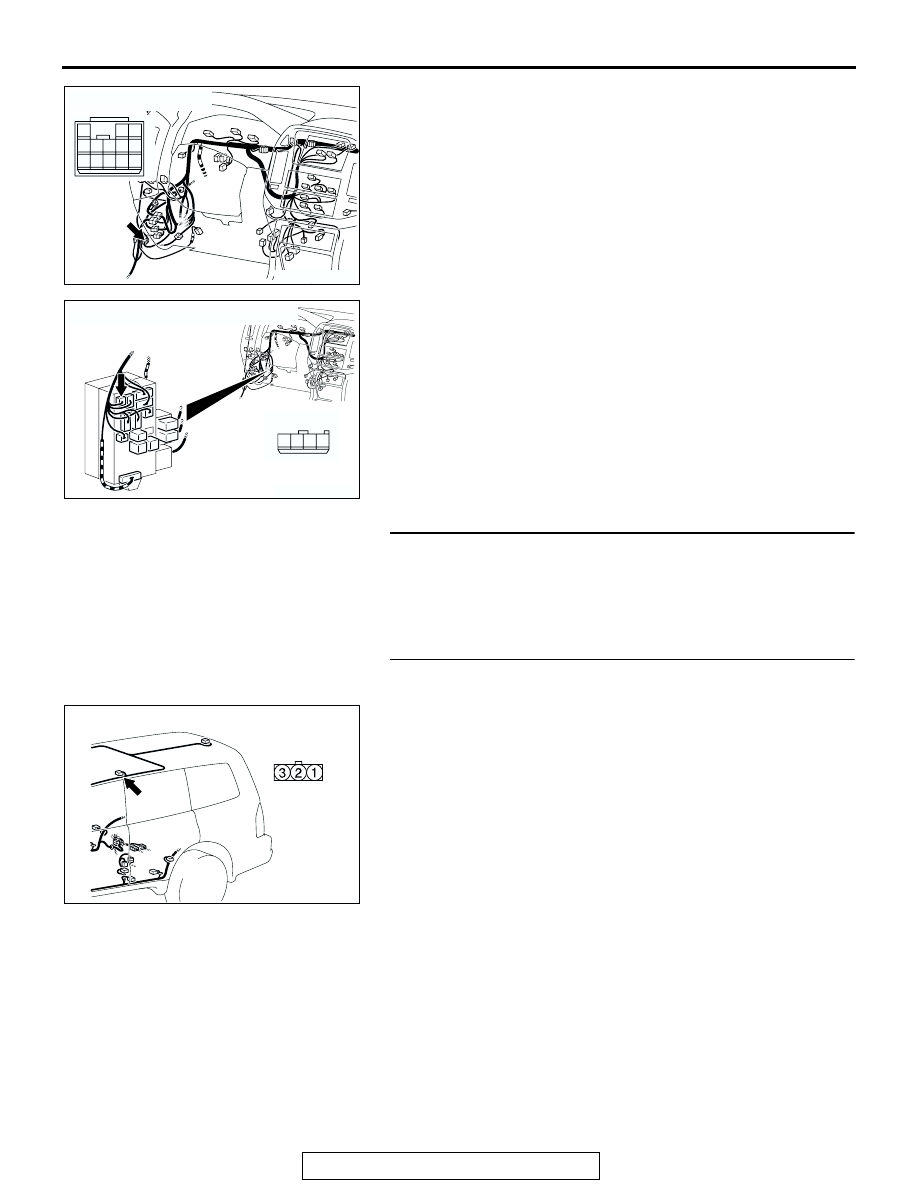

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-450

NOTE: Also check intermediate connector D-26 and junction
block connector D-207 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If junction
block connector D-207 or intermediate connector D-26 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear personal light (LH)

connector F-06 (terminal 2) and ETACS-ECU connector
D-222 (terminal 18) in good condition?
YES : Replace the ETACS-ECU. Verify that the rear

personal light (LH) illuminates normally.

NO :  Repair the wiring harness. Verify that the rear

personal light (LH) illuminates normally.

STEP 29. Check the rear personal light (LH) bulb.
Q: Is the rear personal light (LH) bulb in good condition?

YES : Go to Step 30.
NO :  Replace the bulb. Verify that the rear personal light

(LH) illuminates normally.

STEP 30. Check rear personal light (LH) connector F-06 for
damage.
Q: Is rear personal light (LH) connector F-06 in good

condition?
YES : Go to Step 31.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Verify

that the rear personal light (LH) illuminates normally.

AC204170

CONNECTOR : D-26

AG

2 3

1

7

6

12

11

8

13

5

4

9 10

AC204173

CONNECTOR : D-207

AB

HARNESS SIDE

1

2

3

4

AC204178

CONNECTOR : F-06

AQ

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

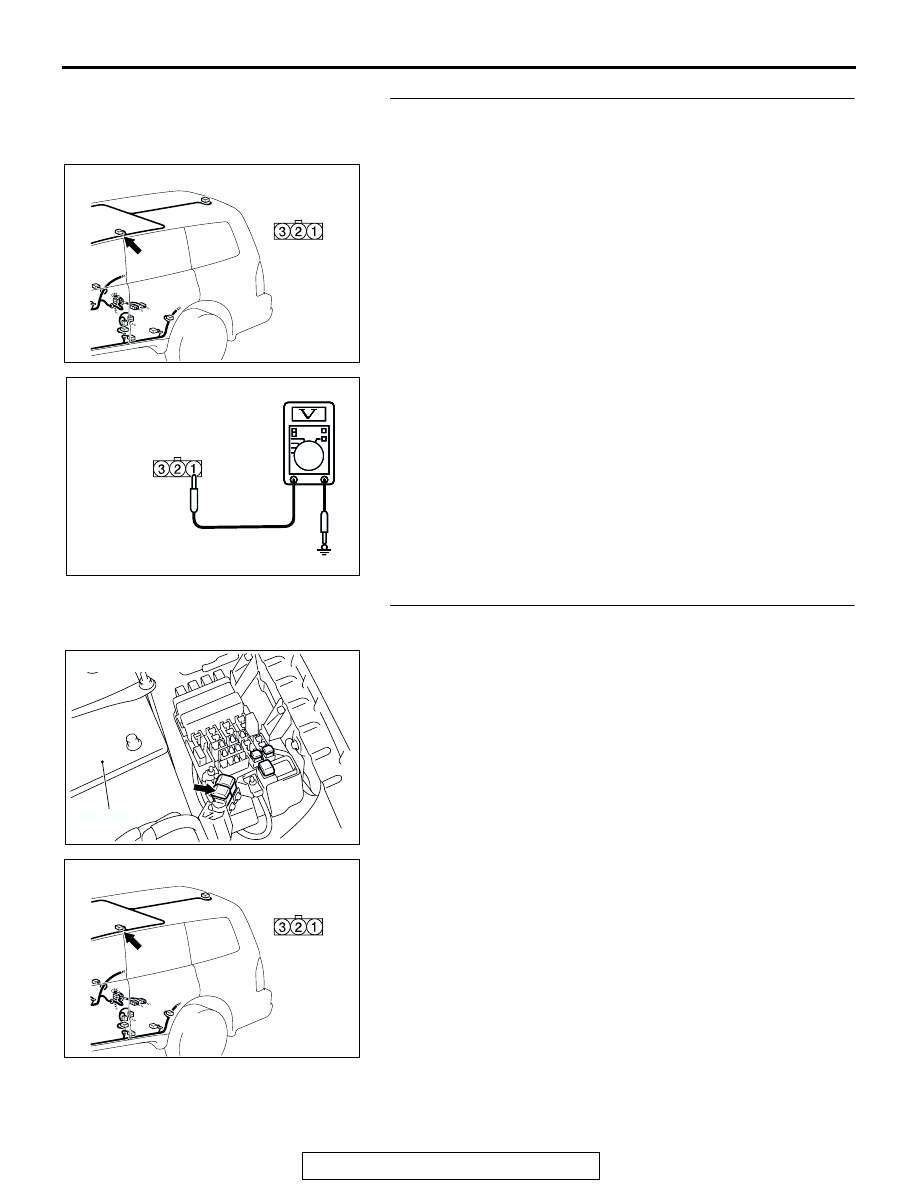

54B-451

STEP 31. Check the fusible link (1) line of the power supply
circuit to the rear personal light (LH). Test at rear personal
light (LH) connector F-06.
(1) Disconnect rear personal light (LH) connector F-06 and

measure the voltage available at the wiring harness side of
the connector.

(2) Measure the voltage between terminal 1 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES : Replace the rear personal light (LH). Verify that the

rear personal light (LH) illuminates normally.

NO :  Go to Step 32.

STEP 32. Check the wiring harness between rear personal
light (LH) connector F-06 (terminal 1) and fusible link (1).

AC204178

CONNECTOR : F-06

AQ

HARNESS SIDE

AC209365

AC209365

AC209365

(HARNESS SIDE)

CONNECTOR D-06

IO

ACX02274

FUSIBLE LINK (1)

AE

BATTERY

AC204178

CONNECTOR : F-06

AQ

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

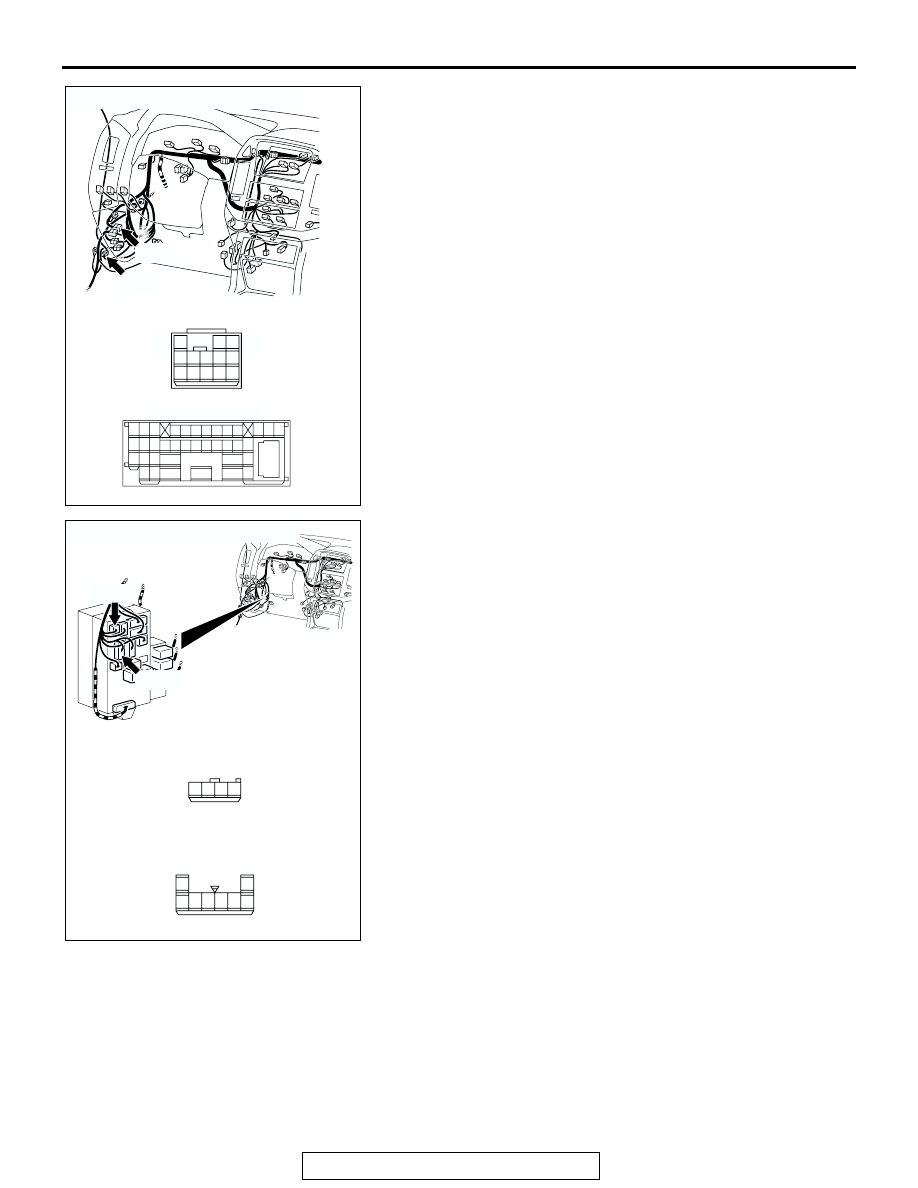

54B-452

NOTE: Also check intermediate connectors D-26, D-28, junc-
tion block connectors D-207 and D-221 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If intermediate connector D-26, D-28, junction block connector
D-207 or D-221 is damaged, repair or replace the damaged
component(s) as described in GROUP, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between rear personal light (LH)

connector F-06 (terminal 1) and fusible link (1) in good
condition?
YES : Go to Step 33.
NO :  Repair the wiring harness. Verify that the rear

personal light (LH) illuminates normally.

AC204188

CONNECTORS : D-26, D-28

D-28

AH

D-26

D-28

D-26

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

2 3

1

7

6

12

11

8

13

5

4

9 10

AC204191

CONNECTORS : D-207, D-221

D-207

AB

HARNESS SIDE

HARNESS SIDE

D-221

D-207

D-221

3

1

4

6 5

7

8

2

1

2

3

4
