SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-445

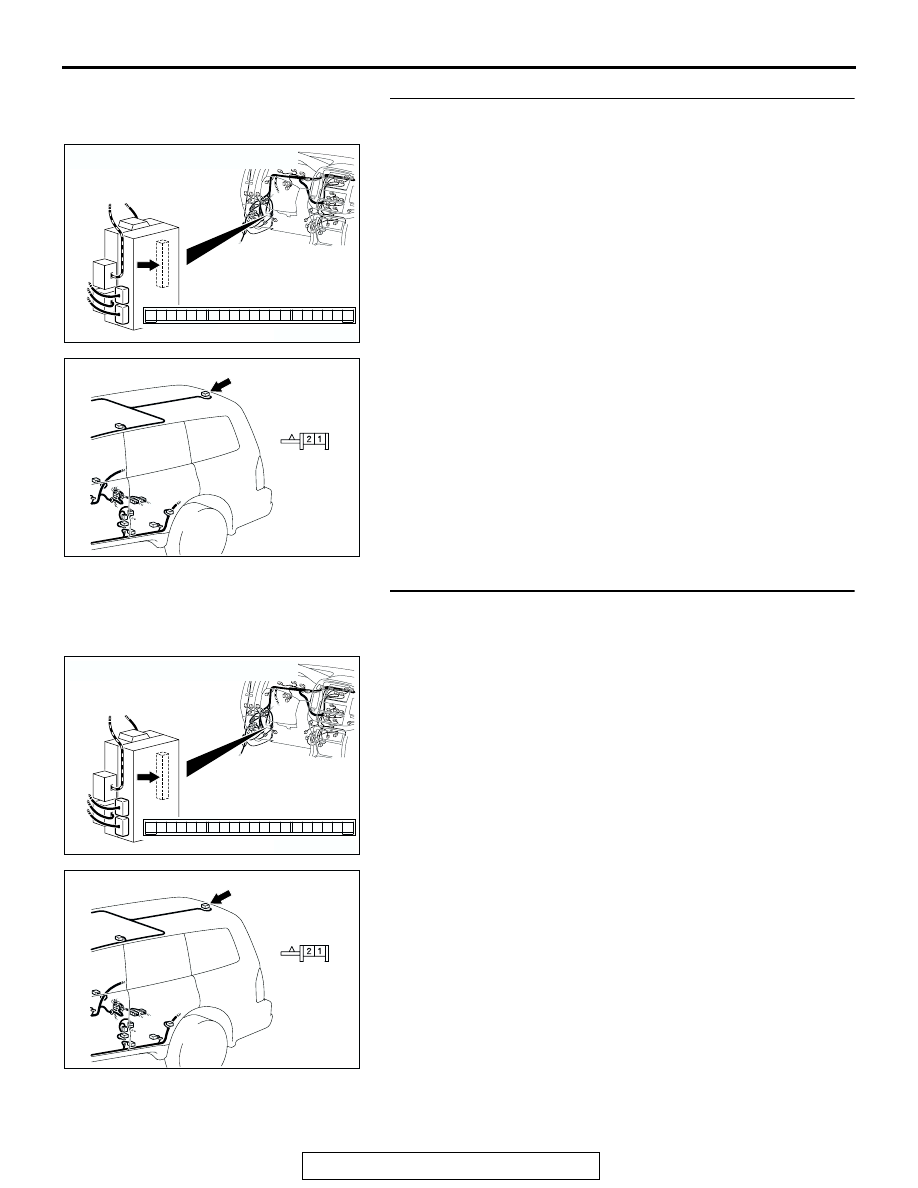

STEP 20. Check cargo space light connectors F-08 and
ETACS-ECU connector D-222 for damage.
Q: Are cargo space light connector F-08 and ETACS-ECU

connector D-222 in good condition?
YES : Go to Step 21.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Verify

that the cargo space light illuminates normally.

STEP 21. Check the wiring harness between cargo space
light connector F-08 (terminal 2) and ETACS-ECU
connector D-222 (terminal 18).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204178

CONNECTOR : F-08

AP

HARNESS SIDE

F-08 (GR)

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204178

CONNECTOR : F-08

AP

HARNESS SIDE

F-08 (GR)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-446

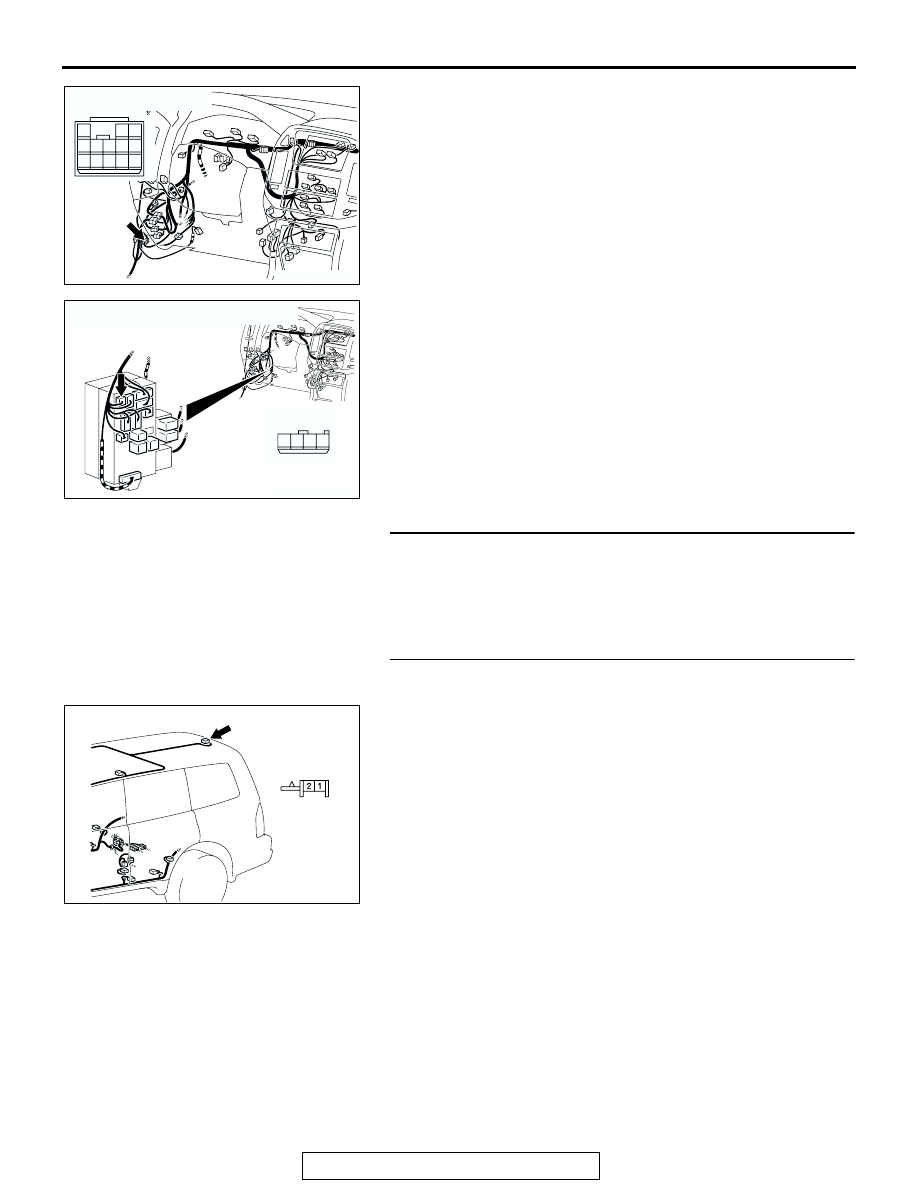

NOTE: Also check intermediate connector D-26 and junction
block connector D-207 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If junction
block connector D-207 or intermediate connector D-26 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between cargo space light

connector F-08 (terminal 2) and ETACS-ECU connector
D-222 (terminal 18) in good condition?
YES : Replace the ETACS-ECU. Verify that the cargo space

light illuminates normally.

NO :  Repair the wiring harness. Verify that the cargo space

light illuminates normally.

STEP 22. Check the cargo space light bulb.
Q: Is the cargo space light bulb in good condition?

YES : Go to Step 23.
NO :  Replace the bulb. Verify that the cargo space light

illuminates normally.

STEP 23. Check cargo space light connector F-08 for
damage.
Q: Is cargo space light connector F-08 in good condition?

YES : Go to Step 24.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Verify

that the cargo space light illuminates normally.

AC204170

CONNECTOR : D-26

AG

2 3

1

7

6

12

11

8

13

5

4

9 10

AC204173

CONNECTOR : D-207

AB

HARNESS SIDE

1

2

3

4

AC204178

CONNECTOR : F-08

AP

HARNESS SIDE

F-08 (GR)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-447

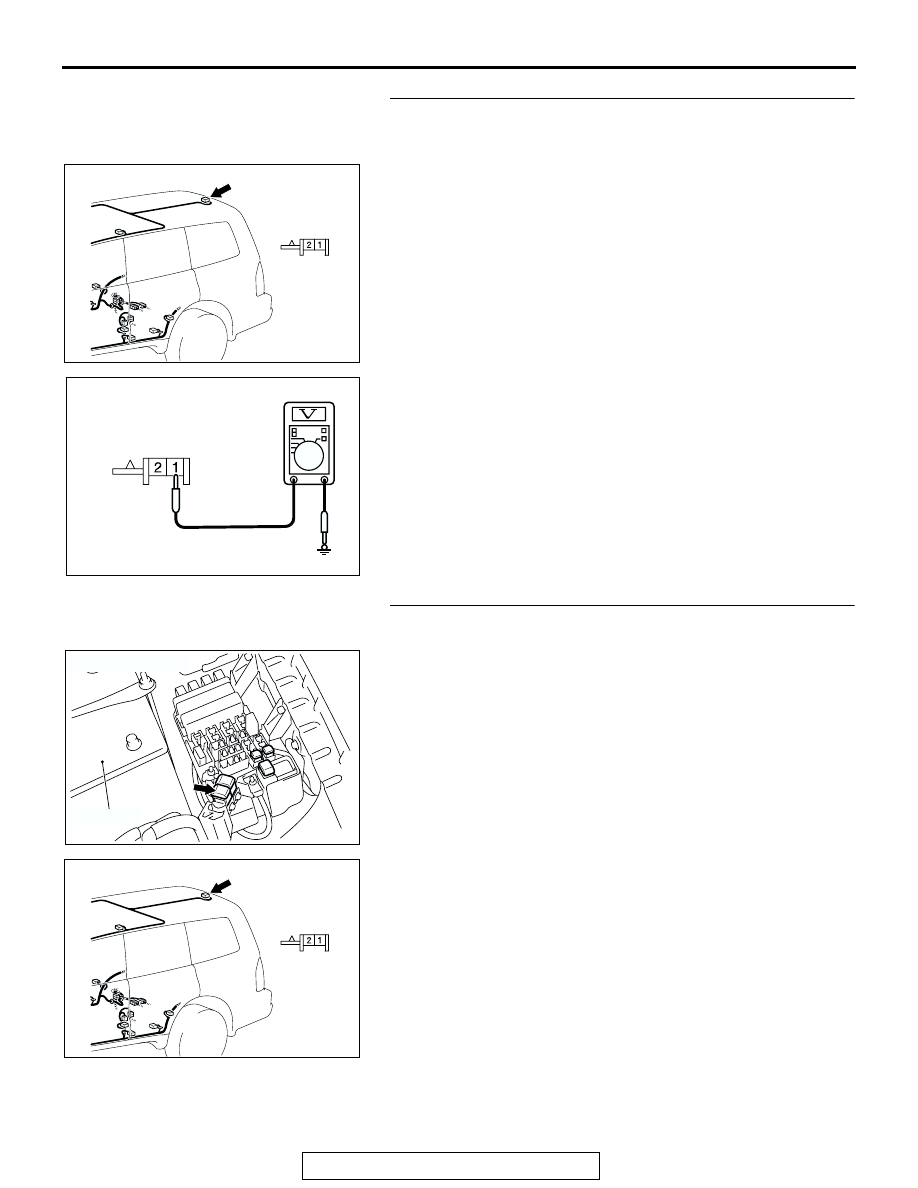

STEP 24. Check the fusible link (1) line of the power supply
circuit to the cargo space light. Test at cargo space light
connector F-08.
(1) Disconnect cargo space light connector F-08 and measure

the voltage available at the wiring harness side of the
connector.

(2) Measure the voltage between terminal 1 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES : Replace the cargo space light. Verify that the cargo

space light illuminates normally.

NO :  Go to Step 25.

STEP 25. Check the wiring harness between cargo space
light connector F-08 (terminal 1) and fusible link (1).

AC204178

CONNECTOR : F-08

AP

HARNESS SIDE

F-08 (GR)

AC209365

(HARNESS SIDE)

CONNECTOR F-08

IN

ACX02274

FUSIBLE LINK (1)

AE

BATTERY

AC204178

CONNECTOR : F-08

AP

HARNESS SIDE

F-08 (GR)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-448

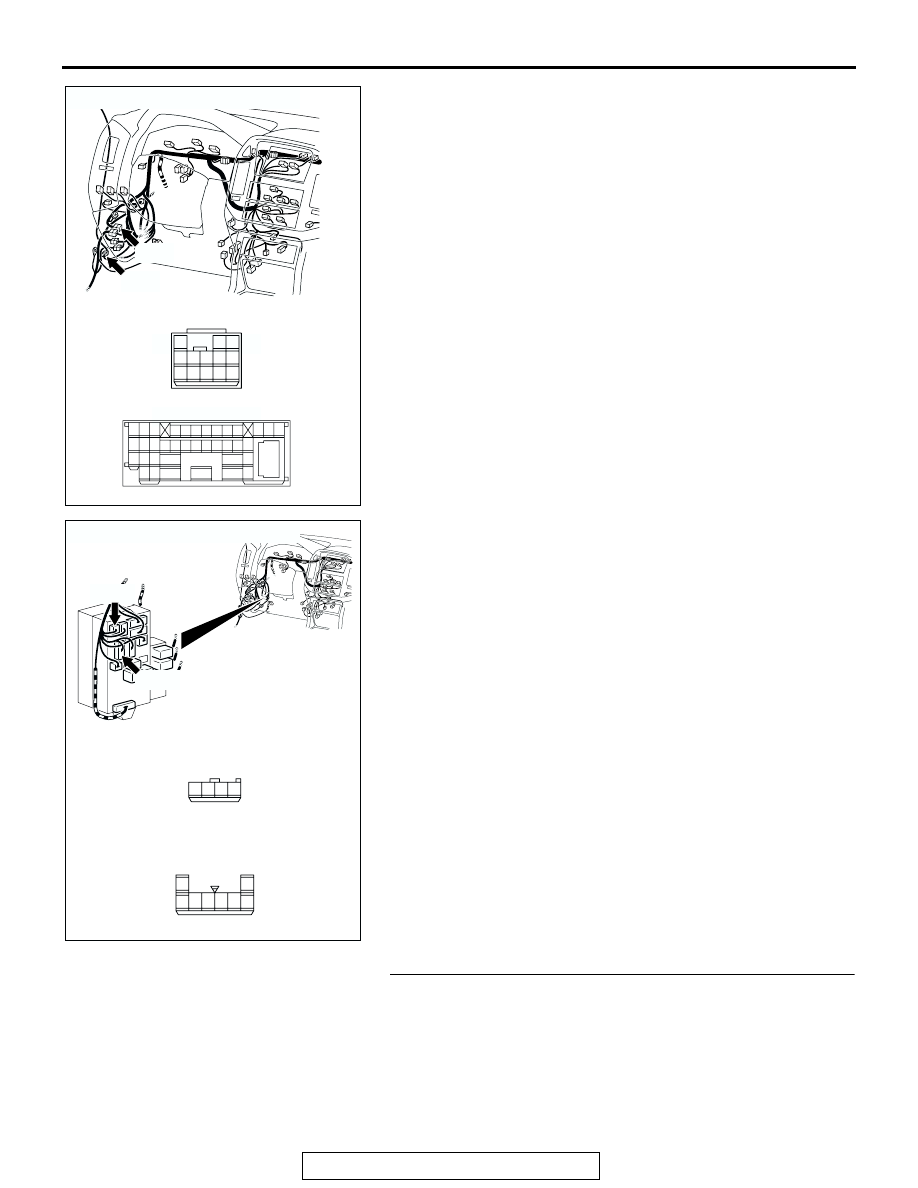

NOTE: Also check intermediate connectors D-26, D-28, junc-
tion block connectors D-207 and D-221 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If intermediate connector D-26, D-28, junction block connector
D-207 or D-221 is damaged, repair or replace the damaged
component(s) as described in GROUP, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between cargo space light

connector F-08 (terminal 1) and fusible link (1) in good
condition?
YES : No action to be taken.
NO :  Repair the wiring harness. Verify that the cargo space

light illuminates normally.

STEP 26. Check the rear personal light (LH).
Q: Does the dome light illuminate when the rear personal

light (LH) switch is turned to the "ON" position?
YES : Go to Step 27.
NO :  Go to Step 29.

AC204188

CONNECTORS : D-26, D-28

D-28

AH

D-26

D-28

D-26

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

2 3

1

7

6

12

11

8

13

5

4

9 10

AC204191

CONNECTORS : D-207, D-221

D-207

AB

HARNESS SIDE

HARNESS SIDE

D-221

D-207

D-221

3

1

4

6 5

7

8

2

1

2

3

4
