Mitsubishi Montero (2004+). Manual - part 760





SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-297

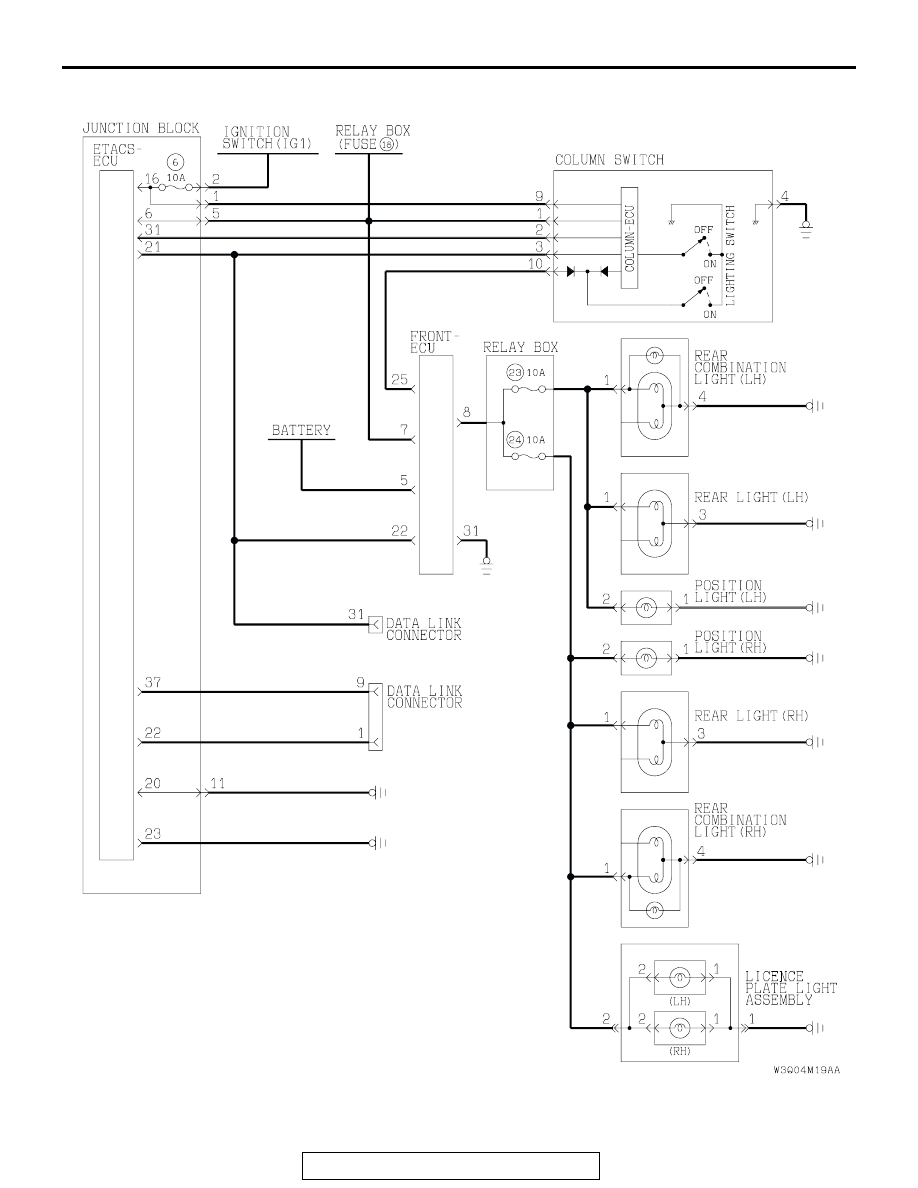

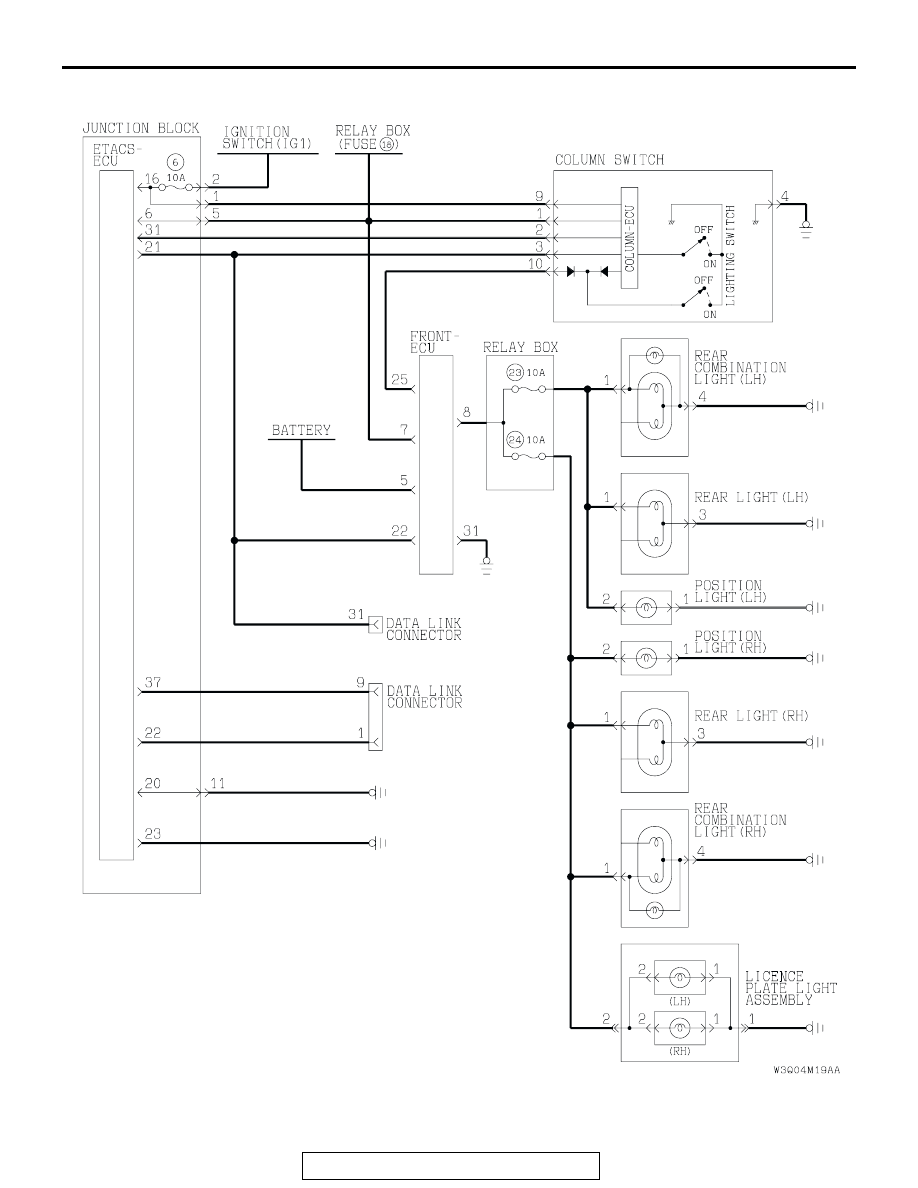

General circuit diagram for the taillights

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-298

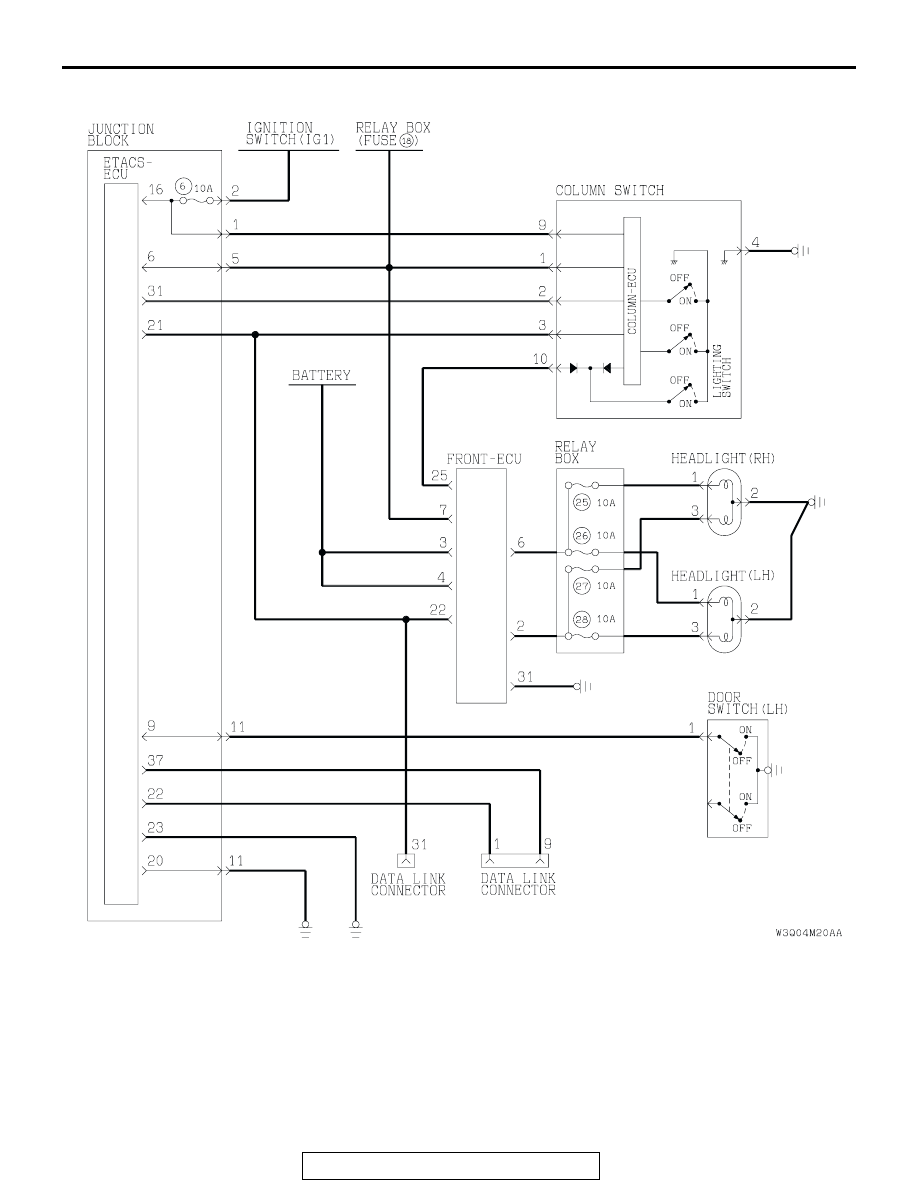

General circuit diagram for the headlights

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-299

INSPECTION PROCEDURE J-1: Headlight and Taillight: Taillights does not illuminate normally.

NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991862. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-10

."

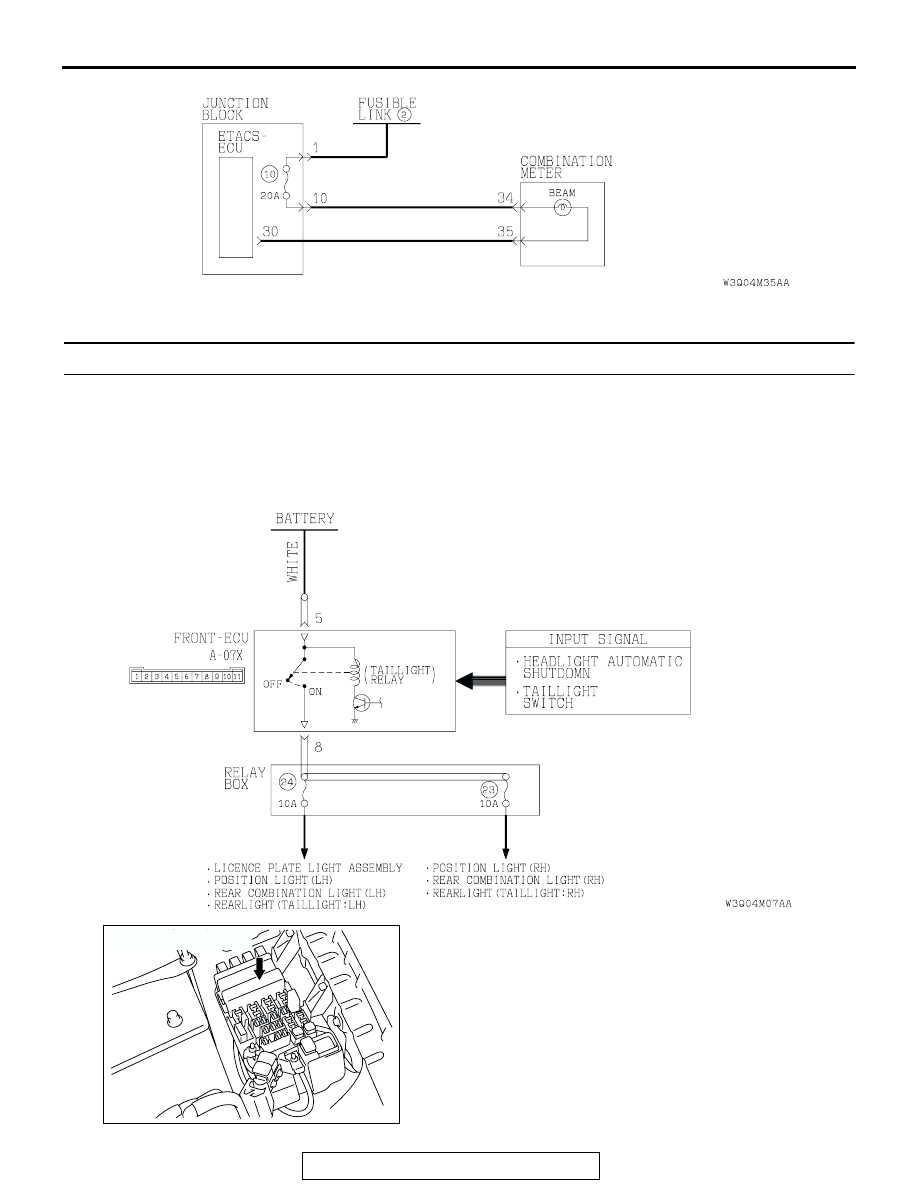

Taillight Relay Circuit

AC204183

CONNECTOR : A-07X

AG

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-300

.

CIRCUIT OPERATION
When the lighting switch is set to "TAIL" position, the
"TAIL" signal is sent through the column-ECU (incor-
porated in the column switch) to the front-ECU. If the
front-ECU receives the "TAIL" signal through the col-
umn-ECU, the front-ECU turns on the taillight relay
(incorporated in the front-ECU), thus causing the tail-
lights to illuminate.

.

TECHNICAL DESCRIPTION (COMMENT)
If the taillights do not illuminate normally, the column
switch or the front-ECU may be defective.

.

TROUBLESHOOTING HINTS

• The column switch (taillight switch) may be defec-

tive

• The front-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness
