SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-197

NOTE: Also check intermediate connectors D-25, D-111 and
F-23. If intermediate connector D-25, D-111 or F-23 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC203859 AC

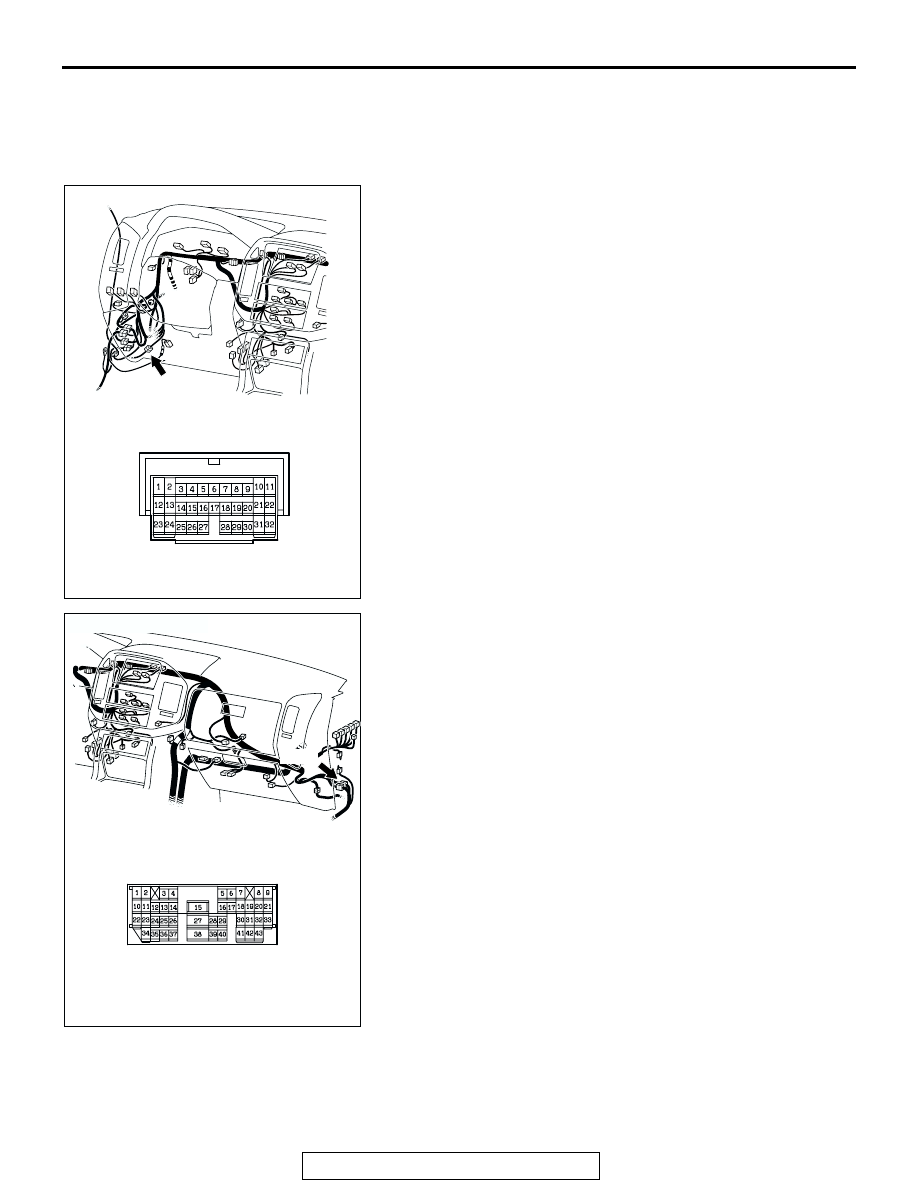

CONNECTOR: D-25

D-25

D-25

AC203860AC

D-111

CONNECTOR: D-111

D-111

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-198

Q: Is the harness wiring between power window main

switch connector H-05 (terminal 6) and rear power
window sub-switch (RH) connector H-19 (terminal 5) in
good condition?
YES : Replace the power window main switch. Verify that

the rear power window sub-switch (RH) should now
work normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (RH) should now
work normally.

STEP 42. Check the harness wiring between rear power
window sub-switch (RH) connector H-19 (terminal 6) and
rear power window motor (RH) connector H-23 (terminal 6).
Q: Is the harness wiring between rear power window

sub-switch (RH) connector H-19 (terminal 6) and rear
power window motor (RH) connector H-23 (terminal 6) in
good condition?
YES : Go to Step 43.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (RH) should now
work normally.

STEP 43. Check the harness wiring between rear power
window sub-switch (RH) connector H-19 (terminal 1) and
rear power window motor (RH) connector H-23 (terminal 2).
Q: Is the harness wiring between rear power window

sub-switch (RH) connector H-19 (terminal 1) and rear
power window motor (RH) connector H-23 (terminal 2) in
good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (RH) should now
work normally.

AC204484

AC

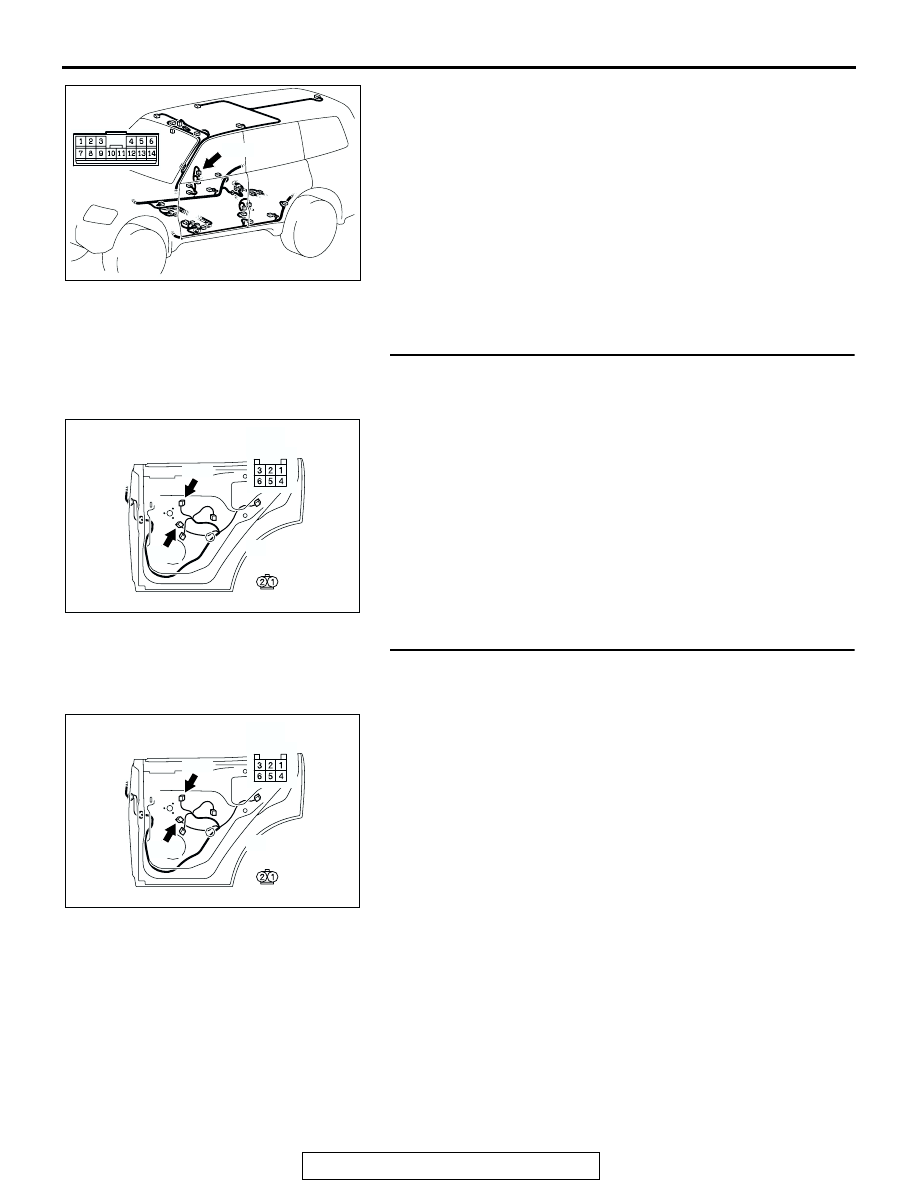

CONNECTOR: F-23

F-23

F-23

AC000316

H-19

H-23

AM

CONNECTORS: H-19, H-23

REAR DOOR <RH>

(HARNESS SIDE)

H-19

(HARNESS SIDE)

H-23

AC000316

H-19

H-23

AM

CONNECTORS: H-19, H-23

REAR DOOR <RH>

(HARNESS SIDE)

H-19

(HARNESS SIDE)

H-23

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-199

INSPECTION PROCEDURE D-5: Power Window: Front passenger’s and rear power windows do not
work normally by operating the power window main switch.

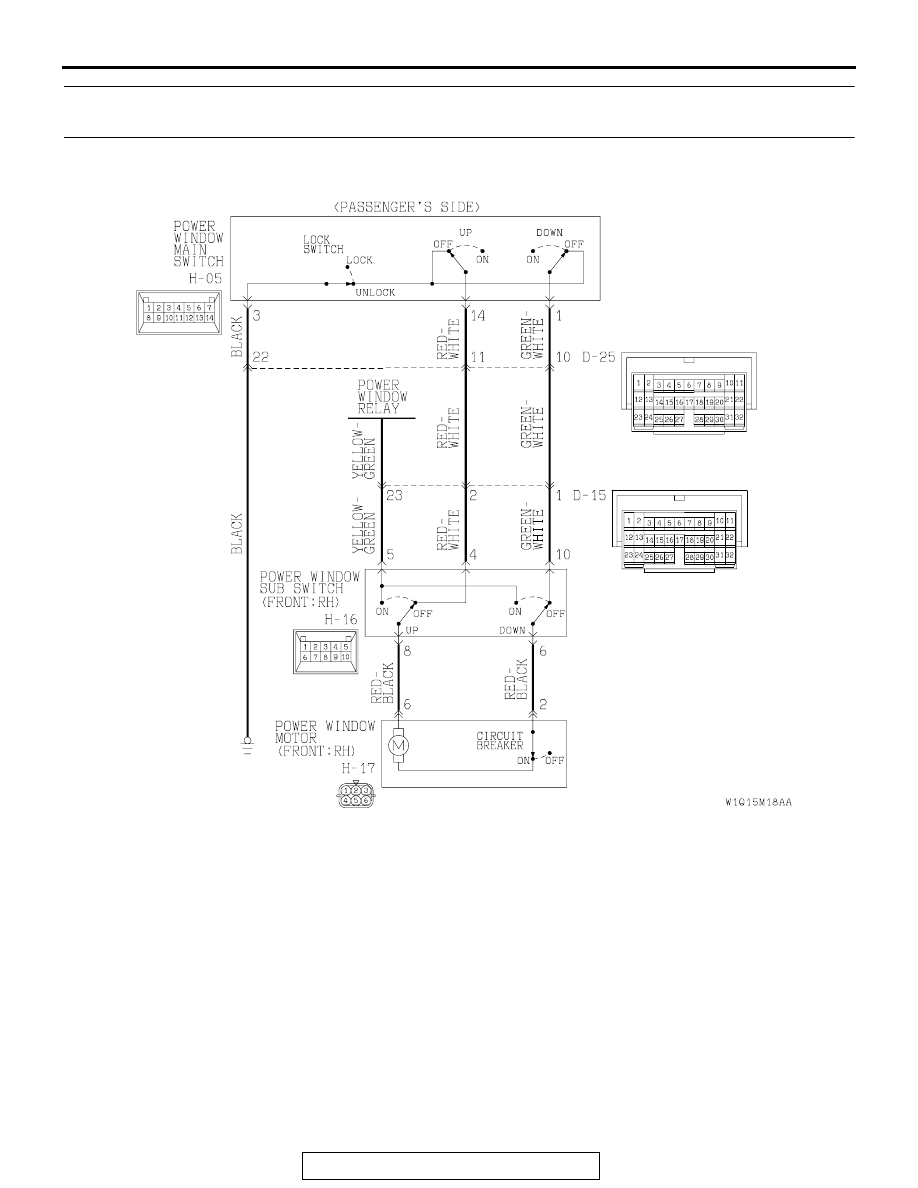

Power Window (front: RH) Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-200

.

CIRCUIT OPERATION
When you operate each power window sub-switch
for front passenger's or rear (incorporated in the
power window main switch), the corresponding
power window motor operates, thus causing each
power window to close or open.

.

TECHNICAL DESCRIPTION (COMMENT)
If the corresponding power window opens and closes
normally when power window sub-switch is oper-
ated, the power window main switch may be defec-
tive.

.

TROUBLESHOOTING HINTS
The power window main switch may be defective

POWER WINDOW MAIN SWITCH

REAR
POWER WINDOW
SUB SWITCH

(REAR: RH)

POWER
WINDOW
SUB SWITCH

(REAR: LH)

POWER WINDOW
MOTOR

(REAR: LH)

POWER WINDOW RELAY

<REAR SIDE>

(REAR: LH)

(REAR: RH)

POWER WINDOW
MOTOR

(REAR: RH)

CIRCUIT
BREAKER

CIRCUIT
BREAKER

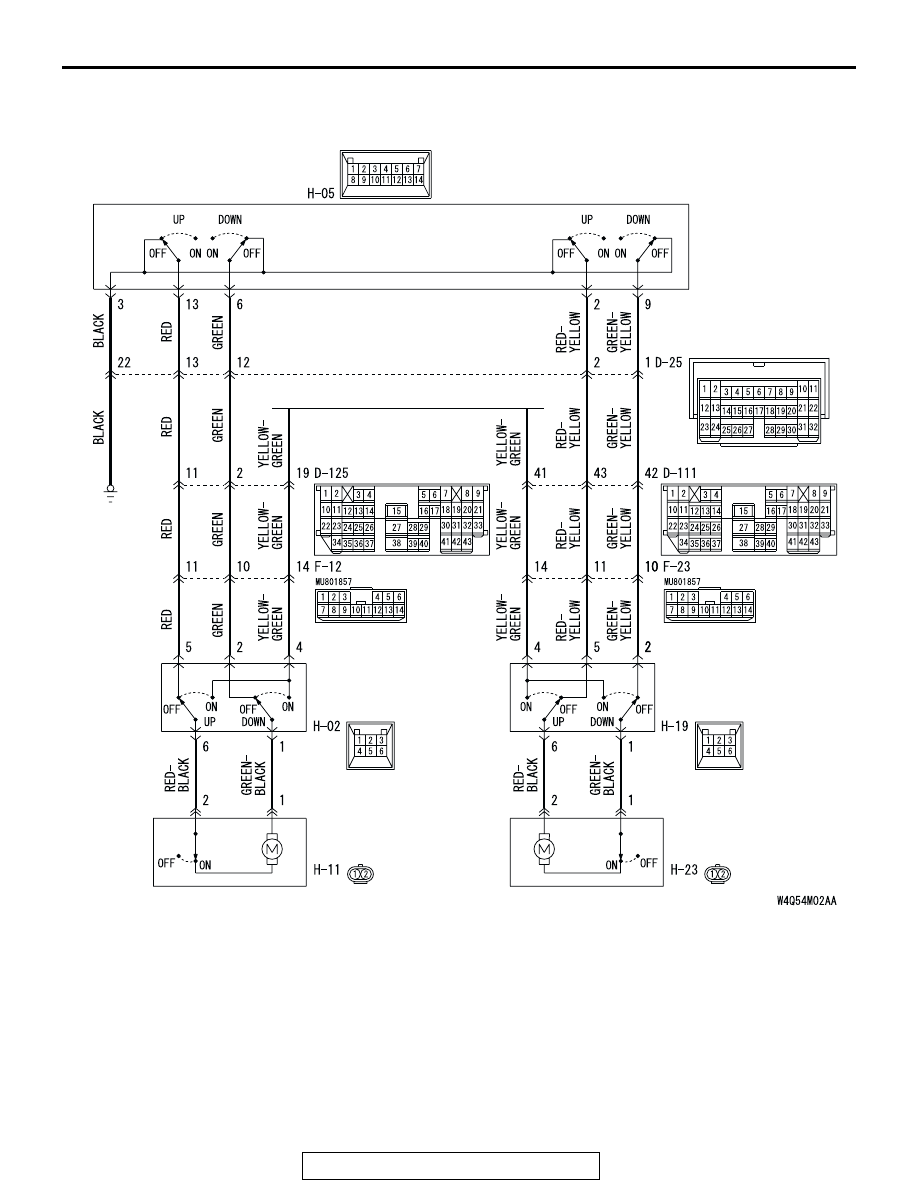

Power Window (rear) Circuit
