SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-193

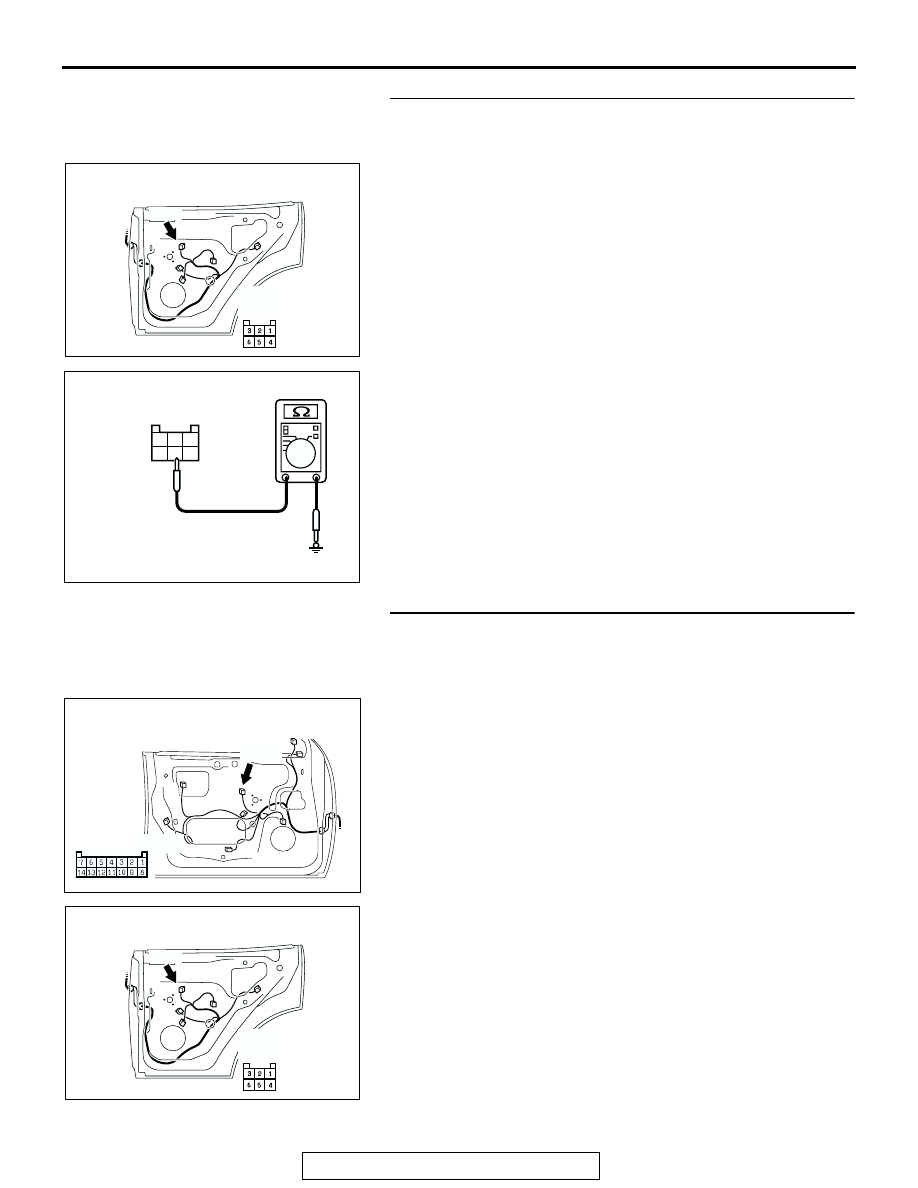

STEP 38. Check at rear power window sub-switch (RH)
connector H-19 in order to check the ground circuit to the
rear power window sub-switch (RH).
(1) Disconnect rear power window sub-switch (RH) connector

H-19, and measure at the harness side.

(2) Measure the resistance value between terminal 5 and

ground.

• The resistance should measure 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 40.
NO :  Go to Step 39.

STEP 39. Check the harness wiring between power
window main switch connector H-05 (terminal 2) and rear
power window sub-switch (RH) connector H-19 (terminal
5).

AC000316 AE

H-19

CONNECTOR: H-19

REAR DOOR<RH>

(HARNESS SIDE)

H-19

AC204323

1

2

3

4

5

6

AF

CONNECTOR H-19
(HARNESS SIDE)

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

AC000316 AE

H-19

CONNECTOR: H-19

REAR DOOR<RH>

(HARNESS SIDE)

H-19

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-194

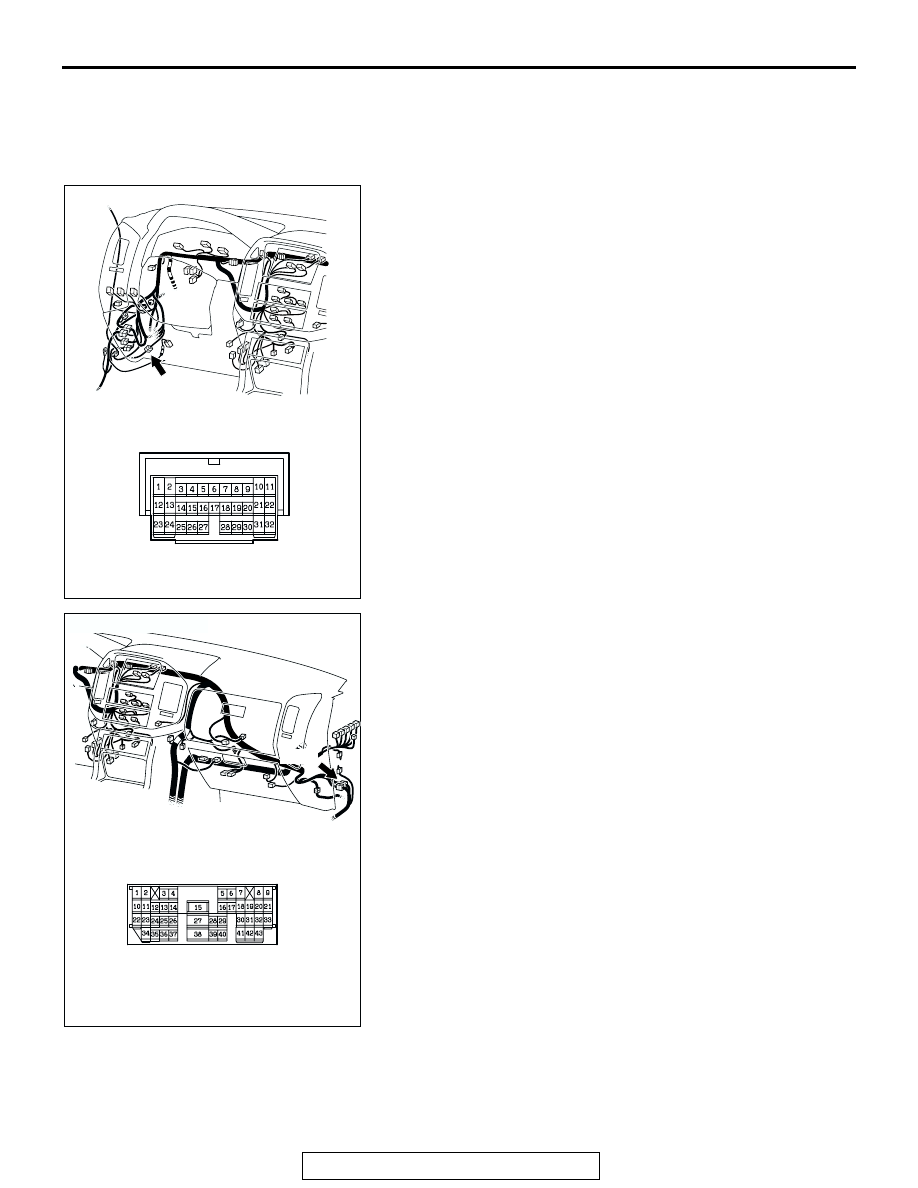

NOTE: Also check intermediate connectors D-25, D-111 and
F-23. If intermediate connector D-25, D-111 or F-23 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC203859 AC

CONNECTOR: D-25

D-25

D-25

AC203860AC

D-111

CONNECTOR: D-111

D-111

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-195

Q: Is the harness wiring between power window main

switch connector H-05 (terminal 2) and rear power
window sub-switch (RH) connector H-19 (terminal 5) in
good condition?
YES : Replace the power window main switch. Verify that

the rear power window sub-switch (RH) should now
work normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (RH) should now
work normally.

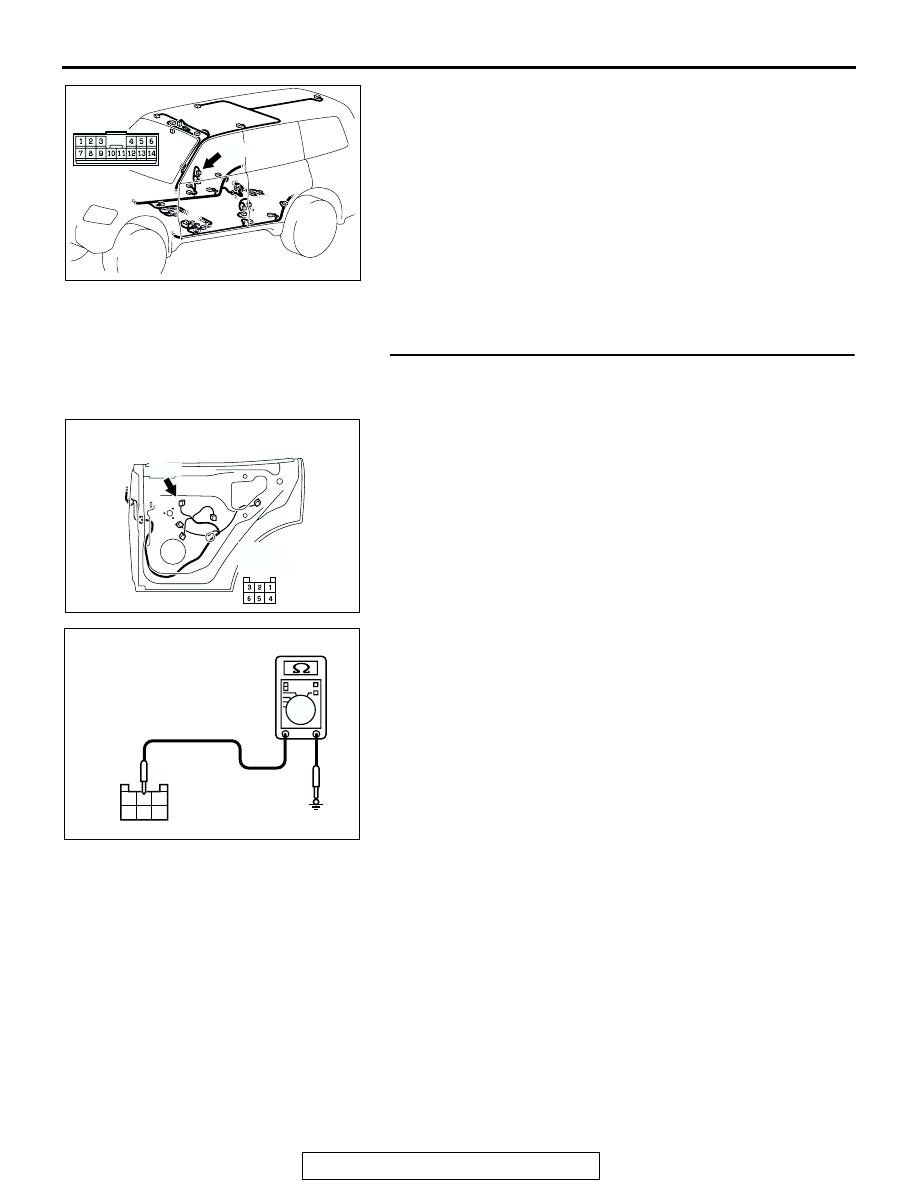

STEP 40. Check at rear power window sub-switch (RH)
connector H-19 in order to check the ground circuit to the
rear power window sub-switch (RH).
(1) Disconnect rear power window sub-switch (RH) connector

H-19, and measure at the harness side.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should measure 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 42.
NO :  Go to Step 41.

AC204484

AC

CONNECTOR: F-23

F-23

F-23

AC000316 AE

H-19

CONNECTOR: H-19

REAR DOOR<RH>

(HARNESS SIDE)

H-19

AC204323

1

2

3

4

5

6

AG

CONNECTOR H-19
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-196

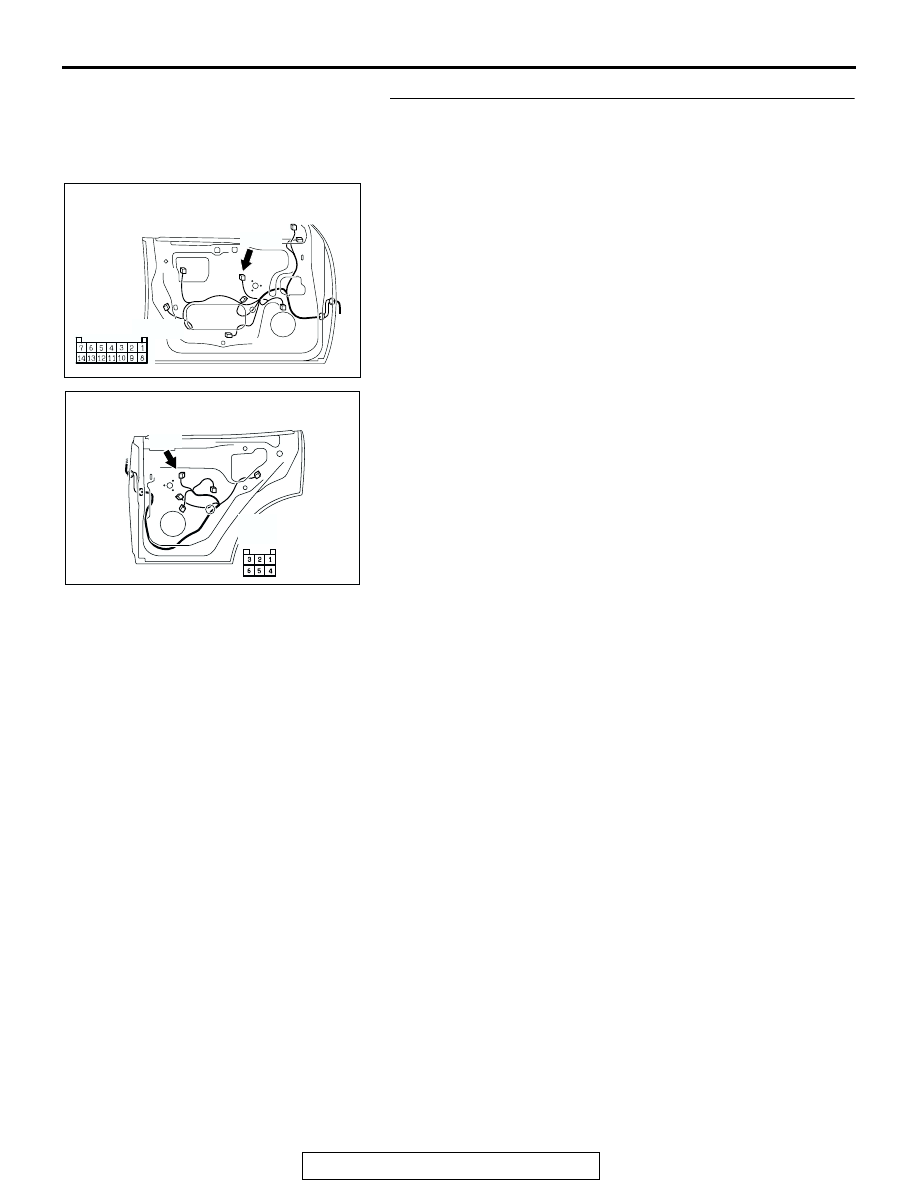

STEP 41. Check the harness wiring between power
window main switch connector H-05 (terminal 9) and rear
power window sub-switch (RH) connector H-19 (terminal
2).

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

AC000316 AE

H-19

CONNECTOR: H-19

REAR DOOR<RH>

(HARNESS SIDE)

H-19
