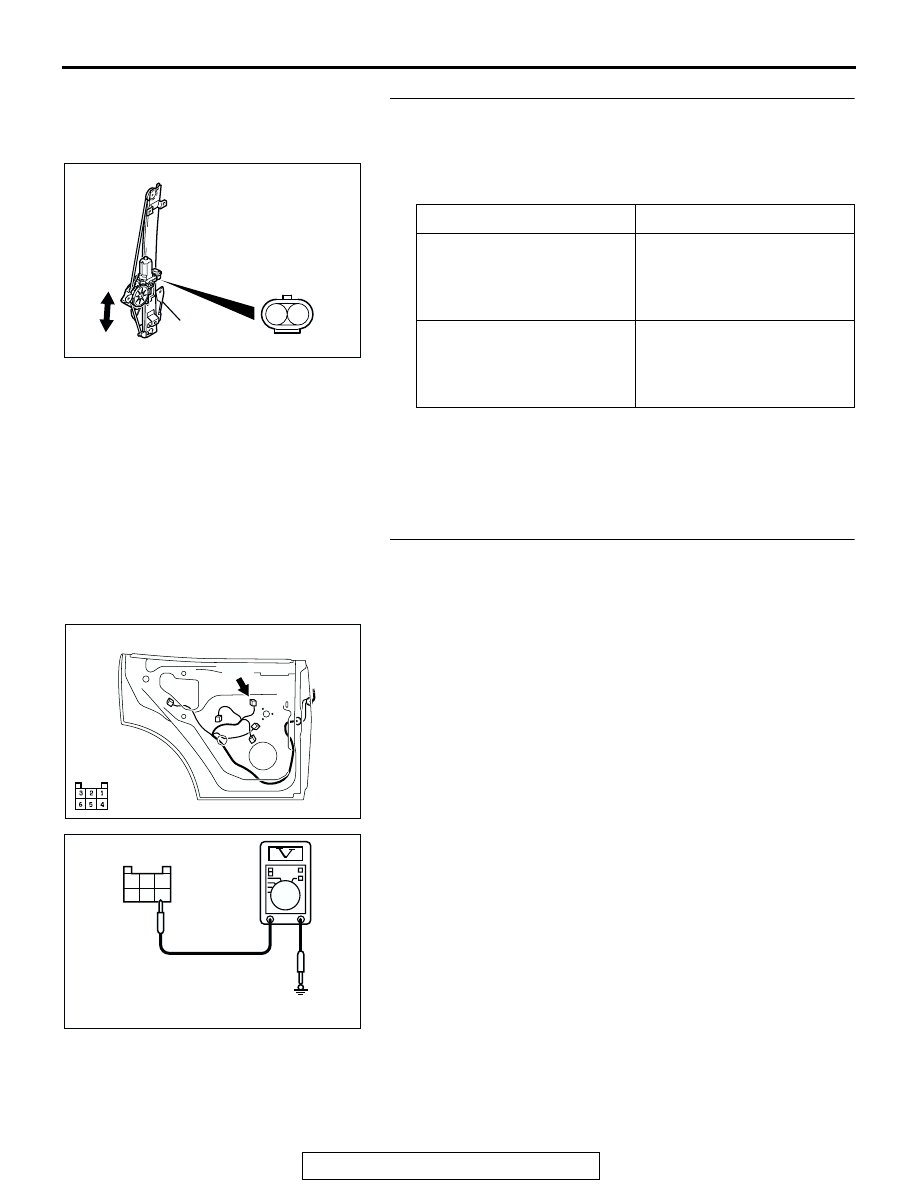

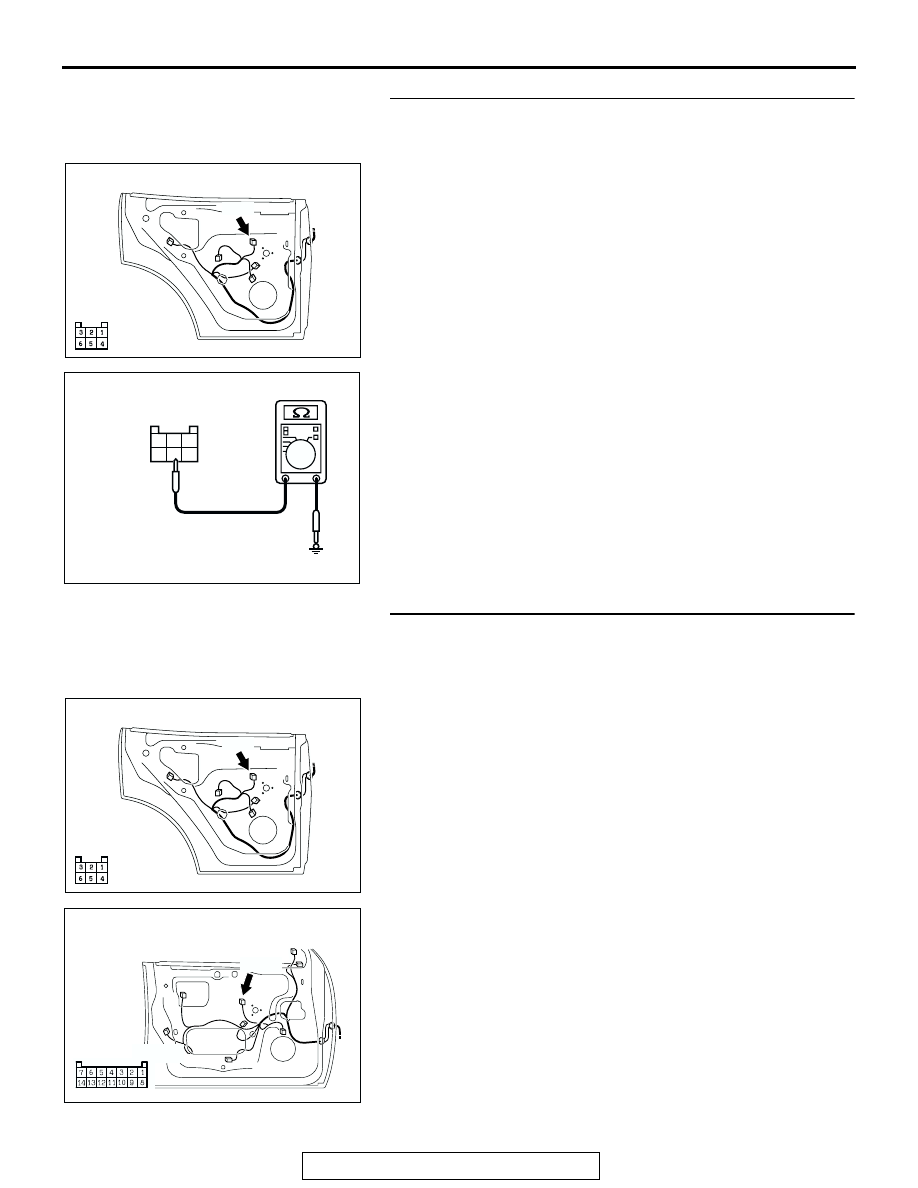

SYMPTOM PROCEDURES TSB Revision SIMPLIFIED WIRING SYSTEM (SWS) 54B-181 STEP 21. Check the rear power window motor (LH). GROUP 42, Door-Door Glass and Regulator . (2) Connect a battery to the motor terminal, and check that the motor runs freely. Q: Is the rear power window motor (LH) normal? YES : Go to Step 22. Verify that the rear power window sub-switch (LH) STEP 22. Check at rear power window sub-switch H-02, and measure at the harness side. (2) Measure the voltage between terminal 4 and ground. • The voltage should measure approximately 12 volts (battery positive voltage). Q: Is the measured voltage approximately 12 volts (battery positive voltage)? BATTERY CONNECTION SLIDER POSITION • Connect terminal 2 to the negative battery terminal • Connect terminal 6 to the positive battery terminal The slider moves up • Connect terminal 2 to the positive battery terminal • Connect terminal 6 to the negative battery terminal The slider moves down AC309022 1 2 SLIDER AB AC000237AF H-02 CONNECTOR: H-02 REAR DOOR<LH> H-02 AC204312 1 2 3 4 5 6 AC CONNECTOR H-02 |
