SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-173

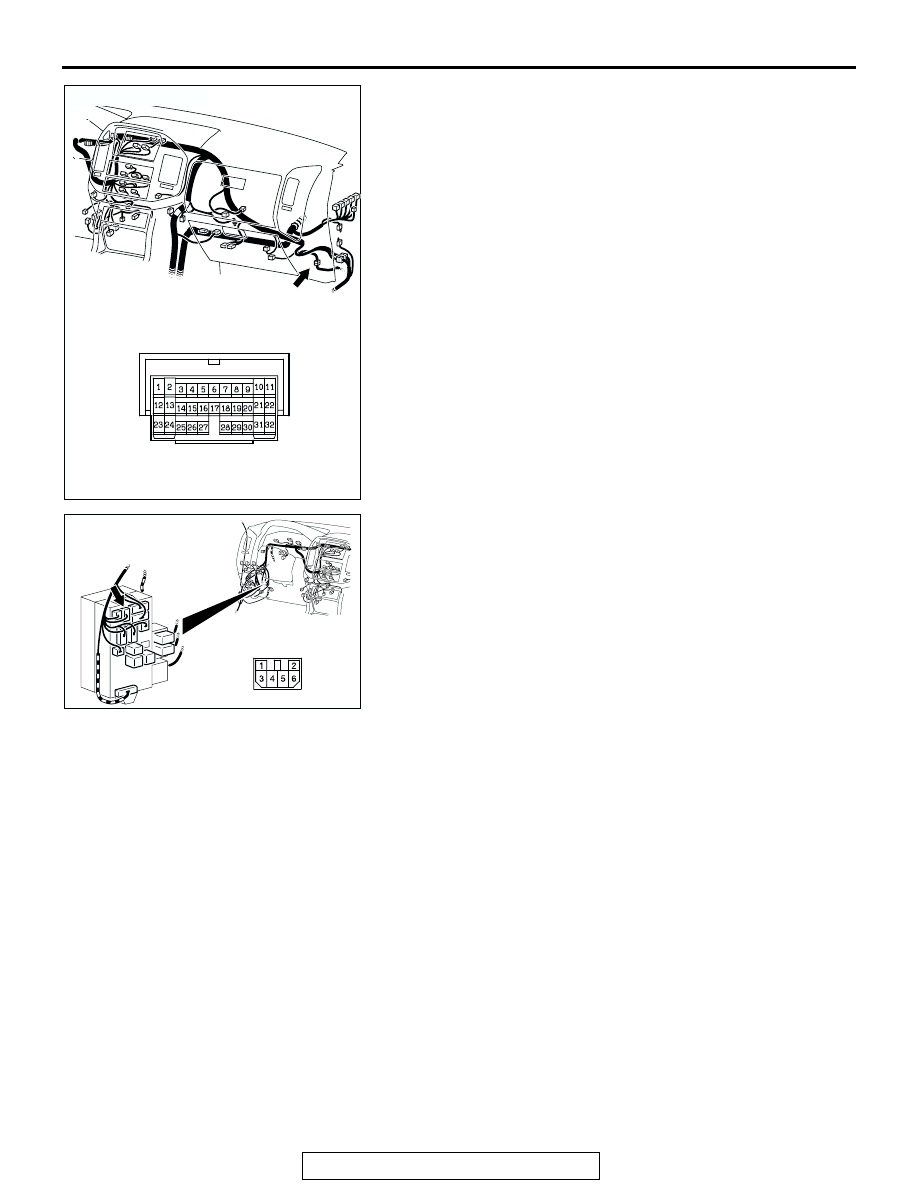

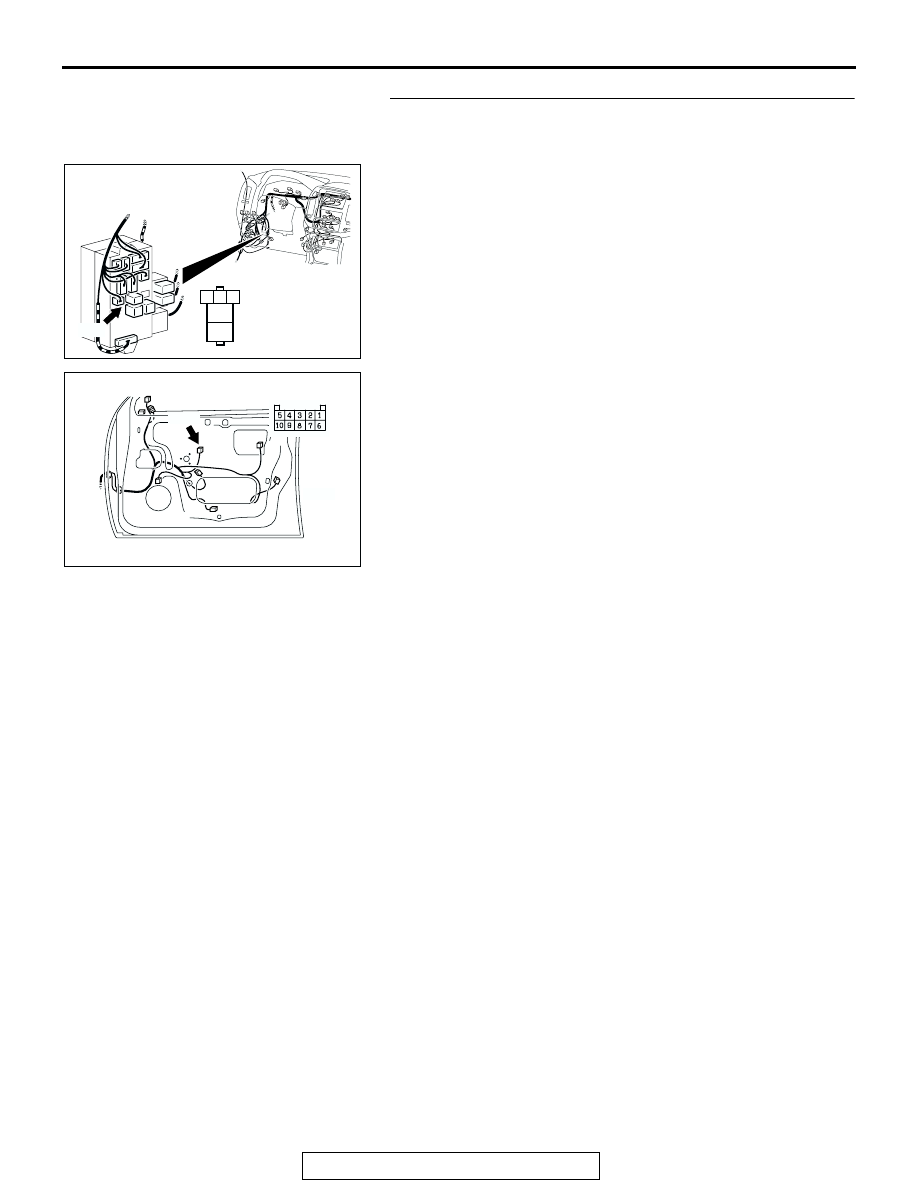

STEP 11. Check the harness wiring between power window
relay connector D-219 (terminal 4) and front power window
sub-switch (RH) connector H-16 (terminal 5).

AC203850AB

CONNECTOR: D-219

JUNCTION BLOCK
(FRONT VIEW)

D-219

1

2

3

4

5

JUNCTION
BLOCK SIDE

D-219

AC000238

CONNECTOR: H-16

H-16

AF

H-16
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-174

NOTE: Also check junction block connector D-208 and inter-
mediate connector D-15. If junction block connector D-208 or
intermediate connectors D-15 is damaged, repair or replace the
damaged component(s) as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the harness wiring between power window relay

connector D-219 (terminal 4) and front power window
sub-switch (RH) connector H-16 (terminal 5) in good
condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front power window sub-switch (RH) should now
work normally.

AC203860 AB

D-15

D-15

CONNECTOR: D-15

AC203850AI

CONNECTOR: D-208

JUNCTION BLOCK
(FRONT VIEW)

D-208

JUNCTION BLOCK SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-175

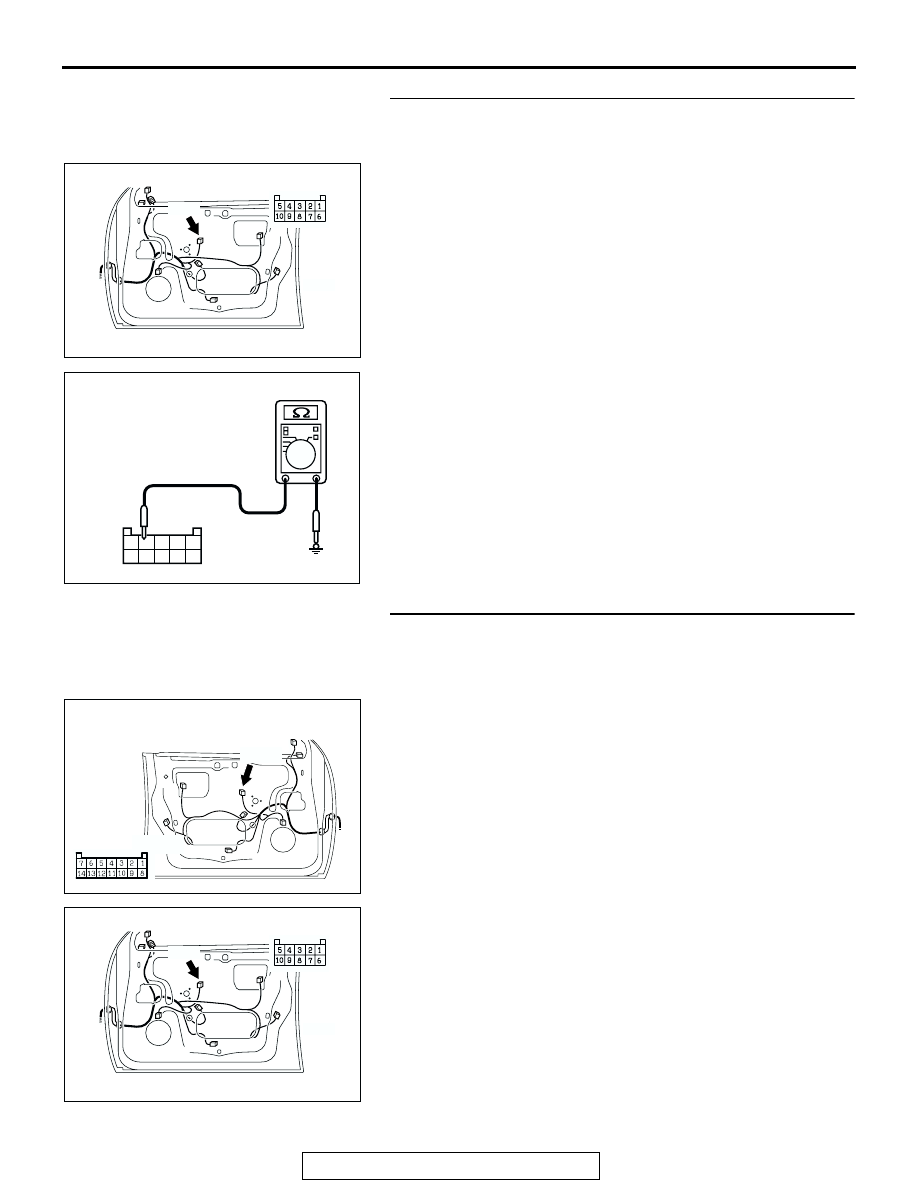

STEP 12. Check at front power window sub-switch (RH)
connector H-16 in order to check the ground circuit to the
front power window sub-switch (RH).
(1) Disconnect front power window sub-switch (RH) connector

H-16, and measure at the harness side.

(2) Measure the resistance value between terminal 4 and

ground.

• The resistance should measure 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 14.
NO :  Go to Step 13.

STEP 13. Check the harness wiring between power
window main switch connector H-05 (terminal 14) and front
power window sub-switch (RH) connector H-16 (terminal
4).

AC000238

CONNECTOR: H-16

H-16

AF

H-16
(HARNESS SIDE)

AC204323AB

CONNECTOR: H-16
(HARNESS SIDE)

1

2

3

4

5

6

7

8

9

10

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

AC000238

CONNECTOR: H-16

H-16

AF

H-16
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-176

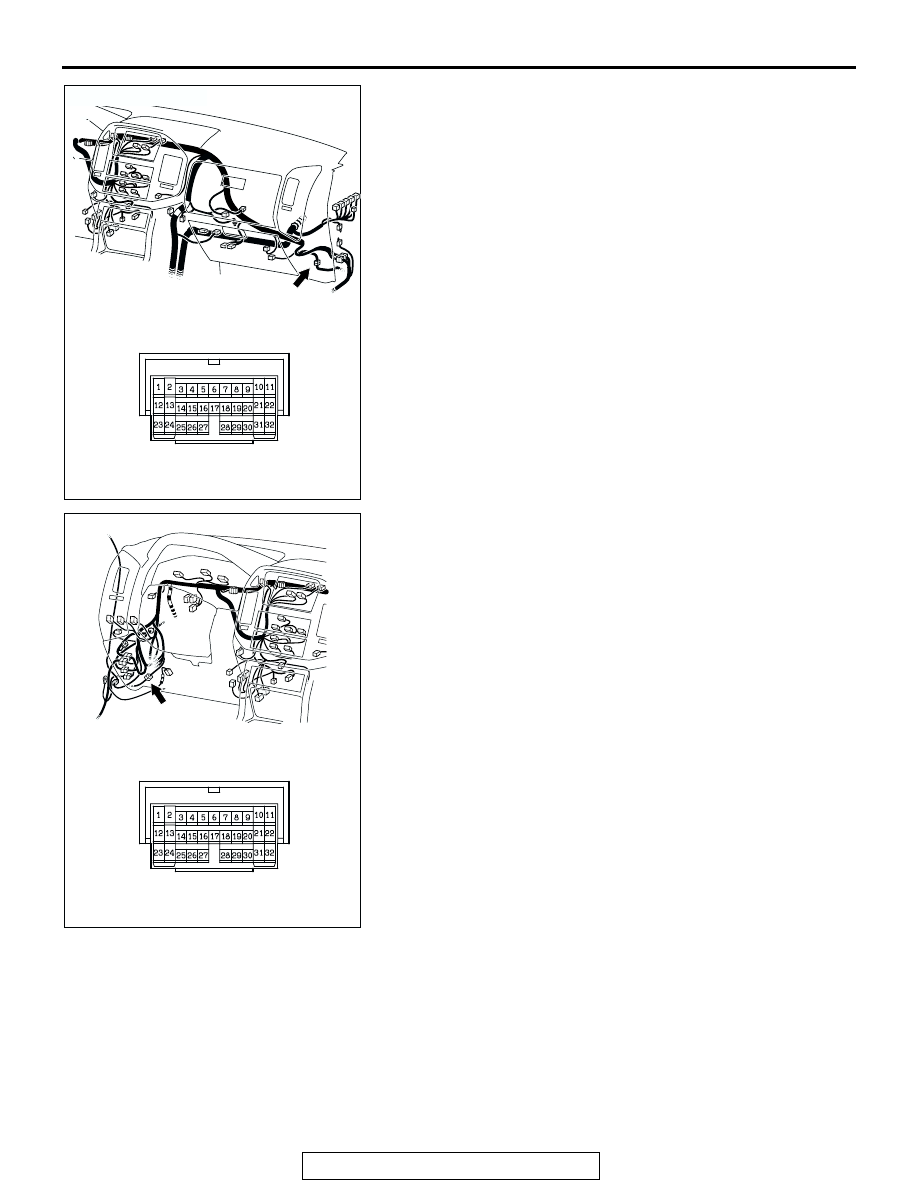

NOTE: Also check intermediate connectors D-25 and D-15. If
intermediate connectors D-25 or D-15 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the harness wiring between power window main

switch connector H-05 (terminal 14) and front power
window sub-switch (RH) connector H-16 (terminal 4) in
good condition?
YES :
Replace the power window main switch. Verify that

the front power window sub-switch (RH) should now
work normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front power window sub-switch (RH) should now
work normally.

AC203860 AB

D-15

D-15

CONNECTOR: D-15

AC203859 AC

CONNECTOR: D-25

D-25

D-25
