SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-37

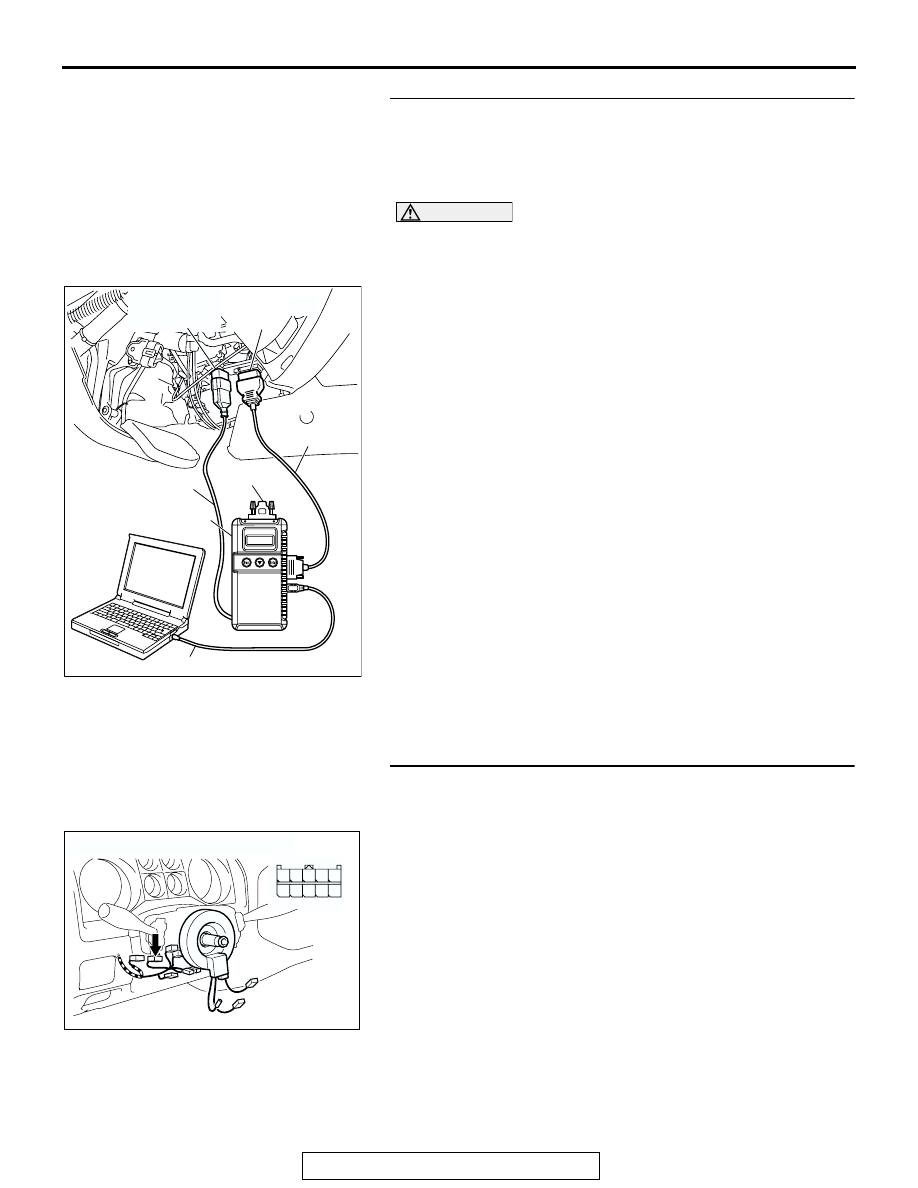

STEP 1. Use scan tool MB991958 to select "ECU COMM
CHK" on the SWS monitor display.
Check the following ECUs:

• ETACS-ECU

• Column-ECU

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-7

.

(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM CHK."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "ECU COMM CHK."

(4) Scan tool MB991958 should show "OK" on the "ECU

COMM CHK" menus for both the "ETACS ECU" and the
"COLUMN ECU" menus.

Q: Is "OK" displayed on both the "ETACS ECU" and

"COLUMN ECU" menus?
"OK" are displayed for all the items : Go to Step 2.
"NG" is displayed on the "COLUMN ECU" menu : Go to

Step 2.

"NG" is displayed on the "ETACS ECU" menu : Refer to

Inspection Procedure A-3 "Communication with
ETACS-ECU is not possible

P.54B-42

."

"NG" are displayed for all the items : Refer to Inspection

Procedure A-3 "Communication with ETACS-ECU is
not possible

P.54B-42

."

STEP 2. Check column switch connector D-203 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is column switch connector D-203 in good condition?

YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). The

system should communicate with the column switch
(column-ECU) normally.

AC309091

MB991911

MB991827

MB991824

AB

MB991806

MB991862

DATA LINK
CONNECTOR
(16-PIN)

DATA LINK
CONNECTOR
(13-PIN)

AC204172

CONNECTOR : D-203

AC

HARNESS SIDE

1

2

3

7

8

6

5

10

4

9

D-203

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-38

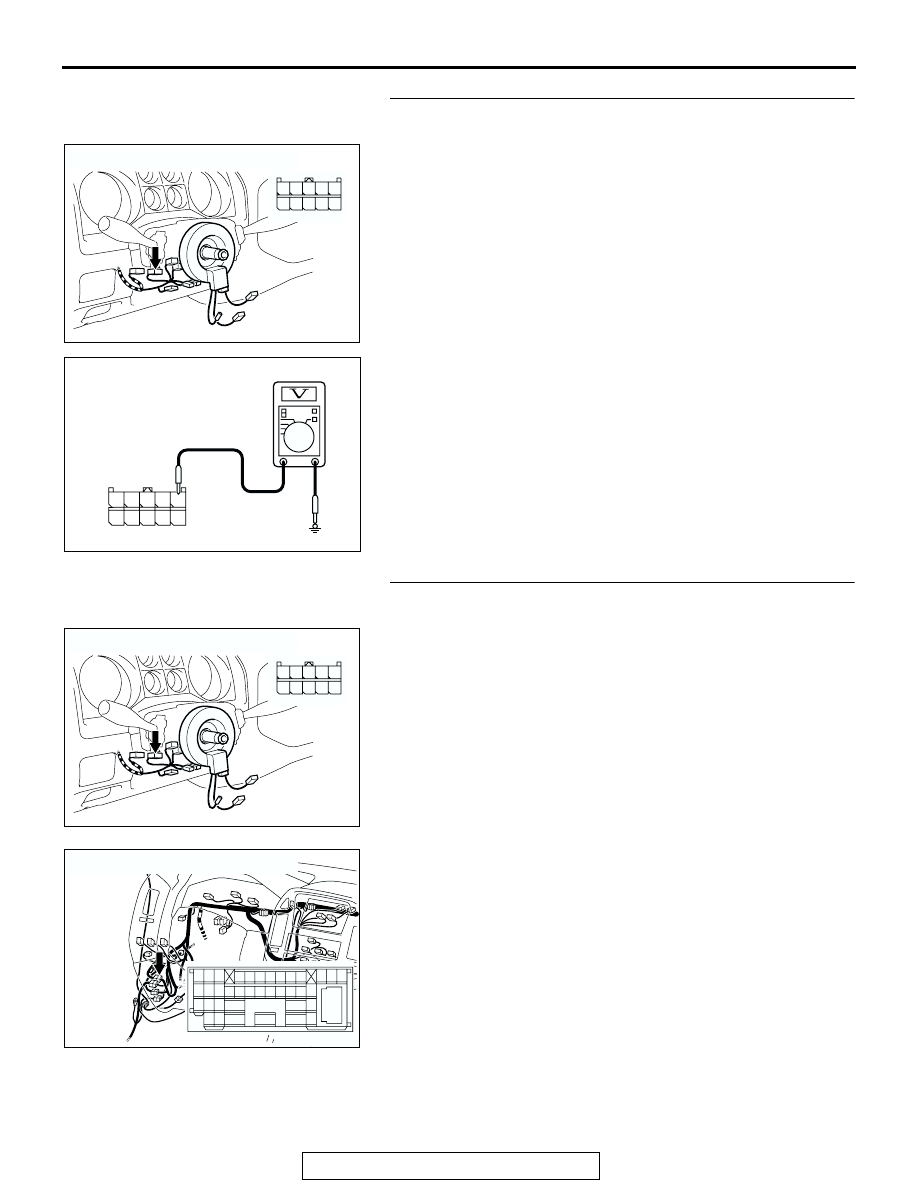

STEP 3. Check the battery power supply circuit to the
column switch. Test at column switch connector D-203.
(1) Disconnect column switch connector D-203 and measure

the voltage available at the wiring harness side of the
connector.

(2) Measure the voltage between terminal 1 and ground by

backprobing.

• The voltage should be approximately 12 volts (battery

positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 5.
NO :  Go to Step 4.

STEP 4. Check the wiring harness between column switch
connector D-203 (terminal 1) and the battery.

NOTE: Also check intermediate connector D-28 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-28 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between column switch connector

D-203 (terminal 1) and the battery in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the column switch
(column-ECU) normally.

AC204172

CONNECTOR : D-203

AC

HARNESS SIDE

1

2

3

7

8

6

5

10

4

9

D-203

5 4 3 2 1

10 9 8 7 6

AC203693

CONNECTOR D-203
(HARNESS SIDE)

AC

AC204172

CONNECTOR : D-203

AC

HARNESS SIDE

1

2

3

7

8

6

5

10

4

9

D-203

AC204170

CONNECTOR : D-28

AI

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-39

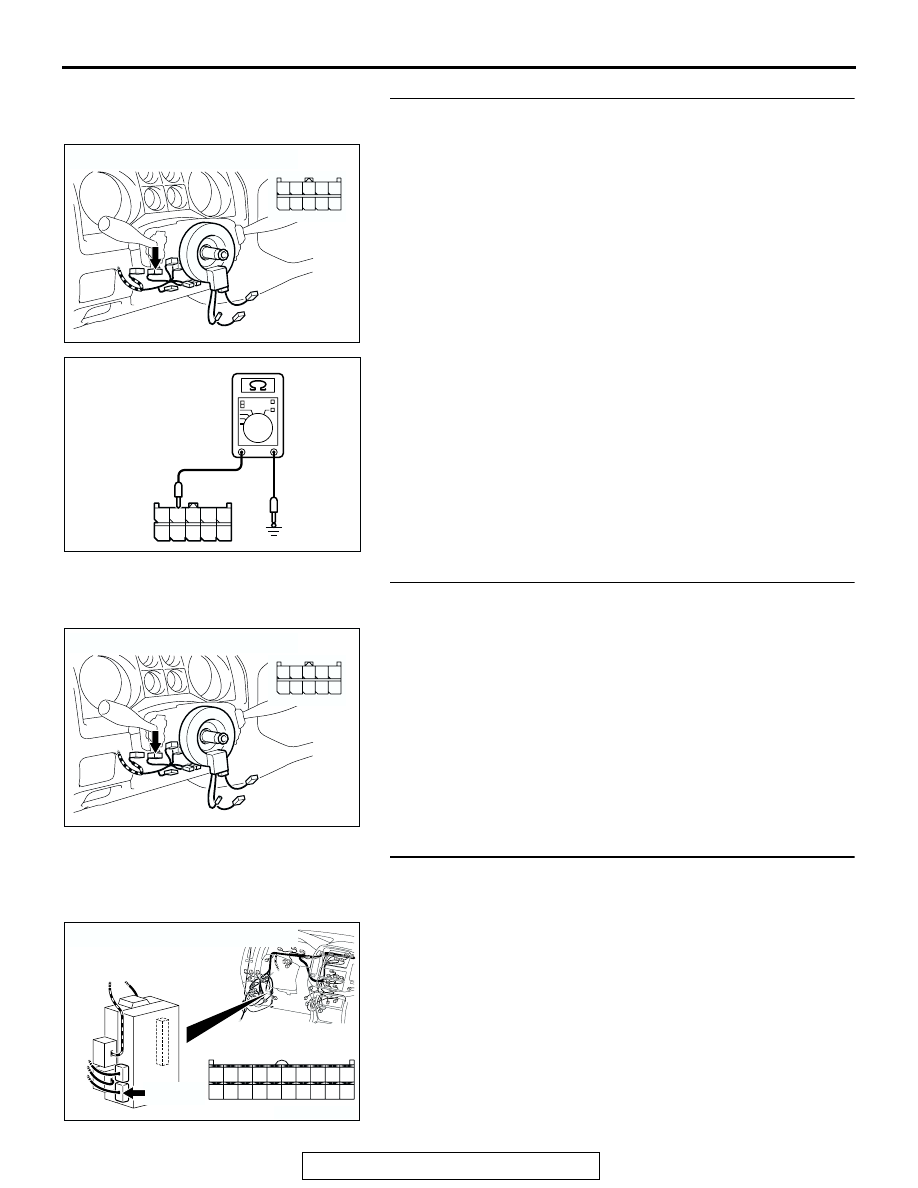

STEP 5. Check the ground circuit to the column switch.
Test at column switch connector D-203.

(1) Disconnect column switch connector D-203 and measure

the resistance available at the wiring harness side of the
connector.

(2) Measure the resistance value between terminal 4 and

ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 7.
NO :  Go to Step 6.

STEP 6. Check the wiring harness between column switch
connector D-203 (terminal 4) and the ground.

Q: Is the wiring harness between column switch connector

D-203 (terminal 4) and the ground in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the column switch
(column-ECU) normally.

STEP 7. Check ETACS-ECU connector D-224 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is ETACS-ECU connector D-224 in good condition?

YES : Go to Step 8.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The system should communicate with the

column switch (column-ECU) normally.

AC204172

CONNECTOR : D-203

AC

HARNESS SIDE

1

2

3

7

8

6

5

10

4

9

D-203

ACX00772

5 4 3 2 1

10 9 8 7 6

CONNECTOR D-203
(HARNESS SIDE)

AB

AC204172

CONNECTOR : D-203

AC

HARNESS SIDE

1

2

3

7

8

6

5

10

4

9

D-203

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-40

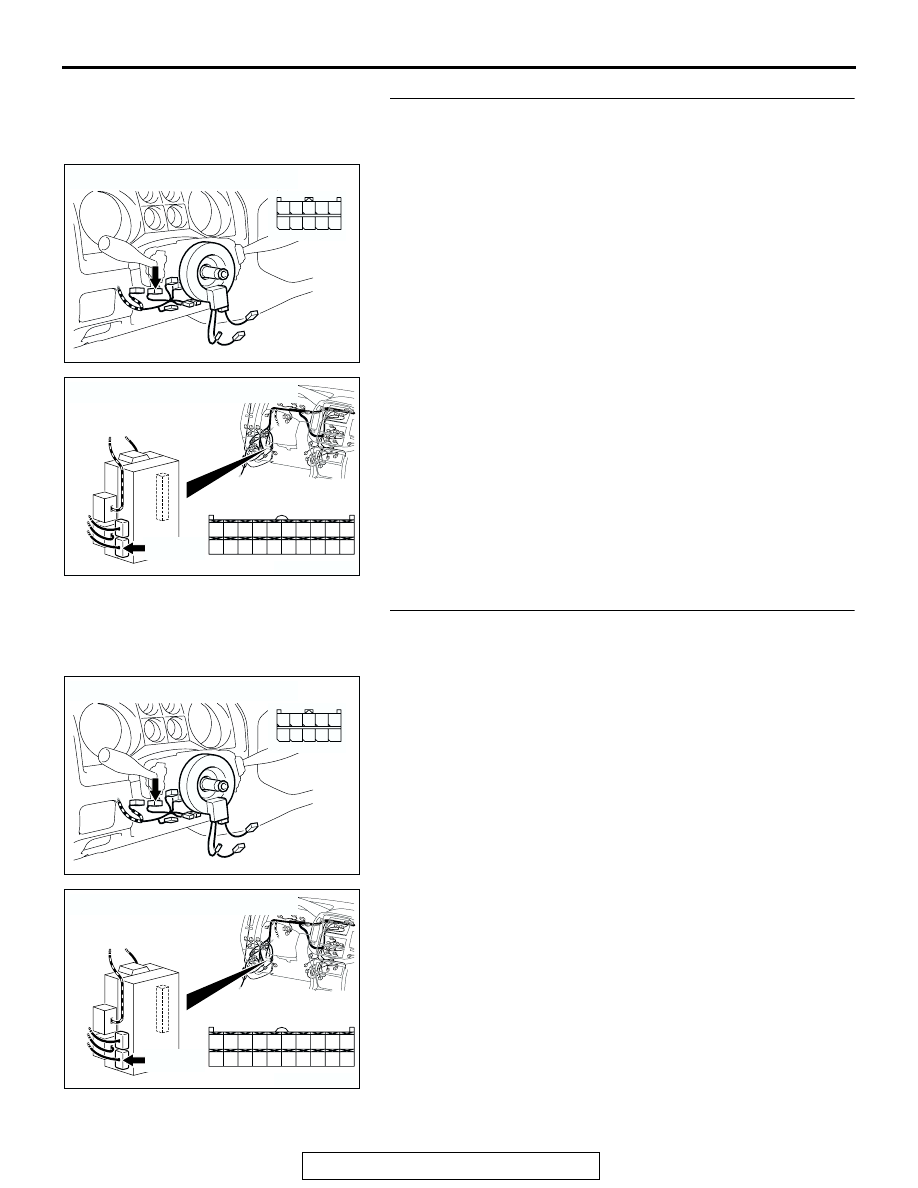

STEP 8. Check the wiring harness between column switch
