SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-29

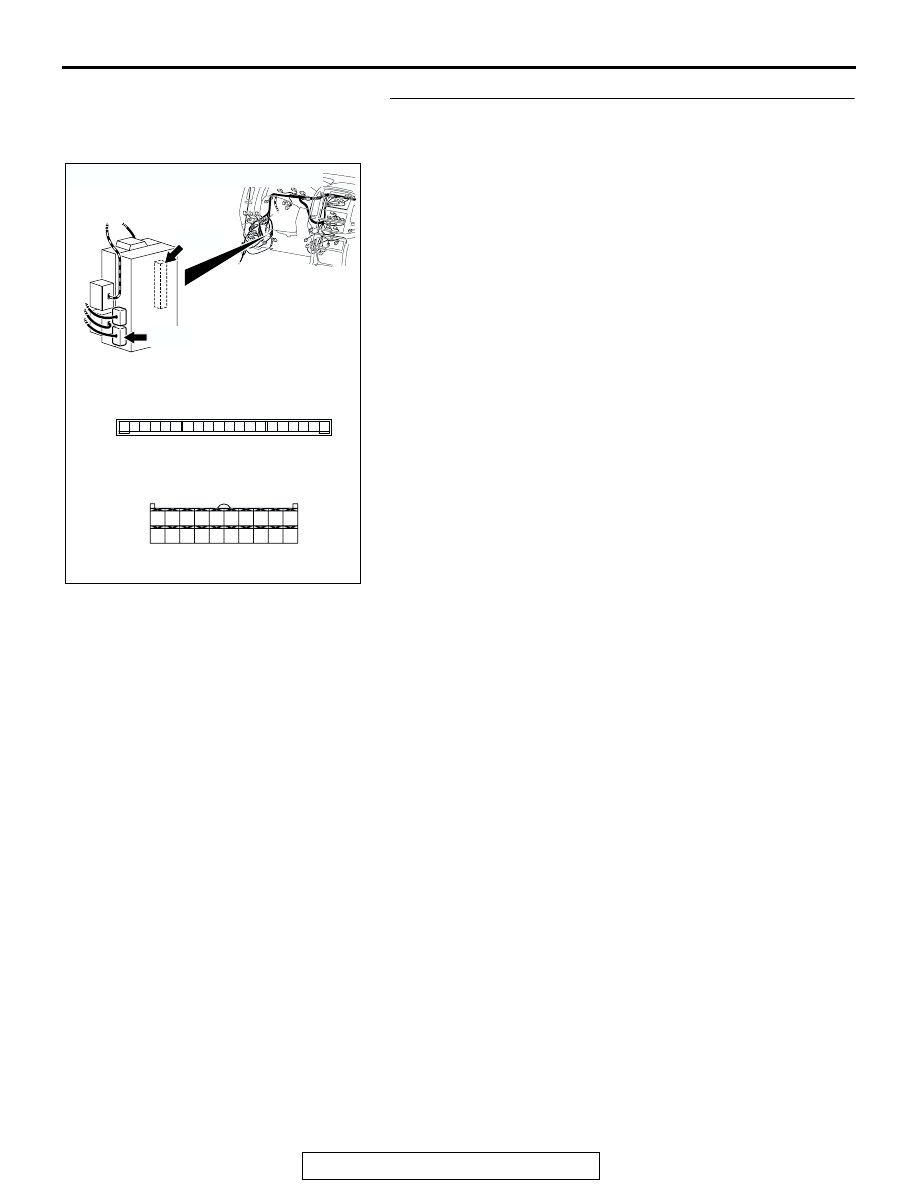

STEP 3. Check ETACS-ECU connector D-222 and D-224 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are ETACS-ECU connector D-222 and D-224 in good

condition?
YES : Go to Step 4.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The system should communicate with the

SWS monitor normally.

AC204192

CONNECTORS : D-222, D-224

D-222

AC

HARNESS SIDE

D-224(B)

D-222

D-224(B)

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-30

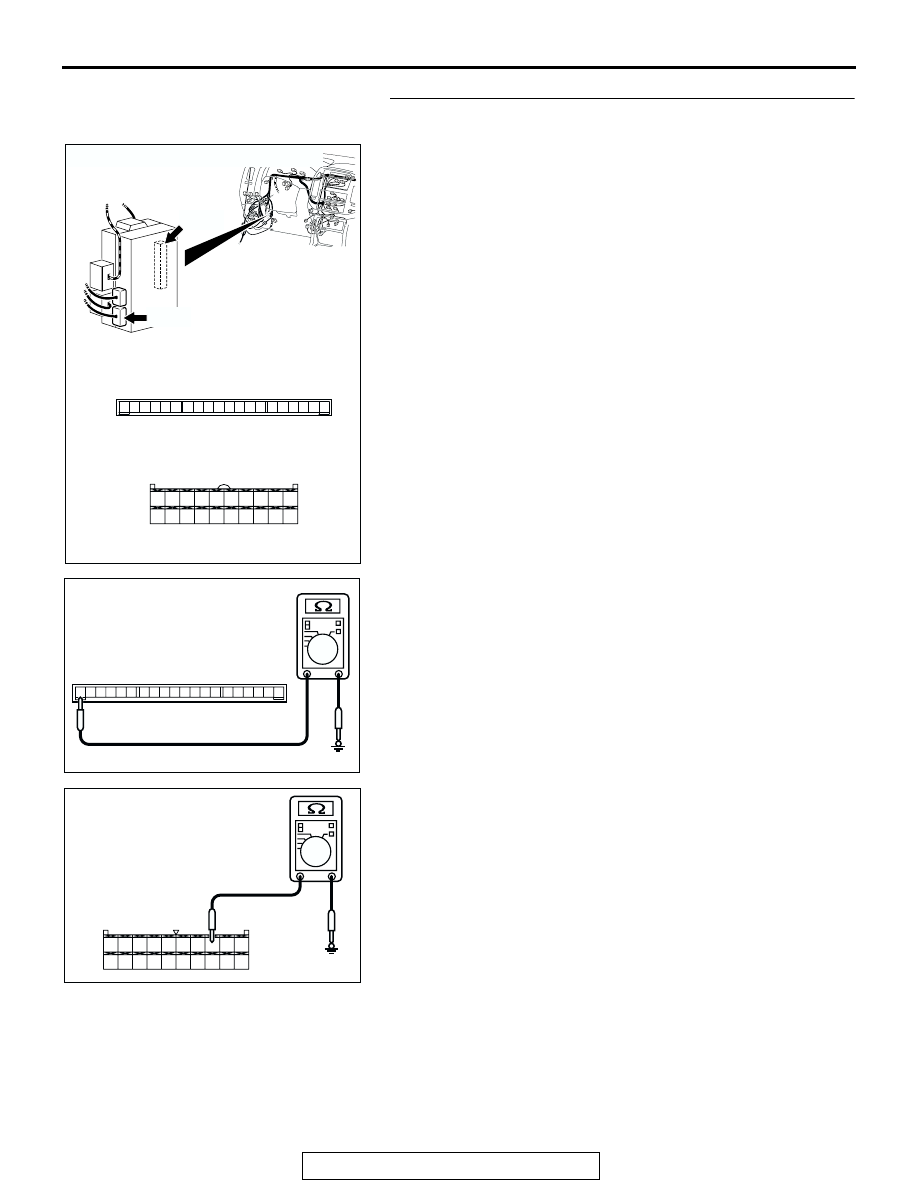

STEP 4. Check the ground circuit to the ETACS-ECU. Test
at ETACS-ECU connector D-222 and D-224.
(1) Disconnect ETACS-ECU connector D-222 and D-224, and

measure the resistance available at the junction block side
of the connector.

(2) Measure the resistance value between ETACS-ECU

connector D-222 terminal 20 and ground, and also between
ETACS-ECU connector D-224 terminal 23 and ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 6.
NO :  Go to Step 5.

AC204192

CONNECTORS : D-222, D-224

D-222

AC

HARNESS SIDE

D-224(B)

D-222

D-224(B)

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

ACX01569

19

20

1817 1615 141312 1110 9 8 7

6 5 4 3 2 1

AB

CONNECTOR D-222
(JUNCTION BLOCK SIDE)

AC204759

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

AB

CONNECTOR D-224
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-31

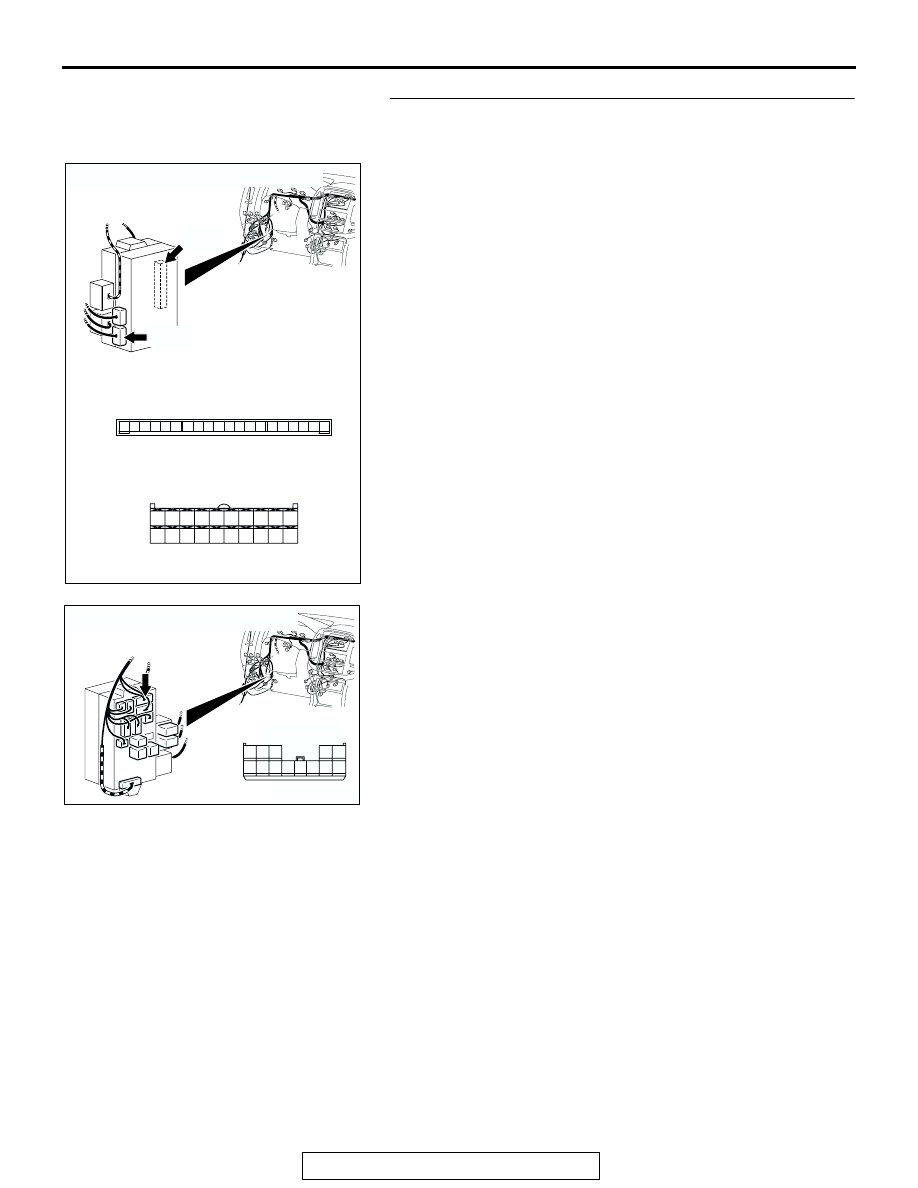

STEP 5. Check the wiring harness between ETACS-ECU
connector D-222 (terminal 20) or D-224 (terminal 23) and
the ground.

NOTE: Also check junction block connector D-209 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector D-209 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

D-222 (terminal 20) or D-224 (terminal 23) and the
ground in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the SWS monitor kit
normally.

AC204192

CONNECTORS : D-222, D-224

D-222

AC

HARNESS SIDE

D-224(B)

D-222

D-224(B)

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

AC204173

CONNECTOR : D-209

AD

HARNESS SIDE

1

2

6

7

9

3

4

11

12

10

5

13

8

D-209

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-32

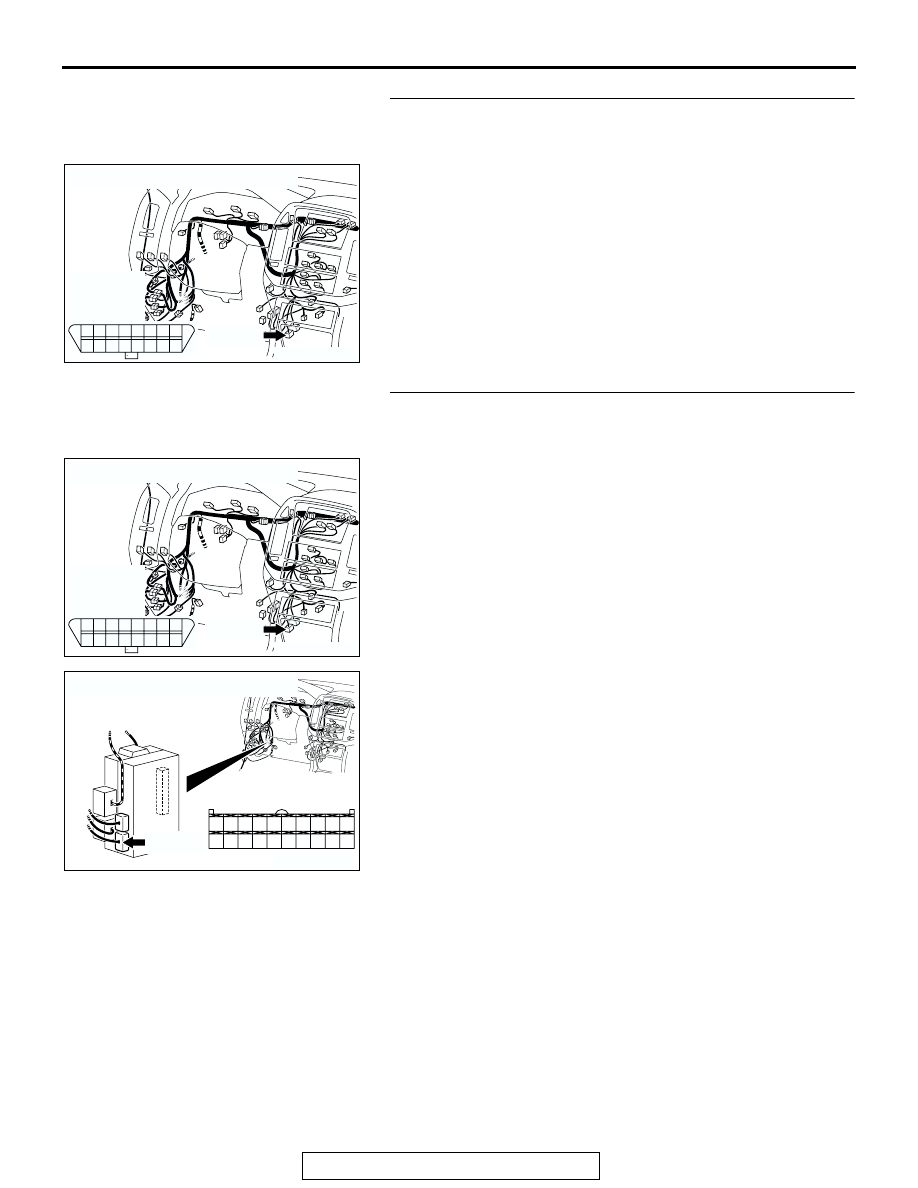

STEP 6. Check data link connector D-118 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is and data link connector D-118 in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.The system should communicate with the

SWS monitor kit normally.

STEP 7. Check the wiring harness between ETACS-ECU
connector D-224 (terminals 22 and 37) and data link
connector D-118 (terminals 1 and 9).

AC204170

CONNECTOR : D-118

AN

HARNESS
SIDE

D-118(B)

D-118(B)

1

9

2

10

3

11

4

12

5

13

6

14

7

15

8

16

AC204170

CONNECTOR : D-118

AN

HARNESS
SIDE

D-118(B)

D-118(B)

1

9

2

10

3

11

4

12

5

13

6

14

7

15

8

16

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35
