Mitsubishi Montero (2004+). Manual - part 676





DOOR

TSB Revision

BODY

42-35

REMOVAL SERVICE POINT

.

<<A>> POWER WINDOW SWITCH ASSEMBLY
There is a clip (driver's side) or a claw (other sides) on the front
of the power window switch assembly. Work from the front side
using special tool MB990784.

.

<<B>> DOOR INSIDE HANDLE COVER REMOVAL
1. Insert the special tool MB990784 between the inside handle

upper part and the inside handle cover, and then disengage
the upper claw of the inside handle.

2. Disengage the lower claw of the inside handle in the same

manner as for the upper claw.

3. Remove the door trim.
4. Remove the inside handle cover from the door trim.

Y0066CA

ACX00524

POWER WINDOW SWITCH
PANEL ASSEMBLY

MB990784

AC

X0899CA

ACX00525

A

A

INSIDE HANDLE

MB990784

INSIDE HANDLE COVER

SECTION A – A

CLAW

INSIDE
HANDLE

CLAW

INSIDE
HANDLE
COVER

AB

DOOR

TSB Revision

BODY

42-36

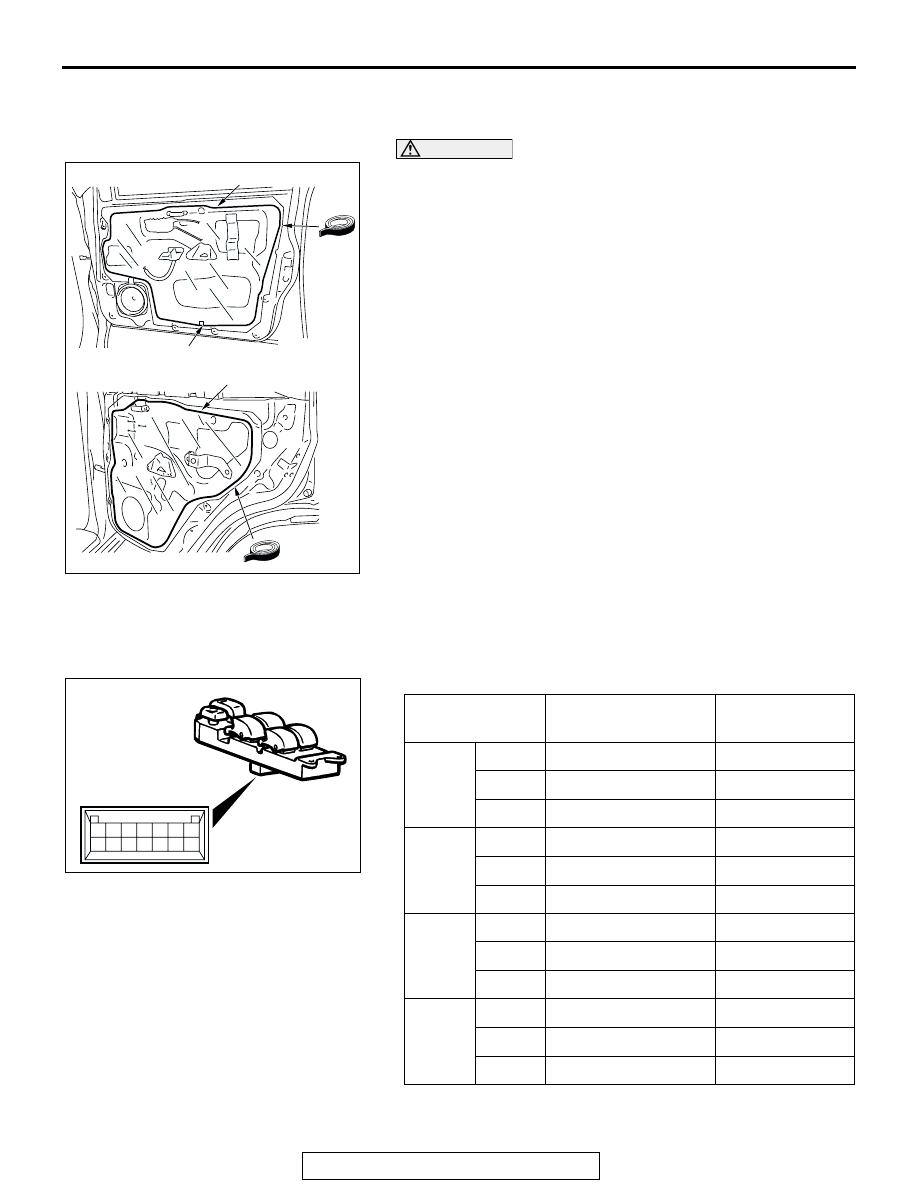

INSTALLATION SERVICE POINT

.

>>A<< WATERPROOF FILM INSTALLATION

CAUTION

Be sure to apply the sealant below the inner panel water
drain holes so as not to plug them.
1. Install the escutcheon and the clip to the regulator handle.
2. Fully close the front door glass, and install the regulator

handle so that it faces as shown in the illustration.

INSPECTION

M1421007600558

POWER WINDOW SWITCH CONTINUITY CHECK

.

POWER WINDOW MAIN SWITCH CHECK

NOTE: *:Set switch to UNLOCK position.

.

X0084CA

X0128CA

ACX00526

INNER PANEL WATER DRAIN HOLE

<FRONT DOOR>

<REAR DOOR>

WATERPROOF FILM

WATERPROOF FILM

AB

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

FRONT
(LH)

UP

− 7, 3 − 8

Less than 2 ohms

OFF

− 7, 3 − 8, 7 − 8

Less than 2 ohms

DOWN 5

− 8, 3 − 7

Less than 2 ohms

FRONT
(RH)

UP

− 14, 1 − 3*

Less than 2 ohms

OFF

− 14, 1 − 3*, 3* − 14 Less than 2 ohms

DOWN 1

− 5, 3* − 14

Less than 2 ohms

REAR
(LH)

UP

− 13, 3* − 6

Less than 2 ohms

OFF

− 13, 3* − 6, 3* − 13 Less than 2 ohms

DOWN 5

− 6, 3* − 13

Less than 2 ohms

REAR
(RH)

UP

− 5, 3* − 9

Less than 2 ohms

OFF

− 9, 2 − 3*, 3* − 9

Less than 2 ohms

DOWN 5

− 9, 2 − 3*

Less than 2 ohms

7

6

5

4

3

2

1

14

13

12

11

10

9

8

ACX02412

DOOR

TSB Revision

BODY

42-37

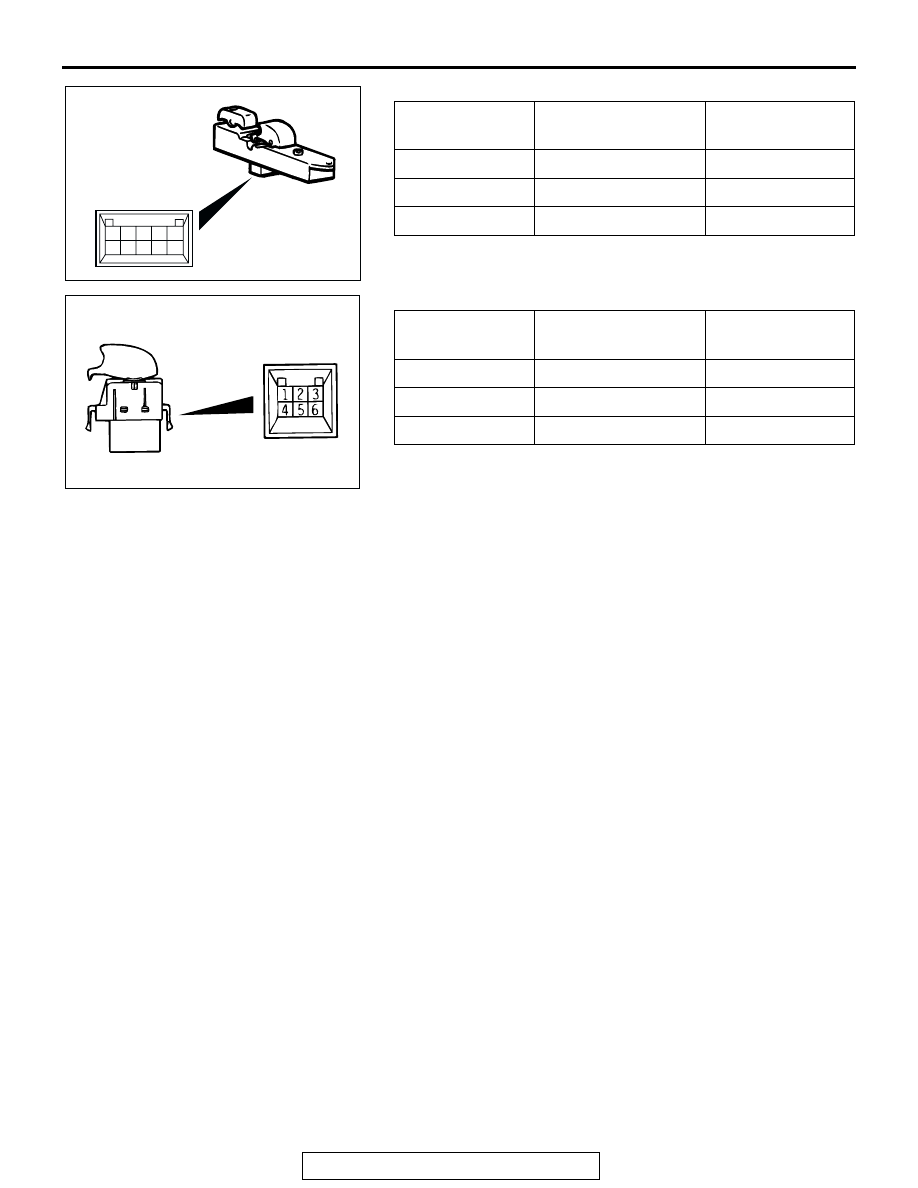

POWER WINDOW SUB SWITCH CHECK <FRONT>

.

POWER WINDOW SUB SWITCH CHECK <REAR>

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

UP

− 8, 6 − 10

Less than 2 ohms

OFF

− 8, 6 − 10

Less than 2 ohms

DOWN

− 6, 4 − 8

Less than 2 ohms

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

UP

− 6, 1 − 2

Less than 2 ohms

OFF

− 6, 1 − 2

Less than 2 ohms

DOWN

− 4, 5 − 6

Less than 2 ohms

5

4

3

2

1

10

9

8

7

6

ACX02413 AE

<FRONT>

ACX00538 AC

<REAR>

DOOR

TSB Revision

BODY

42-38

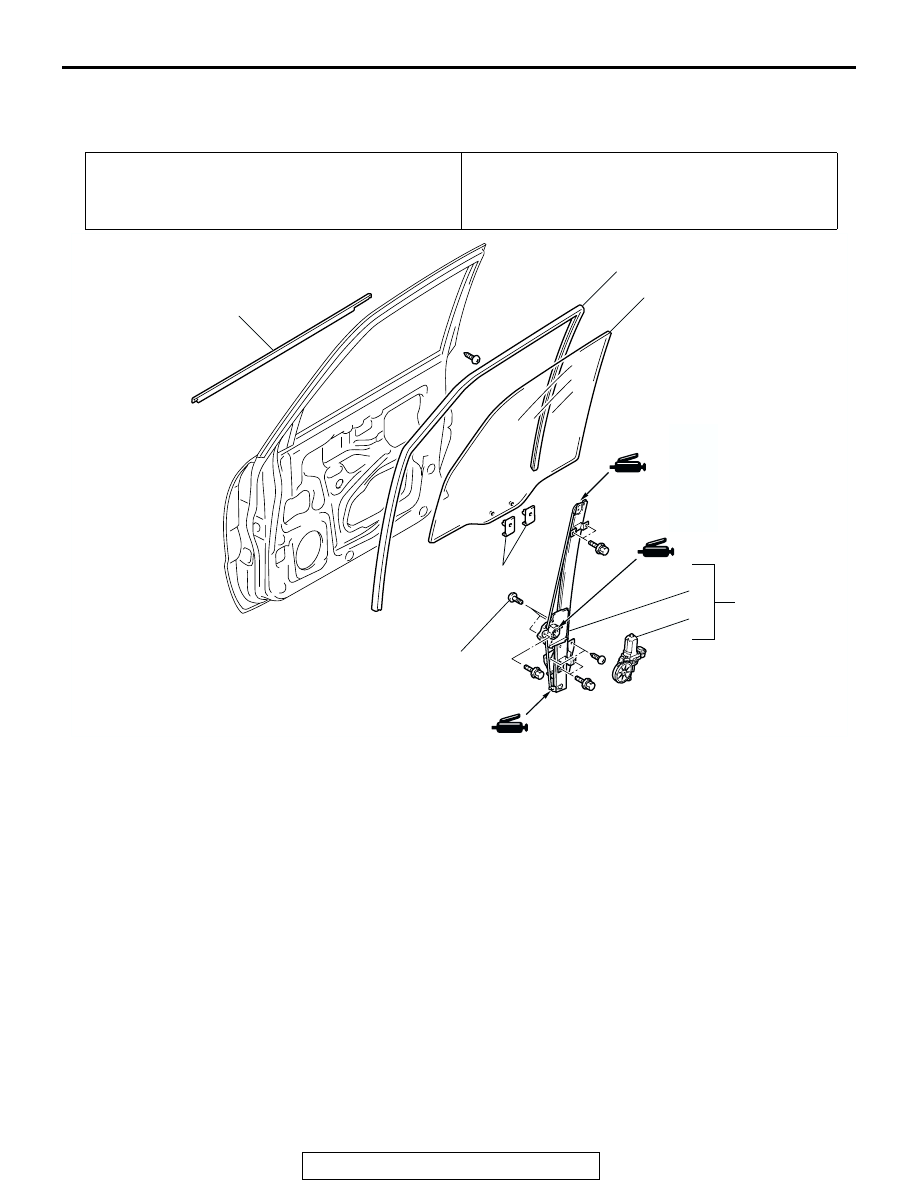

DOOR GLASS AND REGULATOR

REMOVAL AND INSTALLATION

M1429001300360

Pre-removal Operation
• Door Trim and Waterproof Film Removal (Refer to

P.42-31

.)

Post-installation Operation
• Door Window Glass Adjustment (Refer to

P.42-27

.)

• Door Trim and Waterproof Film Removal (Refer to

P.42-31

.)

AC308863

1

2

3

4

6

7

AB

5

5.4 ± 1.4 N·m
48 ± 13 in-lb

<FRONT DOOR>

DOOR WINDOW GLASS REMOVAL
STEPS
1. DOOR BELT LINE MOLDING

ASSEMBLY

2. POWER WINDOW GLASS

RUNCHANNEL

3. DOOR WINDOW GLASS
4. GLASS HOLDER

FRONT WINDOW REGULATOR
ASSEMBLY REMOVAL STEPS
5. POWER WINDOW REGULATOR

AND MOTOR ASSEMBLY

6. POWER WINDOW MOTOR

ASSEMBLY

7. POWER WINDOW REGULATOR

ASSEMBLY
