RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-261

.

CIRCUIT OPERATION
The RV meter calculates the drive range, based on
the residual fuel quantity signal from the fuel level
sensor, receiving the fuel injection quantity data from
the power train control module.

.

TECHNICAL DESCRIPTION (COMMENT)
When the abnormal vibration of fuel gage pointer in
the combination meter is found, the fuel level sensor
is considered to be failed.

.

TROUBLESHOOTING HINTS

• Malfunction of the fuel level sensor

• Damaged harness wires and connectors

.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

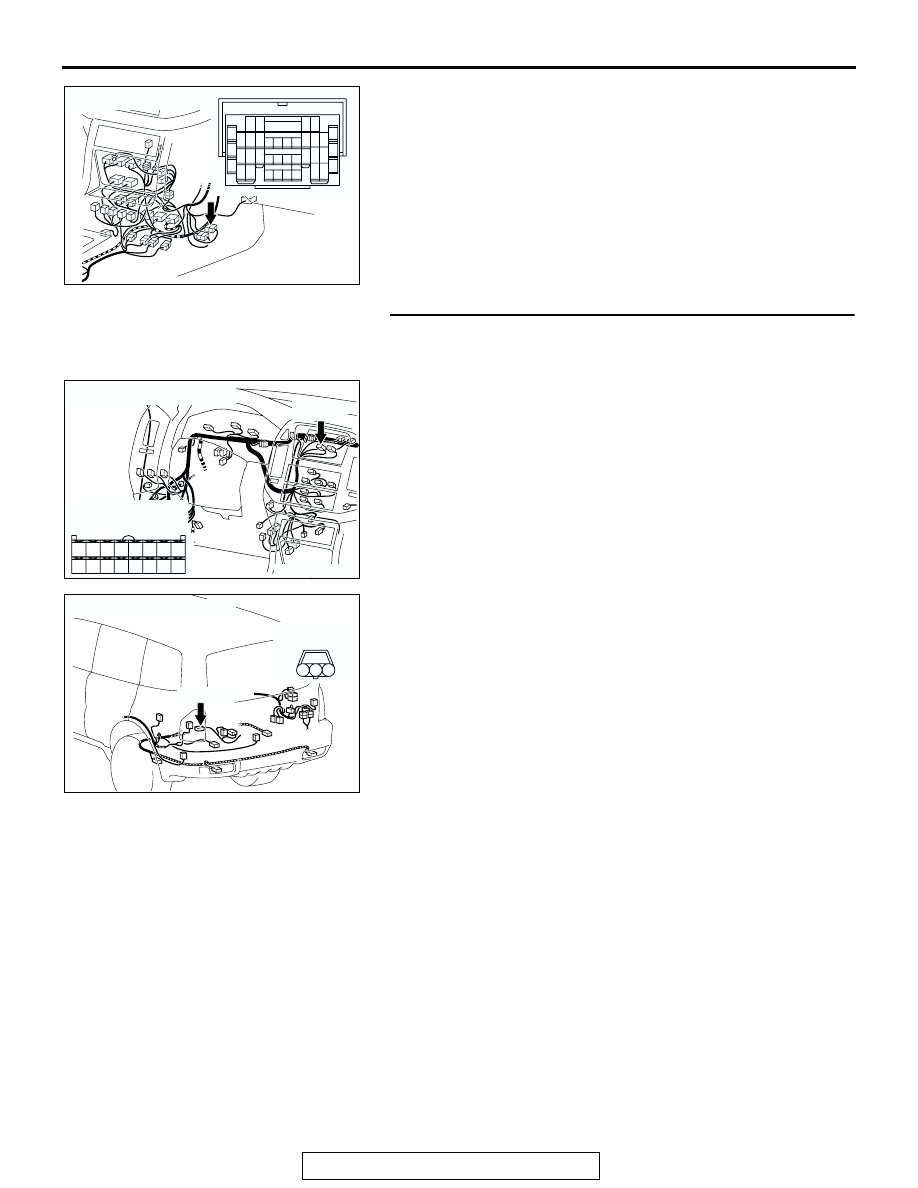

AC204170

CONNECTORS : D-07, D-08, D-29

DL

D-08(B)

D-07(B)

D-29

AC204171

CONNECTORS : D-111, D-134

AV

D-134(GR)

D-111

AC204176

CONNECTOR: E-111

AK

AC204178

CONNECTOR : F-07

AO

F-07(B)

AC204179

CONNECTOR : G-03

BB

G-03(B)

RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-262

STEP 1. Using scan tool MB991958, check the MFI system
diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to "LOCK" (OFF) position before connect-
ing or disconnecting scan tool.

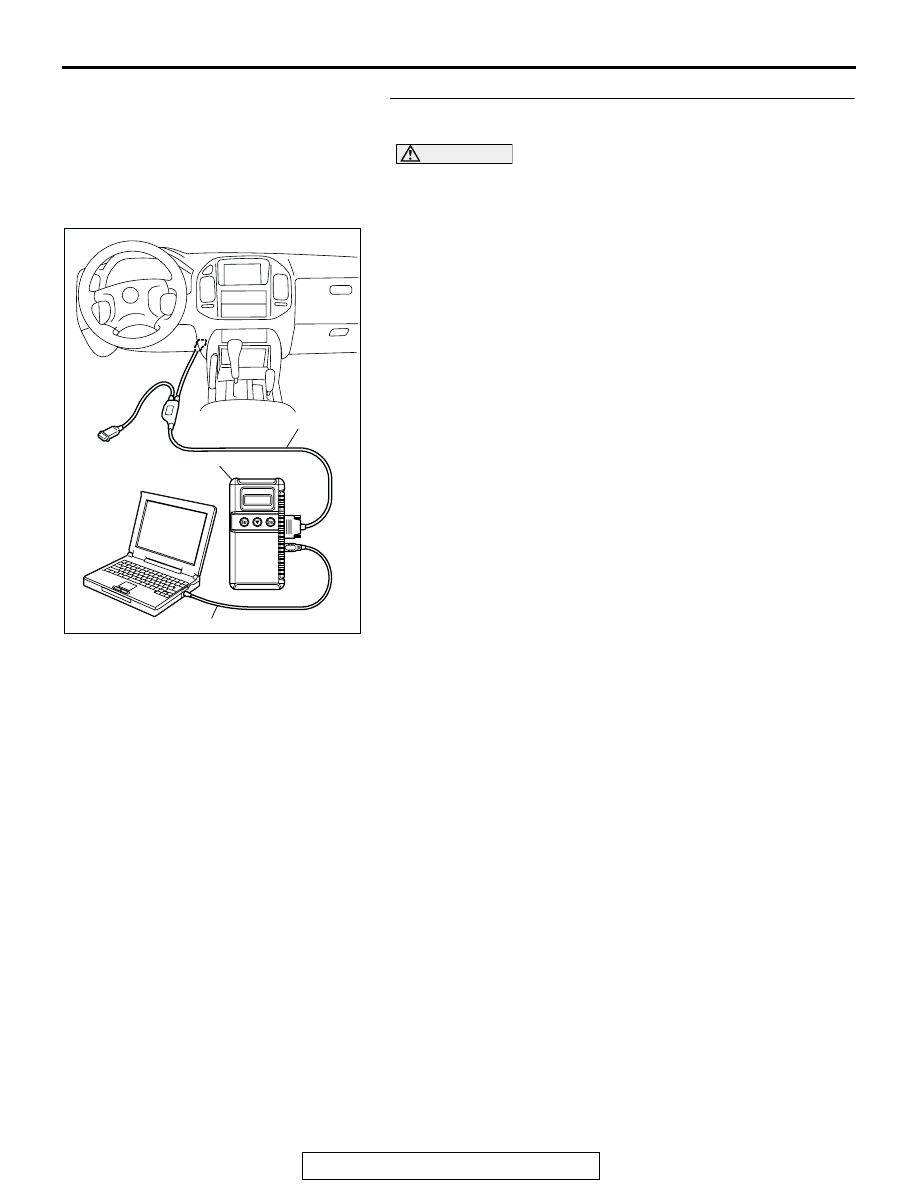

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch "ON" position.
(3) Check the MFI system diagnostic trouble code.
Q:  Are MFI system-related DTC(s) set to the MFI system?

YES : Refer to GROUP 13A, Multiport Fuel Injection (MFI)

Diagnosis

P.13A-26

.

NO :  Go to Step 2.

AC306409AF

MB991911

MB991824

MB991827

RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-263

STEP 2. Check the RV meter connector D-08 and
powertrain control module connector D-134 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Are RV meter connector D-08 and powertrain control

module connector D-134 in good condition?
YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 3. Check the harness wires between RV meter
connector D-08 (terminal 15) and powertrain control
module connector D-134 (terminal 74).

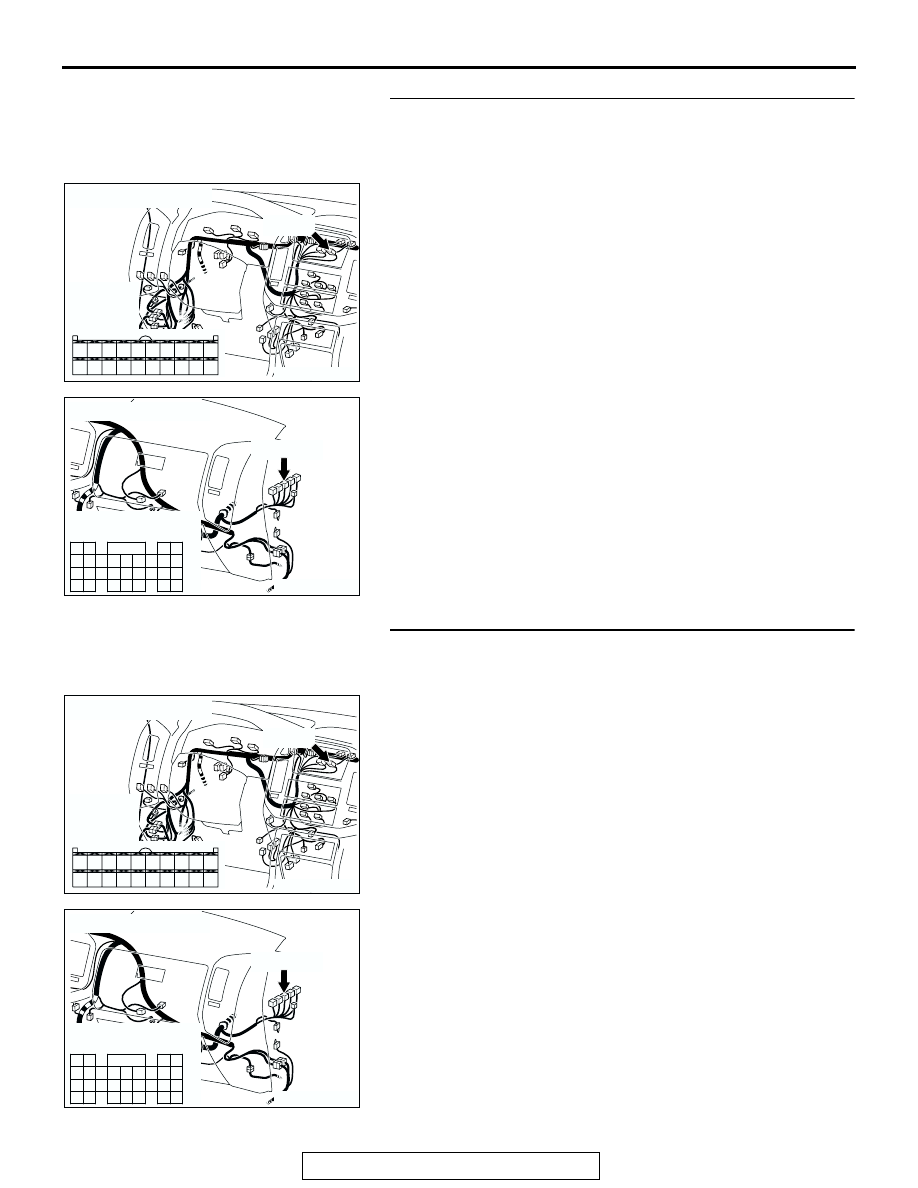

AC204170

CONNECTOR : D-08

AE

D-08(B)

HARNESS
SIDE

D-08(B)

1

3

4

2

12

1413

11

6

7

8

10 9

18

19

20

16

17

5

15

AC204171

CONNECTOR : D-134

D-134(GR)

D-134(GR)

AT

HARNESS SIDE

80

87

73

66

67

65
74

81

75

82

6261

72

68

69

70

71

78

85

77

8483

76

79

86

63

64

8988

AC204170

CONNECTOR : D-08

AE

D-08(B)

HARNESS
SIDE

D-08(B)

1

3

4

2

12

1413

11

6

7

8

10 9

18

19

20

16

17

5

15

AC204171

CONNECTOR : D-134

D-134(GR)

D-134(GR)

AT

HARNESS SIDE

80

87

73

66

67

65
74

81

75

82

6261

72

68

69

70

71

78

85

77

8483

76

79

86

63

64

8988

RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-264

NOTE: After inspecting intermediate connector E-111 inspect
the wires. If intermediate connector E-111 is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

.

Q: Are the harness wires between RV meter connector

D-08 (terminal 15) and powertrain control module
connector D-134 (terminal 74) in good condition?
YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

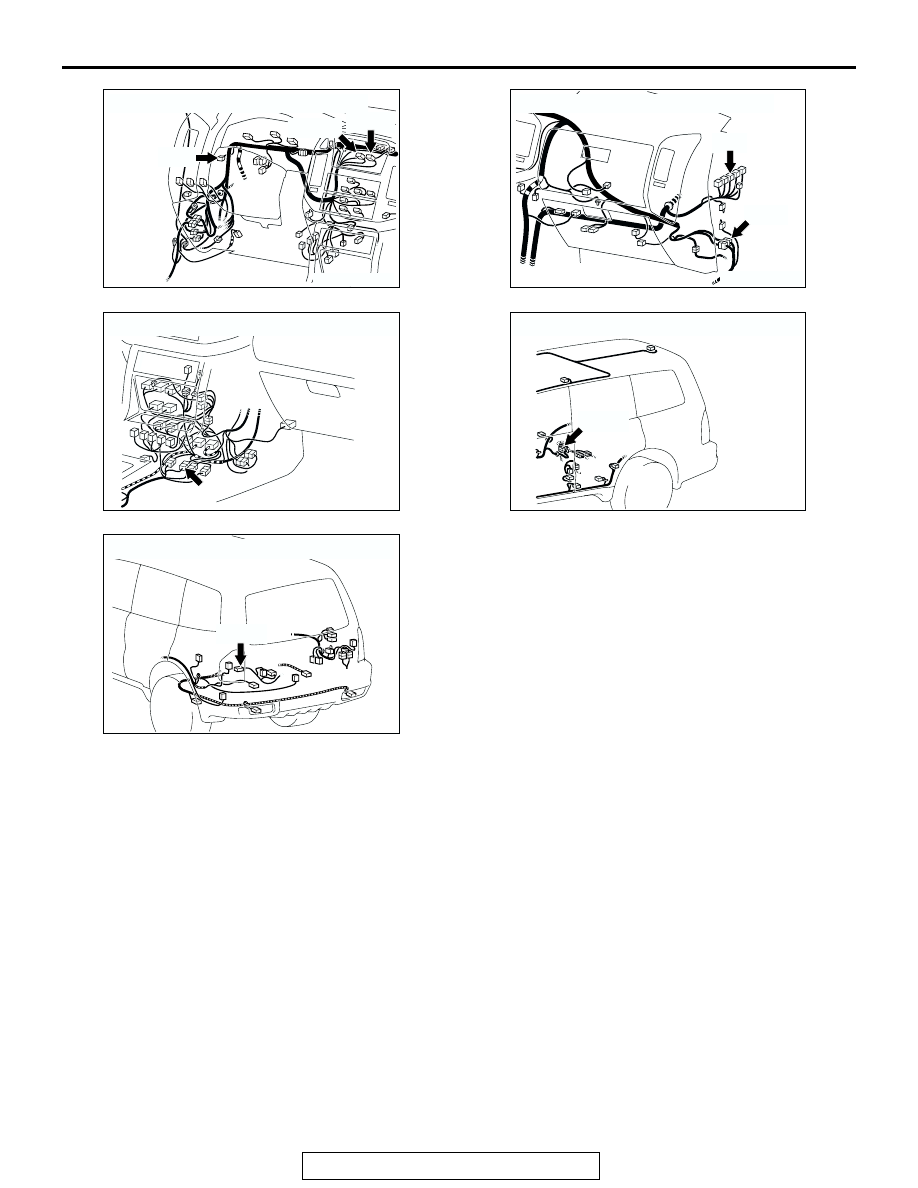

STEP 4. Check the RV meter connected D-07 and fuel level
sensor connector G-03 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

Q: Is the RV meter connected D-07 and fuel level sensor

connector G-03 in good condition?
YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC204176

CONNECTOR : E-111

BF

15

4

14

37

36

26 27

12

11

35

34

23 24

3

13

25

9

2

8

32

20 21

6

5

17

29

30

18

1

7

19

31

10

22

33

16

28

38

AC204170

CONNECTOR : D-07

CT

HARNESS SIDE

D-07(B)

D-07(B)

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

AC204179

CONNECTOR : G-03

AU

G-03(B)

G-03(B)

HARNESS
SIDE

2

3

1
