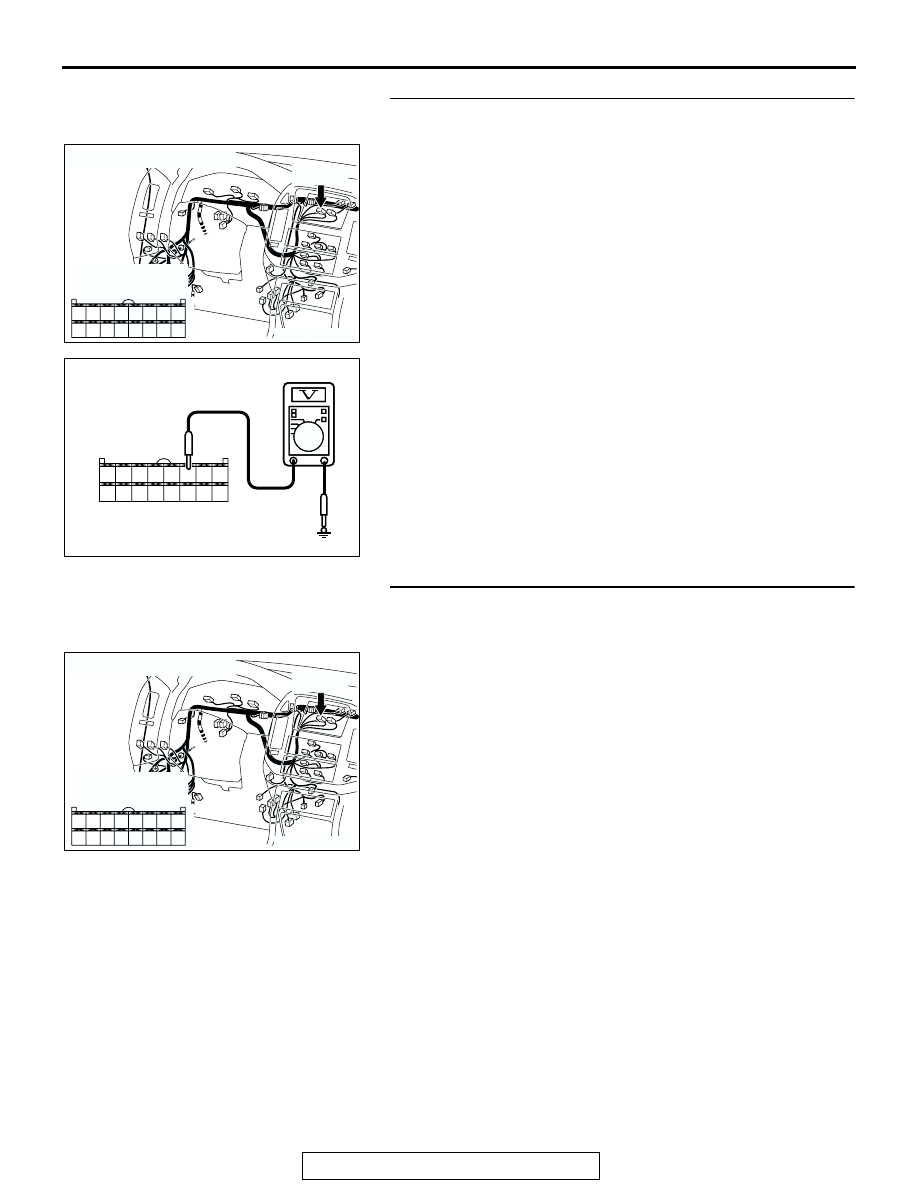

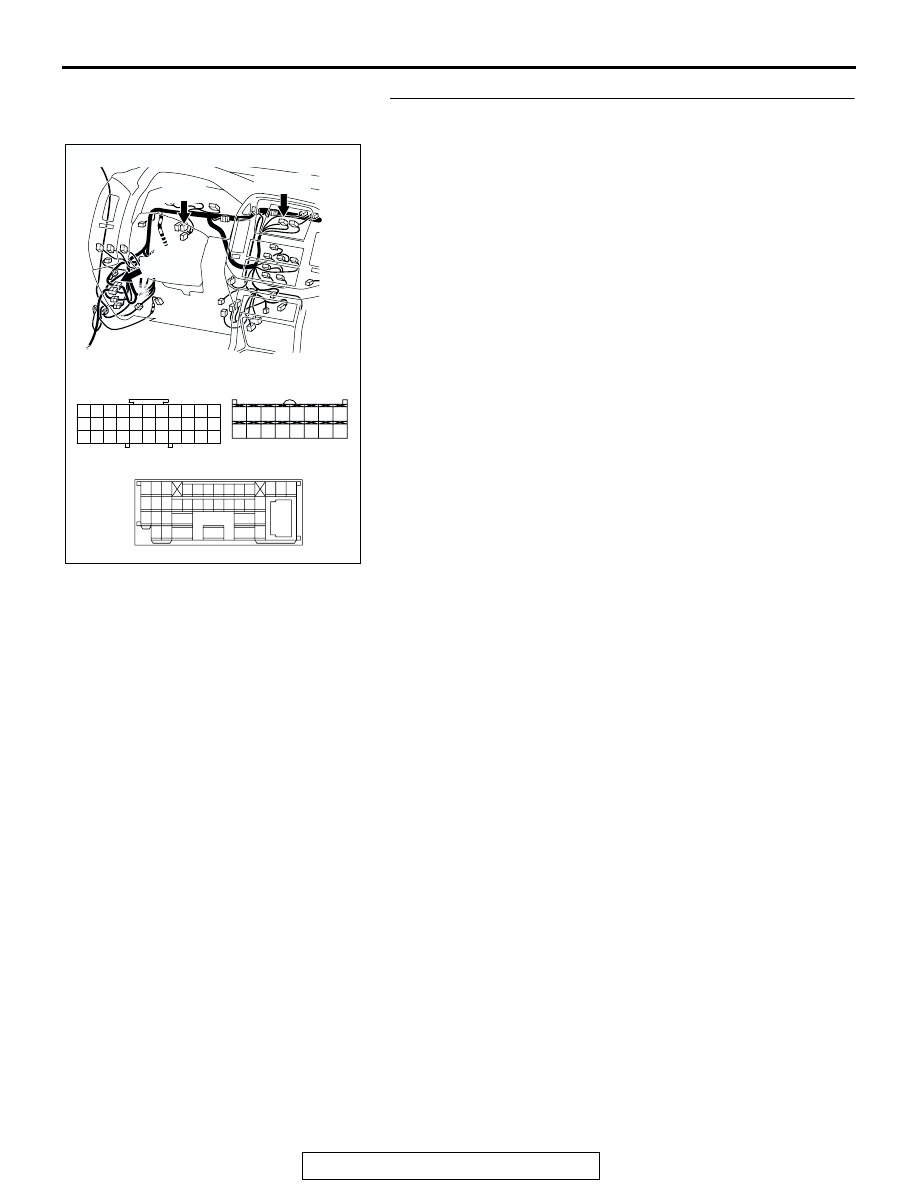

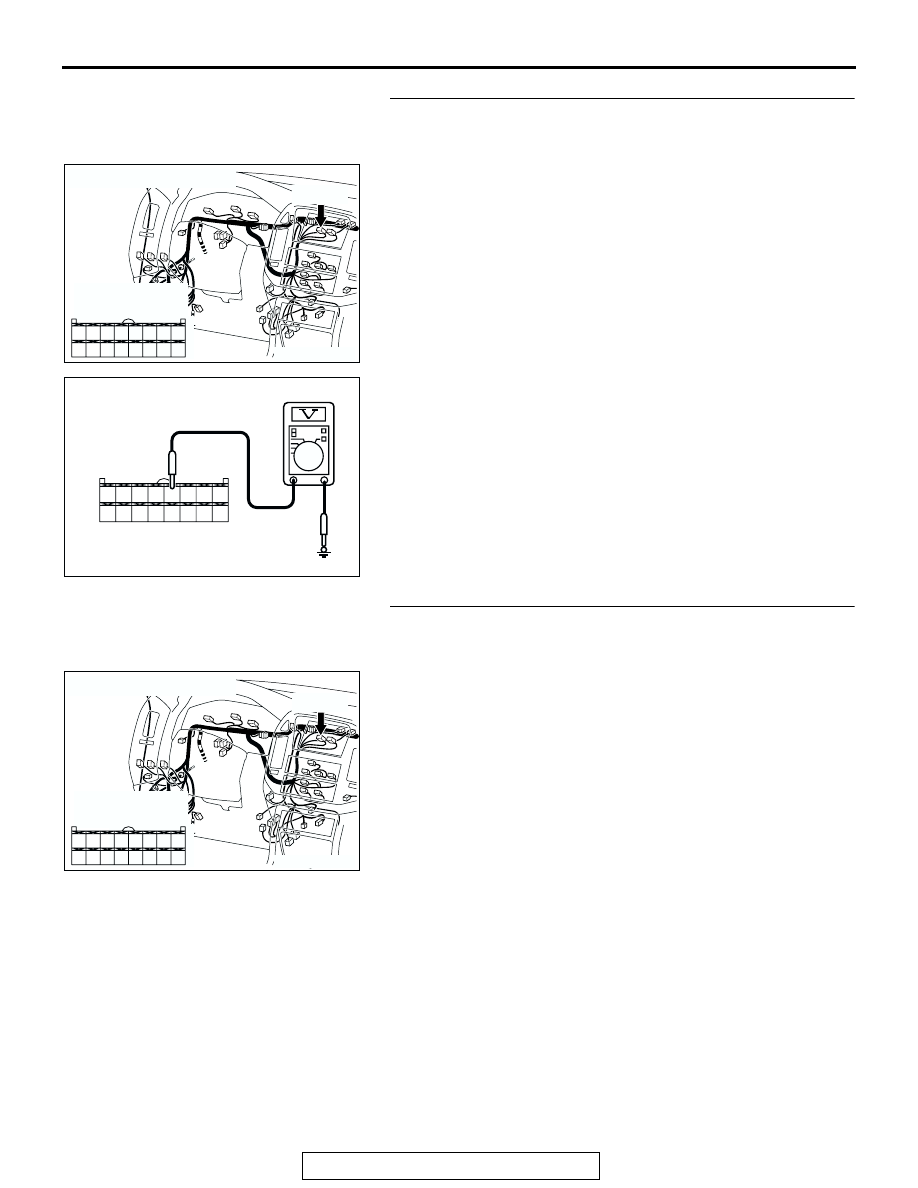

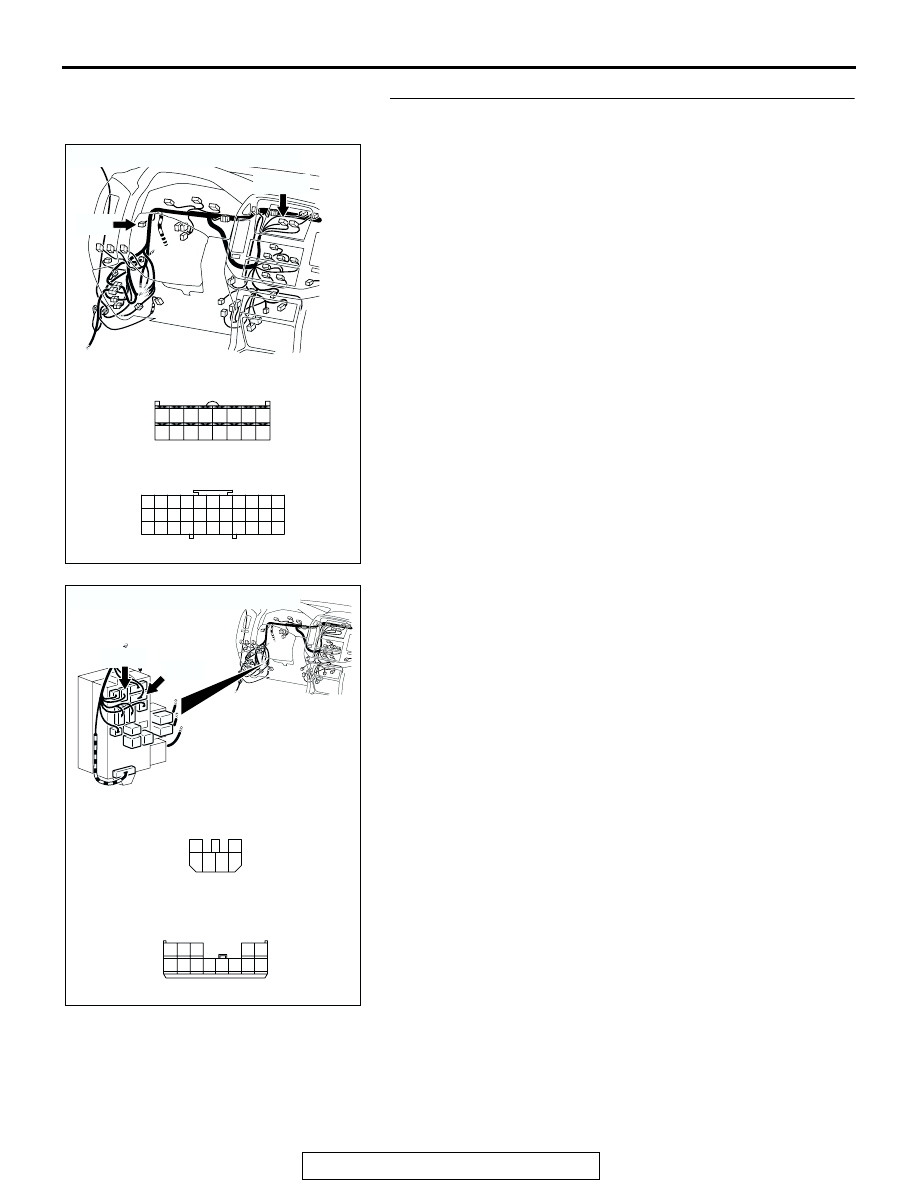

RV METER TSB Revision CHASSIS ELECTRICAL 54A-253 STEP 4. Check the RV meter power supply circuit (battery) (1) Do not disconnect the RV meter connector D-07. (2) Measure the voltage between terminal 26 and ground by backprobing. Q: Is the voltage approximately 12 volts (battery positive voltage)? STEP 5. Check RV meter connector D-07 for loose, Q: Is RV meter connector D-07 in good condition? YES : Go to Step 6. Connector Inspection . The RV meter should work normally. AC204170 CONNECTOR : D-07 CT HARNESS SIDE D-07(B) D-07(B) 22 23 30 31 25 26 33 34 32 24 28 3635 27 29 21 AC204738 28 26 34 27 35 25 33 23 24 32 36 22 30 21 29 31 AC204738 DU HARNESS SIDE: D-07 AC204170 CONNECTOR : D-07 CT HARNESS SIDE D-07(B) D-07(B) 22 23 30 31 25 26 33 34 32 24 28 3635 27 29 21 |
