VIDEO ENTERTAINMENT SYSTEM (VES)

TSB Revision

CHASSIS ELECTRICAL

54A-233

<CONNECTOR F-37>

SPECIAL TOOL

M1546201100036

TERMINAL
NO.

INPUT/
OUTPUT

SIGNAL
SYMBL

TERMINAL
VOLTAGE
(V)

HARNESS DISCREPANCY

FAILURE
SYMPTOM DUE
TO HARNESS
DISCREPANCY

1

−

DVD

−VIDEO

−GND

−

−

−

−

2

Input

DVD

−VIDEO

−IN

0

− 1 Vp−p

(AC)

Open circuit

Short circuit

Image is not
displayed when the
DVD player is
played.

TOOL

TOOL NUMBER
AND NAME

REPLACED BY MILLER
TOOL NUMBER

APPLICATION

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222
Harness set
A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

General service tool
(jumper)

Making voltage and
resistance measurements
during troubleshooting

A: Connect pin contact

pressure inspection

B: Power circuit

inspection

C: Power circuit

inspection

D: Commercial tester

connection

MB991223

A

B

C

D

AC

VIDEO ENTERTAINMENT SYSTEM (VES)

TSB Revision

CHASSIS ELECTRICAL

54A-234

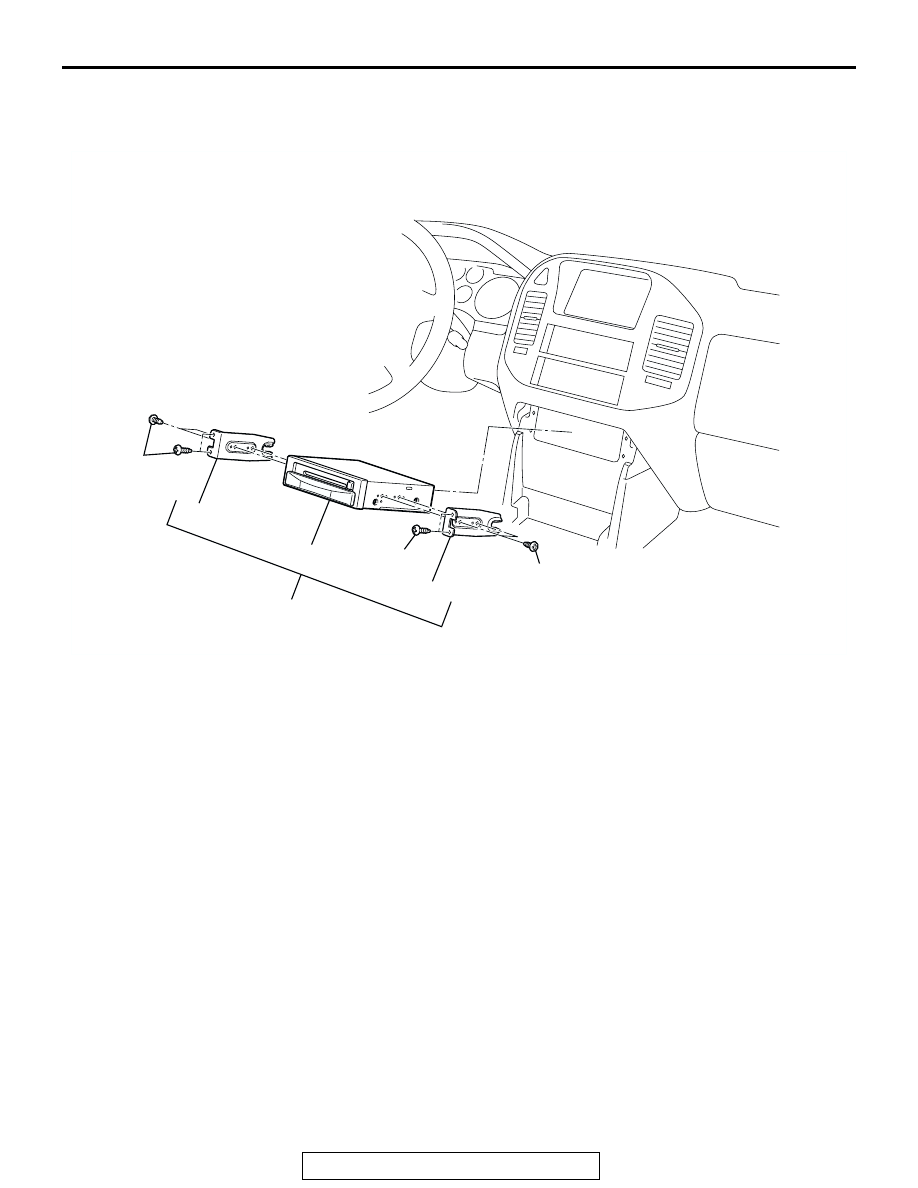

DVD PLAYER

REMOVAL AND INSTALLATION

M1546202500015

AC309099AB

2

3

3

1

1.4 ± 0.1 N·m
12 ± 1 in-lb

1.4 ± 0.1 N·m
12 ± 1 in-lb

1.4 ± 0.1 N·m
12 ± 1 in-lb

REMOVAL STEPS

• LOWER CENTER PANEL (REFER

TO GROUP 52A, FLOOR
CONSOLE ASSEMBLY

P.52A-7

).

1. DVD PLAYER ASSEMBLY

2. DVD PLAYER
3. BRACKET

REMOVAL STEPS (Continued)

VIDEO ENTERTAINMENT SYSTEM (VES)

TSB Revision

CHASSIS ELECTRICAL

54A-235

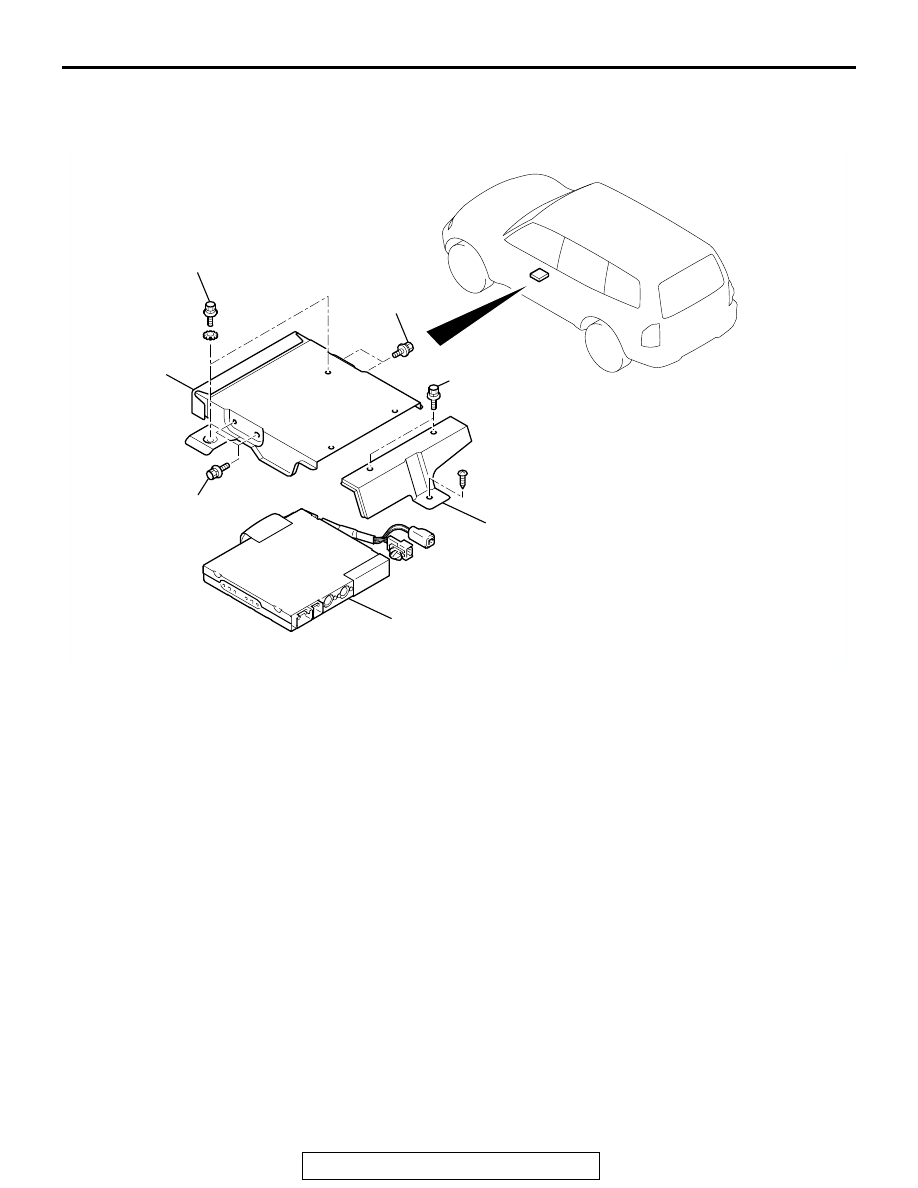

VIDEO CONTROLLER UNIT

REMOVAL AND INSTALLATION

M1546203000013

AC309072

AB

1

3

2

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

REMOVAL STEPS

• FRONT SEAT (LH) (REFER TO

GROUP 52A, FRONT SEAT
ASSEMBLY

P.52A-11

).

1. REAR VIDEO CONTROLLER

BRACKET

2. FRONT VIDEO CONTROLLER

BRACKET

3. VIDEO CONTROLLER UNIT

REMOVAL STEPS (Continued)

VIDEO ENTERTAINMENT SYSTEM (VES)

TSB Revision

CHASSIS ELECTRICAL

54A-236

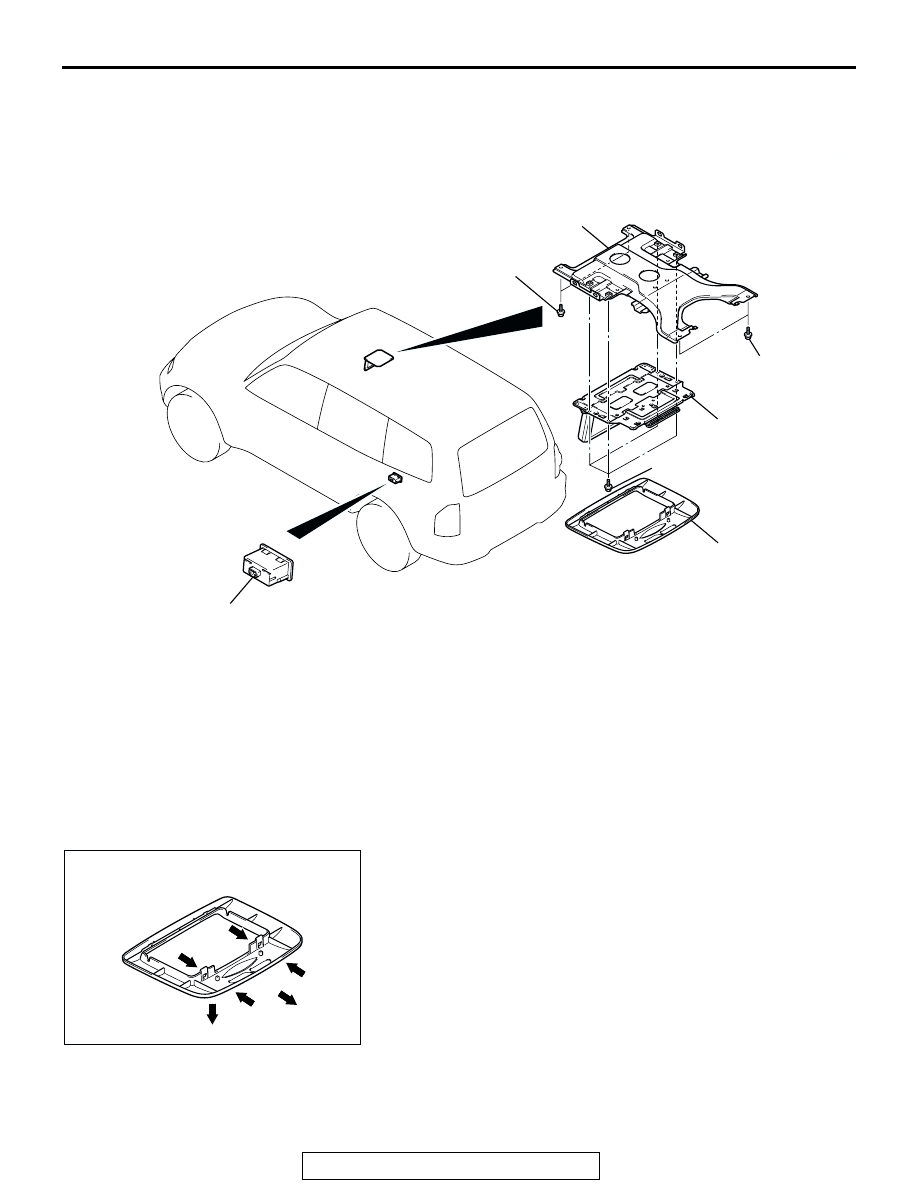

REAR DISPLAY

REMOVAL AND INSTALLATION

M1546202800016

REMOVAL SERVICE POINTS

.

<<A>> REAR DISPLAY BEZEL REMOVAL
Press the rear display bezel toward direction 1 and pull it
toward direction 2 while holding it pressed. Then remove the
bezel toward direction 3.

AC308987AC

1

2

3

4

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

REAR DISPLAY REMOVAL STEPS

<<A>>

1. REAR DISPLAY BEZEL
2. REAR DISPLAY UNIT
• HEADLINING (REFER TO GROUP

52A, HEADLINING

P.52A-10

).

3. REAR DISPLAY BRACKET

VTR ADAPTER REMOVAL STEPS

• LOWER QUARTER TRIM (REFER

TO GROUP 52A, TRIMS

P.52A-10

).

4. VTR ADAPTER

AC309563AB

1

1

1

1

2

3
