Mitsubishi Montero (2004+). Manual - part 558





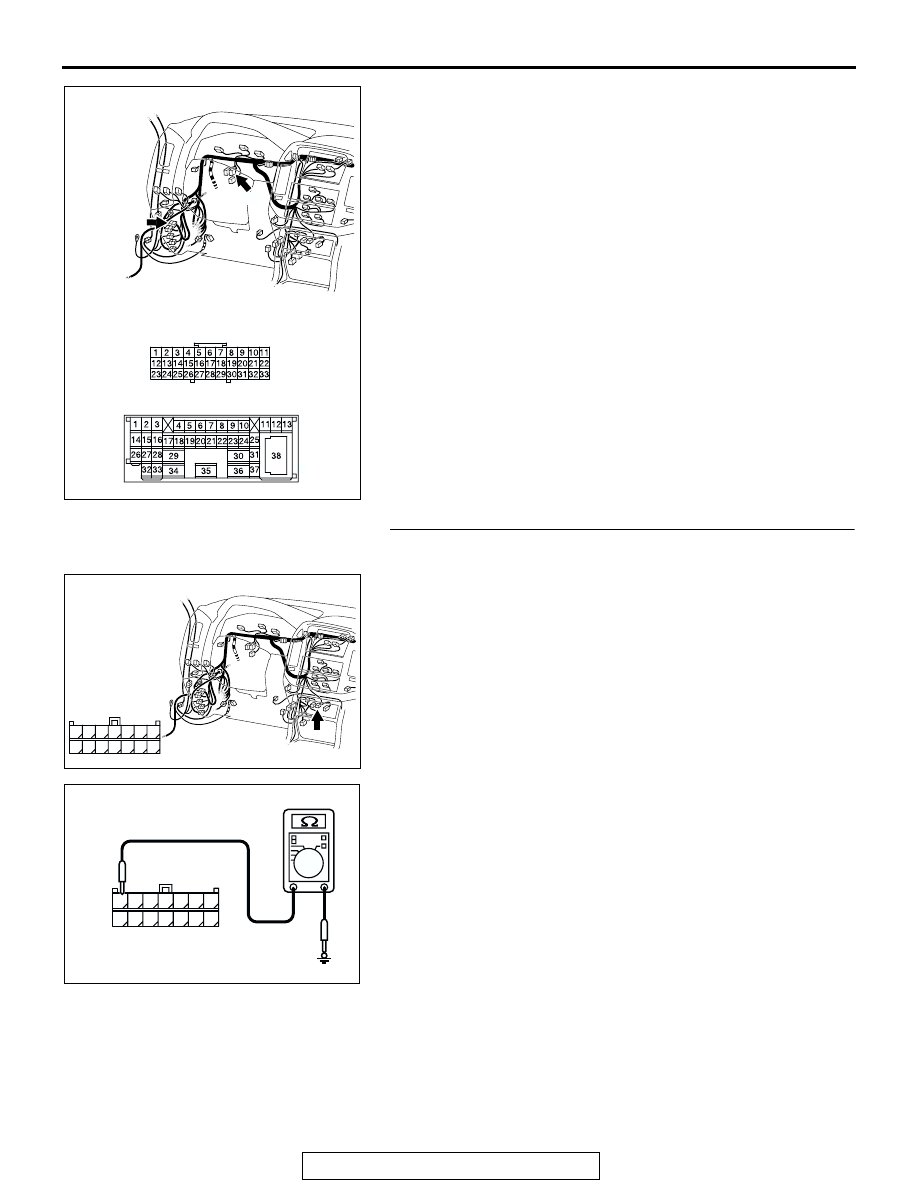

VIDEO ENTERTAINMENT SYSTEM (VES)

TSB Revision

CHASSIS ELECTRICAL

54A-201

NOTE: Also check joint connector (7) D-02, intermediate con-
nector D-28 for loose, corroded, or damaged terminals, or ter-
minals pushed back in the connector. If joint connector (7) D-02
or intermediate connector D-28 is damaged, repair or replace.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between DVD player connector

D-33 (terminal 14) and the fuse No.18 in good
condition?
YES :
Go to Step 6.
NO :  Repair the wiring harness. The rear display works

normally.

STEP 6. Measure the resistance at DVD player connector
D-33 in order to the ground circuit to the DVD player.

(1) Disconnect DVD player connector D-33, and measure at

the wiring harness side.

(2) Measure the resistance value between terminal 7 and

ground.

• The resistance should be 2 ohm or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 8.
NO :  Go to Step 7.

AC309208

HARNESS SIDE

D-02

D-28

AB

CONNECTORS: D-02, D-28

D-02

D-28

AC309207

AB

CONNECTOR: D-33

HARNESS SIDE

14

7

1

8

11

12

13

9

10

4

6 5

3 2

AC209364

CONNECTOR D-33
(HARNESS SIDE)

14

7

1

8

11

12

13

9

10

4

6 5

3 2

KN

VIDEO ENTERTAINMENT SYSTEM (VES)

TSB Revision

CHASSIS ELECTRICAL

54A-202

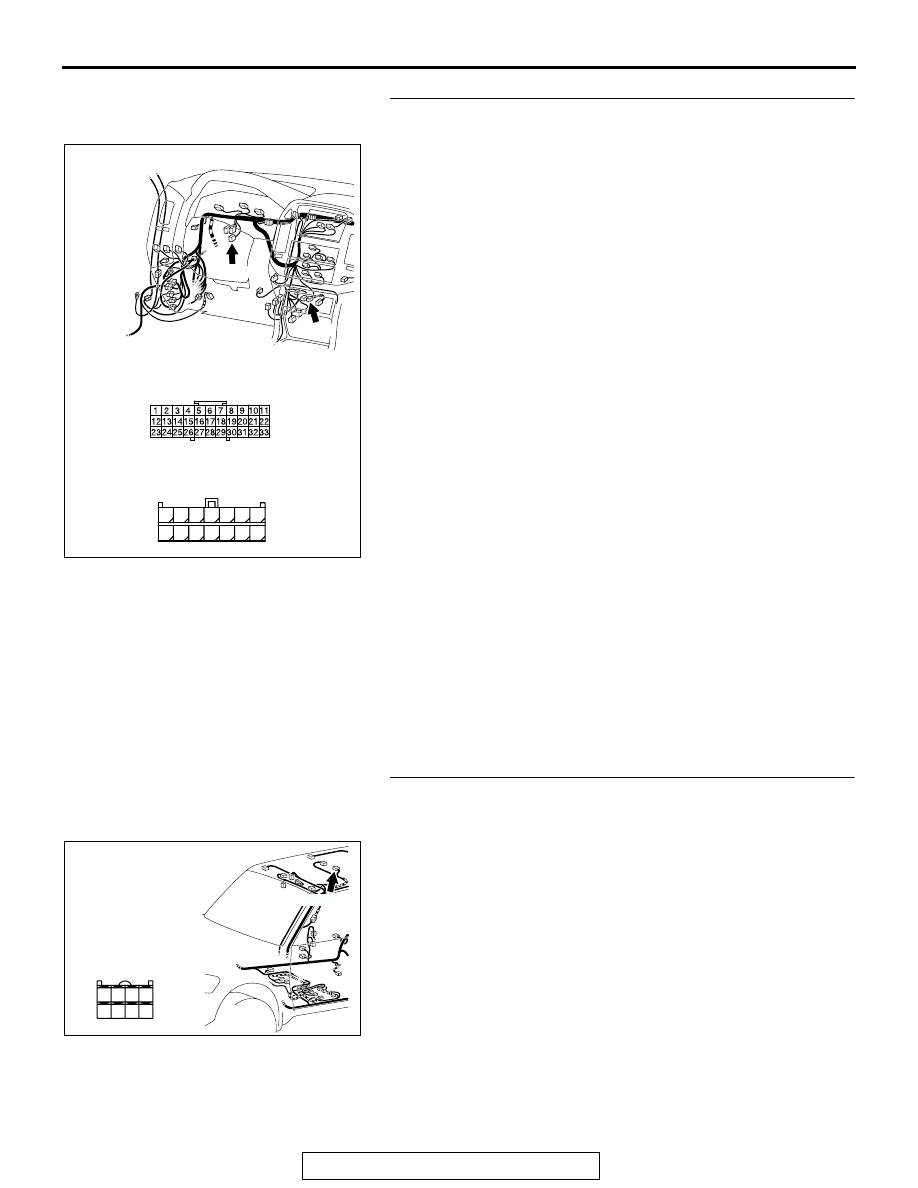

STEP 7. Check the wiring harness between DVD player
connector D-33 (terminal 7) and ground.

NOTE: Also check joint connector (8) D-30 for loose, corroded,
or damaged terminals, or terminals pushed back in the connec-
tor. If joint connector (8) D-30 is damaged, repair or replace.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between DVD player connector

D-33 (terminal 7) and ground in good condition?
YES :
Go to Step 8.
NO :  Repair the wiring harness. The rear display works

normally.

STEP 8. Check the rear display connector F-33 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is the rear display connector F-33 in good condition?

YES : Go to Step 9.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

rear display works normally.

AC309208

HARNESS SIDE

D-30

D-33

AC

CONNECTORS: D-30, D-33

D-30

D-33

14

7

1

8

11

12

13

9

10

4

6 5

3 2

HARNESS SIDE

AC309223

AB

CONNECTOR: F-33

HARNESS SIDE

F-33 (B)

21

22

23

24

25

26

27

28

VIDEO ENTERTAINMENT SYSTEM (VES)

TSB Revision

CHASSIS ELECTRICAL

54A-203

STEP 9. Measure at rear display connector F-33 in order to
power supply circuit to rear display (ACC).
(1) Disconnect rear display connector F-33, and measure at

the wiring harness side.

(2) Turn the ignition switch to "ACC" position.

(3) Measure the voltage between terminal 28 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Go to Step 11.
NO :  Go to step 10.

STEP 10. Check the wiring harness between rear display
connector F-33 (terminal 28) and ignition switch (ACC).

AC309223

AB

CONNECTOR: F-33

HARNESS SIDE

F-33 (B)

21

22

23

24

25

26

27

28

AC209365

21

22

23

24

25

26

27

28

CONNECTOR F-33
(HARNESS SIDE)

JB

AC309223

AB

CONNECTOR: F-33

HARNESS SIDE

F-33 (B)

21

22

23

24

25

26

27

28

VIDEO ENTERTAINMENT SYSTEM (VES)

TSB Revision

CHASSIS ELECTRICAL

54A-204

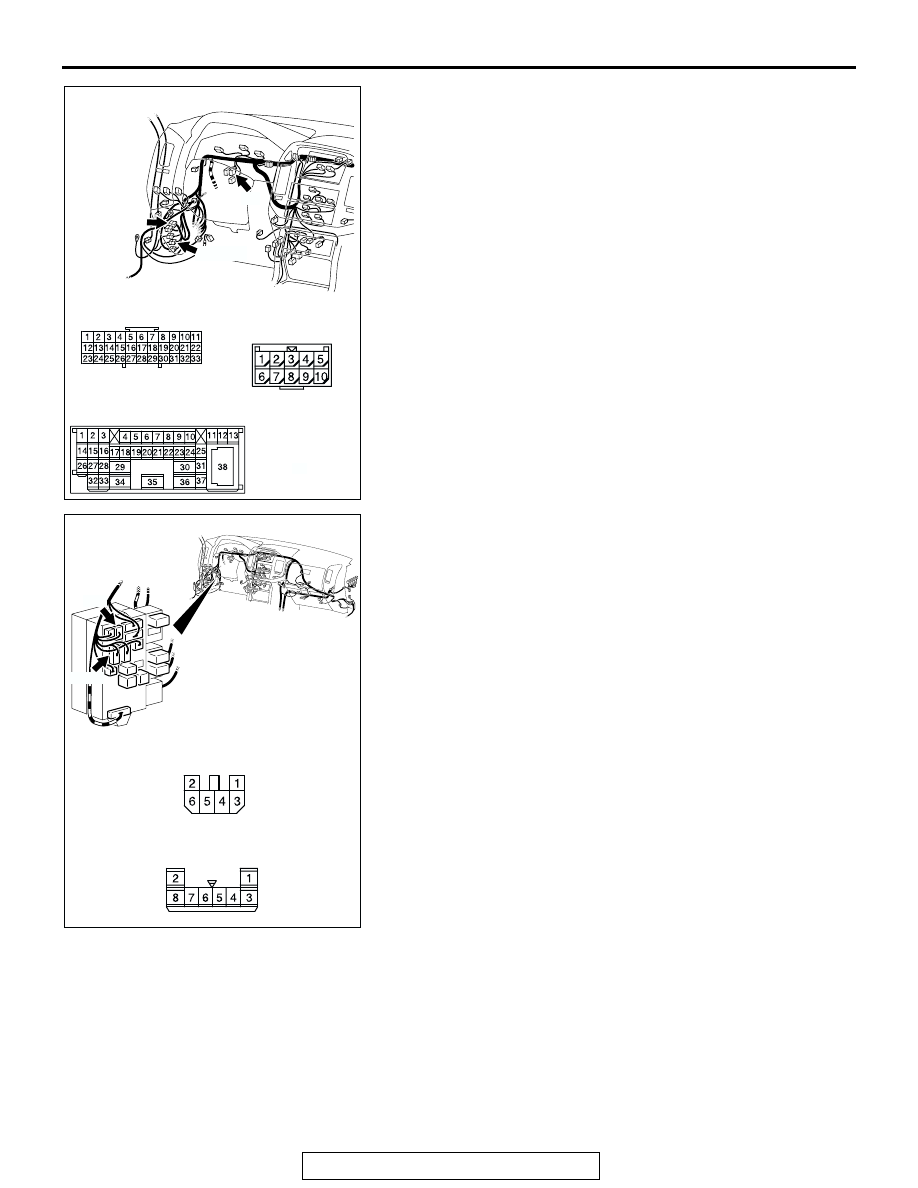

NOTE: Also check joint connector (7) D-02, intermediate con-
nector D-28 and D-139 and junction block connector D-208 and
D-221 for loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If joint connector (7) D-02 or
intermediate connector D-28 and D-139 or junction block con-
nector D-208 and D-221 is damaged, repair or replace. Refer to
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear display connector

F-33 (terminal 28) and the ignition switch (ACC) in good
condition?
YES :
Go to Step 11.
NO :  Repair the wiring harness. The rear display works

normally.

AC309208

HARNESS SIDE

D-02

D-28

AD

CONNECTORS: D-02, D-28, D-139

D-02

D-28

D-139

D-139

AC309218

CONNECTORS: D-208, D-221

JUNCTION BLOCK
(FRONT VIEW)

D-221

D-208

HARNESS SIDE

D-208

D-221

HARNESS SIDE

AB
