Mitsubishi Montero (2004+). Manual - part 556

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-193

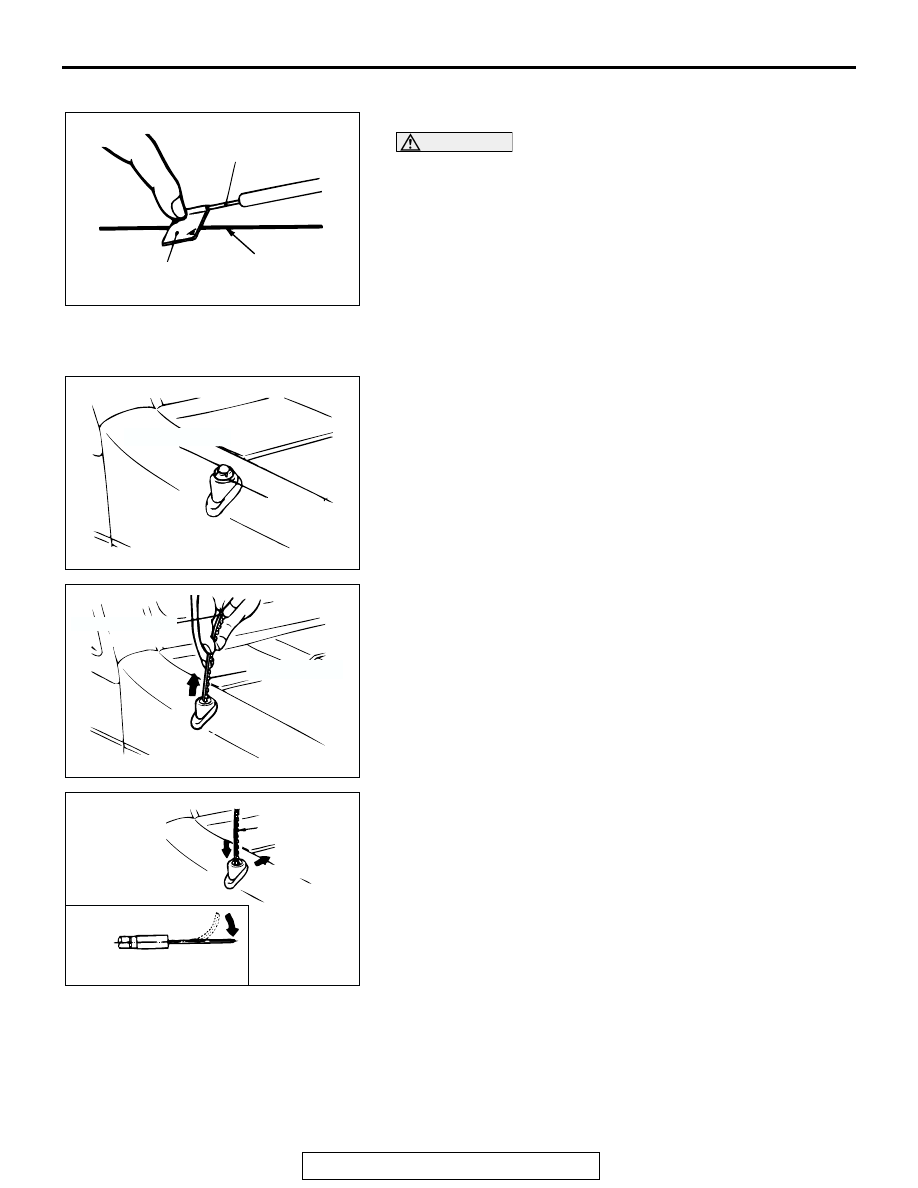

GLASS ANTENNA CHECK

1. Wrap an aluminum foil around the tester probe a shown.

CAUTION

Be careful not to damage the print wire.
2. Check continuity while pressing the aluminum foil along the

antenna print wire.

ANTENNA POLE REPLACEMENT

M1544000900125

1. Remove the ring nut.

2. After setting the ignition switch to "ACC" or "ON," turn the

radio switch on. Extend the antenna pole and remove it
together with the rack cable.

3. Pull the antenna out the farthest end.

NOTE: If the motor end side of the rack cable is bent,
straighten it out.

4. Face the teeth side of the rack cable toward the engine

compartment, and feed the rack cable into the motor
assembly.

ACX01954 AB

TESTER PROBE

ALUMINUM FOIL

PRINT WIRE

ACX01953 AB

RING NUT

ARENNA POLE

ACX01949 AB

RACK CABLE

ANTENNA POLE

ACX01950

RACK CABLE

RACK CABLE
TEETH

ENGINE
COMPARTMENT
SIDE

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-194

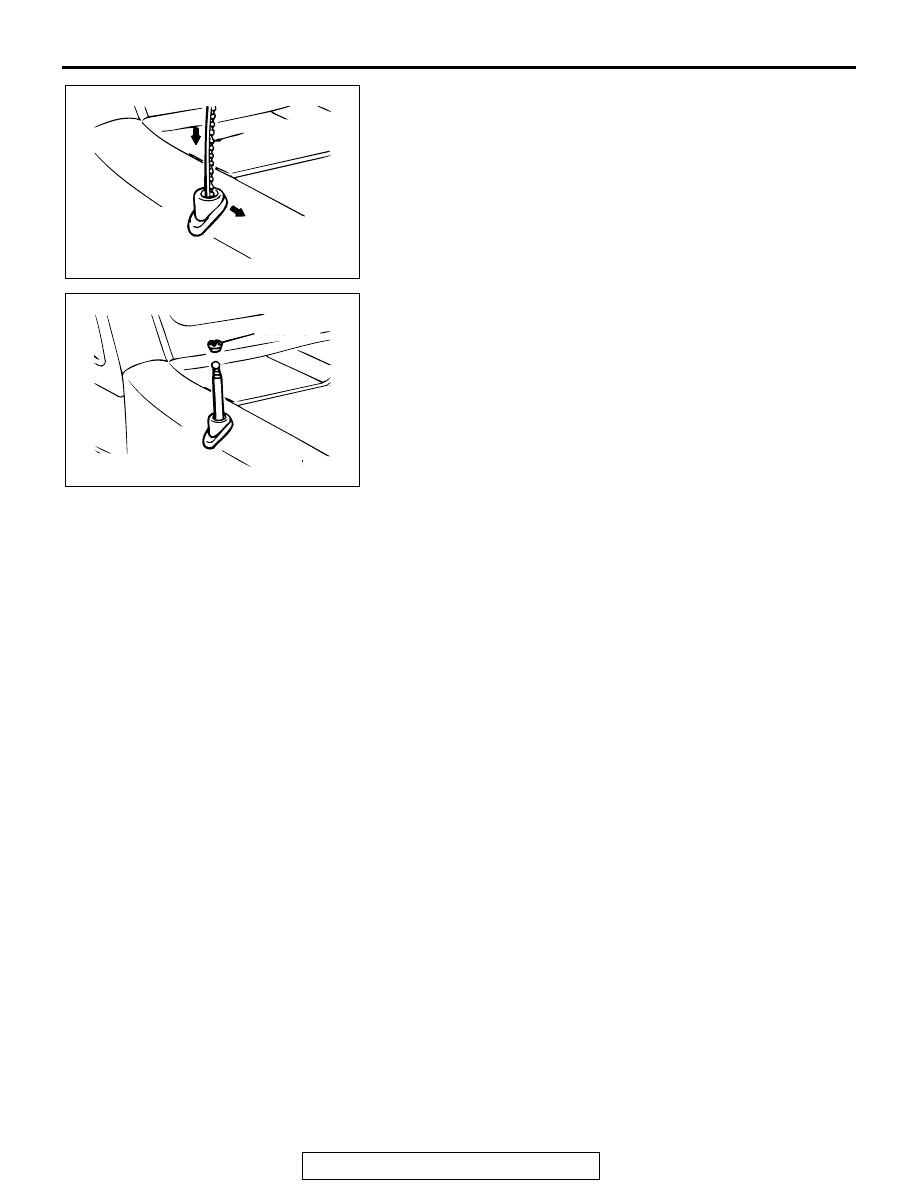

5. Turn the teeth side of the rack cable toward the front of the

vehicle (90 degree angle to the right), and engage the rack
cable with the motor gears.

6. Pull lightly on the rack cable. If there is no resistance and it

comes out, it is not engaged with the motor gears. Check
that the end of the rack gear is not bent again, and then
repeat steps (3) and (4) above again.

7. Set up the antenna pole vertically, and turn the radio off to

wind in the rack cable. The antenna pole will e pulled into
the motor antenna as the rack cable is wound in.

8. After tightening the ring nut, turn the radio on and off and

heck the operation of the antenna pole.

ACX01952 AC

RACK CABLE

VEHICLE FRONT
DIRECTION

ACX01951AB

RING NUT

VIDEO ENTERTAINMENT SYSTEM (VES)

TSB Revision

CHASSIS ELECTRICAL

54A-195

VIDEO ENTERTAINMENT SYSTEM (VES)

GENERAL DESCRIPTION

M1543000100386

The VES enables images from a DVD player to be
watched on a rear-seat display. It also allows other
commercially available video equipment and game
machines to be connected.

BASIC OPERATIONS

This chapter describes basic operations for playing a
disc in the DVD player and for playback from an
external device connected to the auxiliary input
jacks. For other operations, please refer to the rele-
vant chapters.

• DVD player

• Auxiliary input jacks (connecting a commercially

available video device or game machine)

VIDEO ENTERTAINMENT SYSTEM DIAGNOSIS

INTRODUCTION

M1546201900010

The video entertainment system consists of the radio
and CD player, the DVD player, the video controller
unit, the rear display and the VTR adapter.

All inputs, power and grounds must be confirmed as
correct before the video entertainment system can
be condemned.

TROUBLESHOOTING STRATEGY

M1546202000010

Use these steps to plan your diagnostic strategy. Fol-
low through with each step to ensure that you have
exhausted all possible methods of finding a combina-
tion meter fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find and repair the malfunction by following the

symptom chart.

4. Verify that the malfunction has been eliminated.

SYMPTOM CHART

M1546200300071

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

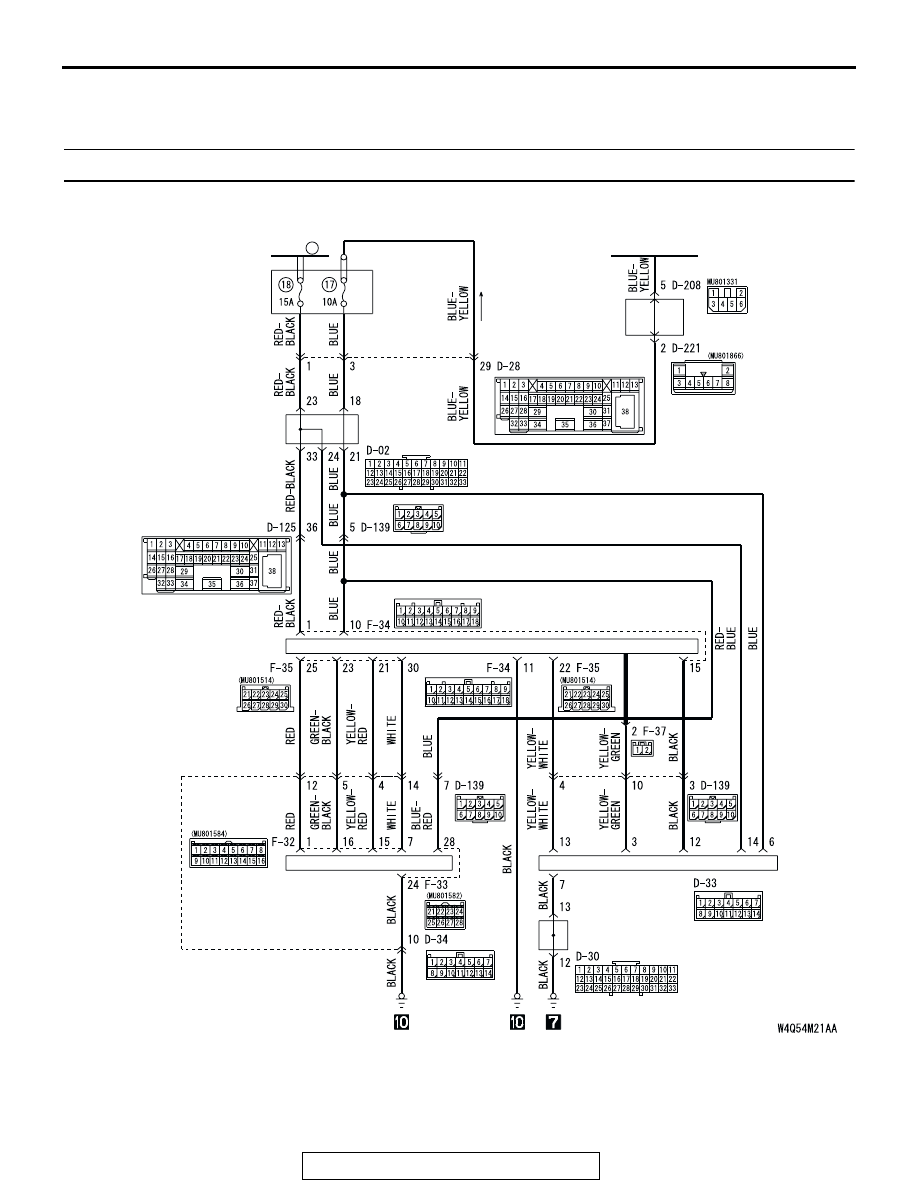

The rear display does not show any image at all.

P.54A-196
