RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-189

3. Check that the speaker, which is displayed on the display,

sounds (If the memory select "6" button is pressed, the
speaker will be changed).

4. If a button other than the memory select "6" button and

"EJECT" button (tape or CD) is pressed, or the ignition
switch is turned to "LOCK" (OFF) position, you will exit from
the speaker test mode.

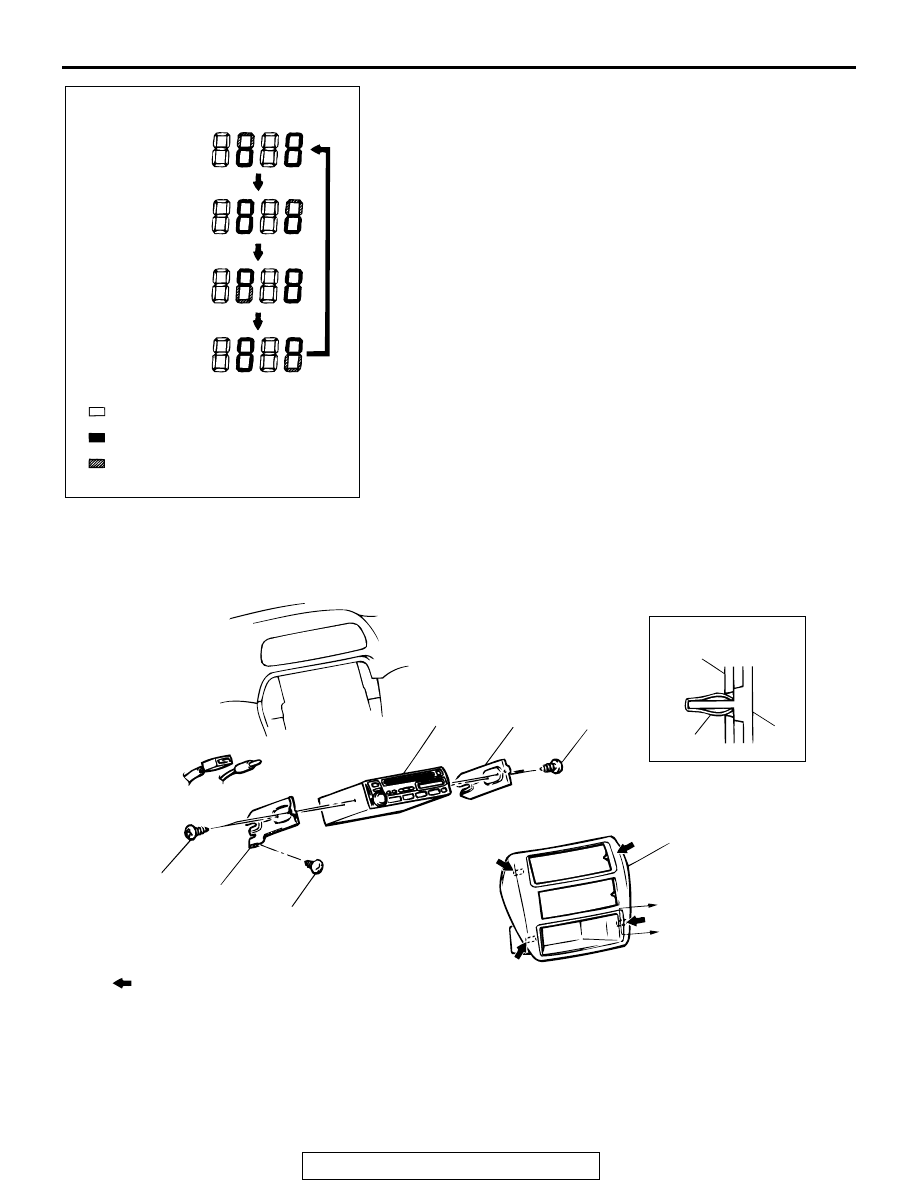

RADIO WITH CD PLAYER

REMOVAL AND INSTALLATION

M1544001100177

ACX01941

DOOR SPEAER (LH)
AND TWEETER (LH)

DOOR SPEAER (RH)
AND TWEETER (RH)

REAR SPEAKER (LH)

REAR SPEAKER (RH)

NOTE

: ILLUMINATES

: FLASHES

: OFF

AC

AC002923AC

NOTE
       :CLIP POSITION

CLIP

INSTRUMENT
PANEL ASSEMBLY

1.4 ± 0.1 N·m
12 ± 1 in-lb

1

1

SECTION A - A

A

A

2

2

3

1.4 ± 0.1 N·m
12 ± 1 in-lb

1.4 ± 0.1 N·m
12 ± 1 in-lb

RADIO REMOVAL STEPS

1.

CENTER PANEL ASSEMBLY

2.

RADIO BRACKET

3.

RADIO WITH CD PLAYER

RADIO REMOVAL STEPS (Continued)

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-190

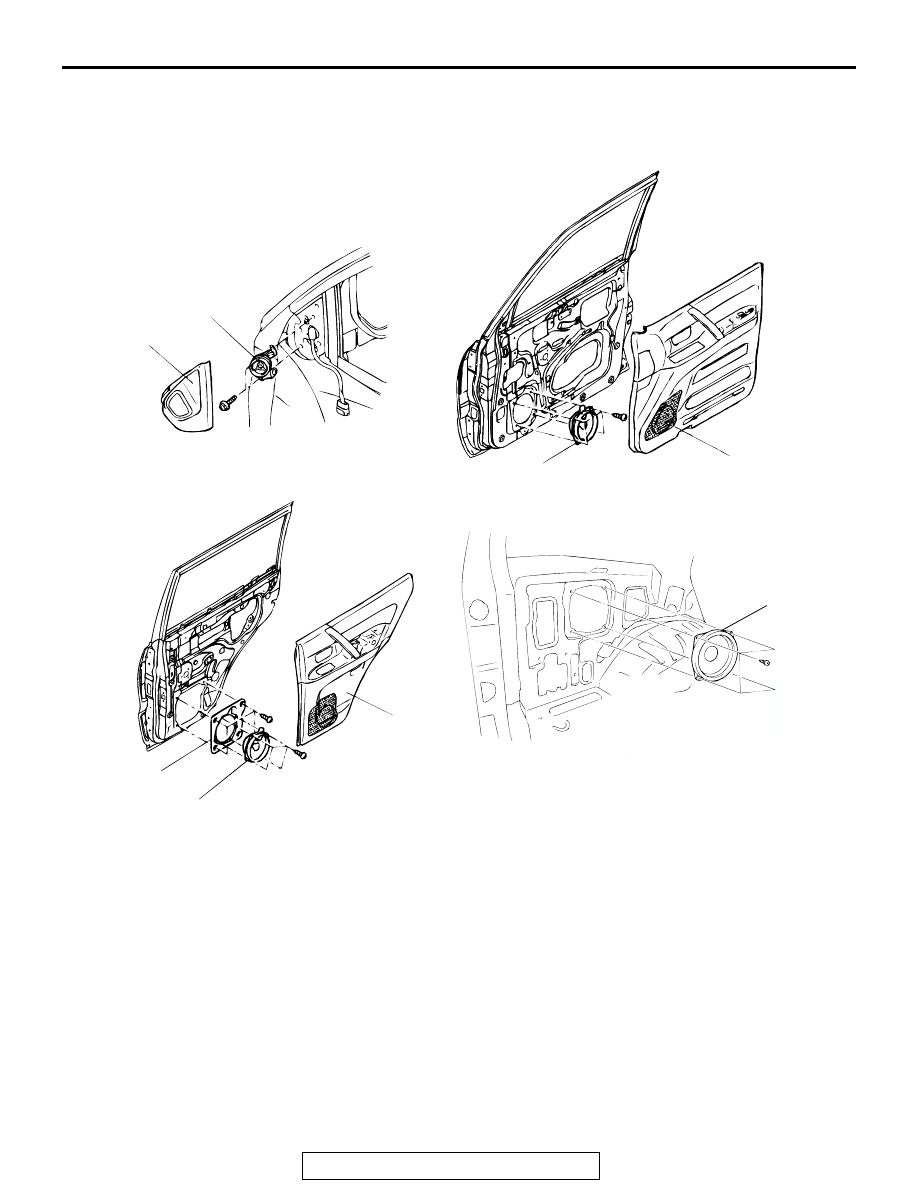

SPEAKER

REMOVAL AND INSTALLATION

M1544002600175

ACX01932 AB

1

2

3

4

5

6

7

8

TWEETER

FRONT DOOR SPEAKER

REAR DOOR SOEAKER

WOOFER

TWEETER REMOVAL STEPS

1.

DELTA INNER COVER

2.

TWEETER
FRONT DOOR SPEAKER REMOVAL
STEPS

3.

FRONT DOOR TRIM (REFER TO
GROUP 42, DOOR TRIM AND
WATERPROOF FILM

P.42-31

.)

4.

FRONT DOOR SPEAKER

REAR DOOR SPEAKER REMOVAL
STEPS

5

REAR DOOR TRIM (REFER TO
GROUP 42, DOOR TRIM AND
WATERPROOF FILM

P.42-31

.)

6.

REAR SPEAKER

7.

REAR SPEAKER BRACKET
WOOFER REMOVAL STEPS

LOWER QUARTER PANEL (REFER
TO GROUP 52A, TRIM

P.52A-8

.)

8.

WOOFER

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-191

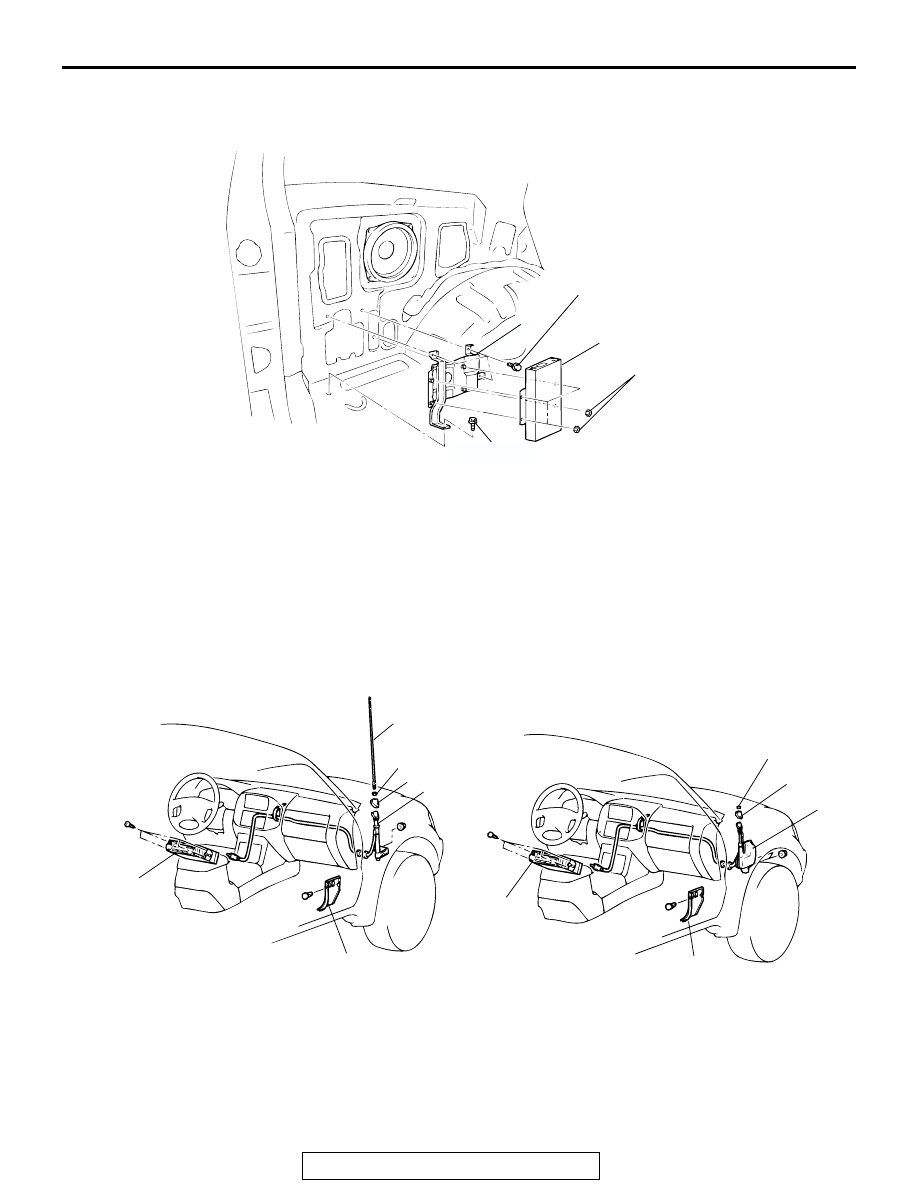

AMPLIFIER

REMOVAL AND INSTALLATION

M1544004100132

ANTENNA

REMOVAL AND INSTALLATION

M1544002900217

ACX-1939

AB

1

2

12 ± 2 N·m

100 ± 6 in-lb

4.9 ± 0.7 N·m

43± 6 in-lb

12 ± 2 N·m

100 ± 6 in-lb

AMPLIFIER REMOVAL STEPS

LOWER QUARTER PANEL (LH)
 (REFER TO GROUP 52A,TRIM

P.52A-8

.)

1.

AMPLIFIER

2.

BRACKET

AMPLIFIER REMOVAL STEPS

ACX01518

<VEHICLES WITH MAST ANTENNA>

<VEHICLES WITH MOTOR ANTENNA>

1

2

2

1

3

4

5

6

7

8

9

AC

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-192

INSPECTION

M1544003000132

MTOTR ANTENNA CHECK

Disconnect he motor antenna-ECU connector. Verify that the
antenna extends when the positive terminal of the battery is
connected to terminal number 1 and the negative terminal of
the battery is connected to terminal number 2. Verify that the
antenna retracts when the connection is reversed.

MOTOR ANTENNA-ECU CHECK

1. Remove the motor antenna-ECU installation bolt.
2. Operate the radio switch when the ignition switch is turned

to the "ACC" or "ON" position, and check the voltage
between the terminals while the antenna is extending or
retracting.

AC205528

10

BLOWER FAN
 AND MOTOR

AB

MAST ANTENNA REMOVAL STEPS

• SPLASH SHIELD

1. RADIO AND CD PLAYER (REFER TO

P.52A-8

.)

2. COWL SIDE TRIM <RH> (REFER TO

GROUP 52A, TRIM

P.52A-8

.)

3. MAST ANTENNA
4. MOUNTING NUT
5. BASE
6. MAST ANTENNA BODY

MOTOR ANTENNA REMOVAL STEPS

• SPLASH SHIELD

1. RADIO (REFER TO

P.54A-189

.)

2. COWL SIDE TRIM <RH> (REFER TO

GROUP 52A, TRIM

P.52A-8

.)

7. RING NUT
8. BASE
9. MOTOR ANTENNA BODY

MOTOR ANTENNA-ECU REMOVAL

10. MOTOR ANTENNA-ECU

ACX01956 AB

3

4

5 6

7 8 9 10 1112 13 14

1 2

3

4

5 6

7 8 9 10 1112 13 14

1 2

ACX01957AB

ANTENNA
RETRACTS

ANTENNA
EXTENDS
