SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-93

.

TECHNICAL DESCRIPTION (COMMENT)
If all of the side step light do not illuminate the side
step light-ECU may be defective.

.

TROUBLESHOOTING HINTS

• The side step light-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

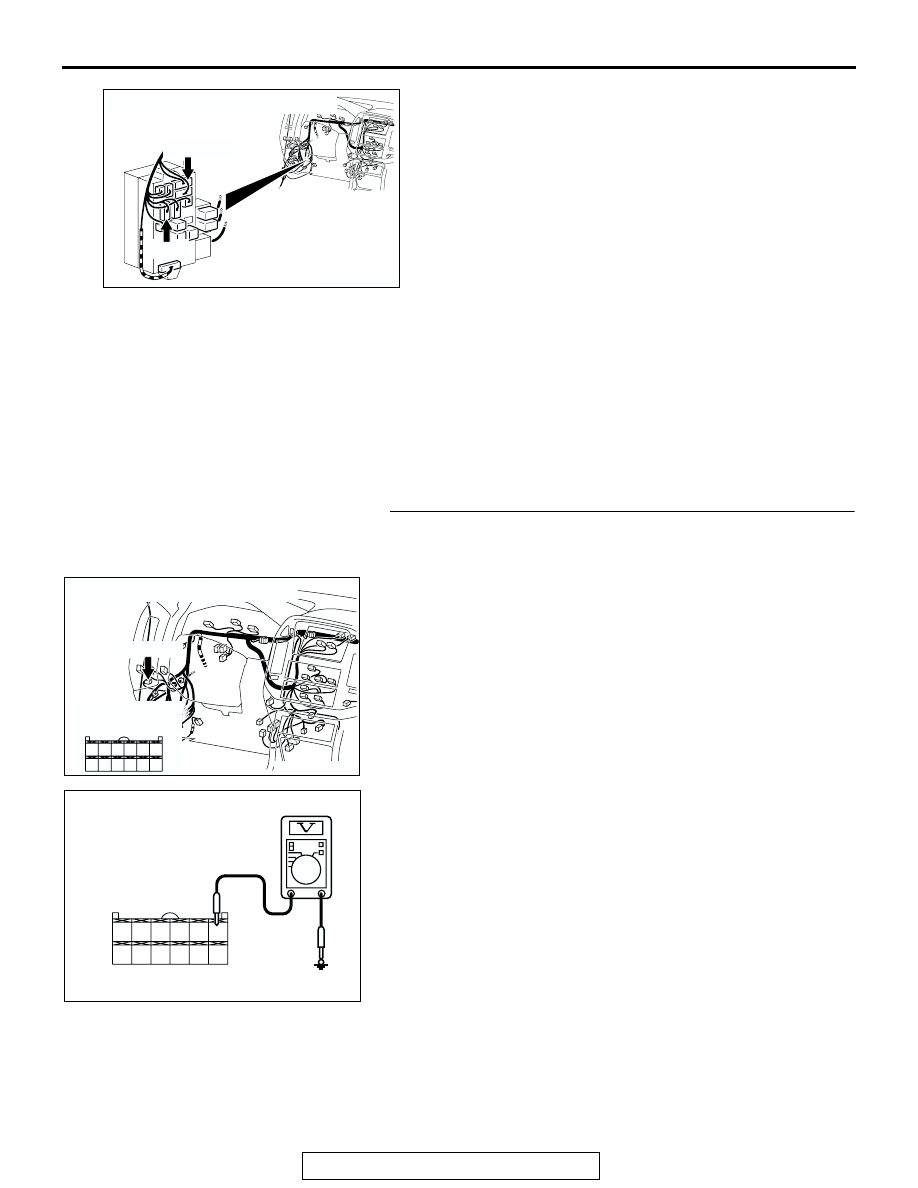

 STEP 1. Check the battery power supply circuit to the side
step light-ECU. Test at side step light-ECU connector
D-137.
(1) Disconnect side step light-ECU connector D-137 and

measure the voltage available at the harness side of the
connector.

(2) Measure the voltage between terminal numbers 1 and

ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q:  Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Go to Step 4.
NO :  Go to Step 2.

AC204173

CONNECTORS : D-209, 221

AL

D-209

D-221

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

AC204599

1

2

8 7

4

5

10

11

12

6

9

3

CONNECTOR D-137
(HARNESS SIDE)

AB

SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-94

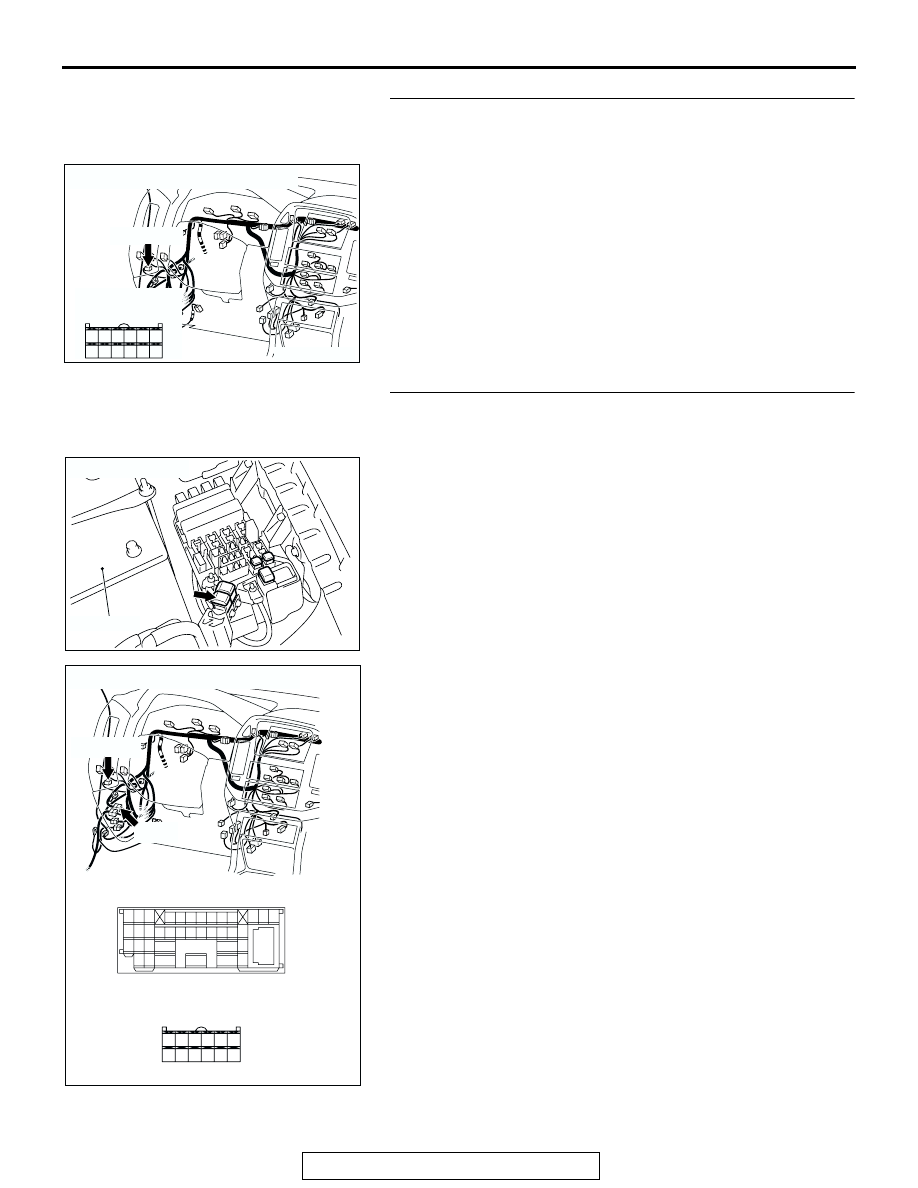

 STEP 2. Check side step light-ECU connector D-137 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q:  Is side step light-ECU connector D-137 in good

condition?
YES :
Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

Verify that the side step light illuminate

normally.

 STEP 3. Check the wiring harness between side step
light-ECU connector D-137 (terminal 1) and the fusible link
(1).

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

ACX02274

FUSIBLE LINK (1)

AE

BATTERY

AC204188

CONNECTORS : D-28, D-137

D-137(GR)

AO

HARNESS SIDE

D-137(GR)

D-28

D-28

1

2

8 7

4

5

10

11

12

6

9

3

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-95

NOTE: Also check intermediate connector D-28, junction block
connectors D-209 and D-221 for loose, corroded, or damaged
terminals, or terminals pushed back in the connector. If inter-
mediate connector D-28, junction block connectors D-209 or
D-221 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q:  Is the wiring harness between side step light-ECU

connector D-137 (terminal 1) and the fusible link (1) in
good condition?
YES :
Replace the side step light-ECU. Verify that the side

step light illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the side step light illuminate normally.

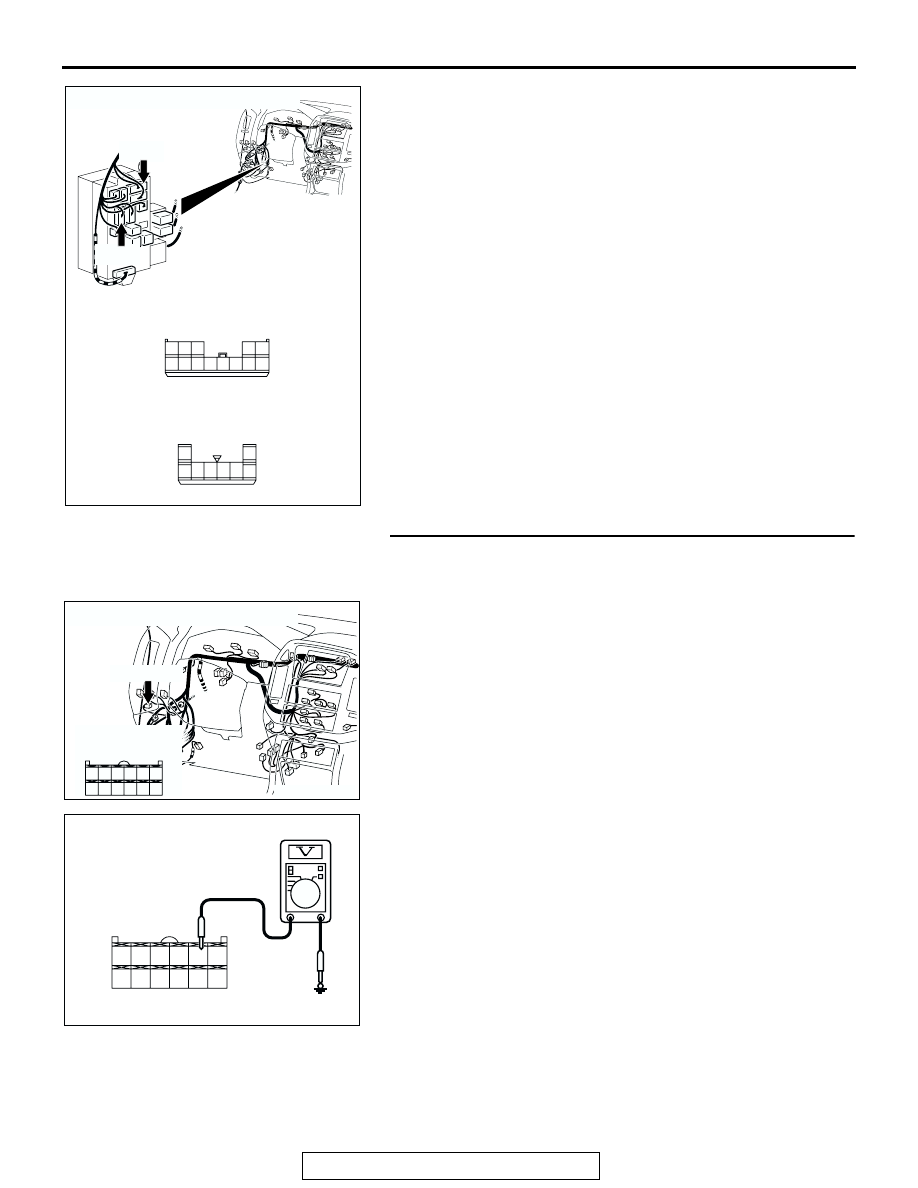

 STEP 4. Check the ignition switch (IG1) circuit to the side
step light-ECU. Test at side step light-ECU connector
D-137.

(1) Disconnect side step light-ECU connector D-137 and

measure the voltage available at the harness side of the
connector.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal numbers 2 and

ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q:  Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Go to Step 7.
NO :  Go to Step 5.

AC204191

CONNECTORS : D-209, D-221

D-209

AF

HARNESS SIDE

HARNESS SIDE

D-221

D-209

D-221

3

1

4

6 5

7

8

2

1

2

6

7

9

3

4

11

12

10

5

13

8

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

AC204600

1

2

8 7

4

5

10

11

12

6

9

3

CONNECTOR D-137
(HARNESS SIDE)

AB

SIDE STEP LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-96

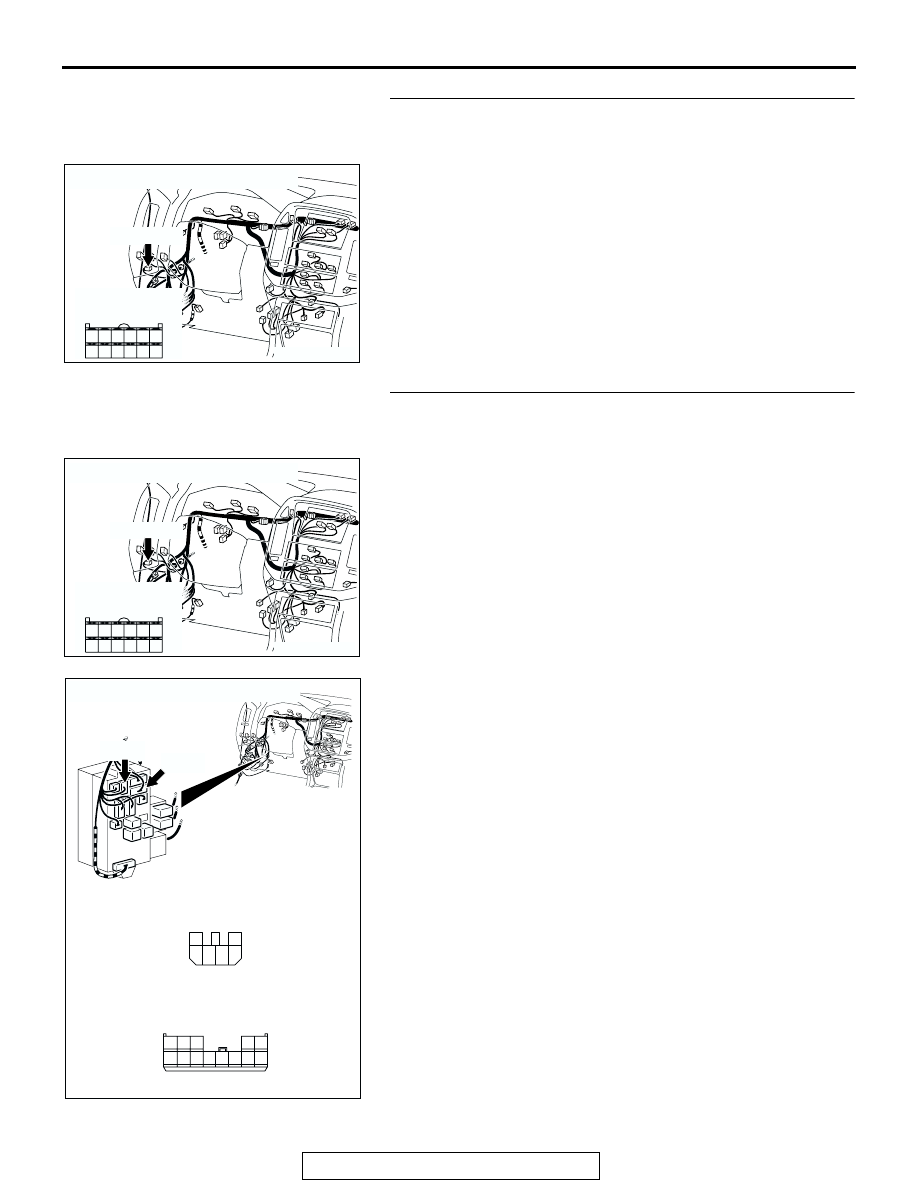

 STEP 5. Check side step light-ECU connector D-137 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q:  Is side step light-ECU connector D-137 in good

condition?
YES :
Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

Verify that the side step light illuminate

normally.

 STEP 6. Check the wiring harness between side step
light-ECU connector D-137 (terminal 2) and the ignition
switch (IG1).

NOTE: Also check junction block connectors D-208 and D-210
for loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector D-28, junction
block connectors D-208 or D-210 is damaged, repair or replace
the connector as described in GROUP 00E, Harness Connec-
tor Inspection

P.00E-2

.

Q:  Is the wiring harness between side step light-ECU

connector D-137 (terminal 2) and the ignition switch
(IG1) in good condition?
YES :
Replace the side step light-ECU. Verify that the side

step light illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the side step light illuminate normally.

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

AC204170

CONNECTOR : D-137

HARNESS SIDE

D-137(GR)

D-137(GR)

AR

1

2

8 7

4

5

10

11

12

6

9

3

AC204191

CONNECTORS: D-208, D-210

D-208

AC

HARNESS SIDE

HARNESS SIDE

D-210

D-208

D-210

1

2

3

5

6

4

1

2

7 6

3

9

4

11

12

10

13

5

8
