FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-85

(3) Measure the distance from the center line of the vehicle

to the center of each fog light. Transfer the measurement
to the screen. Vertical tape or mark on the screen with
reference to the center line of each fog light bulb.

FOG LIGHT ADJUSTMENT

1. Check if the beam shining onto the screen is at the standard

value.

Standard value:

(Vertical direction): Top of the hot zone should be

101 mm (4.0 inches) below the fog light center
(equivalent to the fog light beam angle of 0.76

°).

(Horizontal direction): Parallel to direction of vehicle

travel

Limit:

(Vertical direction): Top of the hot zone should be

152 mm (6.0 inches) below the fog light center
(equivalent to the fog light beam angle of 1.14

°).

2. If the value is outside the standard value range, adjust using

the adjusting screw.
NOTE: The horizontal direction is non-adjustable. If devia-
tion of the light beam axis exceeds the standard value,
check that the mounting location or some other points are
not faulty.

AC100547

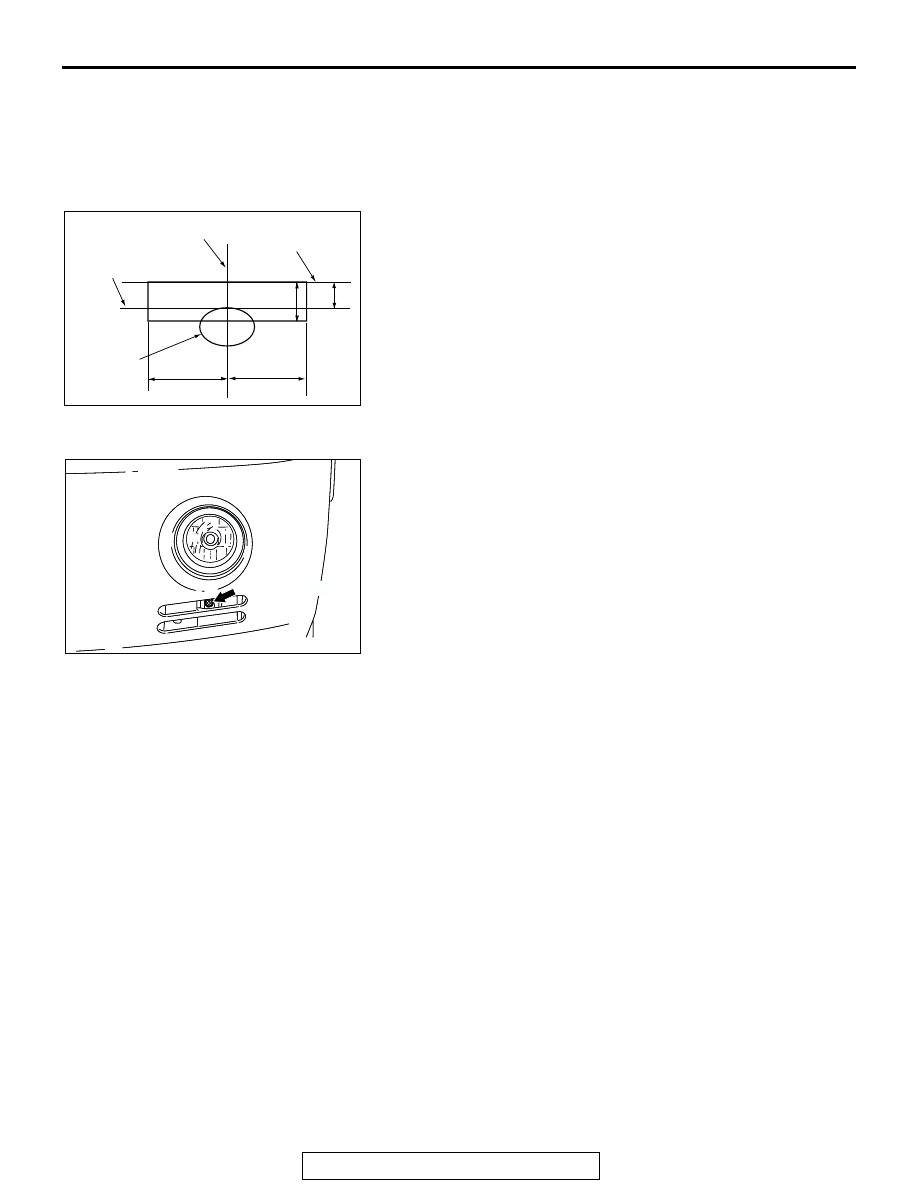

HEIGHT OF FOG

LIGHT CENTER

VERTICAL CENTER LINE

AHEAD OF FOG LIGHT

UPPER MOST LEVEL

OF HOT ZONE

HOT ZONE

mm (in)

AB

152 (6.0)

101 (4.0)

598 (23.5)

598 (23.5)

AC204113 AB

AC204113

ADJUSTING SCREW

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-86

FOG LIGHT

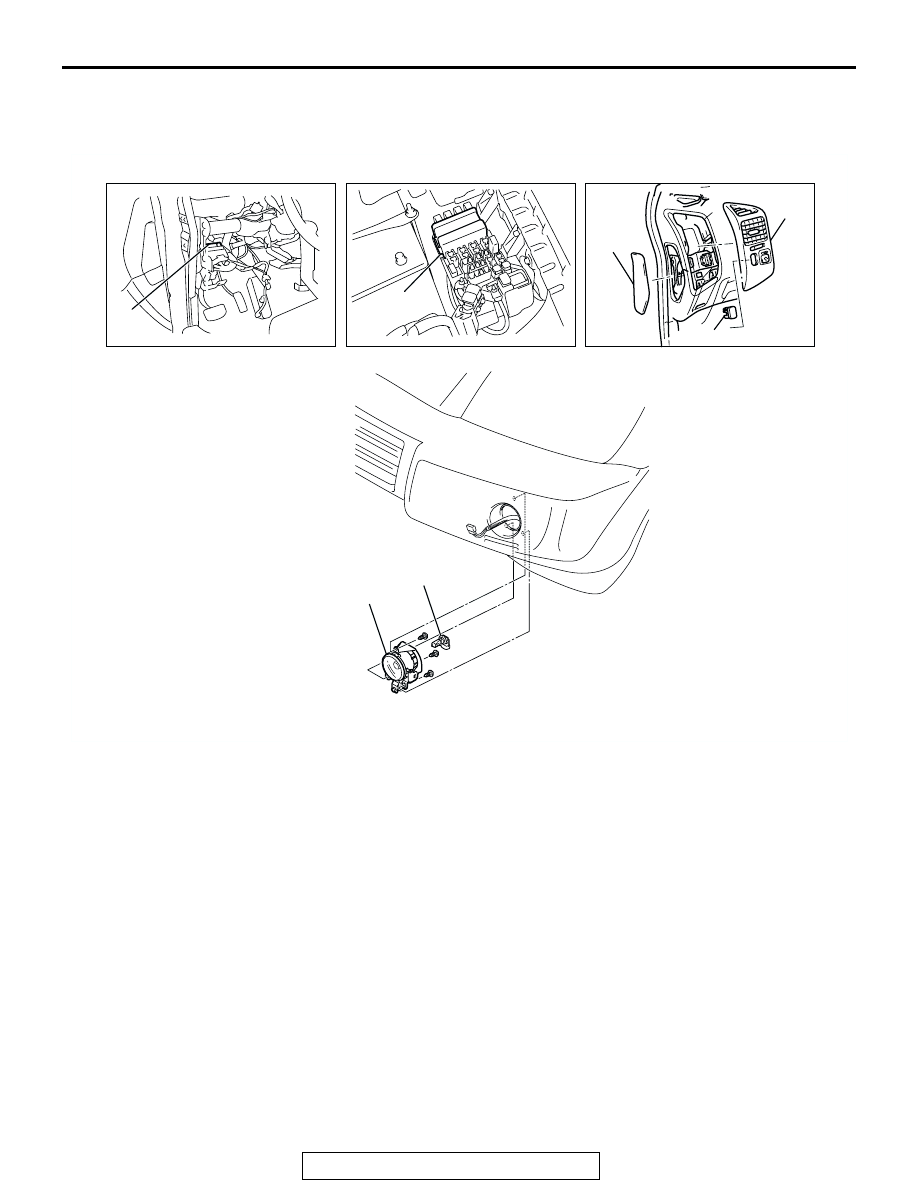

REMOVAL AND INSTALLATION

M1542001500157

AC204148

ACX01472

ACX01404

ACX01477

AB

6

7

1

2

3

4

5

1. ETACS-ECU
2. FRONT-ECU

FOG LIGHT SWITCH REMOVAL
STEPS

3. INSTRUMENT PANEL SIDE COVER

>>A<<

4. AIR OUTLET ASSEMBLY
5. FOG LIGHT SWITCH

FOG LIGHT REMOVAL STEPS

6. FOG RIGHT

<<A>>

7. BULB

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-87

REMOVAL SERVICE POINT

.

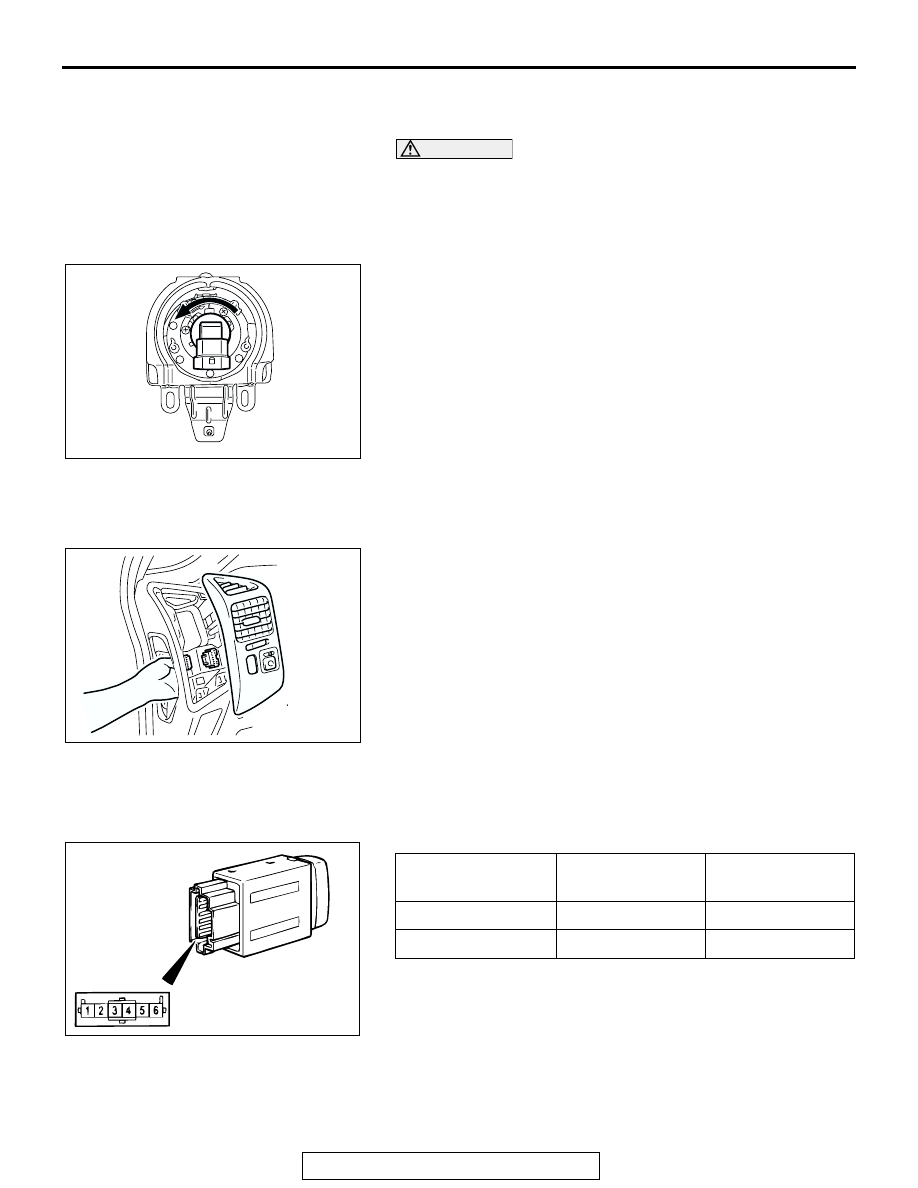

<<A>> BULB REMOVAL

CAUTION

• Use the specified genuine part when replacing the bulb.
• Do not touch the glass portion of bulb with bare hand

or dirty gloves. Should the glass portion be spoiled,
remove the soil as soon as possible using alcohol or
thinner and let it dry before mounting.

Turn the bulb assembly left to remove it.

INSTALLATION SERVICE POINT

.

>>A<< AIR OUTLET ASSEMBLY INSTALLATION
1. Insert the hand from the mounting hole of the instrument

panel side cover to hold and fix the fog light switch cover by
the hand.

2. While inter fitting the air outlet assembly duct, connect the

fog light switch to the connector.

NOTE: After fitting, check that the open/close damper knob of
the air outlet can be operated normally.

INSPECTION

M1542011200072

FOG LIGHT SWITCH CONTINUITY CHECK

AC204147AB

ACX01405

AB

SWITCH POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

ON

− 2

Less than 2 ohms

OFF

− 2

Open circuit

ACX00797AB

REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-88

FOG LIGHT RELAY CHECK

REAR COMBINATION LIGHT

LIGHTING SYSTEM DIAGNOSIS

M1542000700501

The taillights and turn-signal lights are controlled by
the Simplified Wiring System (SWS). For trouble-
shooting, refer to GROUP 54B, SWS Diagnosis

−

Symptom Chart

P.54B-22

.

REAR COMBINATION LIGHT

REMOVAL AND INSTALLATION

M1542003900526

WARNING

Before removal of the air bag module, refer to GROUP 52B, SRS Service Precautions
(

P.52B-18

) and Air Bag Module and Clock Spring (

P.52B-217

).

When removing and installing the steering wheel, do not let it bump against the air bag
module.

BATTERY VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

− 5

Open circuit

• Connect terminal 3 to the

positive battery terminal

• Connect terminal 1 to the

negative battery terminal

− 5

Less than 2
ohms

1 2 3

4

5

4

5

1

2

ACX01668

4

3

1

AC

BATTERY

FOG LIGHT RELAY

ACX01803AC

1

2

3

BATTERY
