TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-39

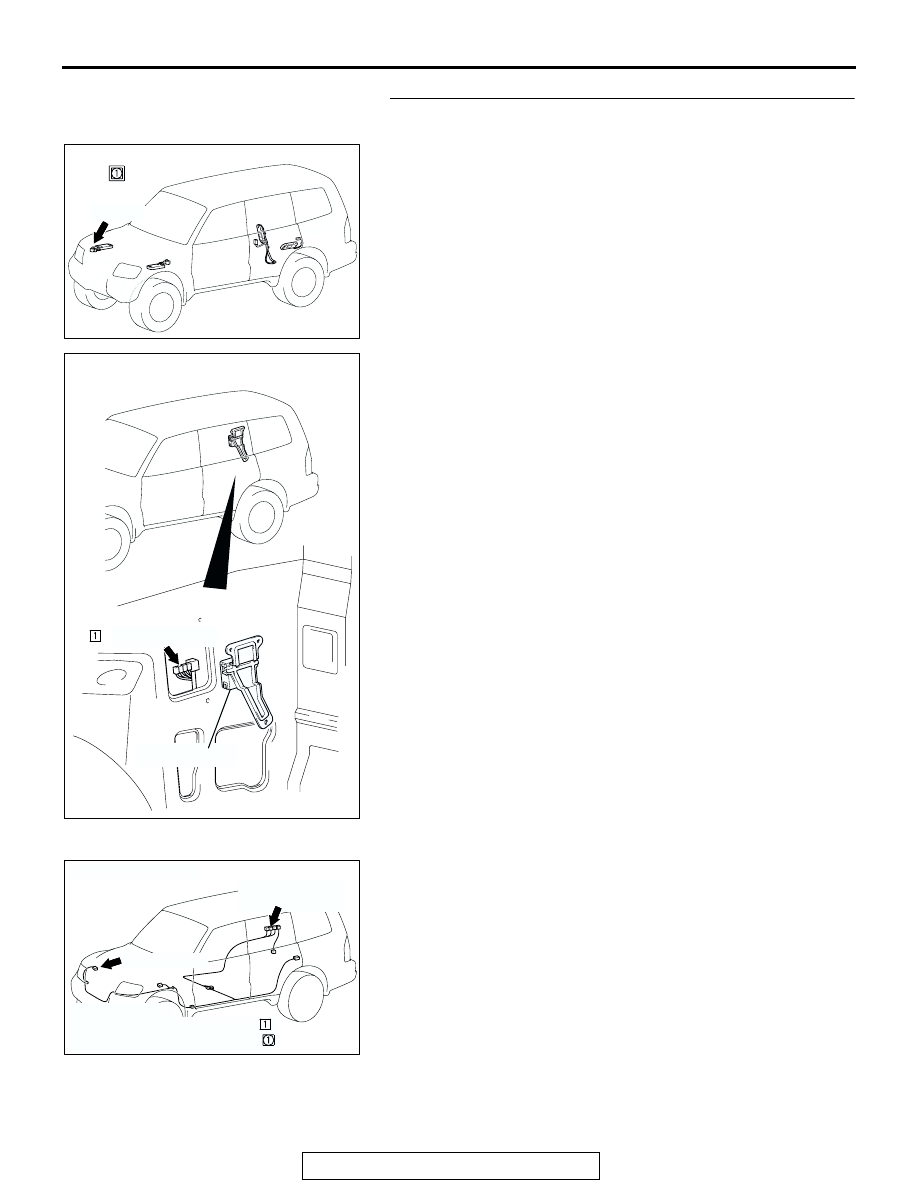

STEP 8. Check the following feeder cable.

• The cable between TPMS antenna (front-RH) connector

G-28-11 (terminal 1) and TPMS receiver connector G-28-5
(terminal 1)

Q: Is there any faults or kinks along the feeder cable

routing?
YES : Repair or replace it. And then go to Step 17.
NO :  Go to Step 9.

AC308266

G-28-11 (GR)

CONNECTORS: G-28-5, G-28-11

AE

G-28-5
G-28-11

FEEDER CABLE
CONNECTOR:
COMPONENT SIDE

G-28-5 (GR)
(WHITE TAPING)

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-40

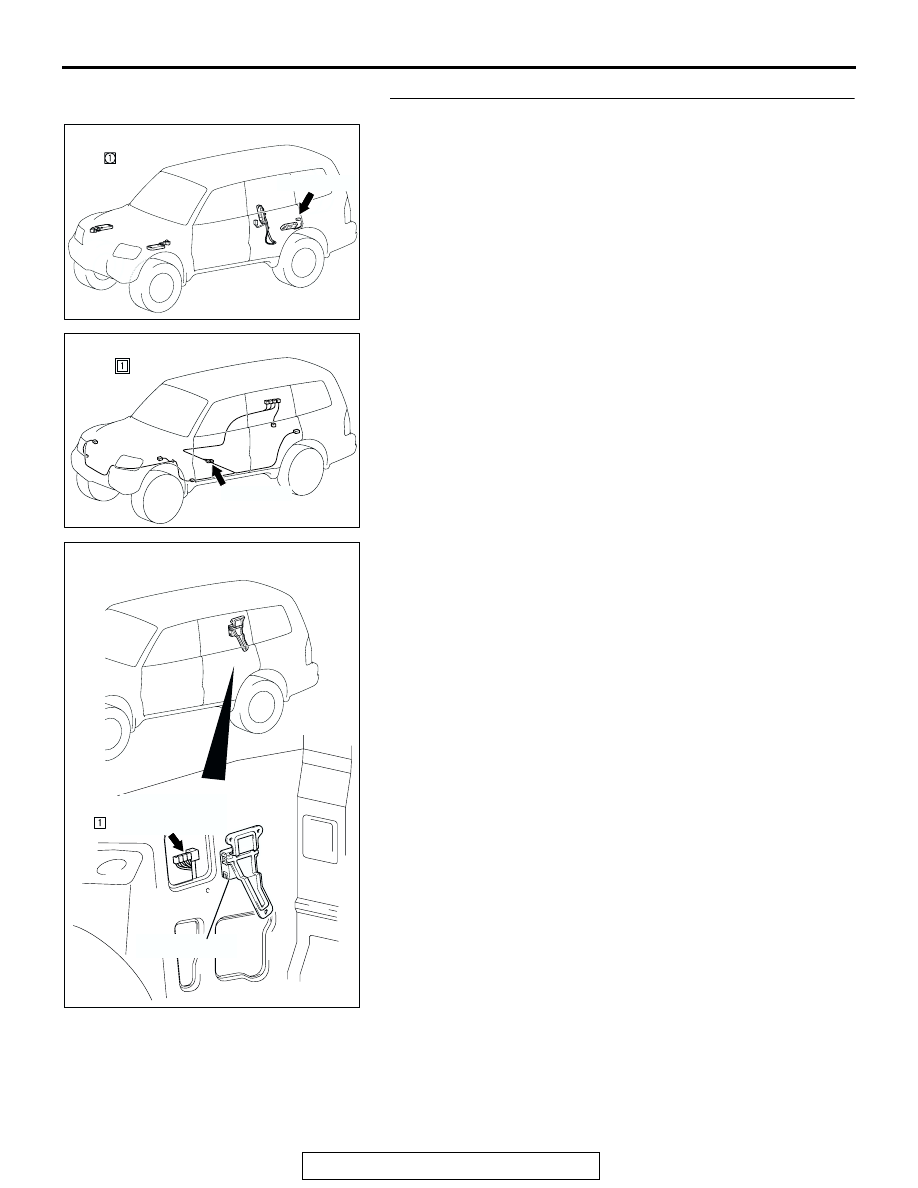

STEP 9. Check the feeder cable core wire for continuity.

(1) Disconnect the following connectors.

• TPMS antenna (front-RH) connector G-28-11

• TPMS receiver connector G-28-5

(2) Check the feeder cable core wire for continuity as below.

• The cable between TPMS antenna (front-RH) connector

G-28-11 (terminal 1) and TPMS receiver connector
G-28-5 (terminal 1)

Q: Is there continuity between the feeder cable core wire?

YES : Replace the TPMS antenna (front-RH) (Refer to

P.31-94

). And then go to Step 16.

NO :  Replace the feeder cable. And then go to Step 17.

AC308265

CONNECTOR: G-28-11

AD

G-28-11 (GR)

AC308264

AC307575

CONNECTOR: G-28-5

AD

TPMS RECEIVER

G-28-5 (GR)
(WHITE TAPING)

AC308266

G-28-11 (GR)

CONNECTORS: G-28-5, G-28-11

AE

G-28-5
G-28-11

FEEDER CABLE
CONNECTOR:
COMPONENT SIDE

G-28-5 (GR)
(WHITE TAPING)

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-41

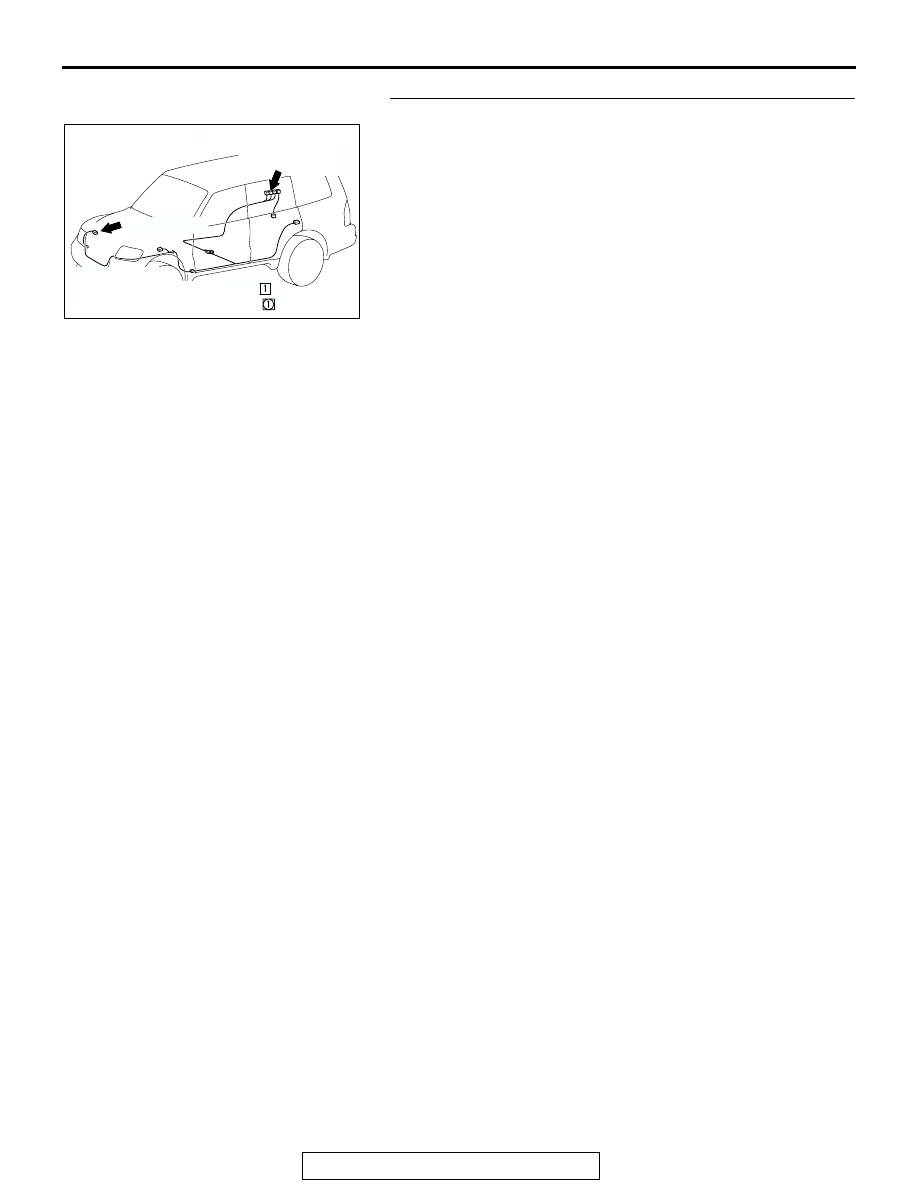

STEP 10. Check the following connectors.

• TPMS antenna (rear-LH) connector G-28-8

• Intermediate connector G-28-6

• TPMS receiver connector G-28-3

Check the connectors for loose, corroded or damaged termi-
nals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 11.
NO :  Repair it. And then go to Step 17.

AC308265

CONNECTOR: G-28-8

AE

G-28-8 (GR)

AC308266 AF

CONNECTOR: G-28-6

G-28-6 (GR)

G-28-6

AC308264

AC307575

CONNECTOR: G-28-3

AE

TPMS RECEIVER

G-28-3 (GR)
(BLUE TAPING)

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-42

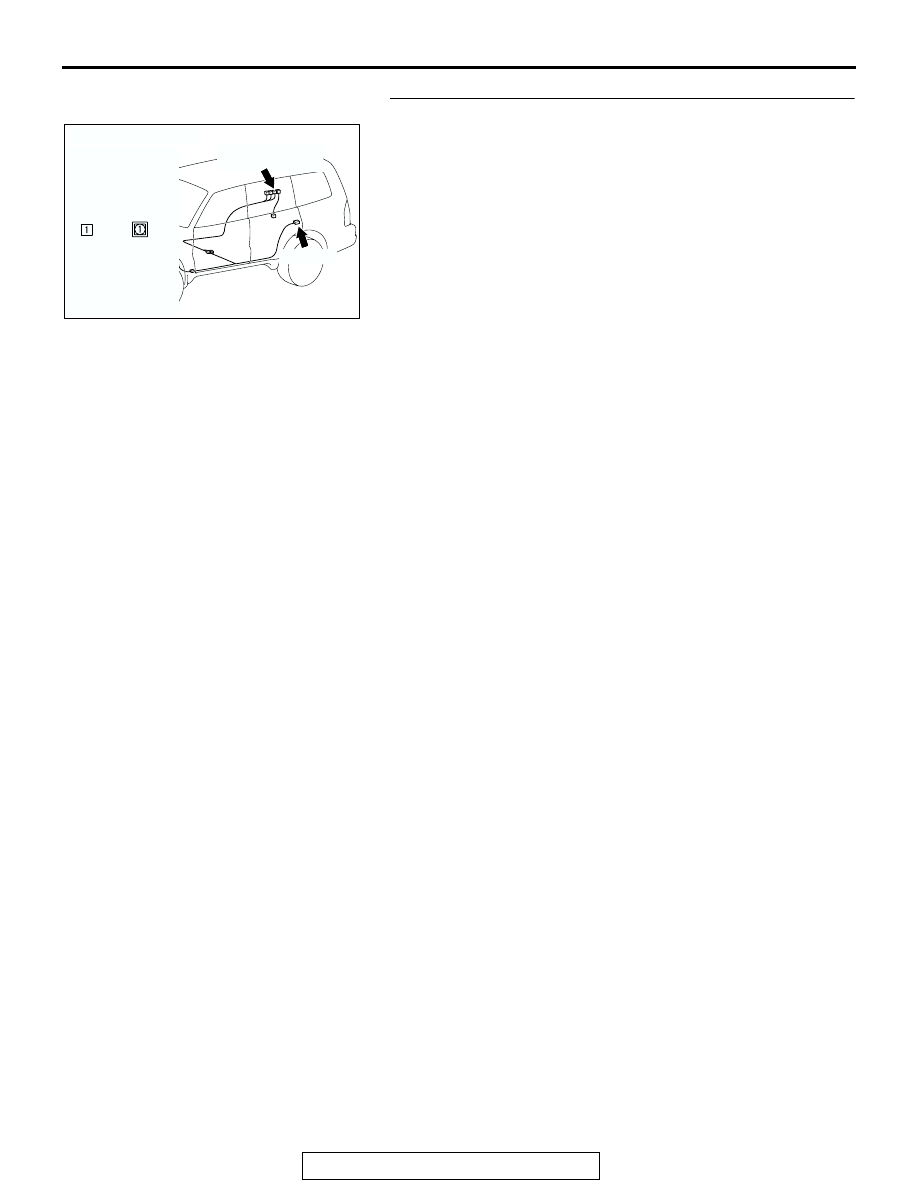

STEP 11. Check the following feeder cable.

• The cable between TPMS antenna (rear-LH) connector

G-28-8 (terminal 1) and TPMS receiver connector G-28-3
(terminal 1)

Q: Is there any faults or kinks along the feeder cable

routing?
YES : Repair or replace it. And then go to Step 17.
NO :  Go to Step 12.

AC308266

G-28-8 (GR)

CONNECTORS: G-28-3, G-28-8

AG

FEEDER CABLE
CONNECTOR:
COMPONENT SIDE

G-28-3 G-28-8

G-28-3 (GR)
(BLUE TAPING)
