Mitsubishi Montero (2004+). Manual - part 491





TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-35

STEP 4. Check the following connectors.

• TPMS antenna (front-LH) connector G-28-10

• Intermediate connectors G-28-7 and G-28-9

• TPMS receiver connector G-28-4

Check the connectors for loose, corroded or damaged termi-
nals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 5.
NO :  Repair it. And then go to Step 17.

AC308265

CONNECTOR: G-28-10

AC

G-28-10 (GR)

AC308266 AC

G-28-9 (GR)

CONNECTORS: G-28-7, G-28-9

G-28-7 (GR)

G-28-7

G-28-9

AC308264

AC307575

CONNECTOR: G-28-4

AC

TPMS RECEIVER

G-28-4 (GR)
(BROWN TAPING)

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-36

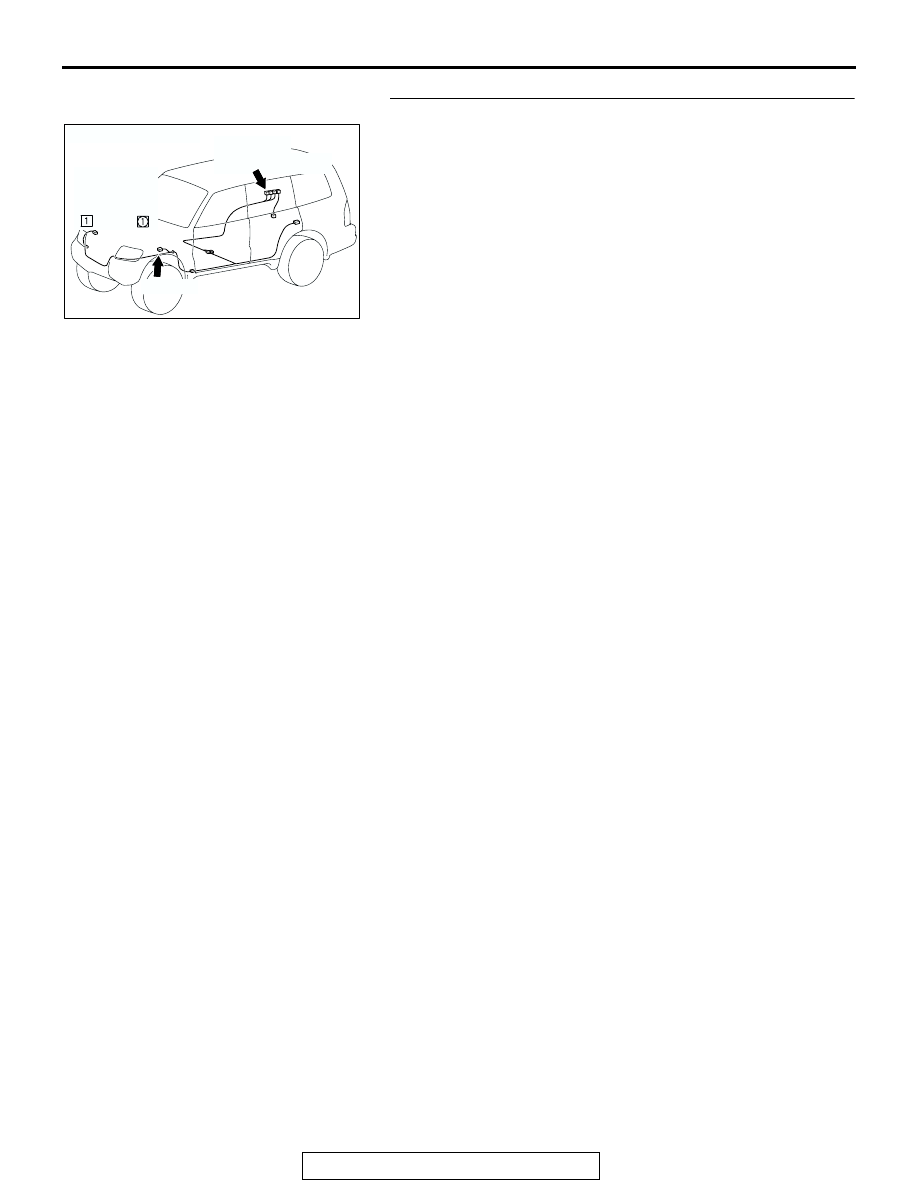

STEP 5. Check the following feeder cable.

• The cable between TPMS antenna (front-LH) connector

G-28-10 (terminal 1) and TPMS receiver connector G-28-4
(terminal 1)

Q: Is there any faults or kinks along the feeder cable

routing?
YES :
Repair or replace it. And then go to Step 17.
NO :  Go to Step 6.

AC308266

G-28-10 (GR)

AD

FEEDER CABLE
CONNECTOR:
COMPONENT SIDE
G-28-4 G-28-10

G-28-4 (GR)
(BROWN TAPING)

CONNECTORS: G-28-4, G-28-10

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-37

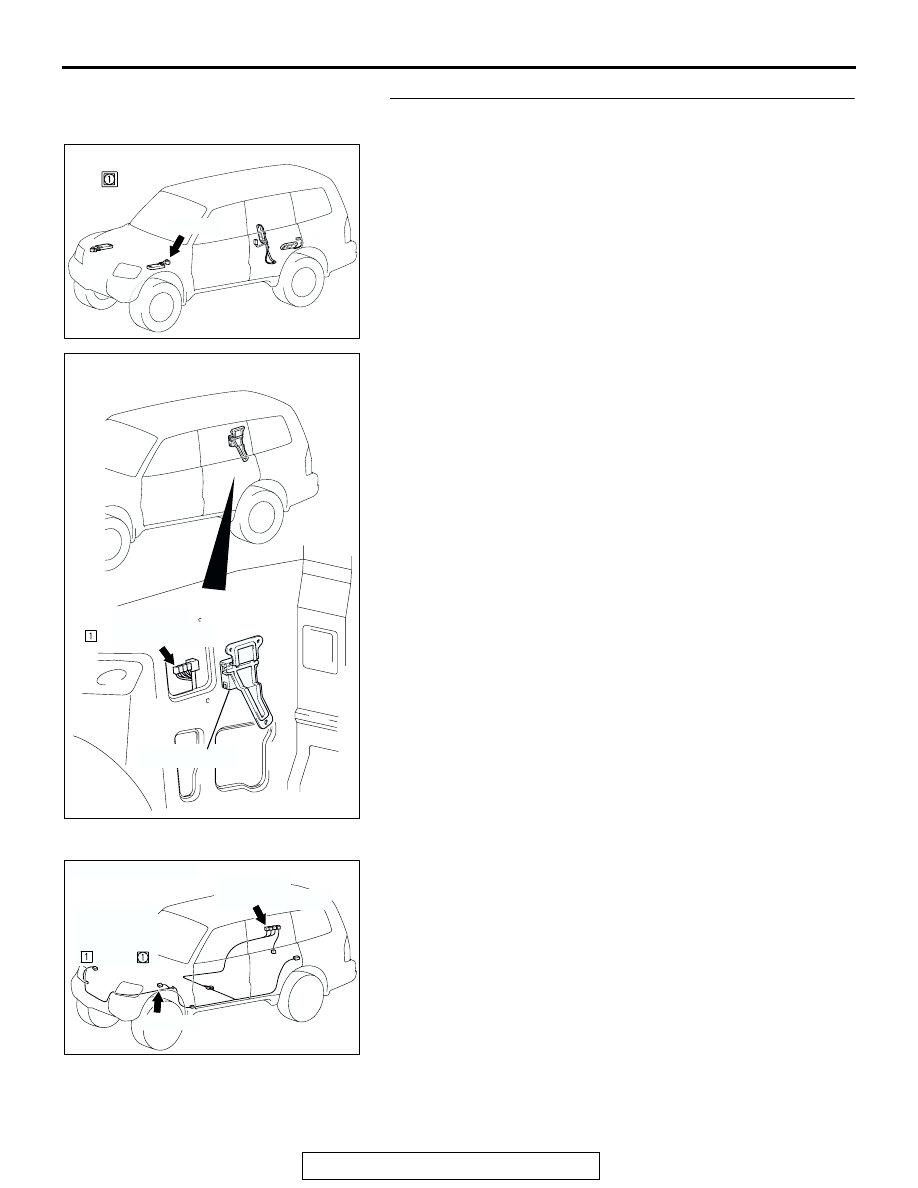

STEP 6. Check the feeder cable core wire for continuity.

(1) Disconnect the following connectors.

• TPMS antenna (front-LH) connector G-28-10

• TPMS receiver connector G-28-4

(2) Check the feeder cable core wire for continuity as below.

• The cable between TPMS antenna (front-LH) connector

G-28-10 (terminal 1) and TPMS receiver connector
G-28-4 (terminal 1)

Q: Is there continuity between the feeder cable core wire?

YES : Replace the TPMS antenna (front-LH) (Refer to

P.31-94

). And then go to Step 16.

NO :  Replace the feeder cable. And then go to Step 17.

AC308265

CONNECTOR: G-28-10

AC

G-28-10 (GR)

AC308264

AC307575

CONNECTOR: G-28-4

AC

TPMS RECEIVER

G-28-4 (GR)
(BROWN TAPING)

AC308266

G-28-10 (GR)

AD

FEEDER CABLE
CONNECTOR:
COMPONENT SIDE
G-28-4 G-28-10

G-28-4 (GR)
(BROWN TAPING)

CONNECTORS: G-28-4, G-28-10

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-38

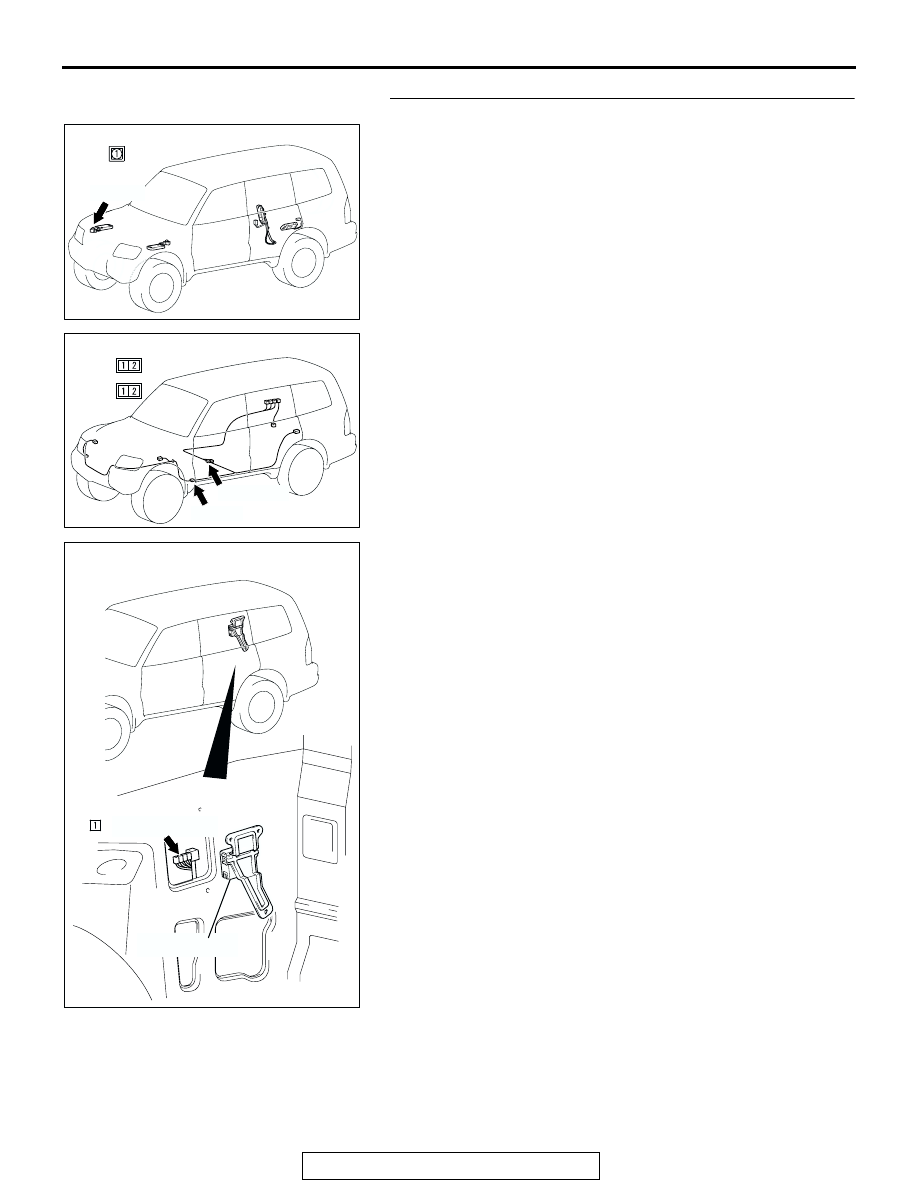

STEP 7. Check the following connectors.

• TPMS antenna (front-RH) connector G-28-11

• Intermediate connectors G-28-7 and G-28-9

• TPMS receiver connector G-28-5

Check the connectors for loose, corroded or damaged termi-
nals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 8.
NO :  Repair it. And then go to Step 17.

AC308265

CONNECTOR: G-28-11

AD

G-28-11 (GR)

AC308266 AC

G-28-9 (GR)

CONNECTORS: G-28-7, G-28-9

G-28-7 (GR)

G-28-7

G-28-9

AC308264

AC307575

CONNECTOR: G-28-5

AD

TPMS RECEIVER

G-28-5 (GR)
(WHITE TAPING)
