INNER SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-33

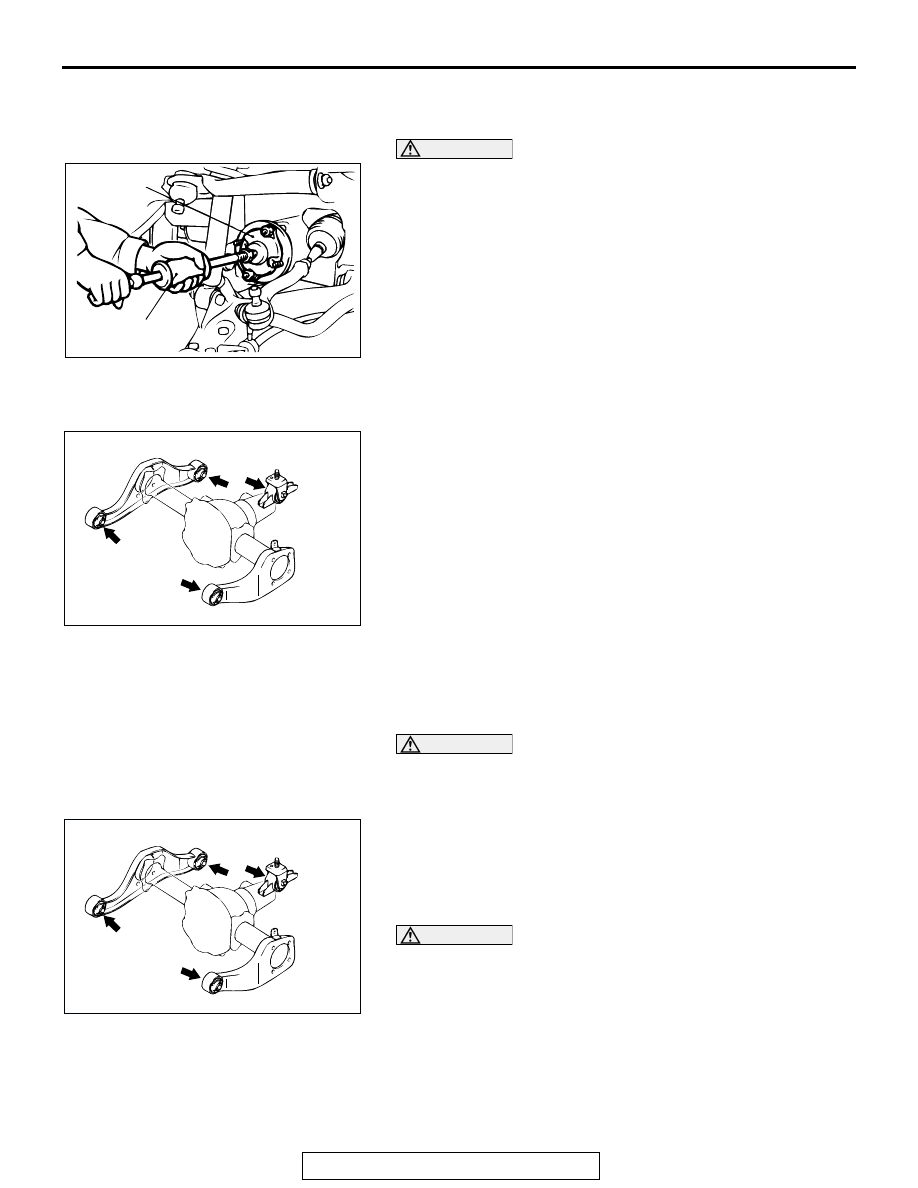

REMOVAL SERVICE POINTS

.

<<A>> INNER SHAFT REMOVAL

CAUTION

When pulling the inner shaft out from the front differential
carrier, be careful that the spline part of the inner shaft
does not damage the oil seal.

.

<<B>> LOOSENING DIFFERENTIAL MOUNTING
INSULATOR BOLT
Loosen the bolt shown in the diagram.

INSTALLATION SERVICE POINTS

.

>>A<< DIFFERENTIAL MOUNTING INSULATOR BOLT
TIGHTENING

CAUTION

Place the vehicle on the ground after temporarily tighten-
ing bolts to prevent bushing from twisting, then fully
tighten the bolts in the unladen condition.
Tighten the bolts shown in the diagram to the specified torque
in the order of A, B, C, D or A, C, B, D.

Tightening torque: 69

± 9 N⋅m (51 ± 7 ft-lb)

.

>>B<< INNER SHAFT INSTALLATION

CAUTION

Be careful not to damage the lip of the dust seal and oil
seal.

ACX00999AB

MB990906

MB990211

ACX01000 AB

ACX01000 AC

C

B

D

A

INNER SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-34

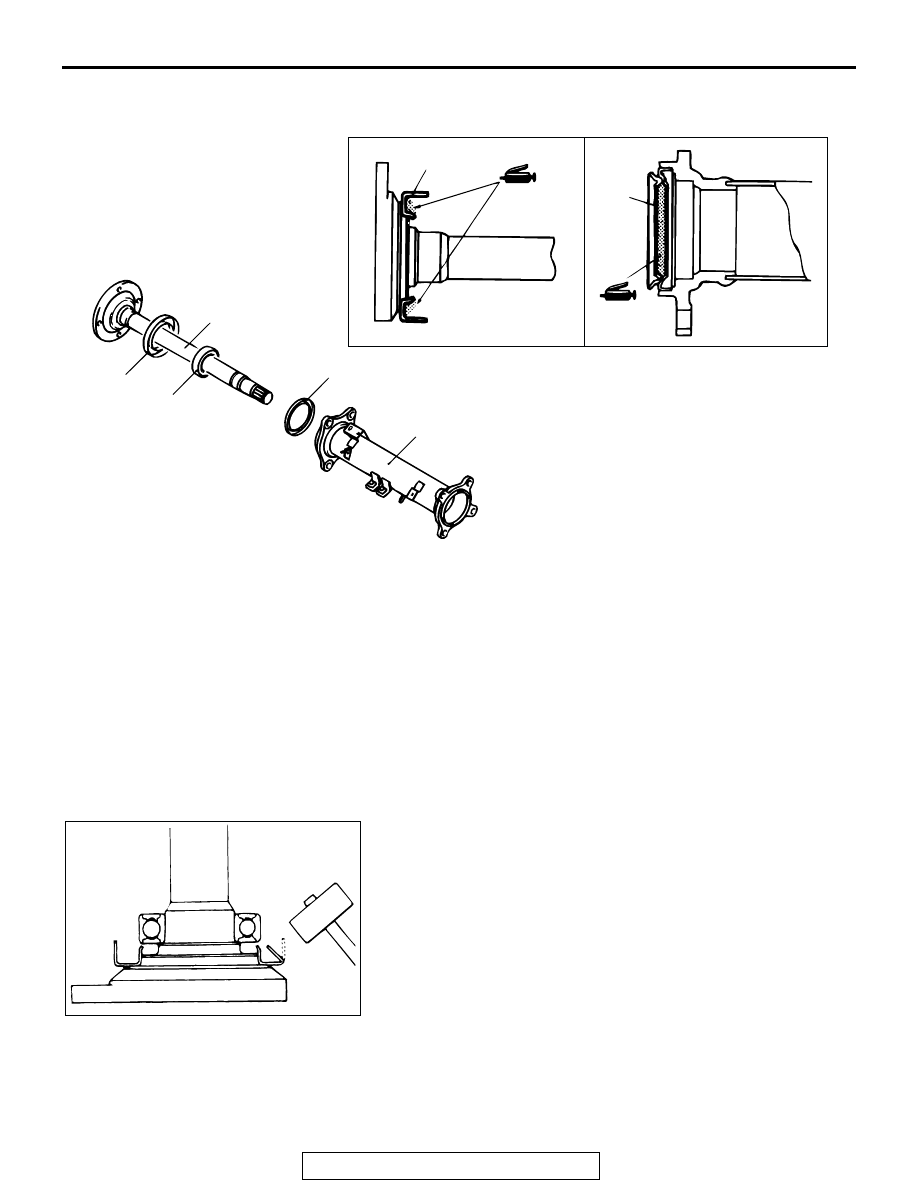

 DISASSEMBLY AND ASSEMBLY

M1261004200090

Required Special Tools:

• MB990560: Bearing Remover

• MB990938: Bearing and Oil Seal Installer Set

• MB990955: Oil Seal Installer

DISASSEMBLY SERVICE POINT

.

<<A>> BEARING REMOVAL
1. Bend the outside periphery of dust cover inward with a

wooden hammer.

ACX01001AB

5

3

2

1

5

4

3





DISASSEMBLY

STEPS





1. INNER

SHAFT

<<A>> >>C<<

2. BEARING



>>B<<

3.

DUST COVER





4. HOUSING

TUBE



>>A<<

5. DUST

SEAL







DISASSEMBLY STEPS (Continued)

ACX01002AB

INNER SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-35

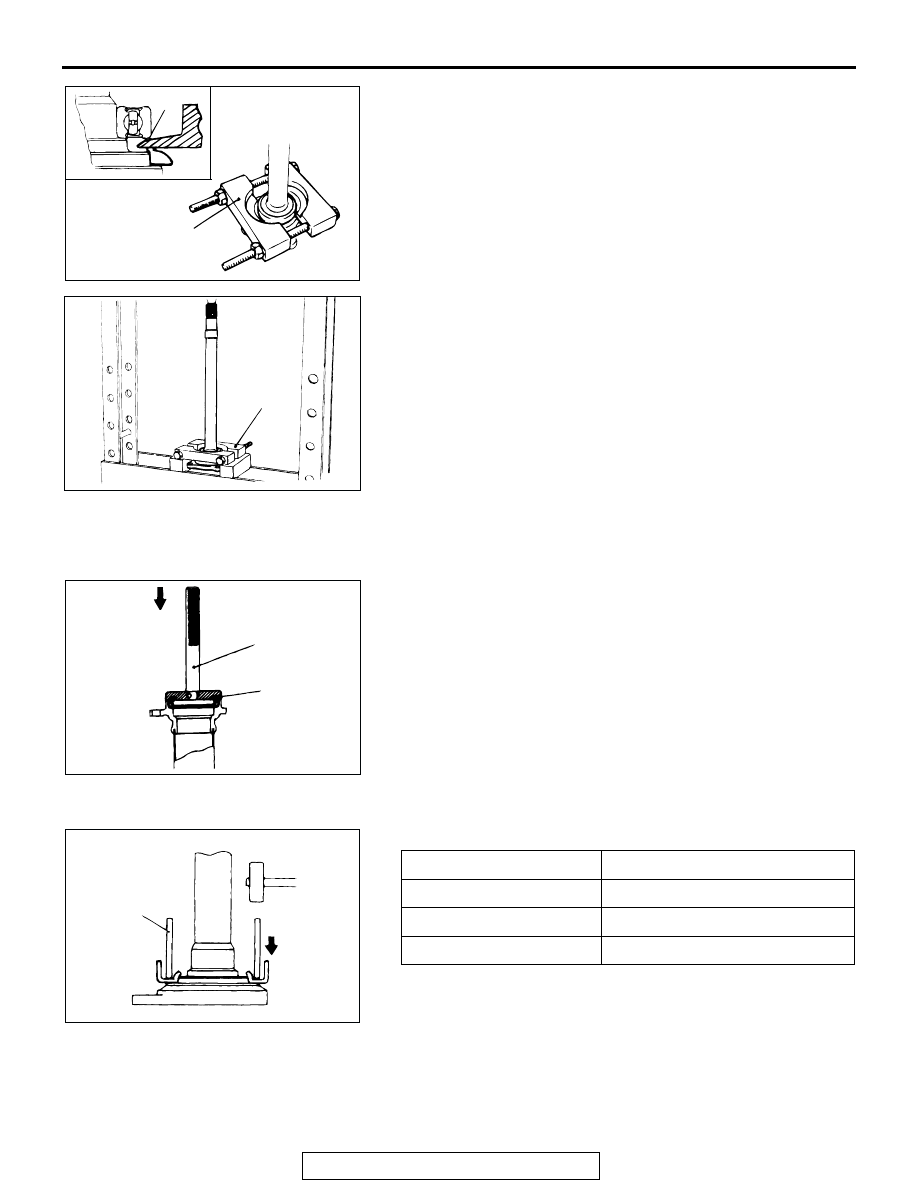

2. After special tool MB990560 has been installed as shown,

tighten the nut of the special tool MB990560 until the portion
of special tool MB990560 touches the bearing outer race.

3. Press out the inner shaft from the bearing.

ASSEMBLY SERVICE POINTS

.

>>A<< DUST SEAL INSTALLATION
Press-fit the new dust seal into the housing tube by using spe-
cial tools MB990938 and MB990955, until it is flush with the
housing tube end face.

.

>>B<< DUST COVER INSTALLATION
Using a steel pipe, install a new dust cover onto the inner shaft.

.

ACX01003 AB

A

MB990560

ACX01013 AB

MB990560

ACX01014 AB

MB990955

MB990938

STEEL PIPE

mm (in)

Overall length

50 (2.0)

Outside diameter

75 (3.0)

Wall thickness

4 (0.16)

ACX01015 AB

STEEL PIPE

INNER SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-36

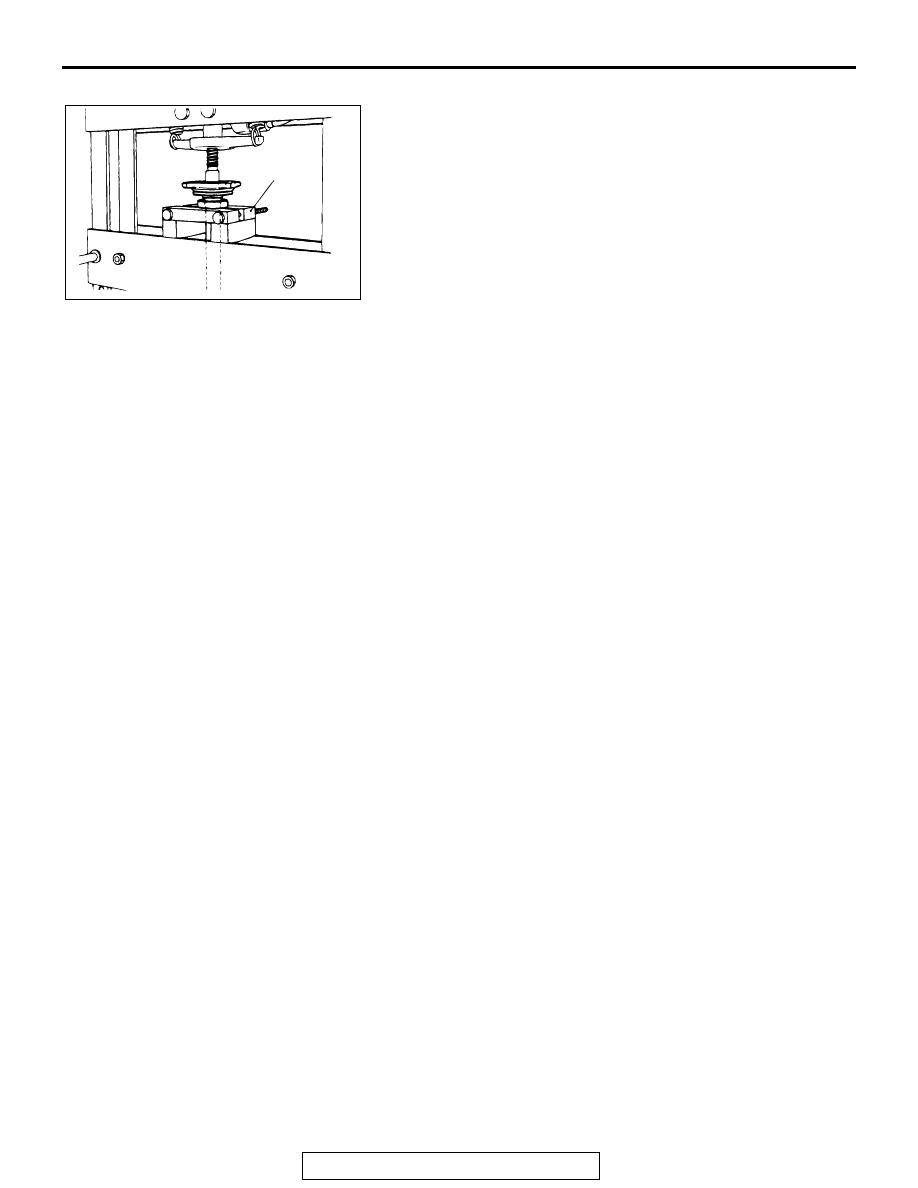

>>C<< BEARING INSTALLATION
Use special tool MB990560 to press-fit the bearing onto the
inner shaft.

ACX01016AB

MB990560
