DRIVE SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-25

Required Special Tool:

• MB990767: Front Hub and Flange Yoke Holder

REMOVAL SERVICE POINTS

.

<<A>> CASTLE NUT REMOVAL

CAUTION

Do not apply pressure to the wheel bearing by the vehicle
weight to avoid possible damage when castle nut is loos-
ened.
Use special tool MB990767 to fix hub and remove the drive
shaft nut.

.

<<B>> DRIVE SHAFT REMOVAL

CAUTION

When pulling the drive shaft out from the differential car-
rier, be careful that the spline part of the drive shaft does
not damage the oil seal.

INSTALLATION SERVICE POINTS

.

>>A<< DRIVE SHAFT INSTALLATION

CAUTION

Do not damage the oil seal of the differential carrier by the
drive shaft splines.

.

>>B<< WASHER/CASTLE NUT INSTALLATION
1. Install washer with castle nut with its smaller side facing the

castle nut.

ACX00972 AB

MB990767

ACX00973AB

WASHER

DRIVE SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-26

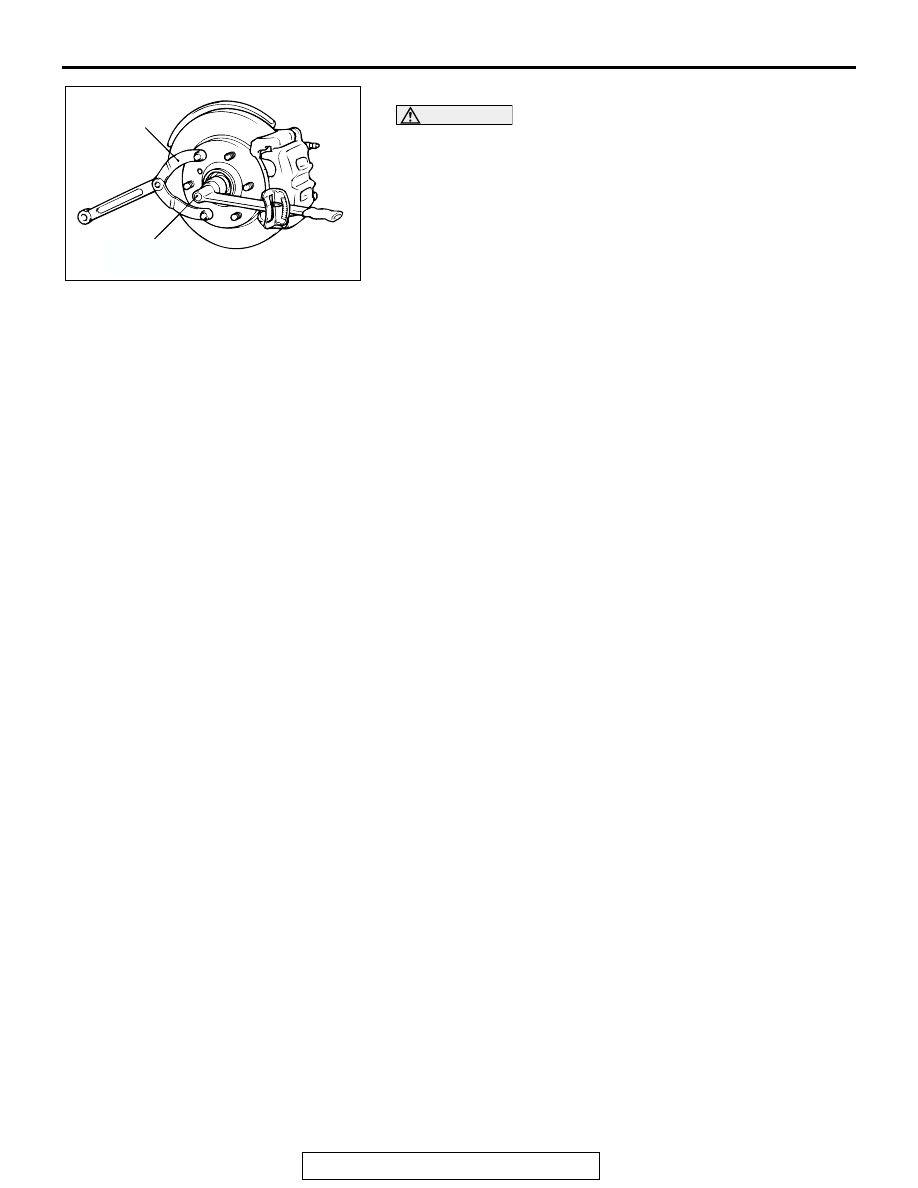

2. Tighten castle nut fully, using special tool MB990767.

CAUTION

Do not apply pressure to wheel bearing by the vehicle
weight to avoid possible damage when castle nut is loos-
ened.
3. If the pin holes do not match with one another, tighten the

castle nut to find the mating hole within 30 degree angle and
then bend the split pin to fit in.

ACX00974

ACX00974 AC

MB990767

200

± 10 N

·

m

148

± 7 ft-lb

DRIVE SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-27

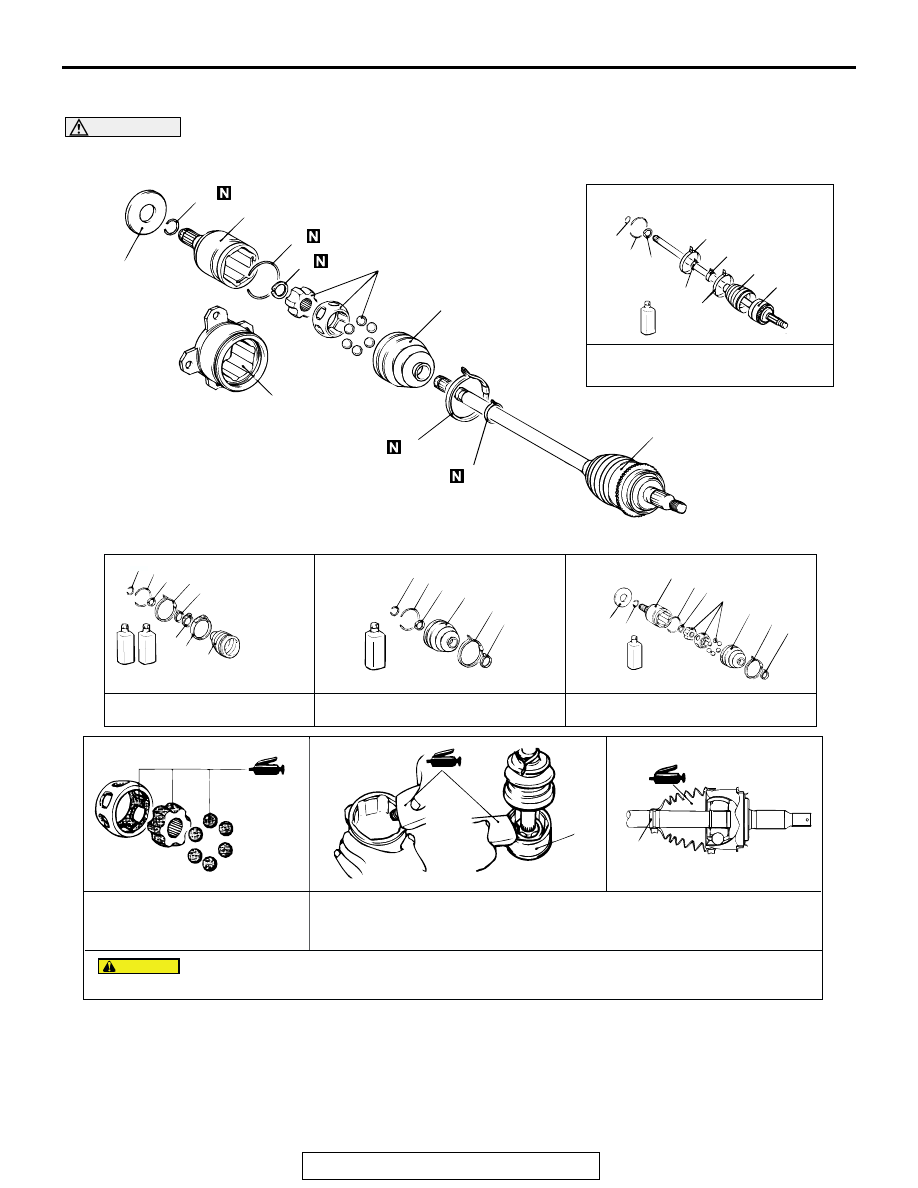

DISASSEMBLY AND ASSEMBLY

M1261003700542

CAUTION

Never disassemble the UJ assembly except when replacing the UJ boot.

ACX00980AE

13

12

4 <LH>

3

5

6

7

4 <RH>

2

1

11

3

5 2

1

8

9 10

12 3

5 7

2

1

13

12

4

3 5

6

7

2 1

DOJ

UJ

11

4

12

3

5

2

8

10

11

9

1

UJ BOOT REPAIR KIT

DOJ REPAIR KIT

UJ REPAIR KIT

GREASE: REPAIR KIT GREASE

GREASE: REPAIR KIT GREASE

THE DRIVE SHAFT JOINT USES SPECIAL GREASE. DO NOT MIX OLD AND NEW OR DIFFERENT TYPES OF GREASE.

AMOUNT USED: <UJ> 140 g (4.9 oz) (70

 g INSIDE JOINT, 70 g INSIDE BOOT)

 <DOJ> 120 g (4.2 oz) (70

 g INSIDE JOINT, 50 g INSIDE BOOT)

12

DOJ BOOT REPAIR KIT

CAUTION





DISASSEMBLY

STEPS





1.  DOJ BOOT BAND (SMALL)





2.  DOJ BOOT BAND (LARGE)





3. CIRCLIP





4. DOJ

OUTER

RACE





5. SNAP

RING





6.  INNER RACE, CAGE AND BALL

ASSEMBLY

<<A>>

7. DOJ

BOOT







DISASSEMBLY STEPS
(Continued)

DRIVE SHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-28

NOTE: DOJ: Double Offset Joint, UJ: Under cut Joint

Required Special Tool:

• MB991561: Boot Band Crimping Tool

DISASSEMBLY SERVICE POINT

.

<<A>> DOJ BOOT REMOVAL

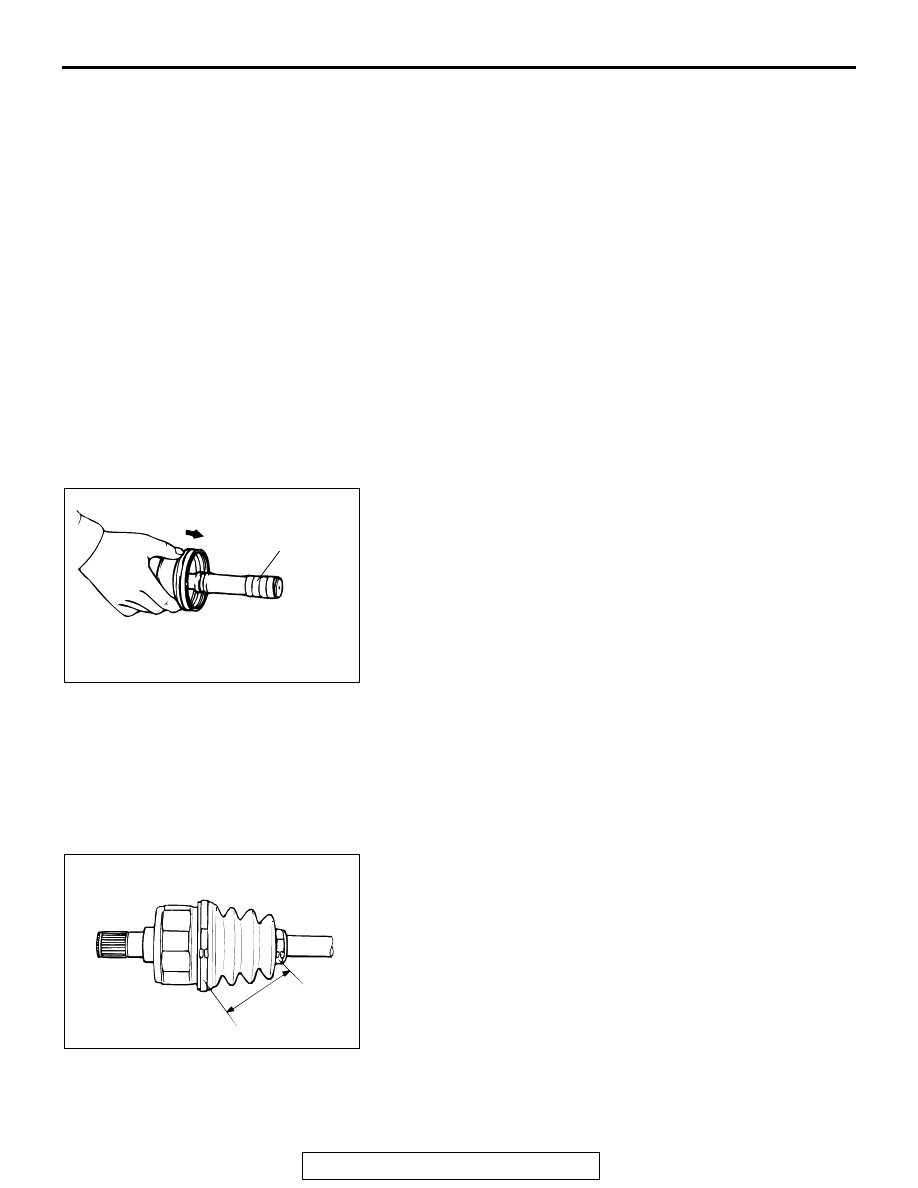

Wrap plastic tape around the spline part on the UJ assembly so
that the DOJ boot is not damaged when they are removed.

ASSEMBLY SERVICE POINTS

.

>>A<< DOJ BOOT INSTALLATION
Install boot after wrapping plastic tape around the spline part on
the UJ assembly.

.

>>B<< DOJ BOOT BAND INSTALLATION
1. Position the DOJ outer race so that the distance between

the boot bands is at the standard value.

Standard value (A): 80

± 5 mm (3.2 ± 0.1 inch)

2. Remove part of the DOJ outer race to release the air

pressure inside the boot.





8.  UJ BOOT BAND (SMALL)





9.  UJ BOOT BAND (LARGE)



10. UJ BOOT





11. UJ ASSEMBLY





12. CIRCLIP <LH>





13. DUST COVER





ASSEMBLY

STEPS





13. DUST COVER





12. CIRCLIP <LH>





11. UJ ASSEMBLY





10. UJ BOOT





9.  UJ BOOT BAND (LARGE)







DISASSEMBLY STEPS
(Continued)





8.  UJ BOOT BAND (SMALL)



6.  INNER RACE, CAGE AND BALL

ASSEMBLY



5. SNAP

RING





4. DOJ

OUTER

RACE





3. CIRCLIP



 >>A<<

7. DOJ

BOOT



 >>B<<

2.  DOJ BOOT BAND (LARGE)



 >>B<<

1.  DOJ BOOT BAND (SMALL)





ASSEMBLY

STEPS

(Continued)

AC000437AB

PLASTIC TAPE

ACX00981AB

A
